Home Theater Factory Embedded Speaker Speaker Home Theater Factory Original Product Operated by Abac Ultra-compact In-ceiling HF-SP250IC [1 Unit]

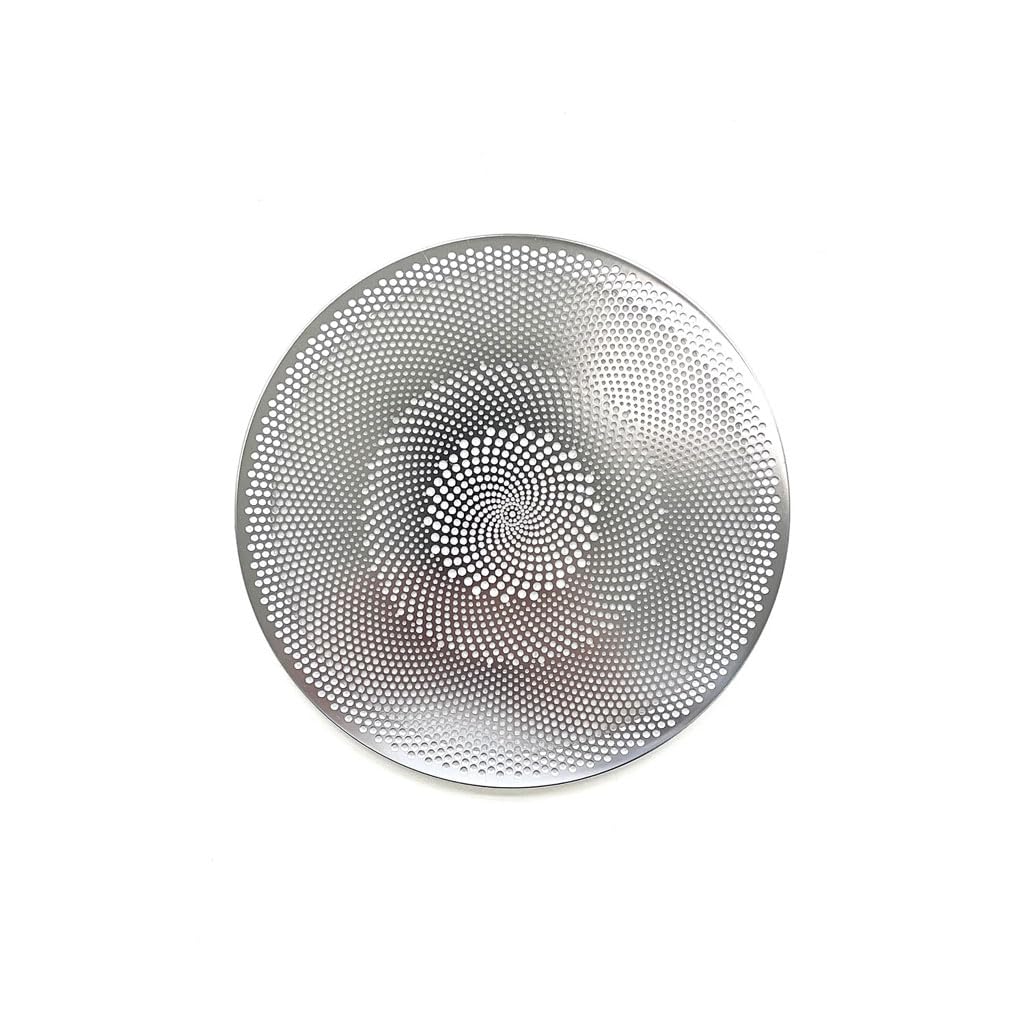

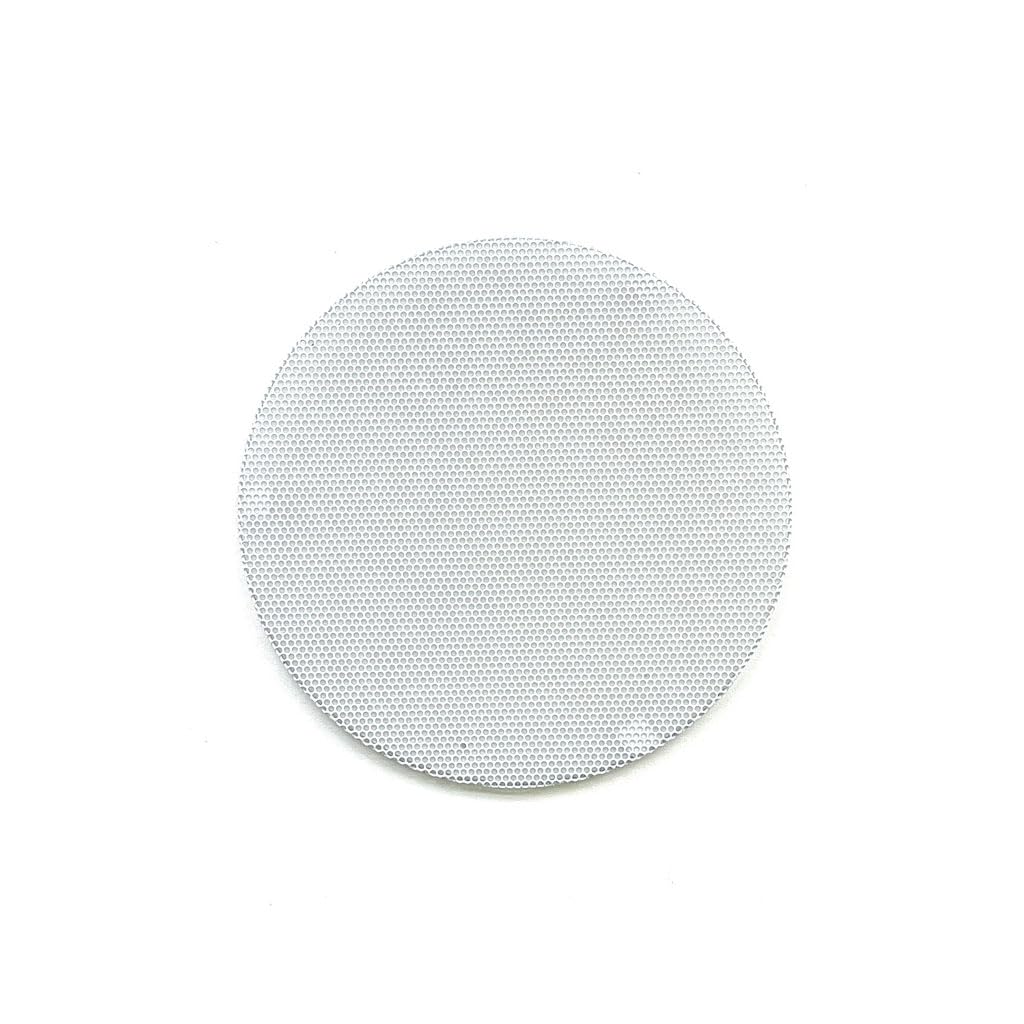

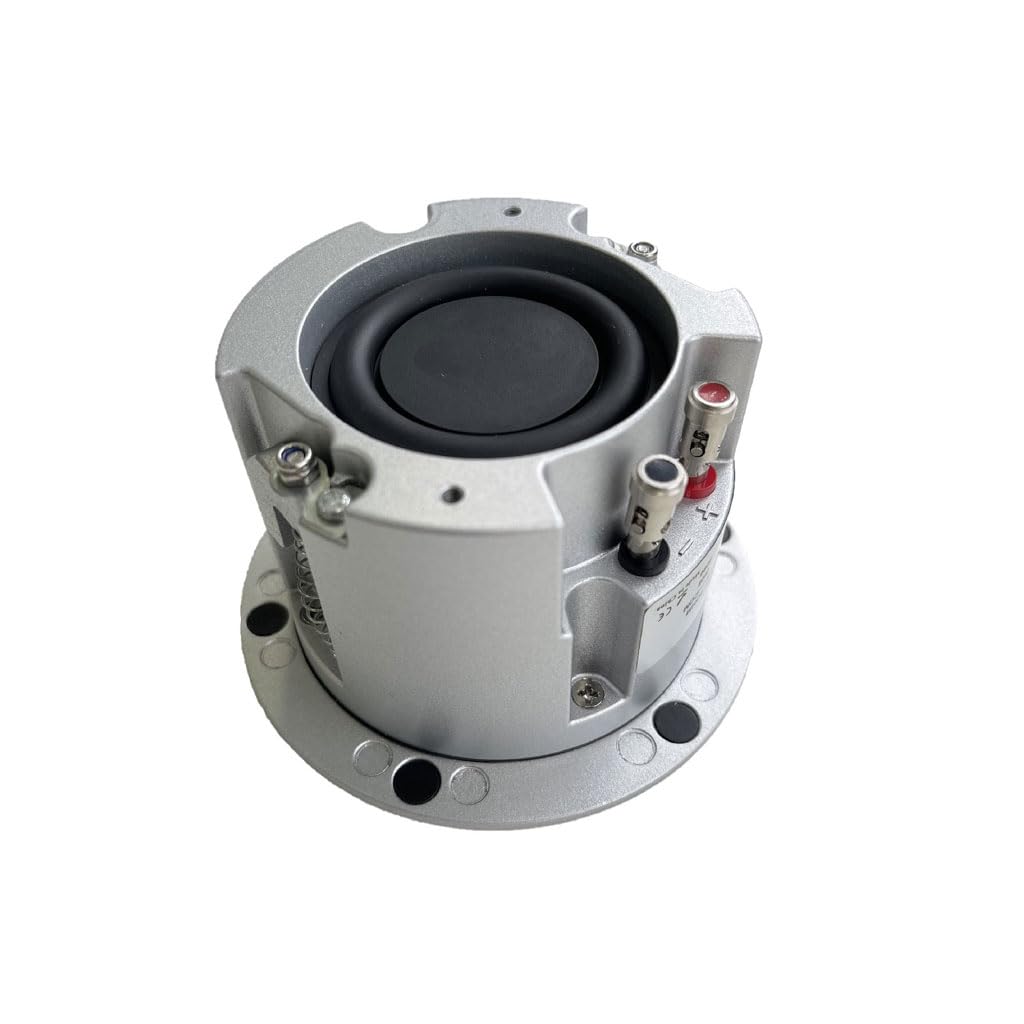

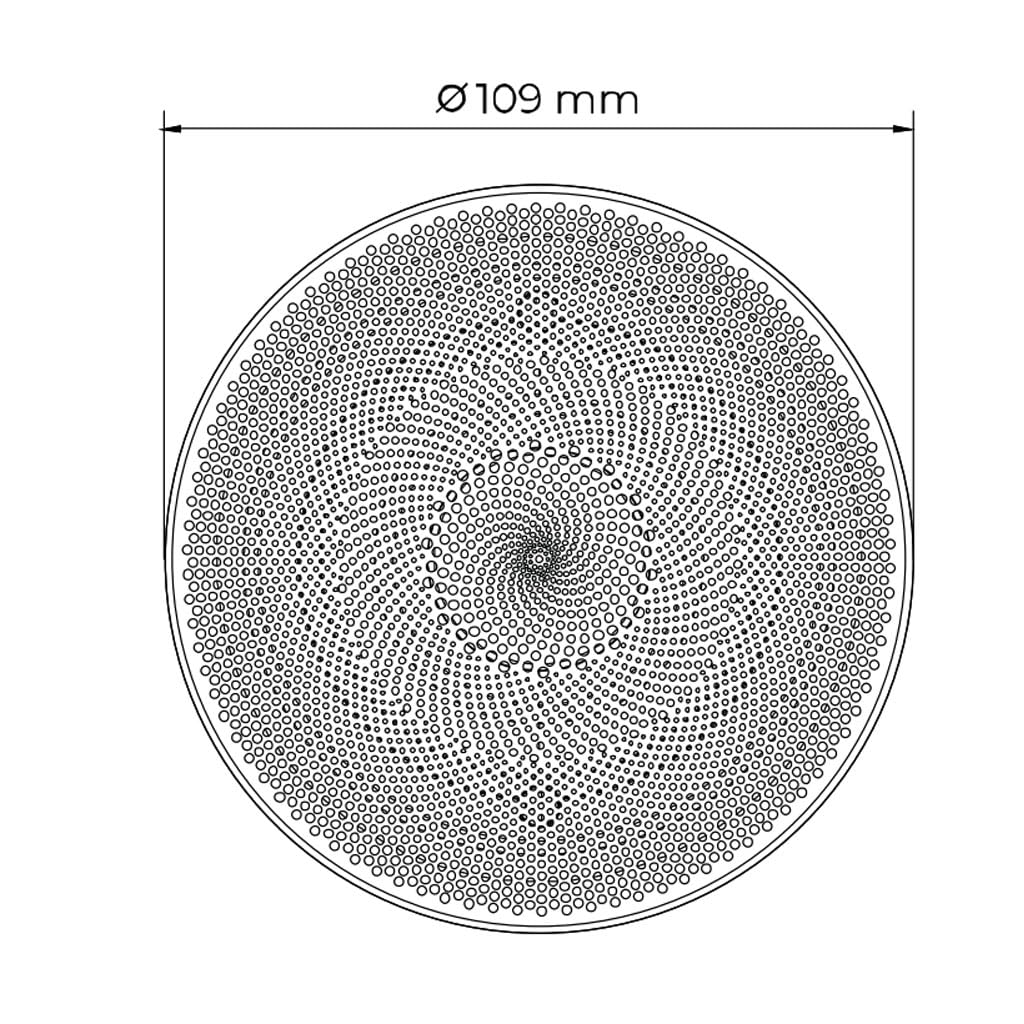

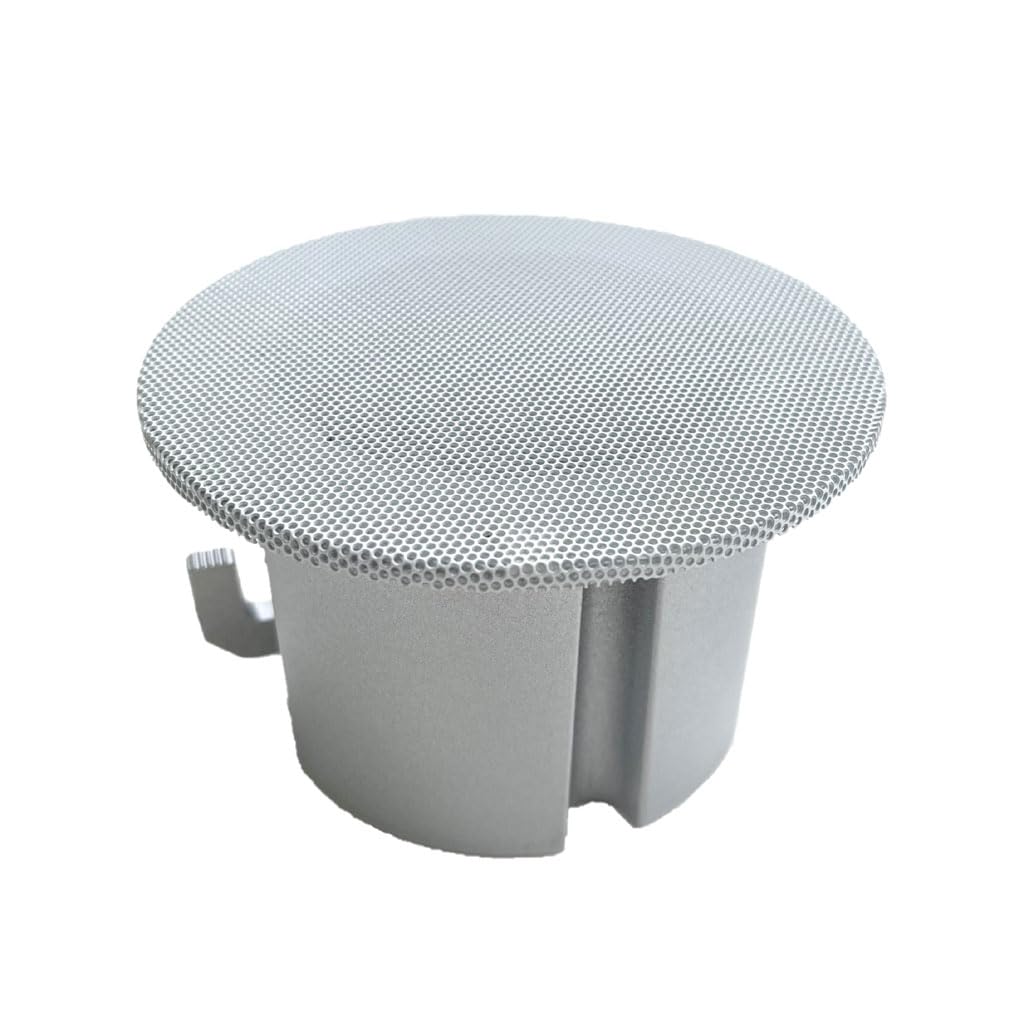

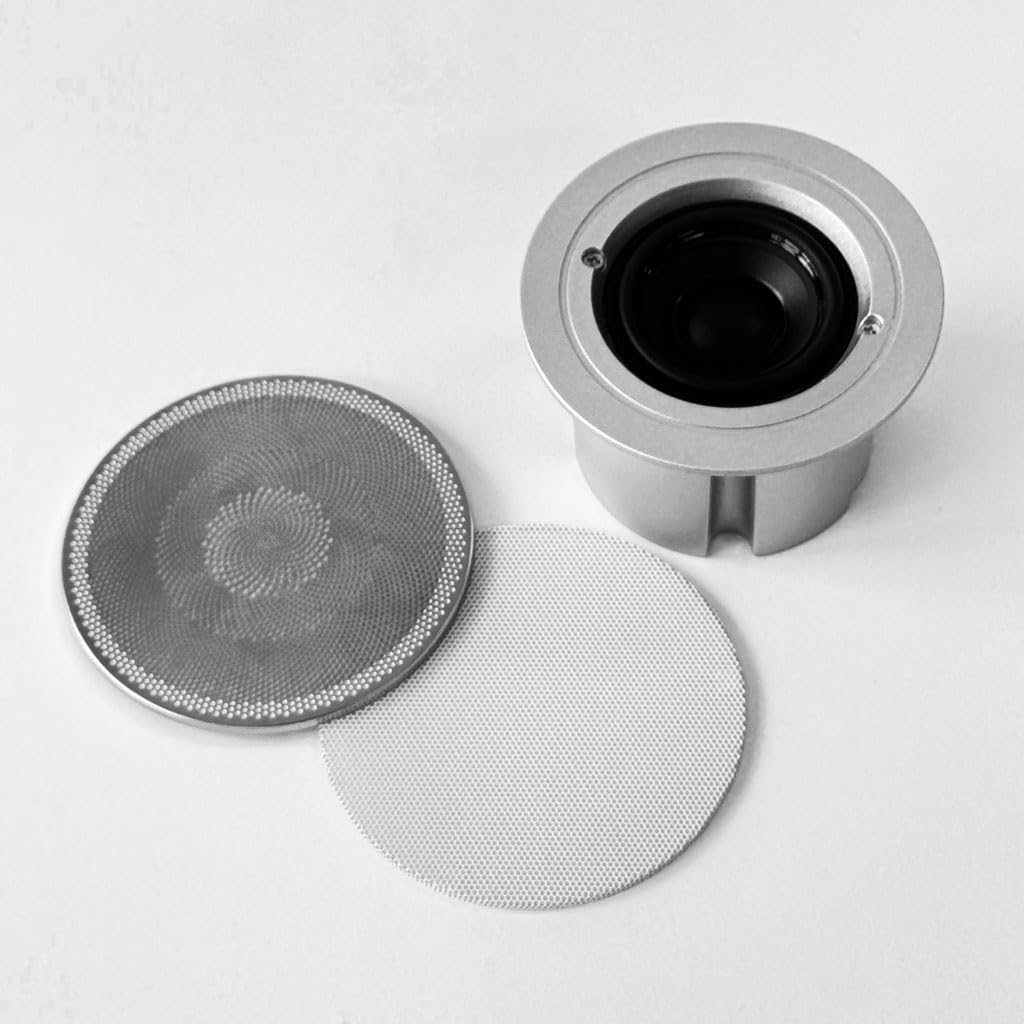

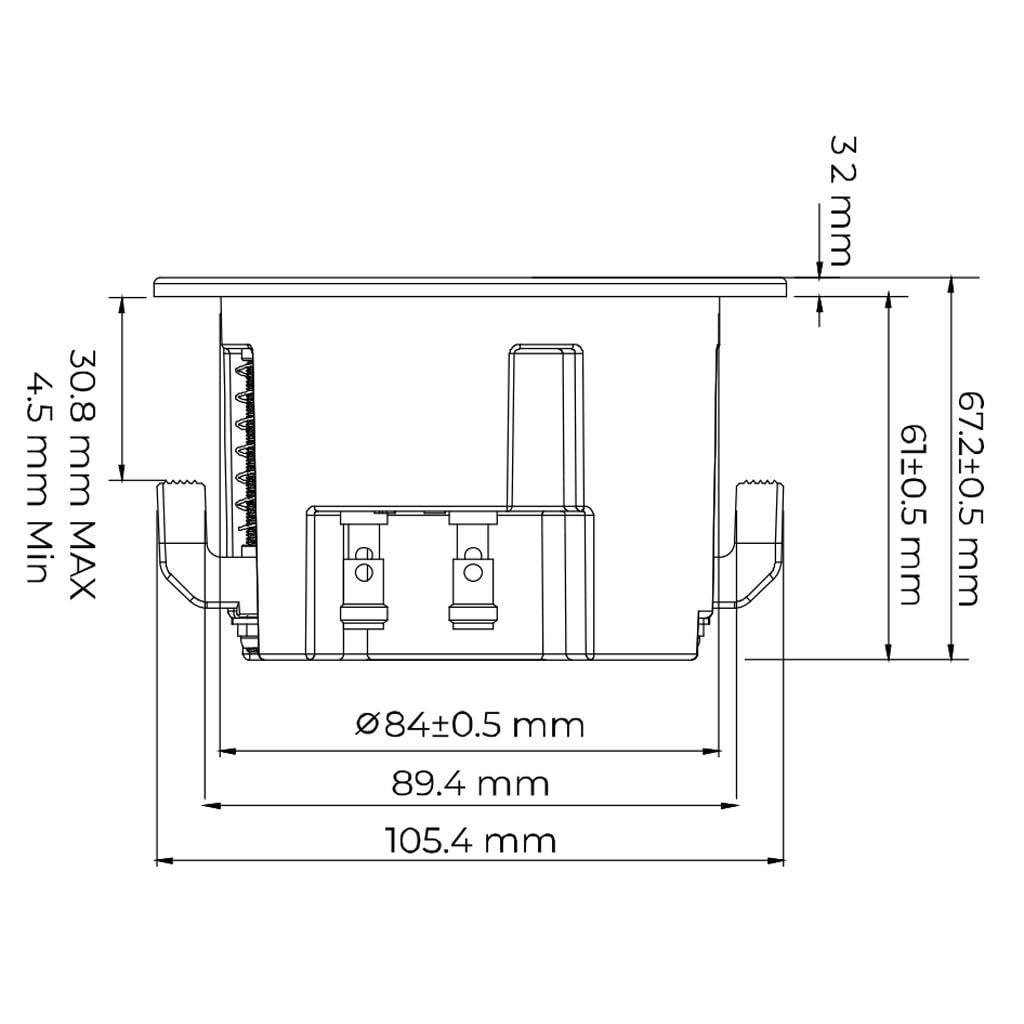

An original 2.5-inch ultra-compact embedded speaker from Home Theater Factory operated by Abac.It uses an aluminum die-cast back box, so it has high synthesis and exhibits excellent speaker characteristics even though it is an embedded speaker. 〇 Speaker ・2.5 inch full range unit ・Neodymium double magnet ・With passive radiator 〇 Reproduction impedance: 6Ω 〇 Input sensitivity: 86db (1w / 1m) 〇 Frequency characteristics: 70 ~ 20KHz 〇 Maximum input (PEAK): 40W 〇 Diameter x depth: 109mm x 67.2mm 〇 Cutout dimension: Φ86mm 〇 Installation thickness: 68mm 〇 Weight: 0.39kg 〇Accessories: Saran net (white/silver)/cutout base/instruction manual 2.5 inch ultra-compact embedded speaker This is an ultra-compact embedded speaker that is the size of a downlight. Since it uses an aluminum die-cast back box, it has high synthesis and exhibits excellent speaker characteristics even though it is an embedded speaker. Saran net (magnetic, removable) for protecting the unit comes in two colors, white and silver, and can be used depending on the design of the room in which it is installed. ■Speaker installation 1. Preparation for installation Drill a hole with the diameter to embed the speaker at the speaker installation location on the ceiling. 2. Connecting the speaker Correctly connect the positive and negative terminals of the speaker cable to the speaker terminals. *Terminal polarity: Red terminal - positive (+) pole / Black terminal - negative (-) pole 3. Setting the speaker After completing the wiring, set the speaker in the hole in the ceiling made in step 1. 4. Installing the speaker Use a screwdriver to tighten the screws on the mounting tab and attach it to the ceiling. After tightening, try moving the speaker by hand to check if you forgot to tighten it or if it is loose. 5. Setting the grill Once the installation is complete, attach the snap grill to the speaker. All installation is now complete. *You will hear the sound of the grill hitting the magnet. Equipped with a 2.5-inch passive radiator* on the back of the main unit, it reproduces rich bass even though it is a small speaker (frequency response: 70Hz to 20kHz) *A passive radiator is a speaker unit that does not have an electromagnetic circuit. Equipped with a screw-in clamp made of the same die-cast aluminum as the body, allowing for speedy and reliable installation. The main unit can also be easily removed (maximum installation thickness: 68mm) Equipped with a 2.5-inch passive radiator* on the back of the main unit, it reproduces rich bass even though it is a small speaker (frequency characteristics: 70Hz to 20kHz) *A passive radiator is a speaker unit that does not have an electromagnetic circuit.Equipped with a screw-in clamp made from the same die-cast aluminum as the body, allowing for speedy and reliable installation. The main unit can be easily removed (maximum installation thickness: 68 mm) Equipped with a metal wire spring terminal to securely hold the speaker cable (insertion hole: 3 mm diameter)
