Hign-concerned Chemical : None
Type : Voltage Regulator
Origin : China
Condition : New
Parameters：

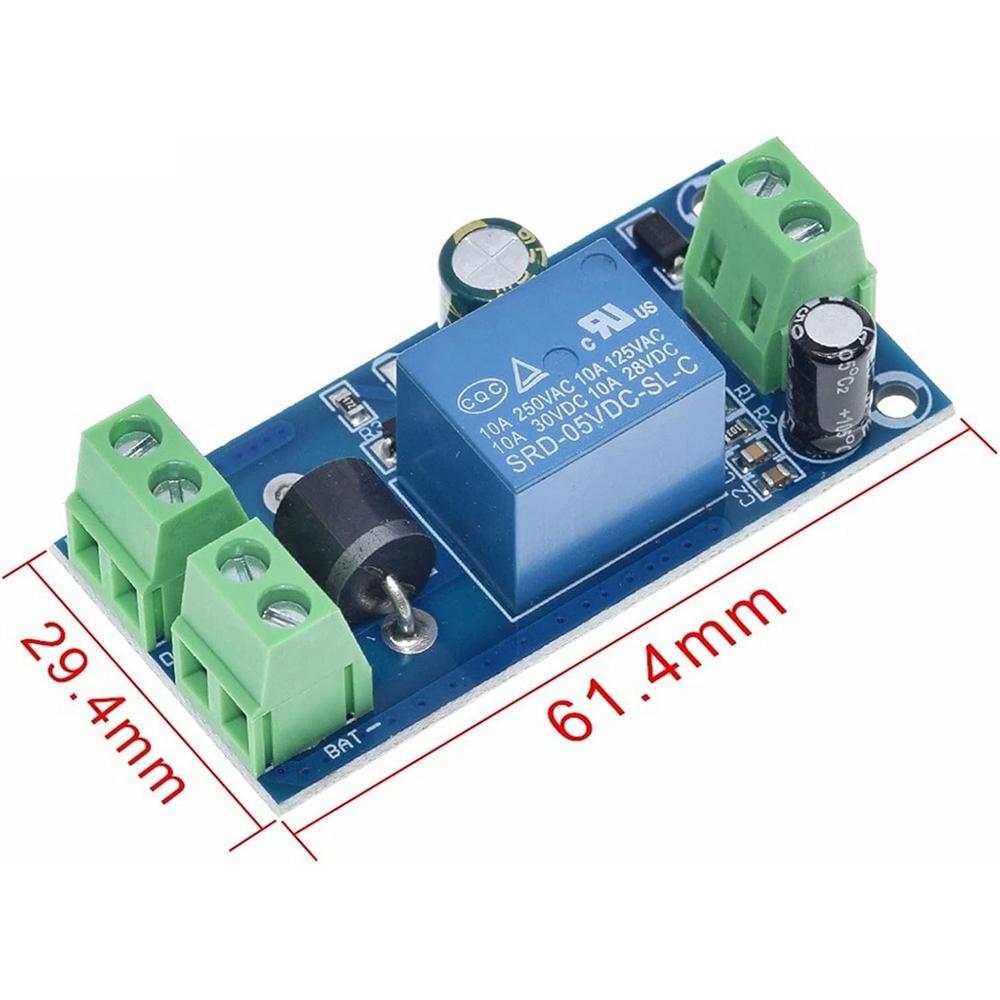

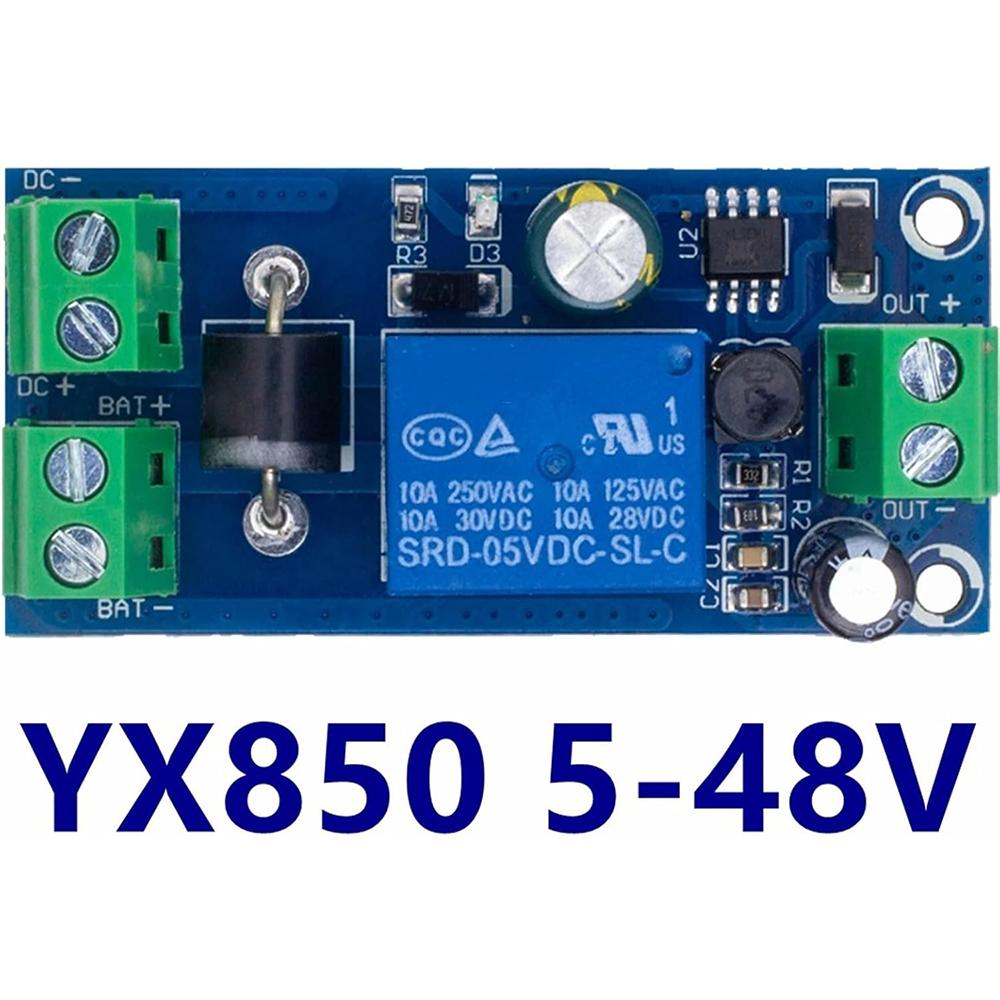

Product Model: YX850
Scope of Application: DC5V-48V
Product Load: 10A
The battery can be charged when the power adapter is powered.
The specific charging parameters depend on your own power adapter
(or charger) and battery relationship, has nothing to do with this module,Note that there is a zero-second power outage when switching.
When the DC terminal has power, it is preferred to supply power to the load.
Automatically switch battery to power the load when there is no power at the DC terminal
When the DC power supply is powered, the power supply is preferentially selected and the battery is charged.
When the DC power supply is de- energized, the battery is automatically switched.
DC5V-48V automatic identification:
When the DC terminal has power, it is conneted to the battery to charge.
Charging parameters have nothing to do with this module, depending on your DC terminal, battery, and load.
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
