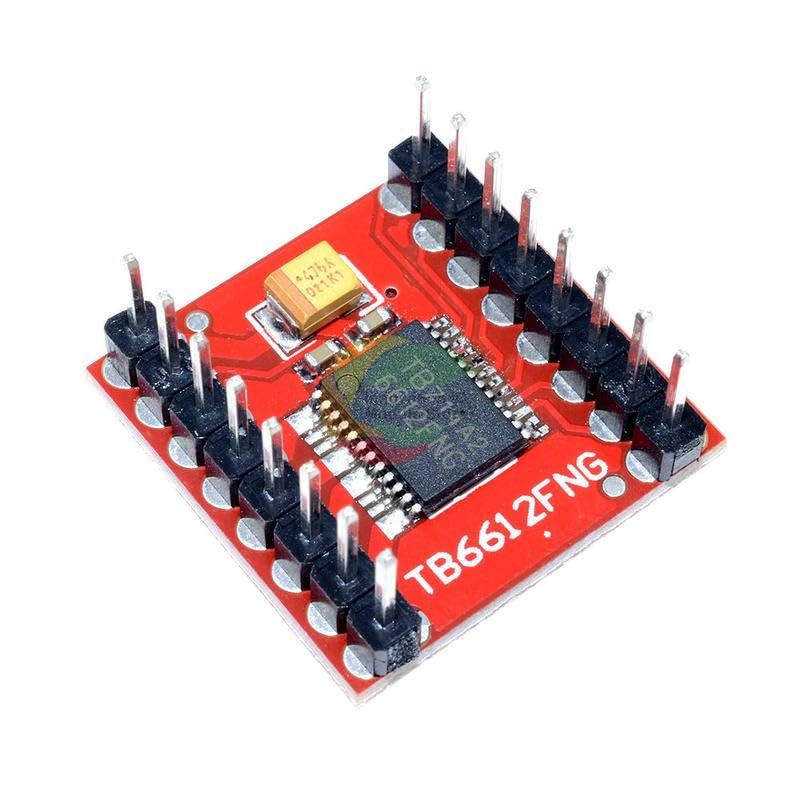

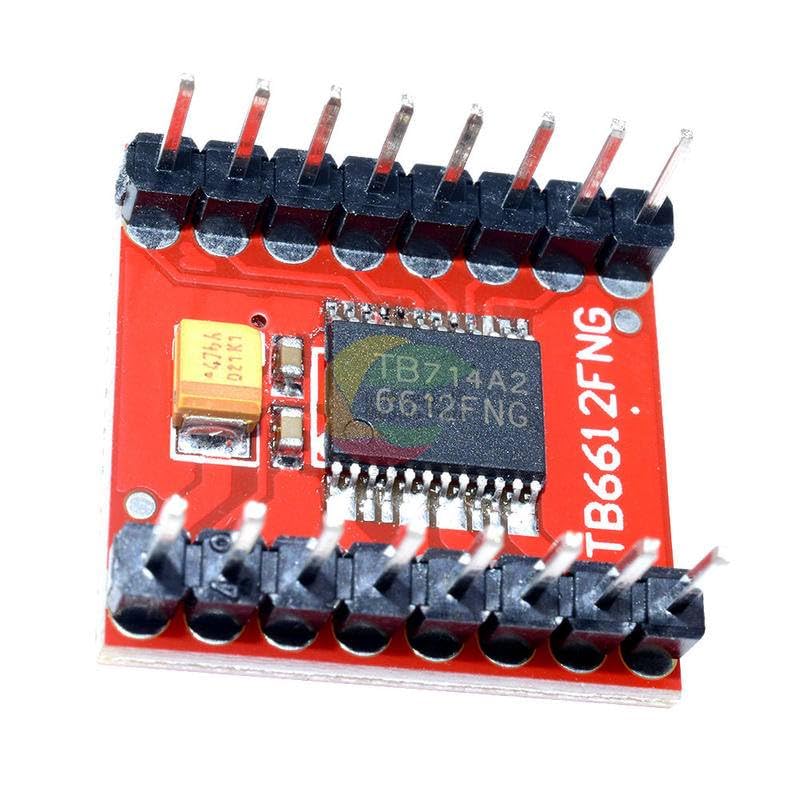

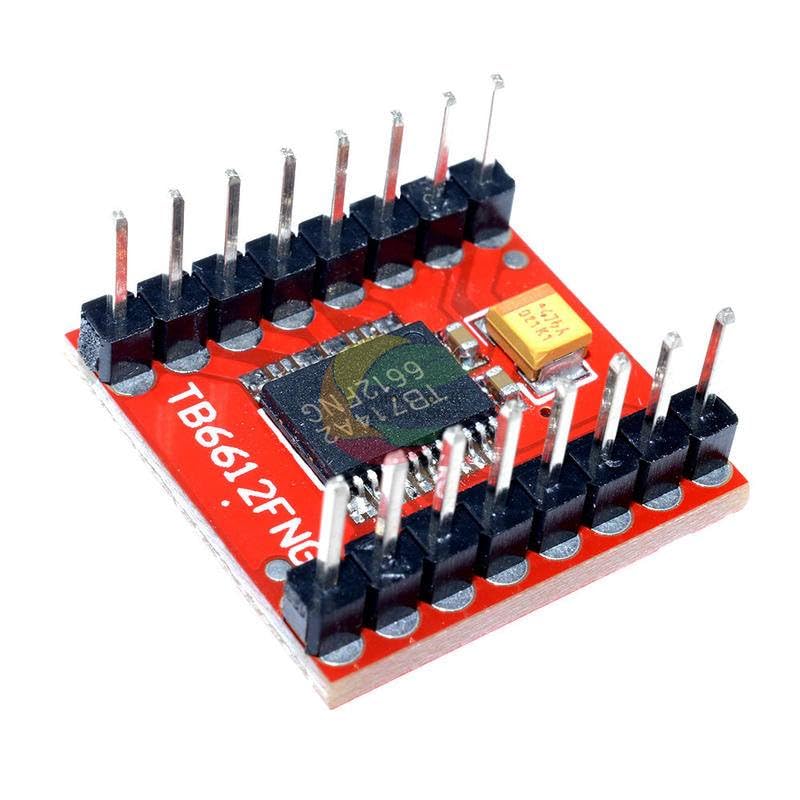

TB6612 Dual Motor Driver 1A TB6612FNG Microcontroller with Pin for Replace L298N

Hign-concerned Chemical : None Type : Voltage Regulator Origin : China Condition : New

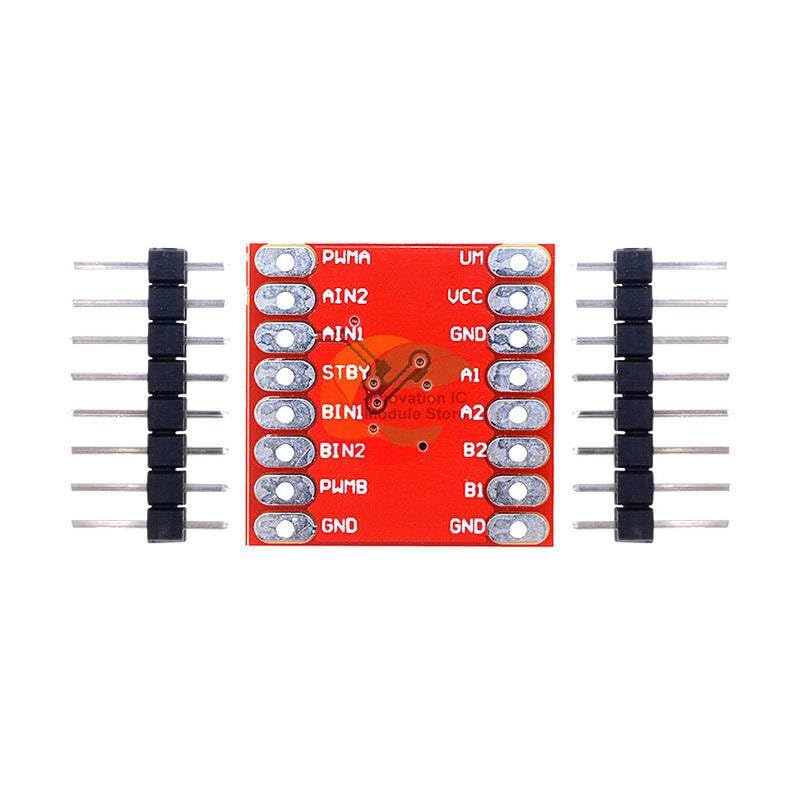

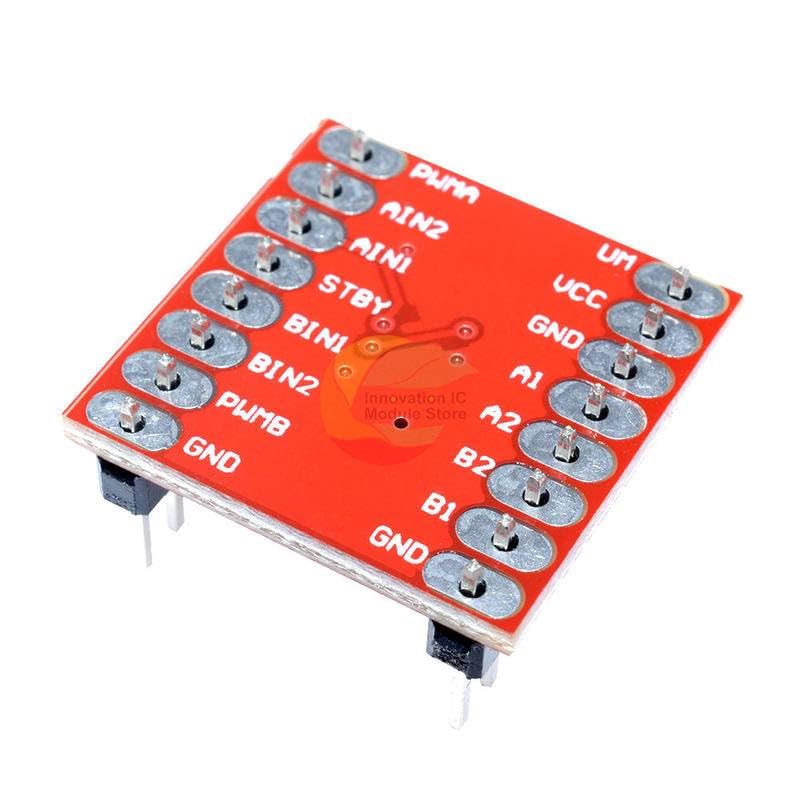

Feature: Power supply voltage: VM=15V max, VCC=2.7-5.5V Output current: Iout=1.2A(average) / 3.2A (peak) Standby control to save power CW/CCW/short brake/stop motor control modes Built-in thermal shutdown circuit and low voltage detecting circuit All pins of the TB6612FNG broken out to 0.1" spaced pins Filtering capacitors on both supply lines Dimensions: 0.8x0.8" Package Included: 1 * TB6612 Dual Motor Driver 1A TB6612FNG Microcontroller with Pin for Replace L298N

The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.

In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.

All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.

This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
