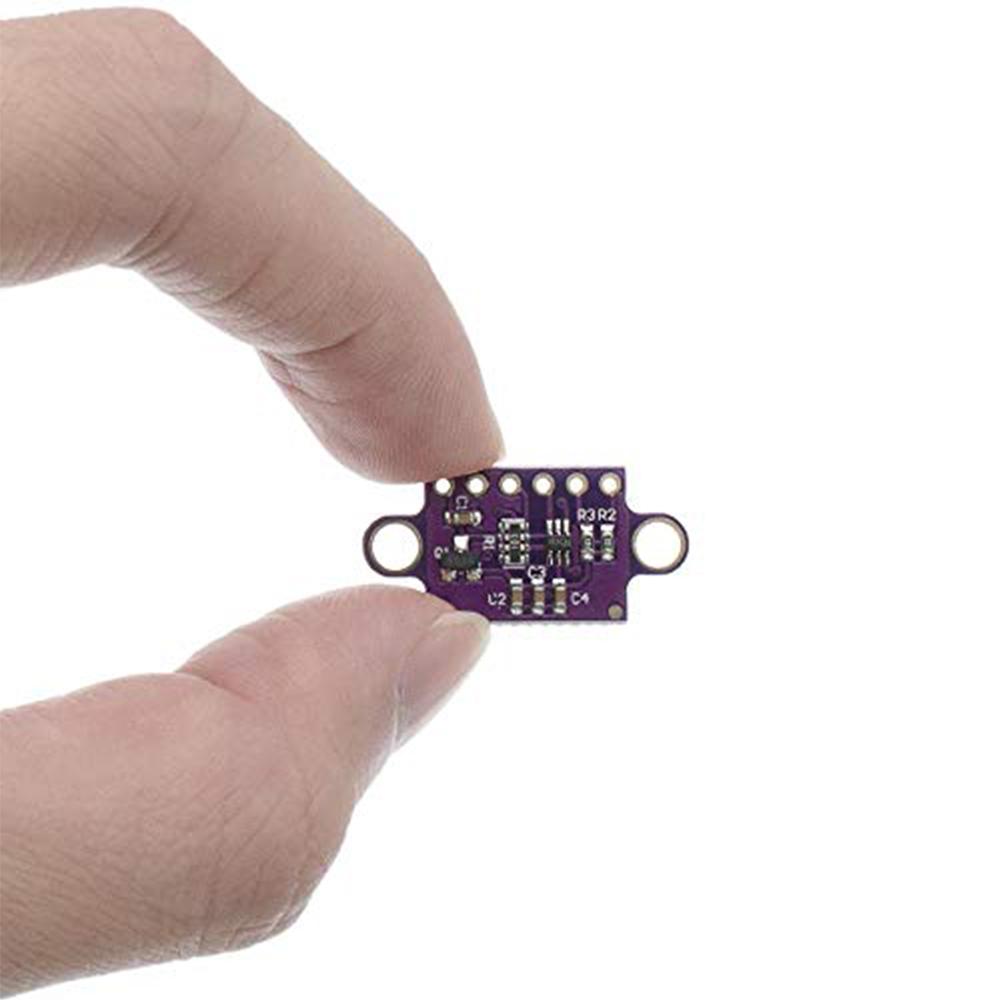

VL53L0X Time-of-Flight Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Laser Flight Distance Measurement Module

Hign-concerned Chemical : None Type : Voltage Regulator Origin : China Condition : New

Parameter: 1. ToF ranging length: ≤2M 2. Accuracy: up to ±3% (affected by environmental conditions and target characteristics) 3. Ranging time: ≤30ms 4. Power consumption: 20mW 5. Standby power consumption: 5μA

Note: 1. The VL53L0X is a great IC, but its small, LGA package makes it difficult for the typical student or hobbyist to use. 2. VL53L0X is operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.

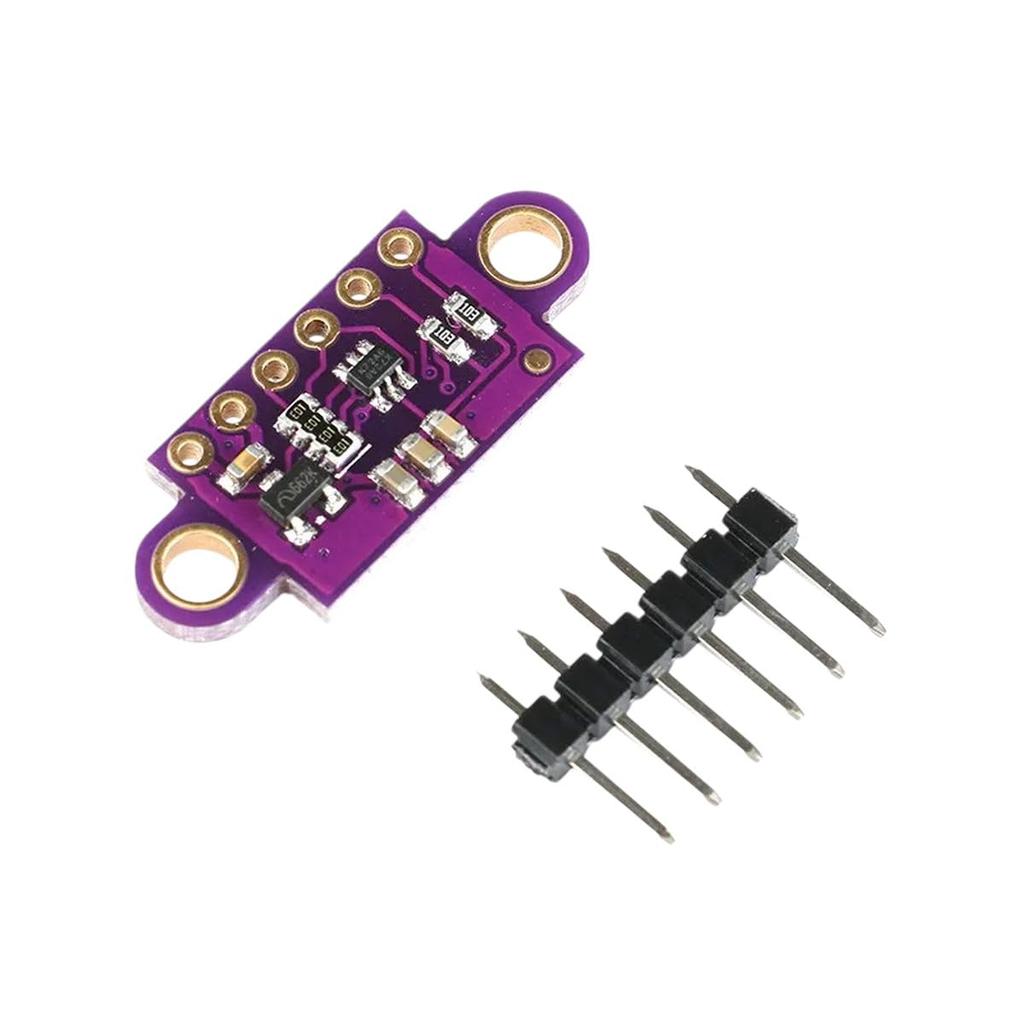

Package includes: 1* VL53L0XV2 Time-of-Flight (ToF) Laser Ranging Sensor

The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.

In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.

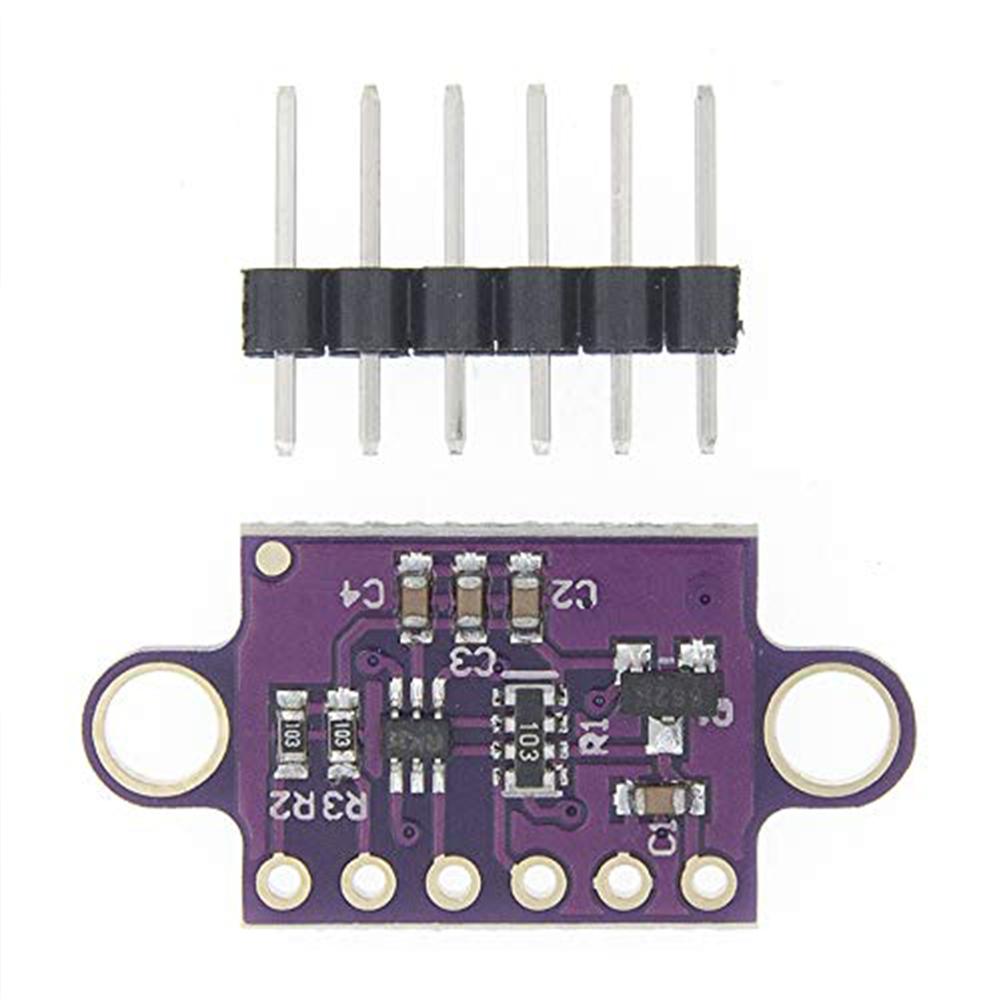

All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.

This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
