Specifications:
Material: Fiberglass Panels
Driver Board Size: 2.76*0.79in/7x2cm
Input: DC 10-30V
LED Sstrip Size: Length 13.78in/350mm
Features:
This backlight strip is perfectly design for screen, high brightness, environmental protection and energy saving.
LED particles closely, high-density arrangement ,import highlight LED strips.
Long service life, with lifetime of 100000 hours.
Easy to install, use double-sided adhesive can be attached to the display original LCD groove, or elsewhere.
Installation:
If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;
If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance), and then unplug the power supply,
use a multimeter to find and 12V (capacitance) Disconnect original connecting
the negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive
electrode of hign-voltage intergrated power supply board,GND is connected with the negative electrode, ON connect with the ON / OFF.
In simple terms, tThe original high voltage power supply is disconnected,instead of the inverter,
In the original high-pressure front to take power
Pin description:
VIN: Voltage
ENA: ON/OFF
DIM: ADJ adjust brightness
GND: Connecting Ground

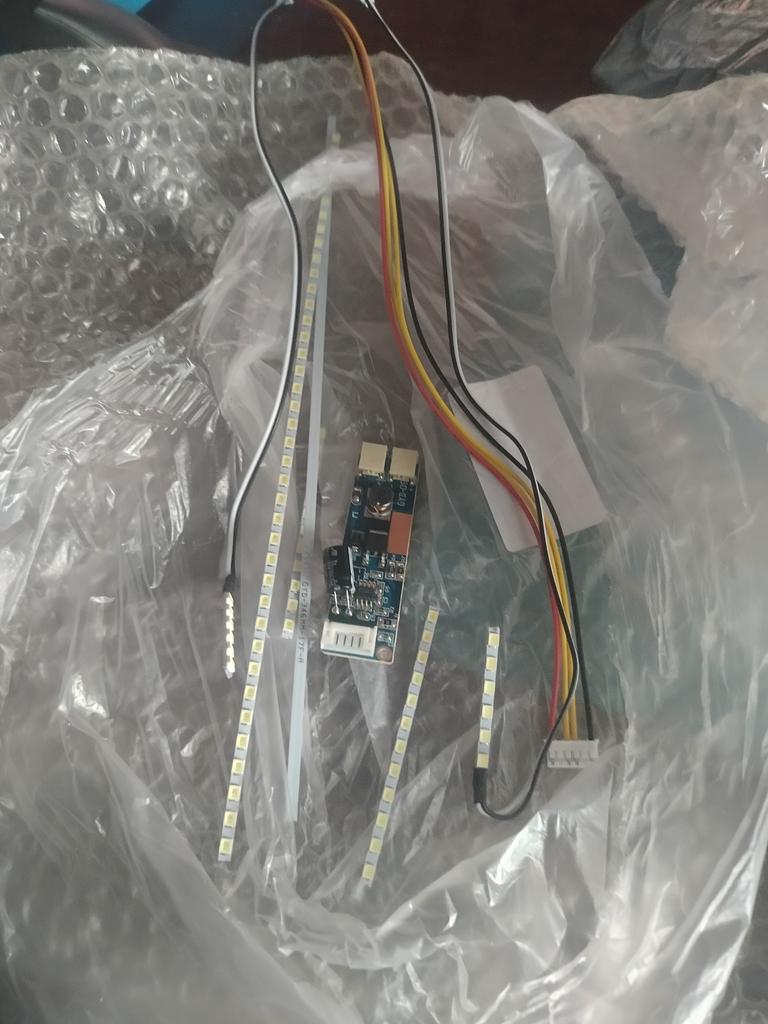

Package Includes:1 Set=2 x LED Strips , 1 x Driver Board , 1 x Cable
Notes:
Due to differences in lighting and screen settings, the color of this item may vary slightly from the picture.
Please allow slight size differences due to different manual measurements.
