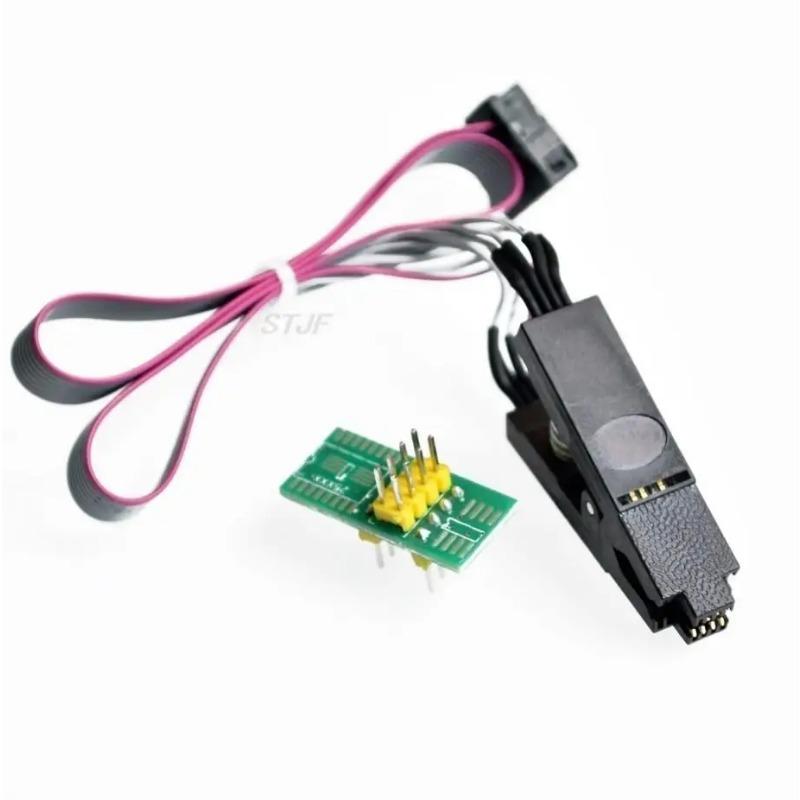

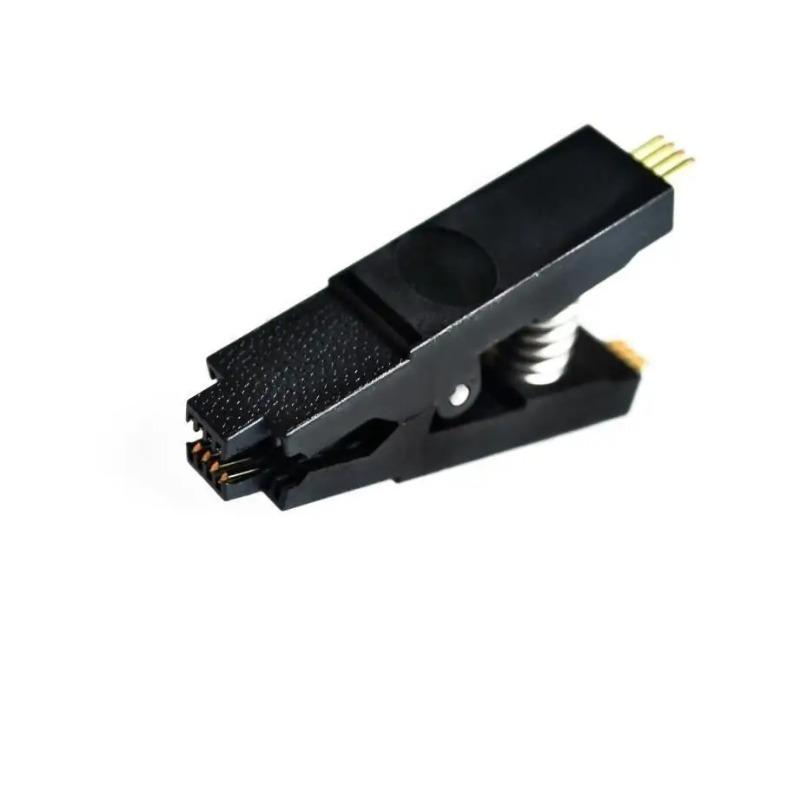

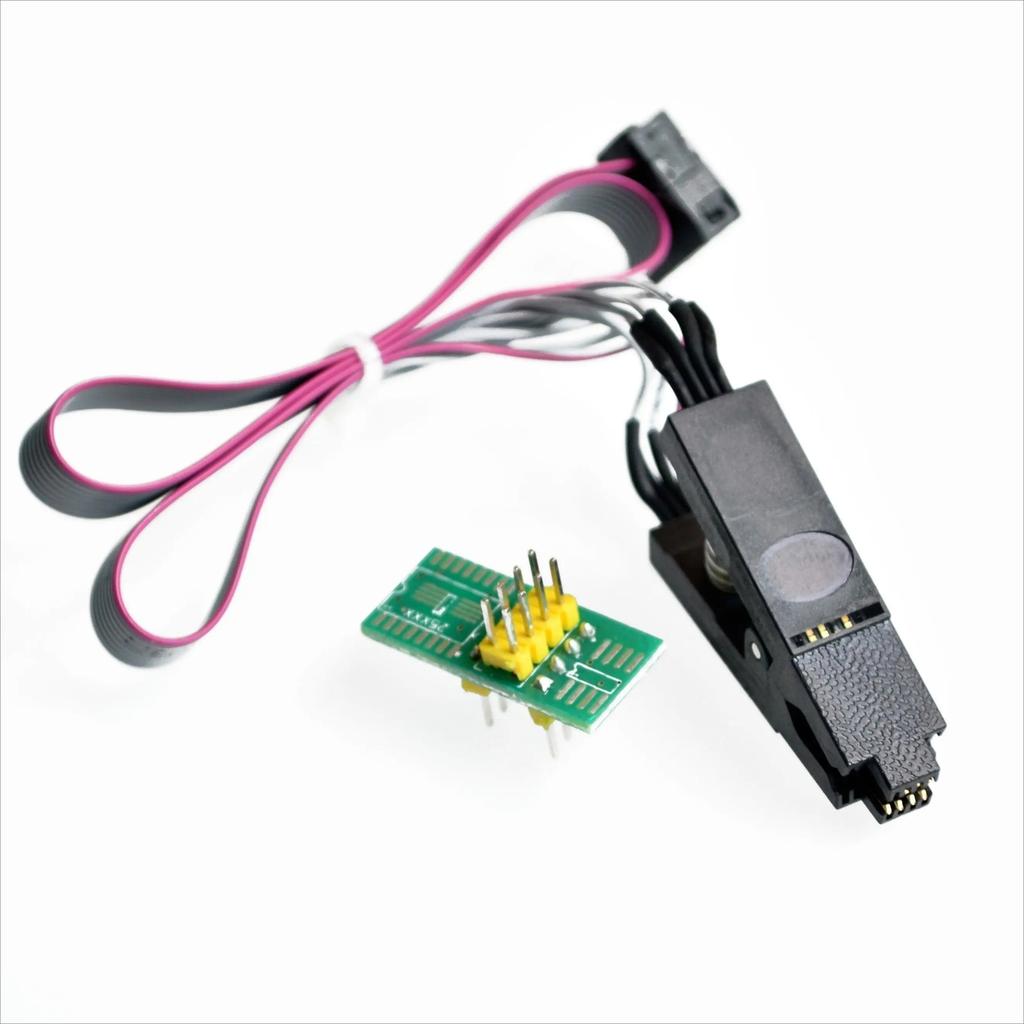

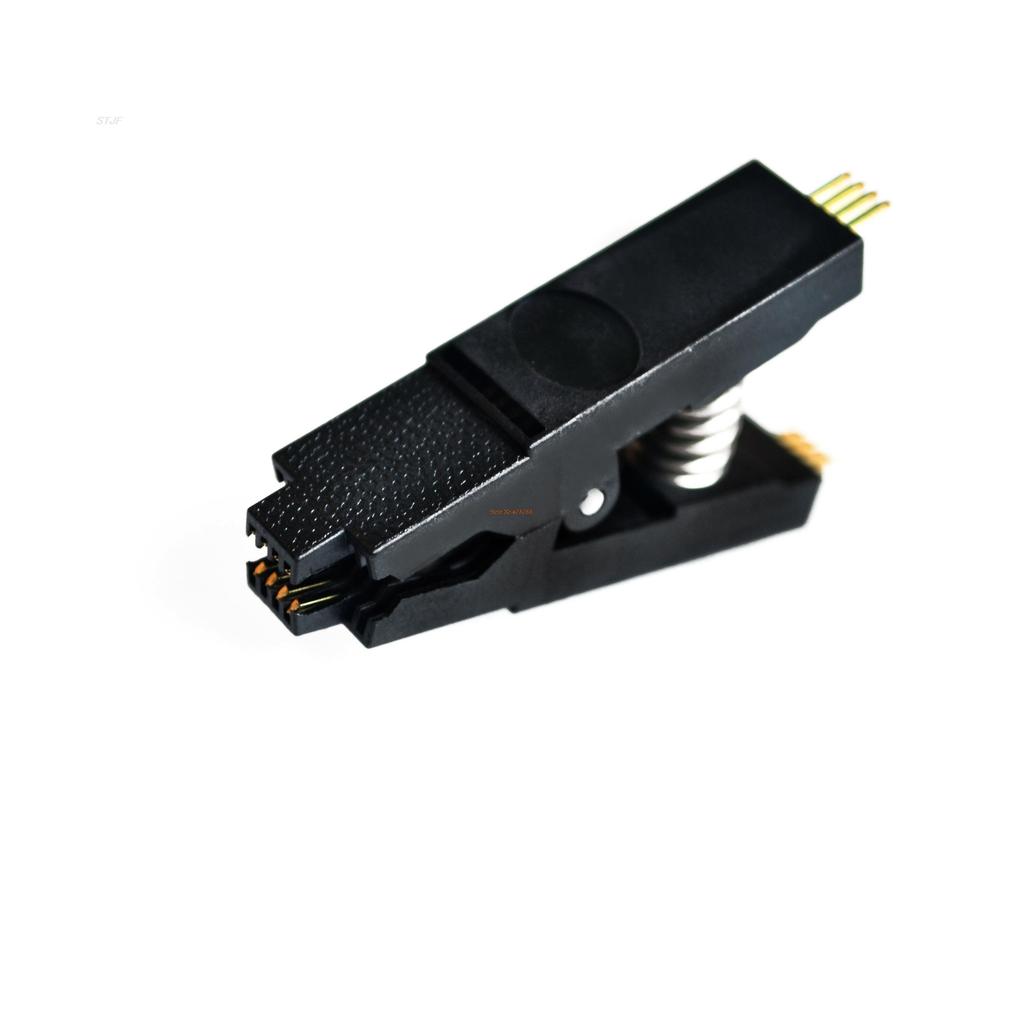

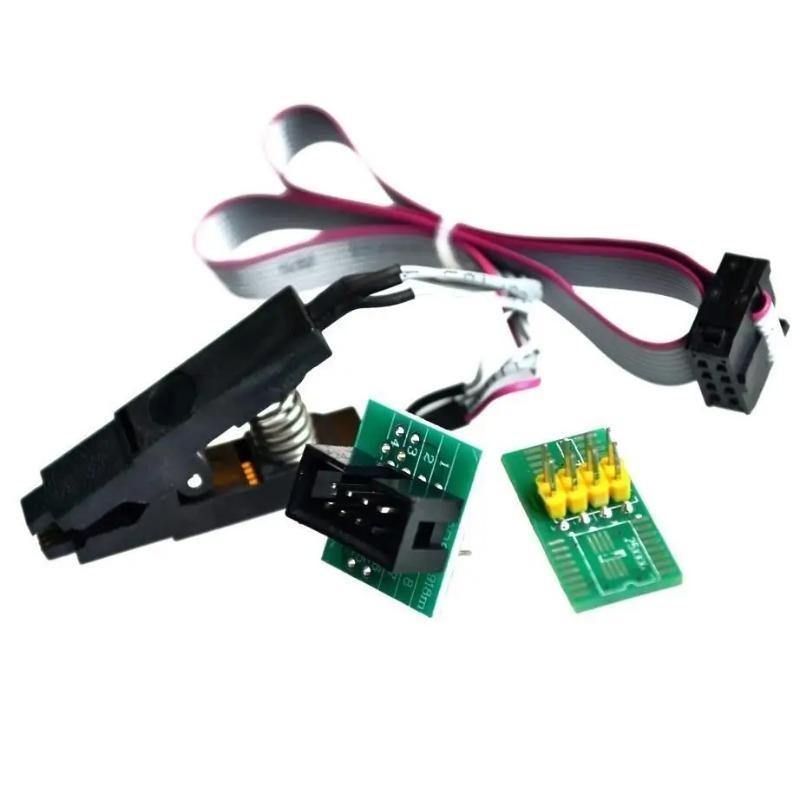

CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module + SOIC8 SOP8 Test Clip For EEPROM 93CXX / 25CXX / 24CXX DIY KIT

Package : DIY Module

Model Number : CH341A Dissipation Power : ... Supply Voltage : ... Application : Computer Type : Voltage Regulator

Origin : China Condition : New Operating Temperature : -40℃~+80℃ Functions : Electronic Module Range of application : Switch And Sensor For Arduino STM

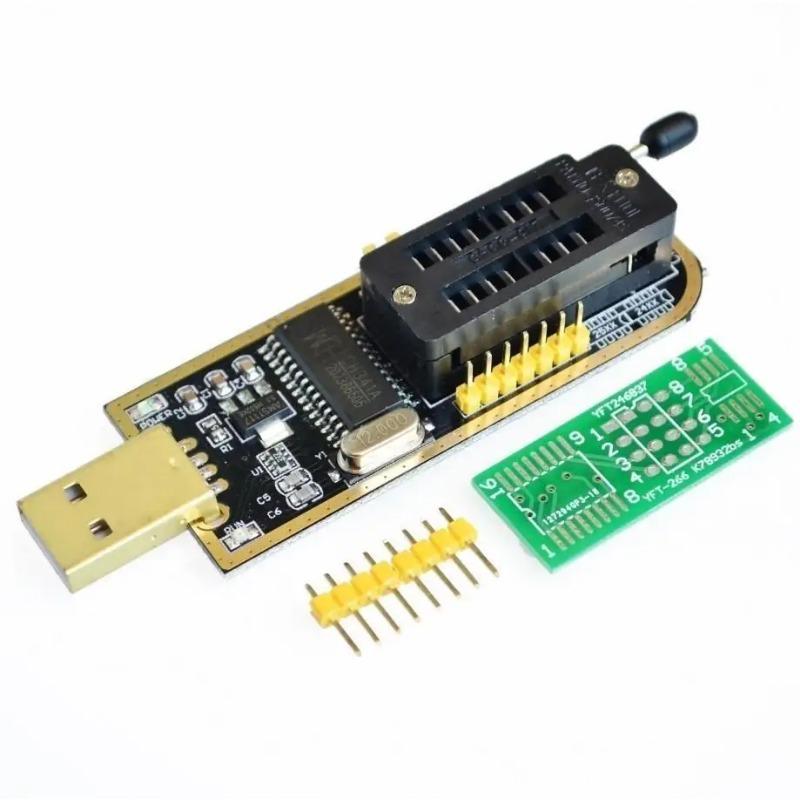

USB Programmer Condition: New Support 24EEPROM and 25 SPI flash 8pin/16pin chip USB to TTL port, can getroot online With CH341A chip Recognize 25 series chip automatically And support download STC series procedure of singlechip With 24/25 status indicator lamp SPI pin to support expanding the utility Color is shown as pictures PLS NOTE that due to lighting effects, monitor's brightness/ contrass settings ect, there could be some slight differences in the color tone of the pictures and the actual item! Provide 5V-3.3V power supply output Dimension:70mm x 27mm

The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.

In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.

All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.

This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
