6-inch waterproof round recessed speaker for 100V applications
Economical 6-inch wall speaker with built-in 100V line transformer designed for a wide range of sound reinforcement installations, including areas with high humidity or exposed to water or rain. The speaker has a conical polypropylene diaphragm and meets the IP-44 water and dust protection standard according to EN 60529 and EN ISO 9227 standards:2006.

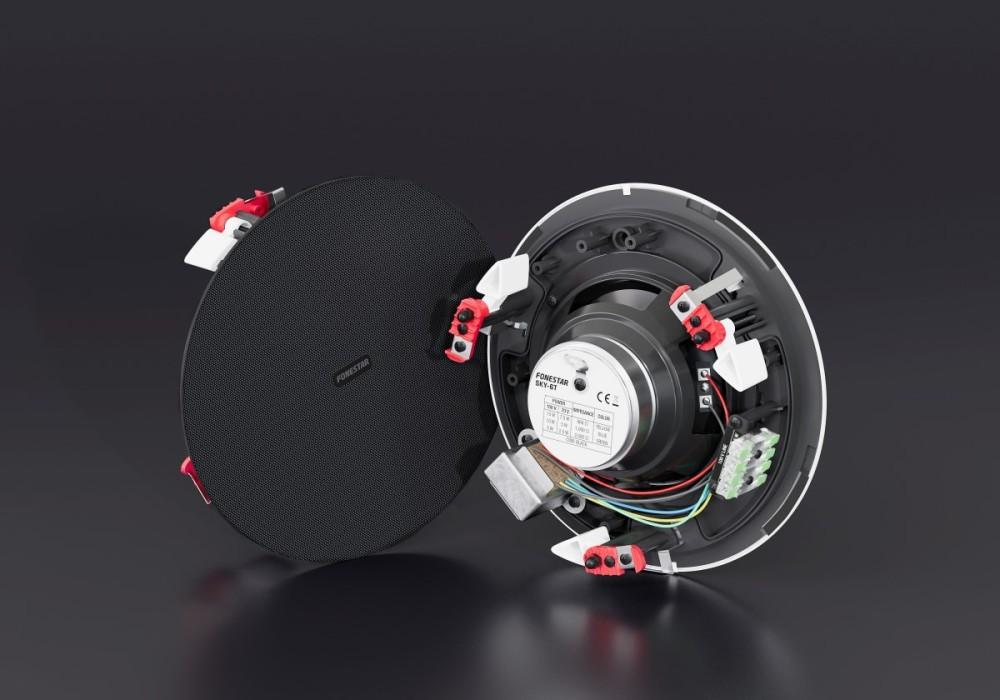

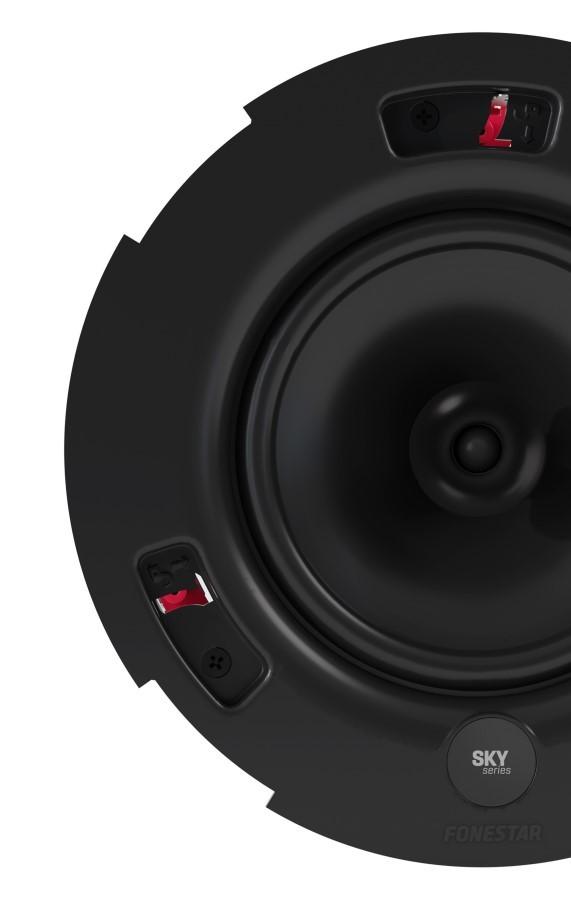

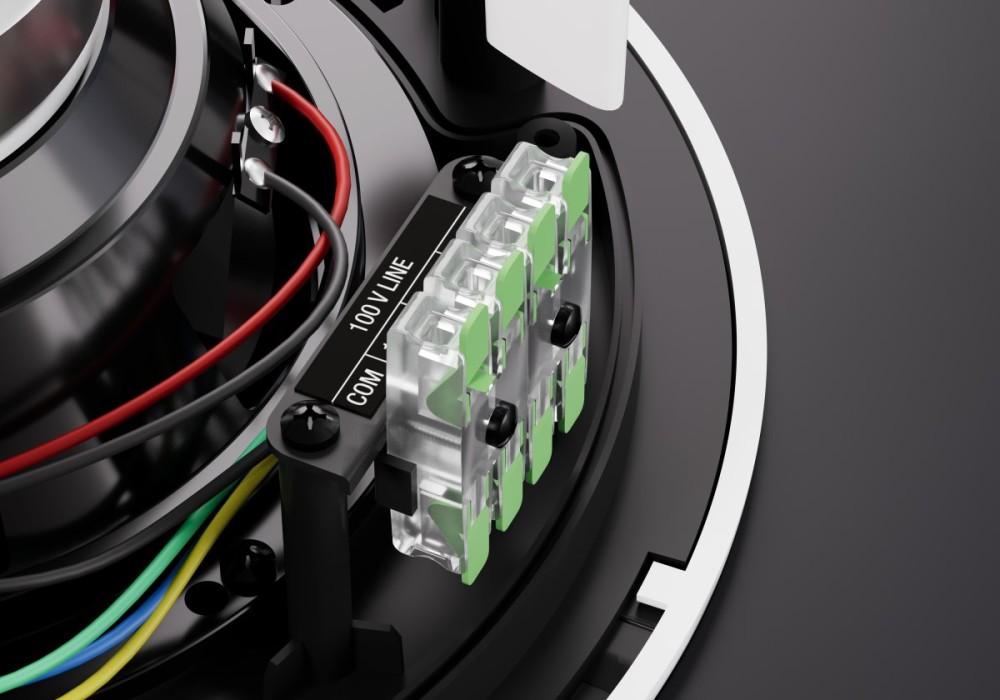

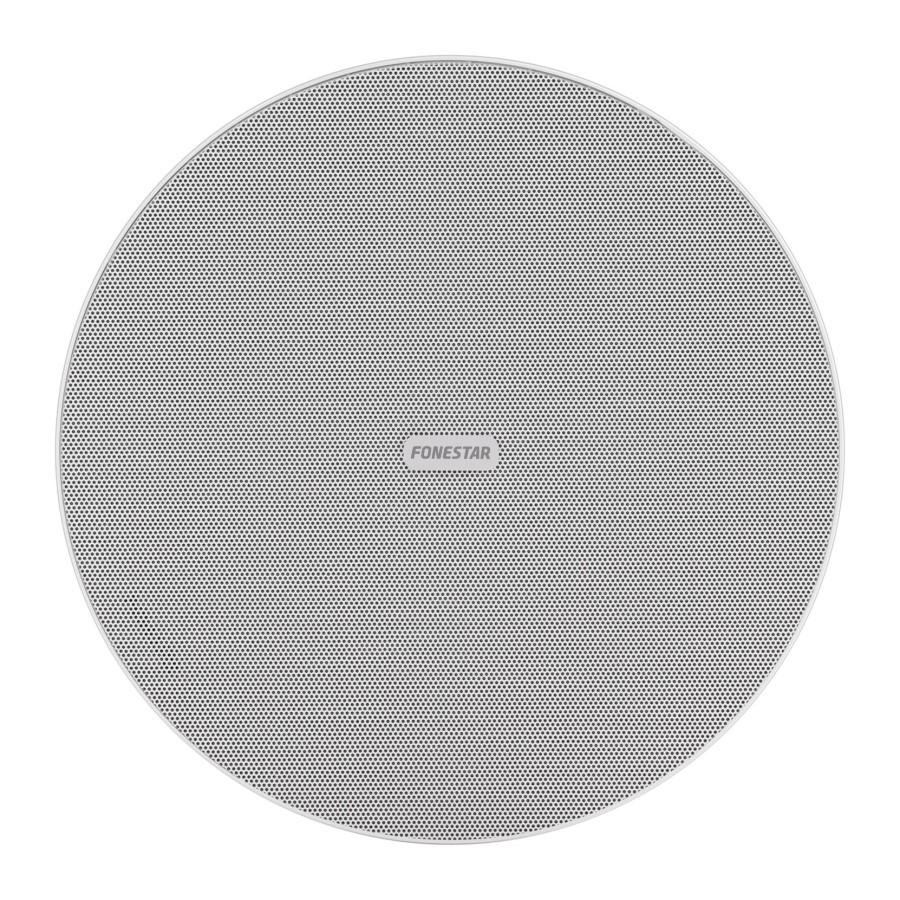

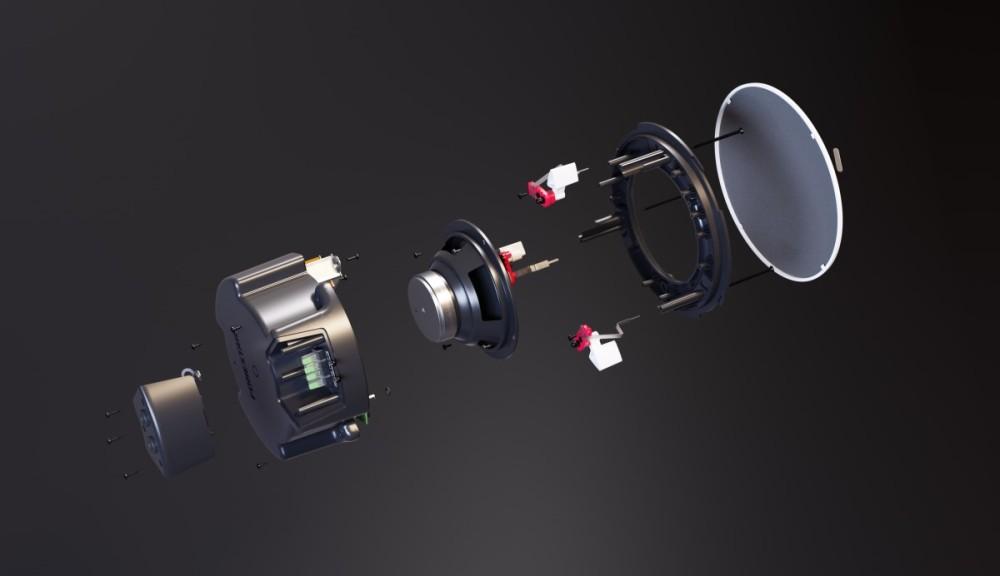

The part made of ABS plastic is UV-resistant and, combined with the stainless aluminum radiator cover, guarantees a high level of durability.. The low-profile radiator cover has no visible frame and is equipped with a removable, rotatable logo that can be removed and the cover painted a different color if needed.. The assembly itself is quick and easy thanks to the snap-fit mounting system, which reduces assembly time and minimizes the risk of the speaker falling during installation - hook for safety cable. The screws remain completely hidden behind the grille. Cables with a cross-section of 0.4 ~ 4 mm² are connected to speaker terminals with high-conductivity contacts.
This speaker is particularly suitable for economical sound systems, where it can clearly reproduce spoken words or background music.. It has a wide range of radiation and can be used in commercial premises, hotels, bathrooms, kitchens, waiting rooms, ambulances, or school classrooms.
Price for 1 piece
TECHNICAL DATA
Power:15 W RMS / 20 W max.
Loudspeaker:1 x 6", full-range with polypropylene cone membrane
Frequency range:55 - 18 000 Hz at - 10 dB / 85 - 7 500 Hz at - 3 dB

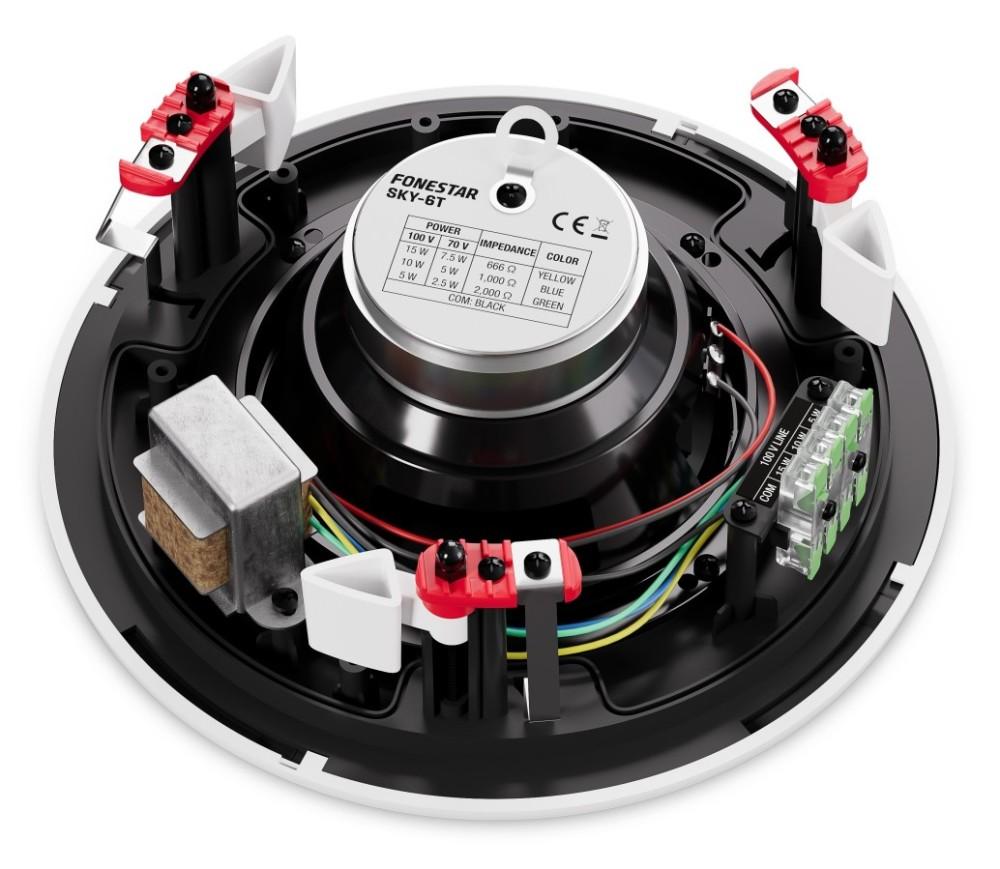

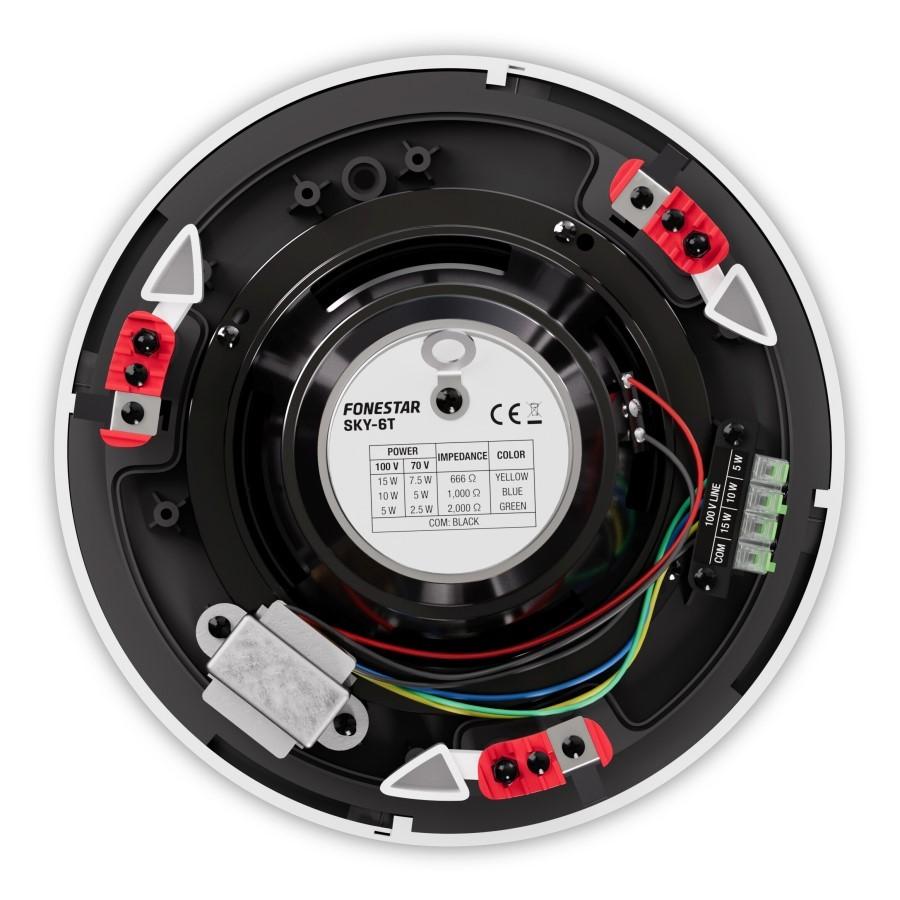

Impedance:15 W RMS at 100 V (666 Ohm) / 10 W RMS at 100 V (1000 Ω) / 5 W RMS at 100 V (2000 Ω)
Tenderness:88 dB at 1 W / 1 m
Acoustic pressure:97 dB @ max. W / 1m - constant / 100 dB @ max. W / 1 m - peak
Beam angle:V (-6dB): 150º @ 500 Hz, 150º @ 1 kHz, 90º @ 2 kHz, 60º @ 4 kHz
Resistance:IP-44 according to standards EN 60529, EN ISO 9227:2006 (neutral salt spray test)
Working temperature:5º C ~ 40° C / humidity 90%
Color:White RAL 9003
Dimensions:Ø 249 mm, depth 85 mm / 5 mm grid
Mounting hole:Ø 219 mm
Mounting depth:80mm
Maximum thickness of ceiling board:30mm
Libra:0,95 kg

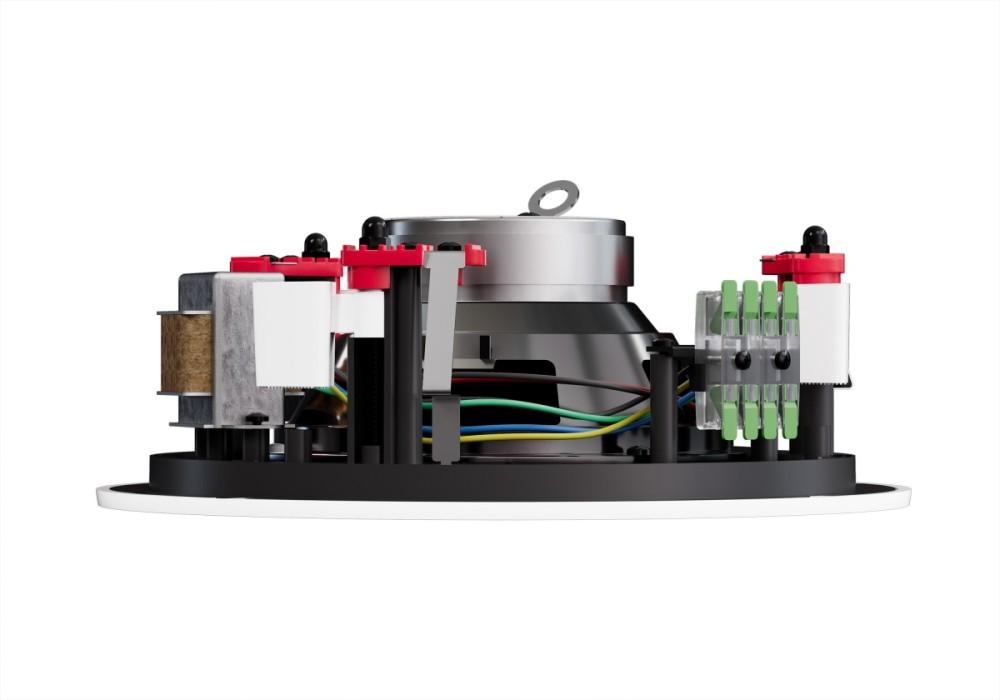

Installation:Quick snap-on mounting system
Accessories:Mounting template
Color: white
power: 20
Voltage: 100
