Feature:
1. Crimp Connection: Strong plugging and unplugging capability, male and female connectors are connected by crimp, easy to connect and disconnect, not easy to fall off.
2. High Load Capacity: High current, high voltage load capacity, rated voltage 1000V DC, rated current 30A, the connector can connect four solar panels in parallel, suitable for various solar power generation equipment.
3. IP67 Waterproof: The waterproof ring in the male connector is designed to be waterproof and dustproof, and the plug box status is waterproof to IP67.
4. Flame Retardant: Shell PPO insulation flame retardant material, heat resistant and corrosion resistant, anti oxidation, UV resistance and high and low temperature resistance, can be used in harsh environments.
5. Premium Inner Core: Using premium inner core, copper tinned, strong electrical conductivity, compatible with different insulation Diameter of photovoltaic cables.
6. Easy Installation: Quick and easy installation and removal of the plug without any additional instruments, simple operation and easy to use.
Specification:

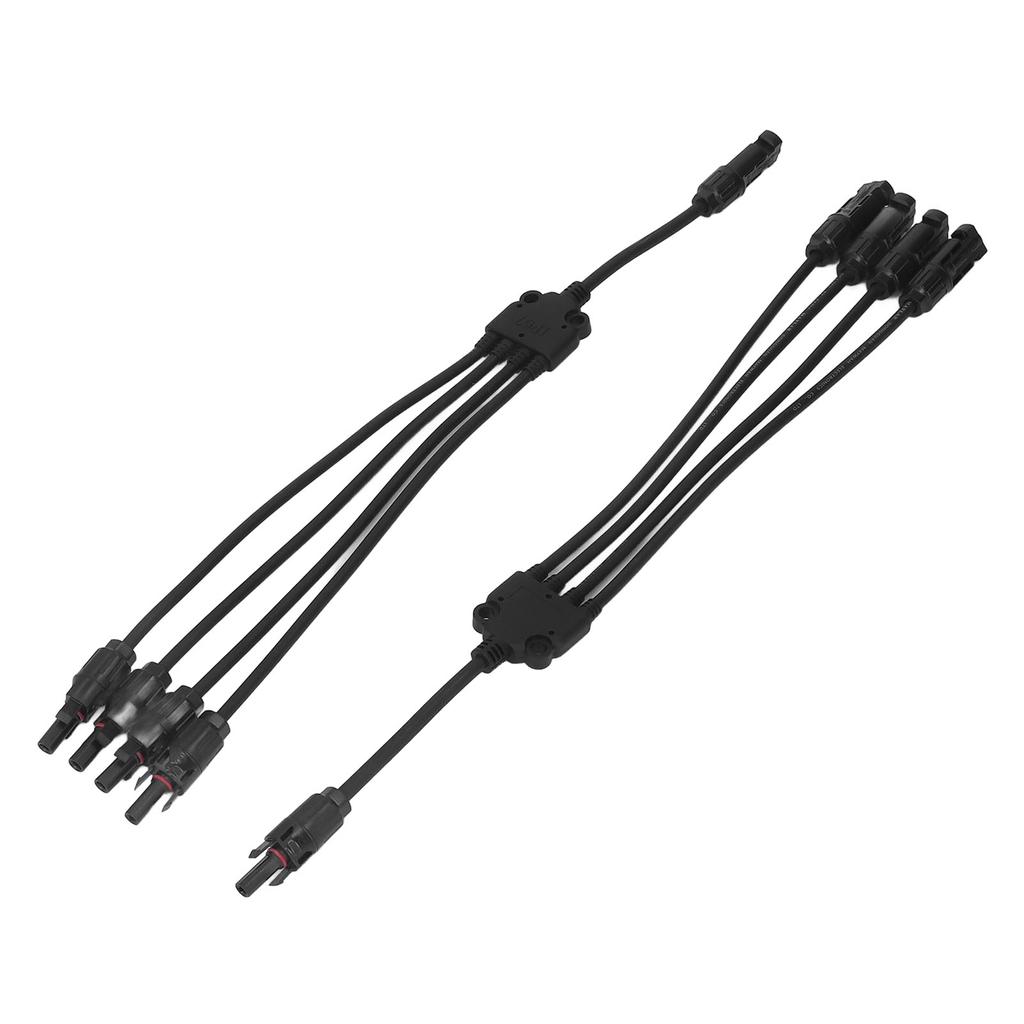

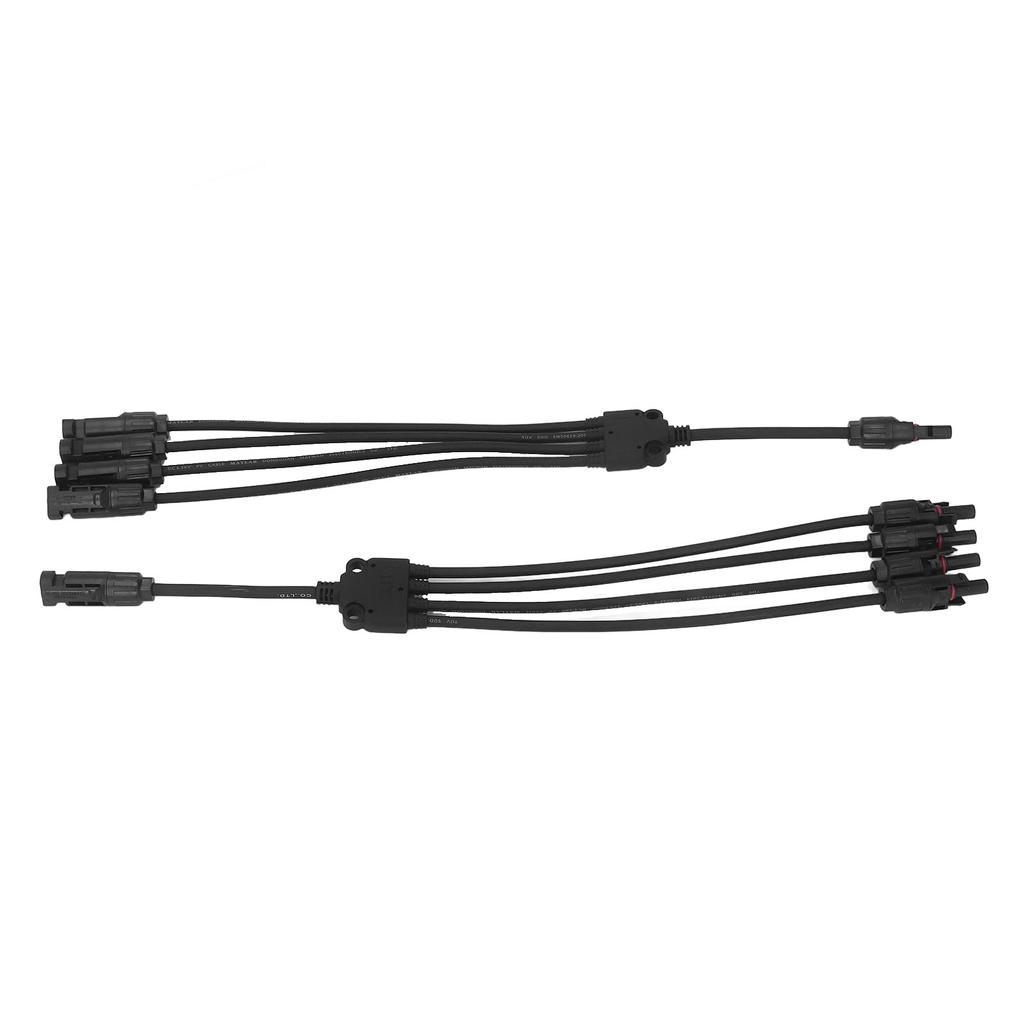

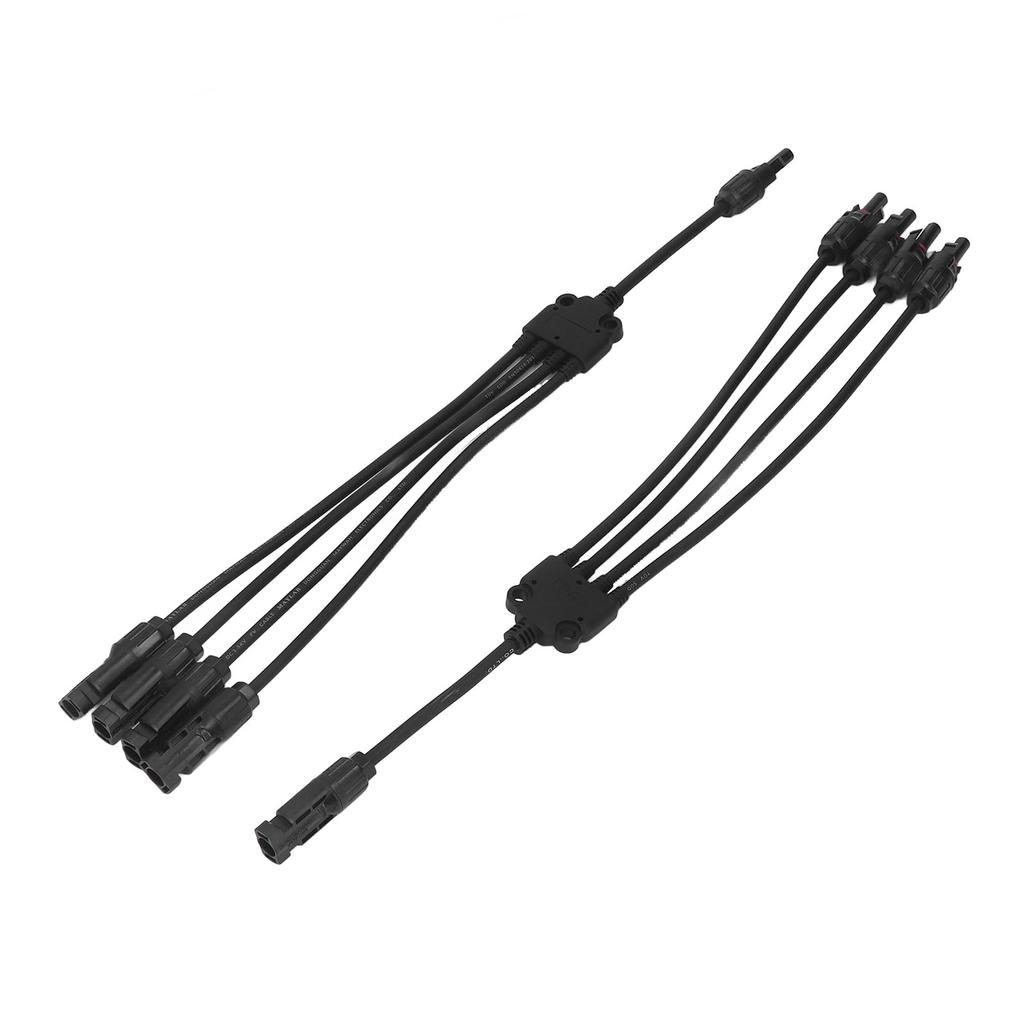

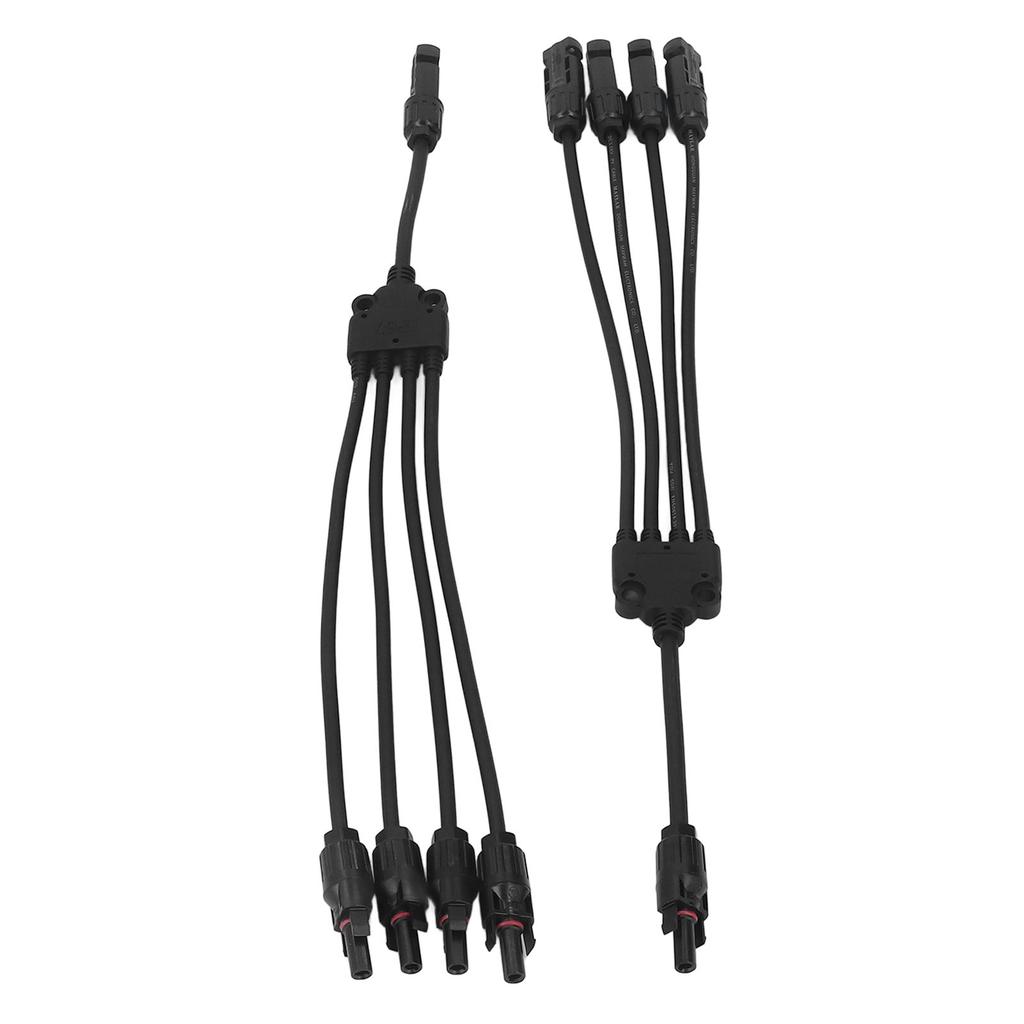

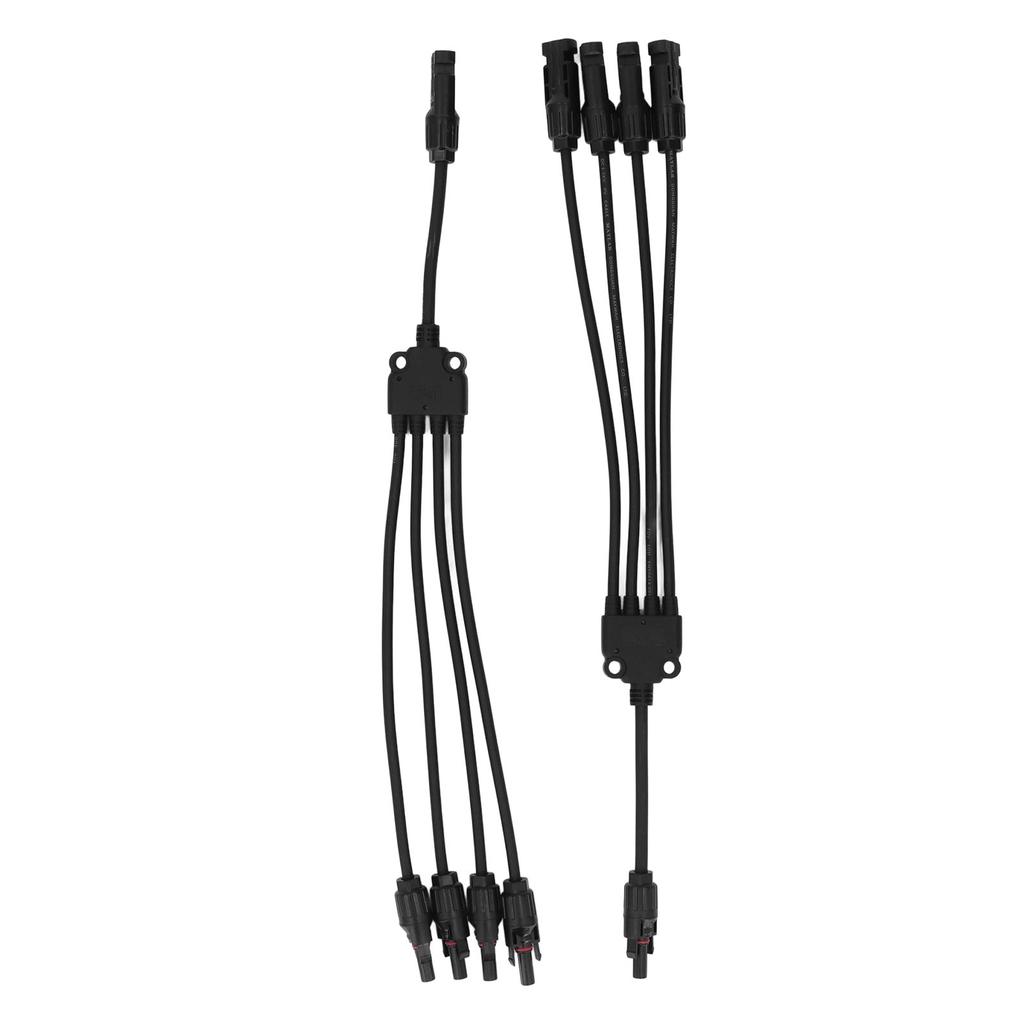

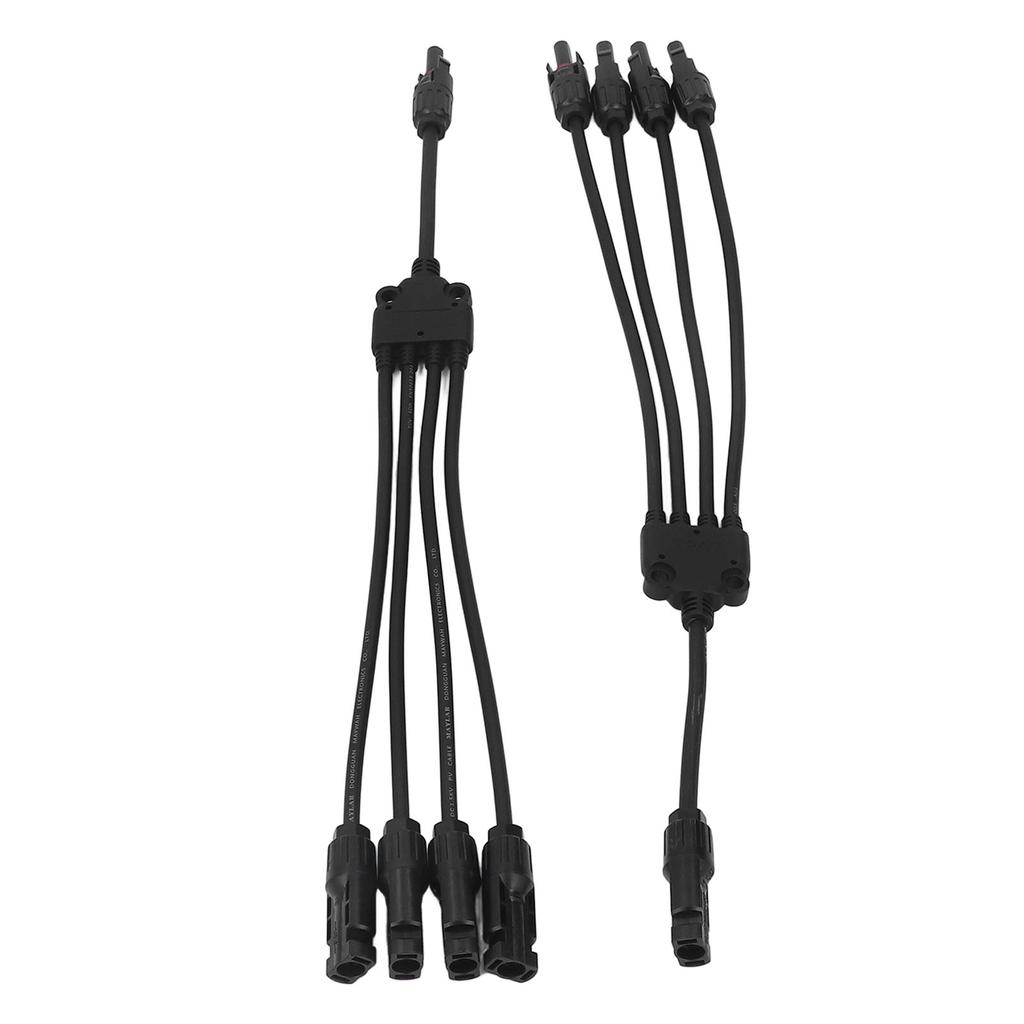

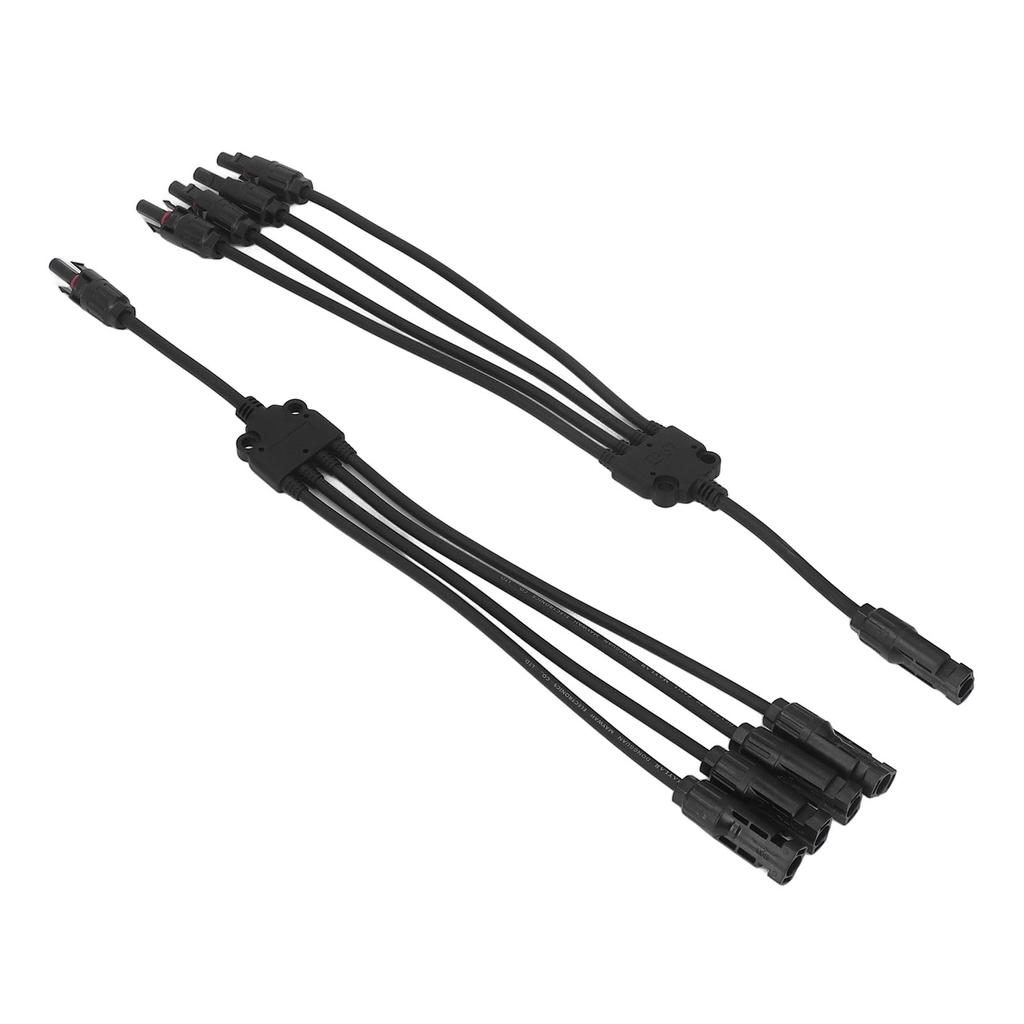

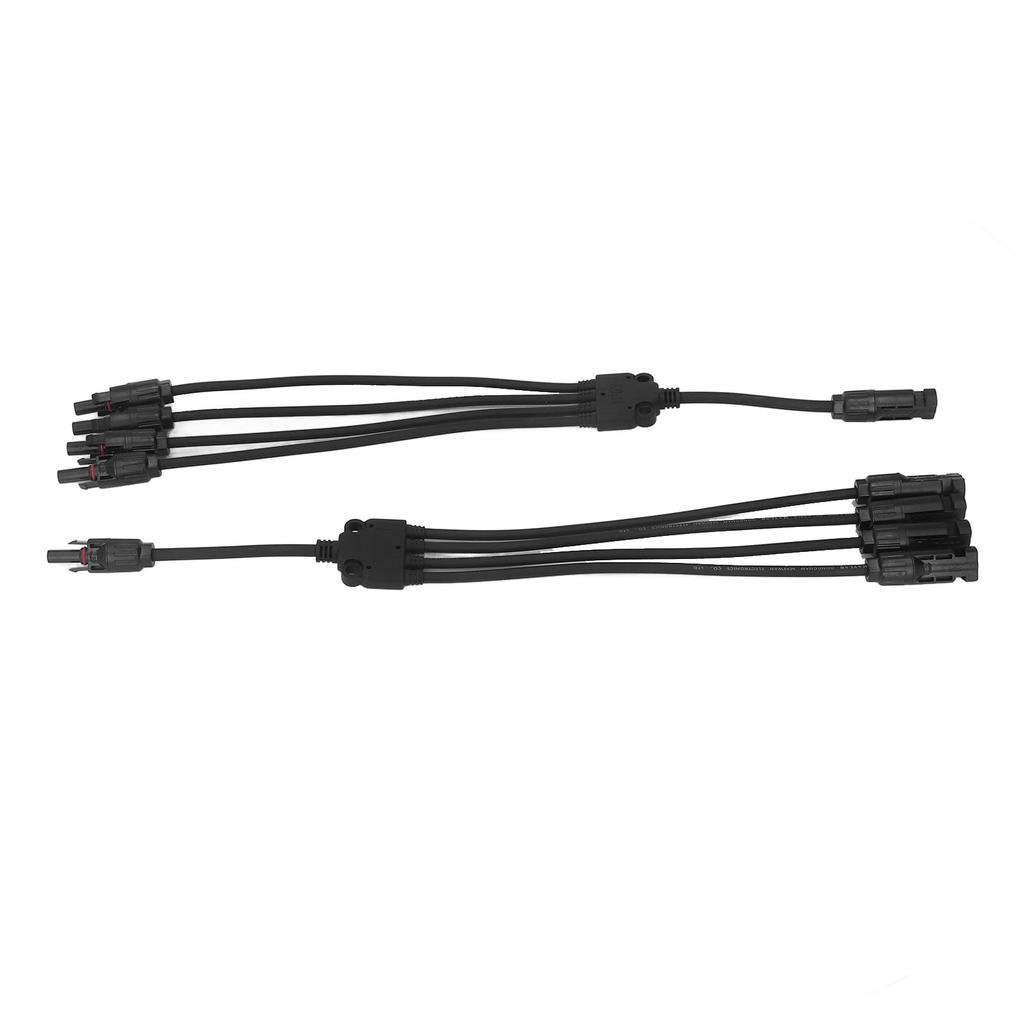

Item Type: Y Branch Solar Connector
Material: PPO, Copper Tinning
Gross Weight: 317g 11.2oz
Rated Current: 30A
Rated Voltage: 1000V DC
Contact Resistance: less than 0.2m Ohm
Waterproof Level: IP67 (insert box state)
Flame Rating: UL94 VO
Safety Level: level
Pull Out Force: more than 50N
Insertion Force: less than 50N
Connection System: crimp connection
Temperature Range: 40 celsius ~+90 celsius
Cable Length: Approx.50cm 19.7in.
Package List:
1 x Pair of Y Branch Solar ConnectorsCrimp Connection: Strong plugging and unplugging capability, male and female connectors are connected by crimp, easy to connect and disconnect, not easy to fall off.
High Load Capacity: High current, high voltage load capacity, rated voltage 1000V DC, rated current 30A, the connector can connect four solar panels in parallel, suitable for various solar power generation equipment.
IP67 Waterproof: The waterproof ring in the male connector is designed to be waterproof and dustproof, and the plug box status is waterproof to IP67.
Flame Retardant: Shell PPO insulation flame retardant material, heat resistant and corrosion resistant, anti oxidation, UV resistance and high and low temperature resistance, can be used in harsh environments.
Premium Inner Core: Using premium inner core, copper tinned, strong electrical conductivity, compatible with different insulation Diameter of photovoltaic cables.
