Feature:
1. 1.6mm thick PCB double sided board, durable and long service life. Good quality, durable
2. Large heat dissipation area, stable operation and long operation time, ,bring a lot of convenience
3. Easy to use, good performance, small volume, easy to carry and store, can be used for a long time, bring a lot of convenience
4. 0.1 to 2000MHz , a RF amplifier with wide frequency range, high gain and low noise figure
5. Applied to various RF receiving front ends to increase the communication distance
Specification:

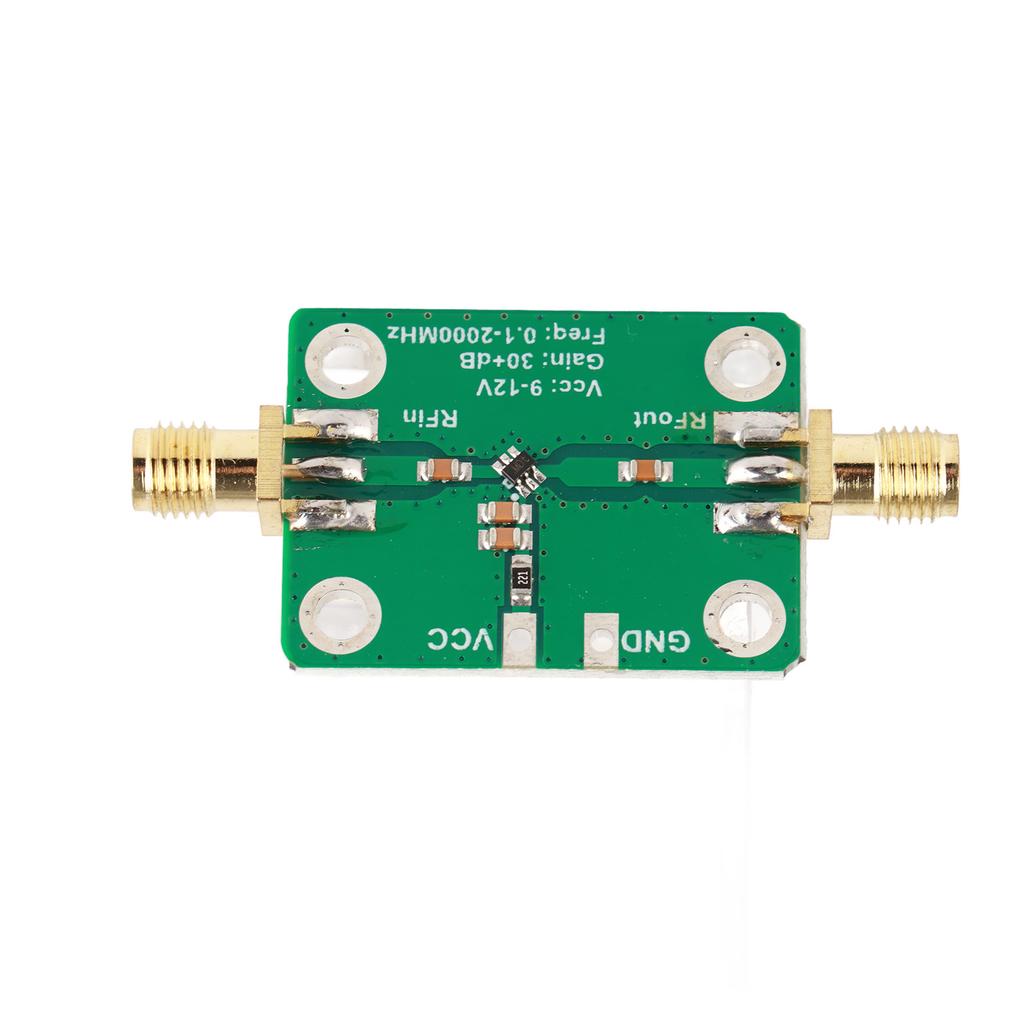

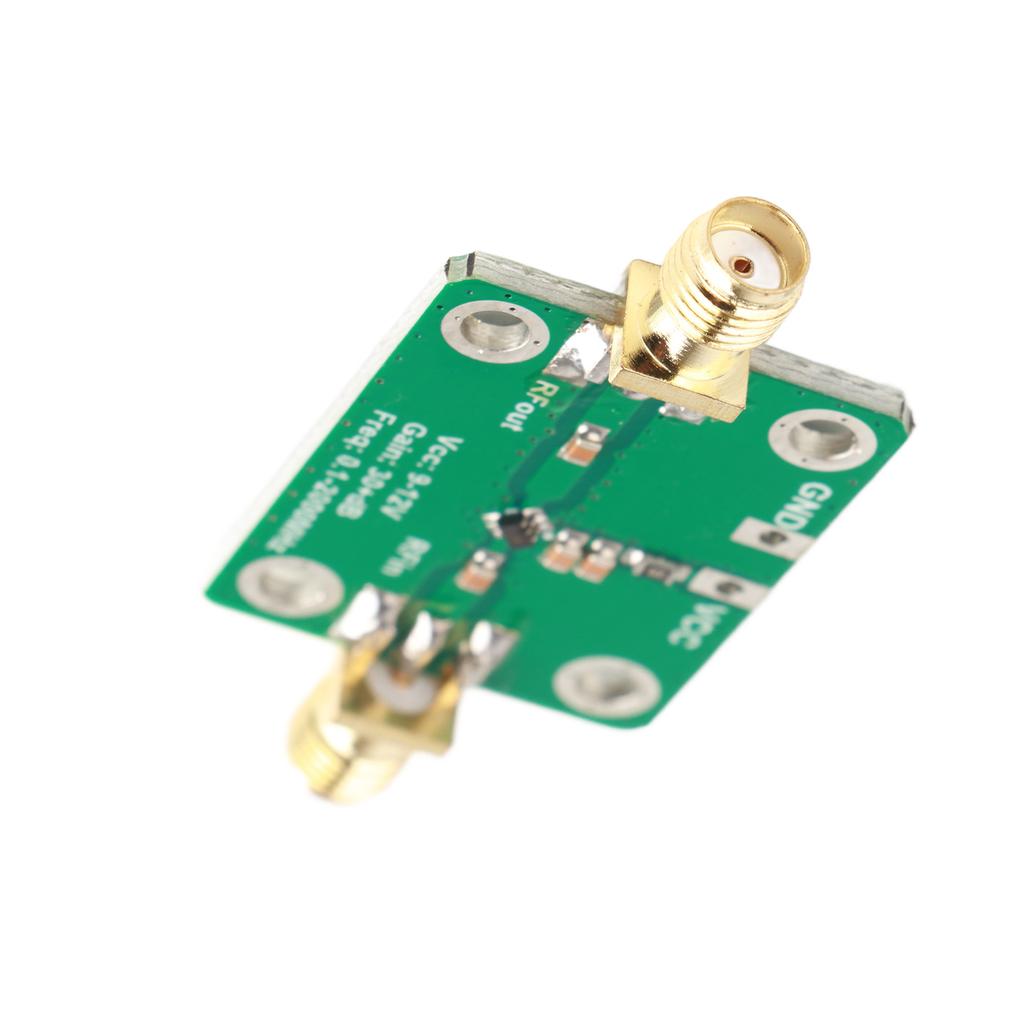

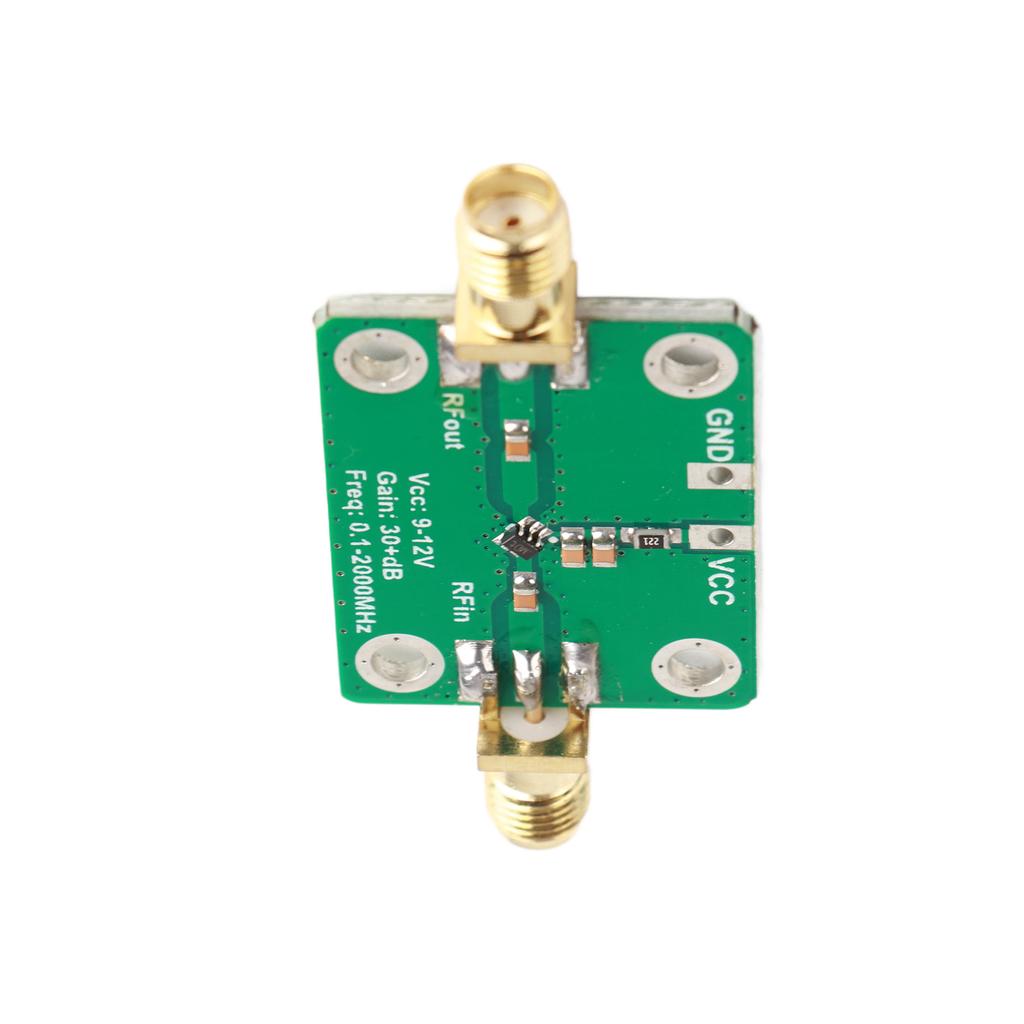

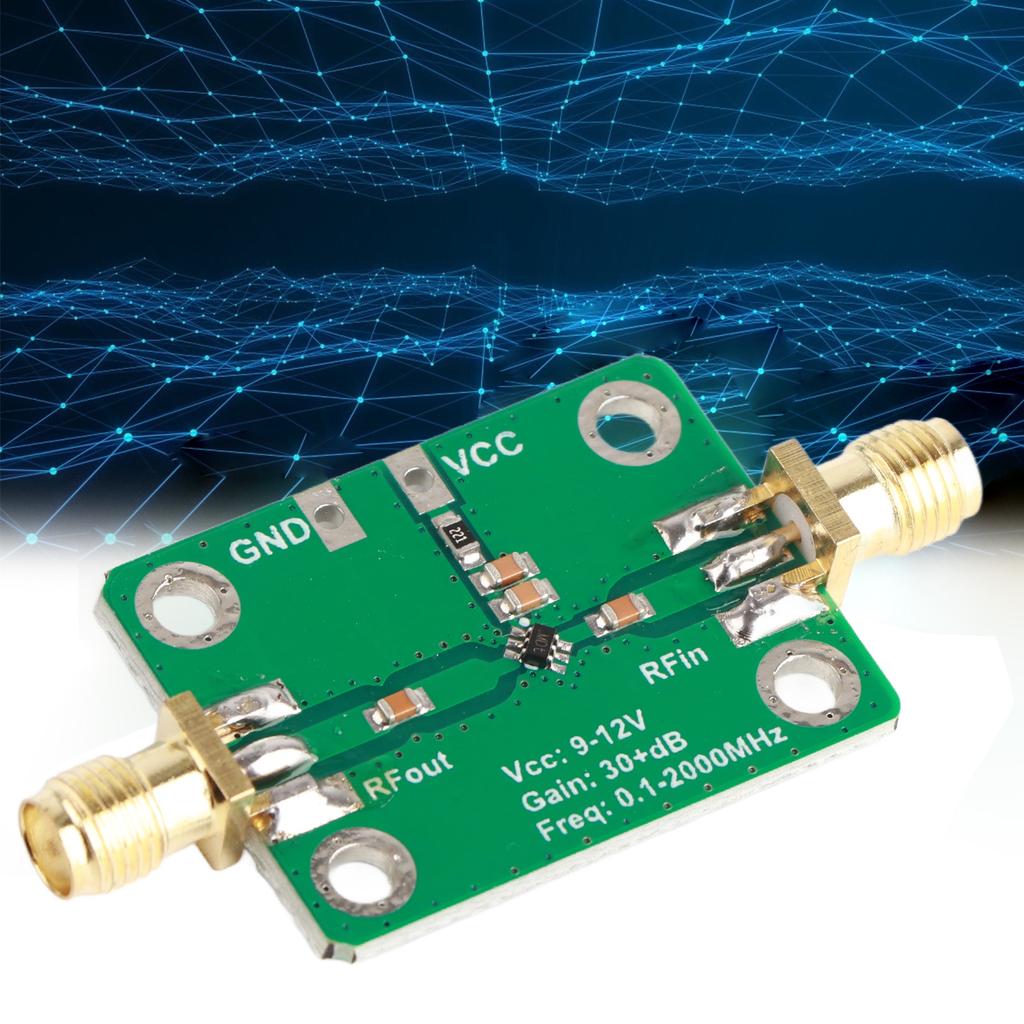

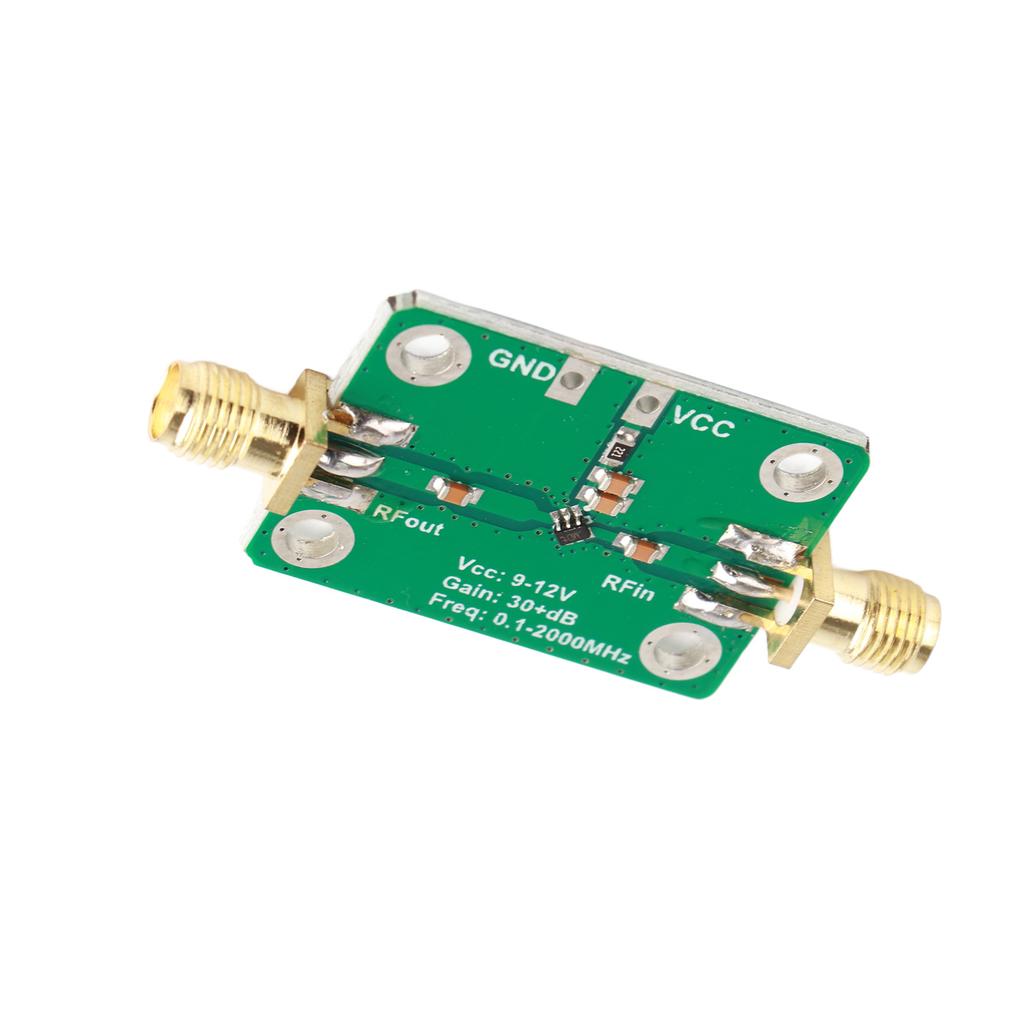

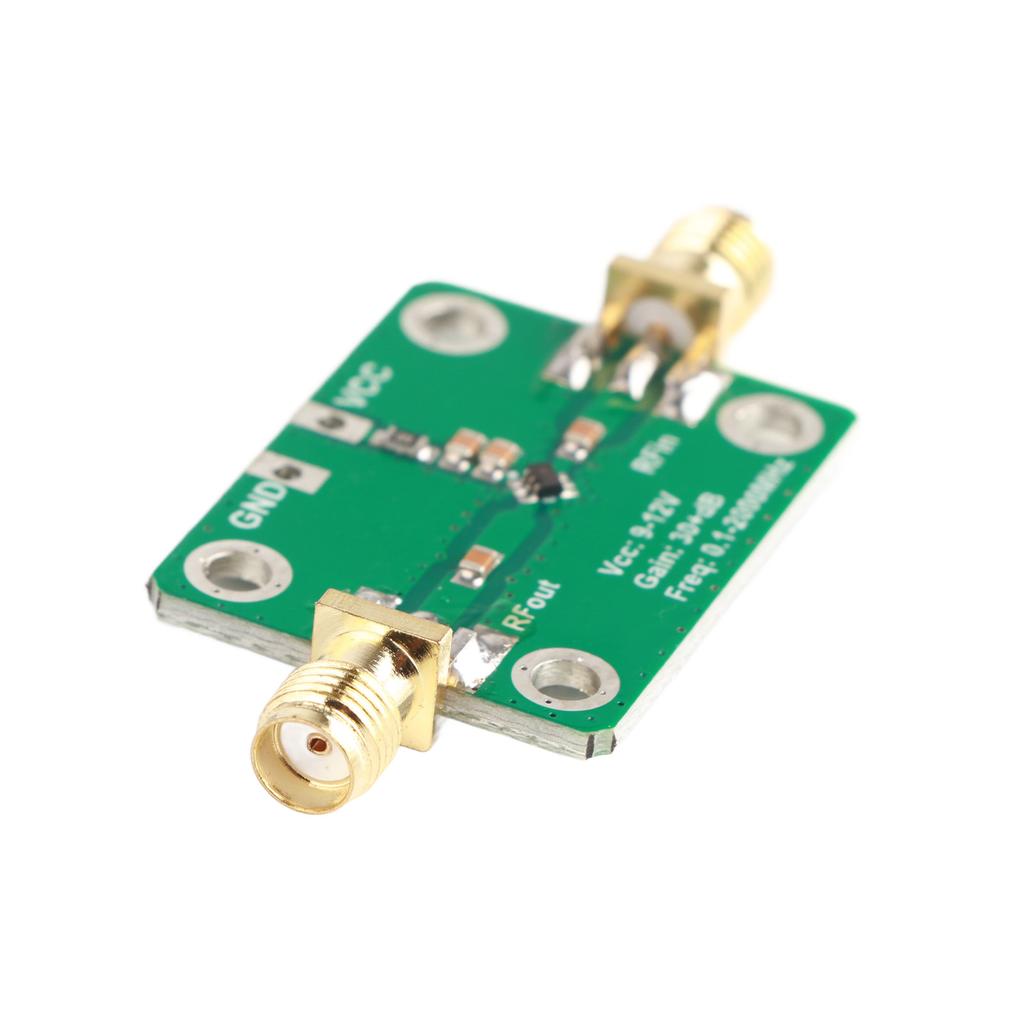

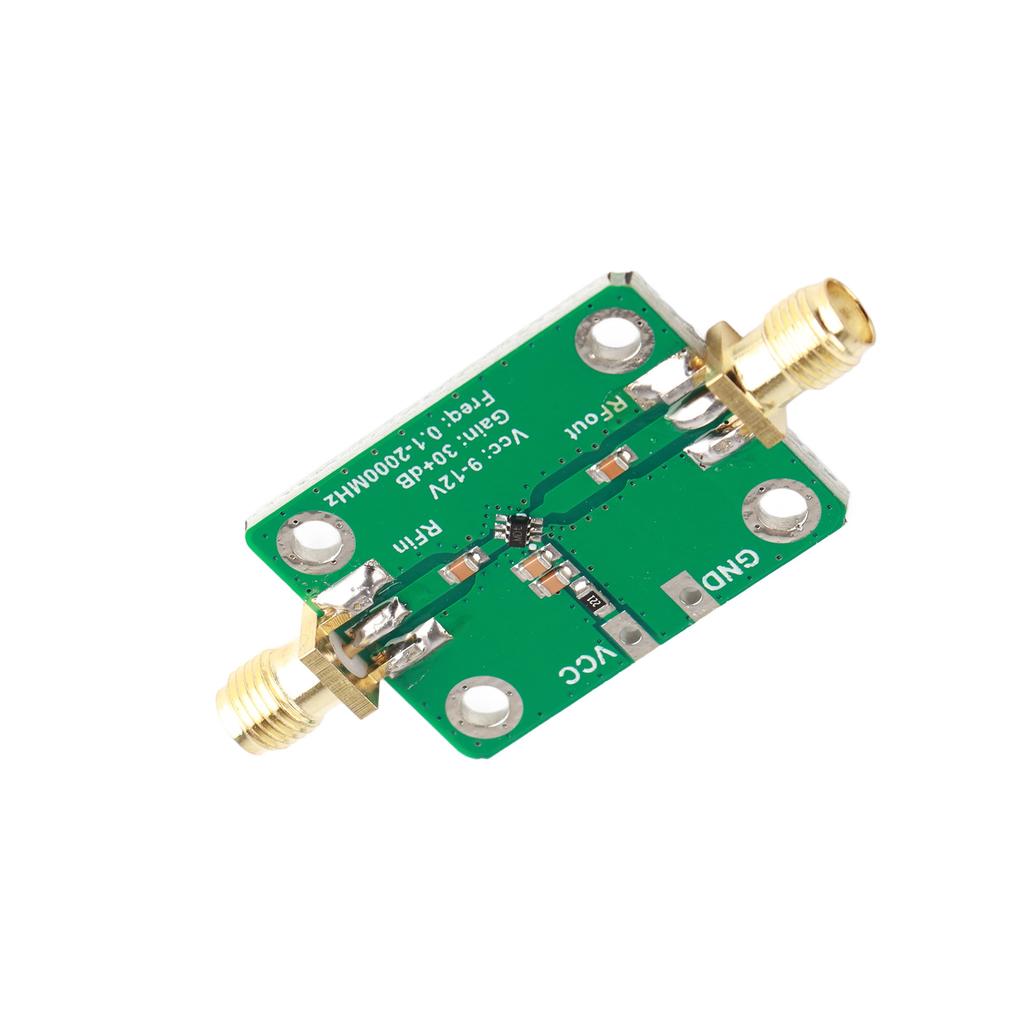

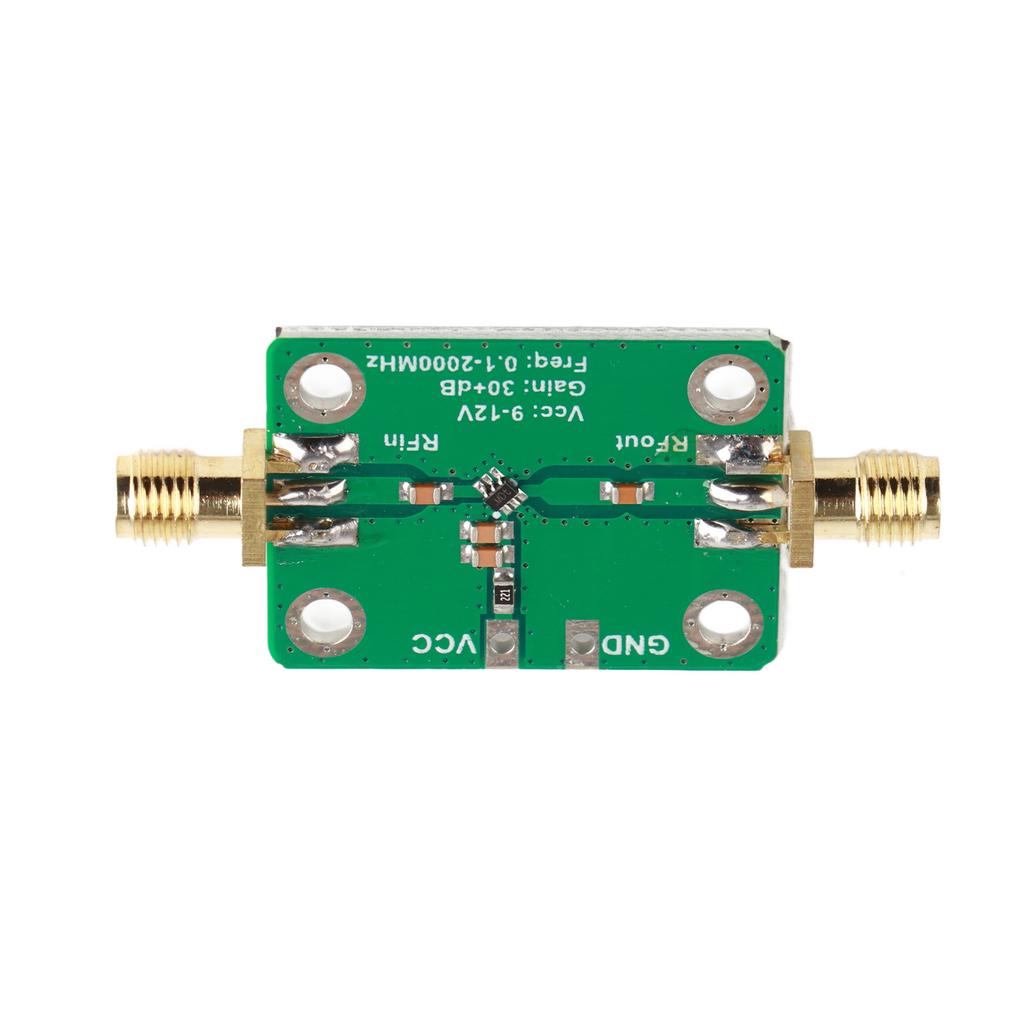

Item Type: Low Noise Amplifier
Material: PCB
Purpose: RF Broadband Low Noise Amplifier
Color: Green , Gold
Operating Frequency: 0.1 to 2000MHz
Working Voltage: 9V to 12V (Suitable for Lithium Battery Power Supply)
Operating Current: 27mA
Amplification Gain: 30dB (Typical Value)
F= 0.1MHz gain=30dB
F= 500Mhz gain=30dB
F=1000MHz gain=30dB
F=1500Mhz gain=30dB
F=2000MHz gain=30dB
Maximum Output: 13dBm (20mW)
System Impedance: 50 Ohms
Connector Model: SMA K (Female Head Outer Screw Inner Hole)
.
Package List:
1 x Low Noise Amplifier
Note:
Do not use in voltage, current and frequency range.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.1.6mm thick PCB double sided board, durable and long service life. Good quality, durable
Large heat dissipation area, stable operation and long operation time, ,bring a lot of convenience
Easy to use, good performance, small volume, easy to carry and store, can be used for a long time, bring a lot of convenience
0.1 to 2000MHz , a RF amplifier with wide frequency range, high gain and low noise figure
Applied to various RF receiving front ends to increase the communication distance
