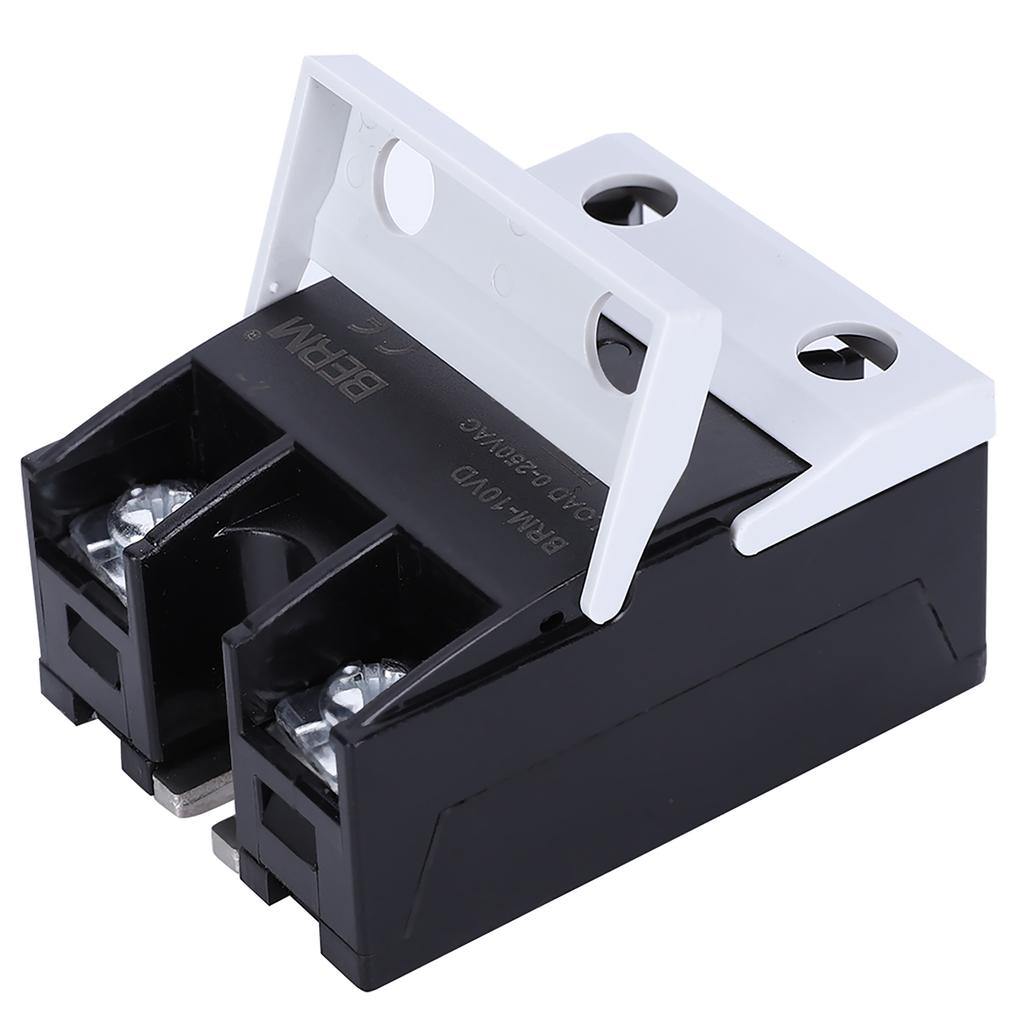

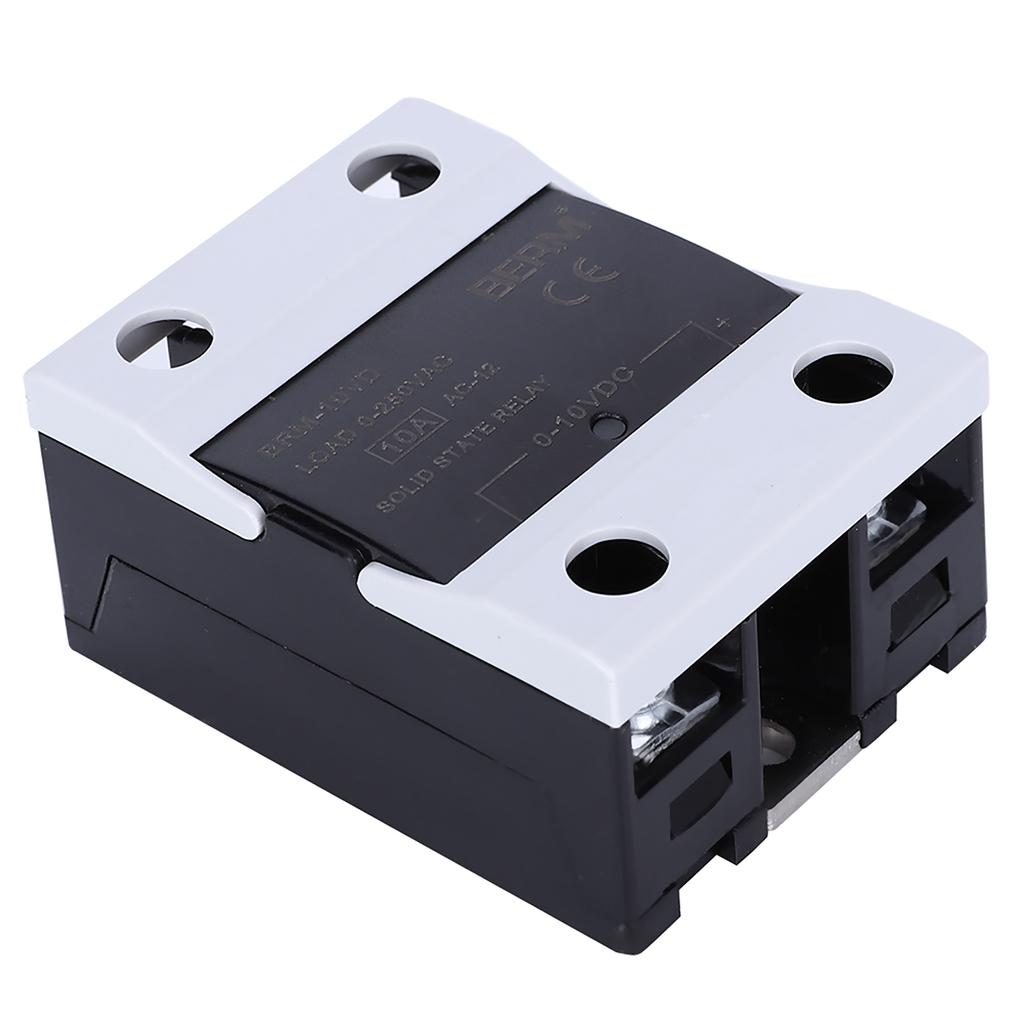

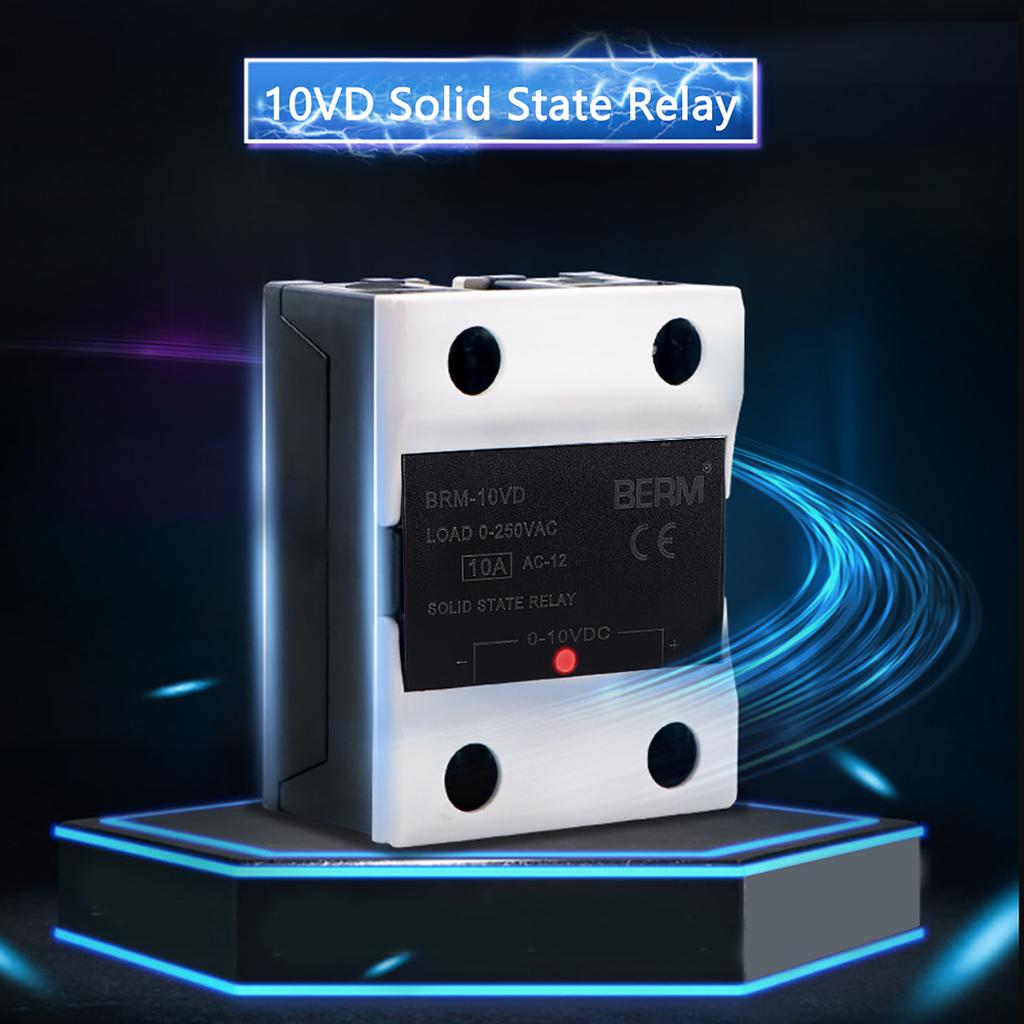

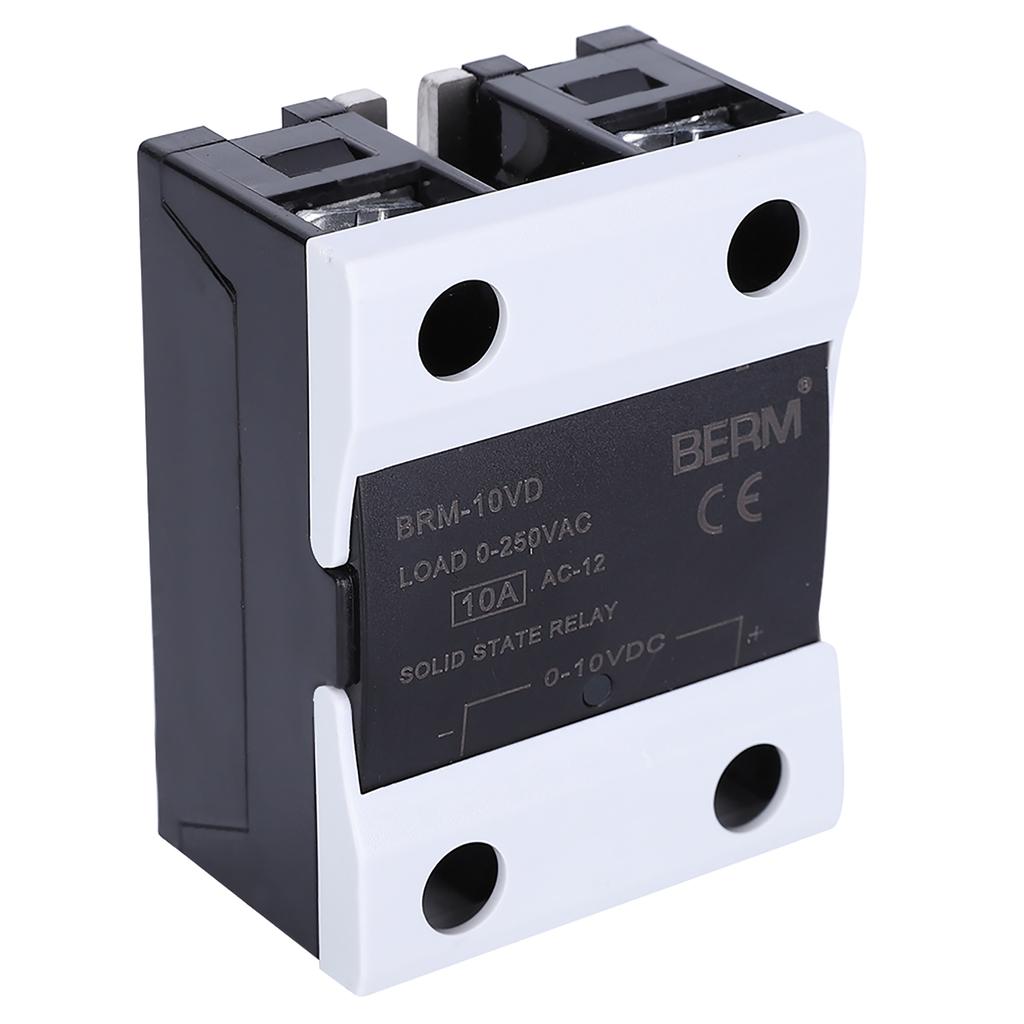

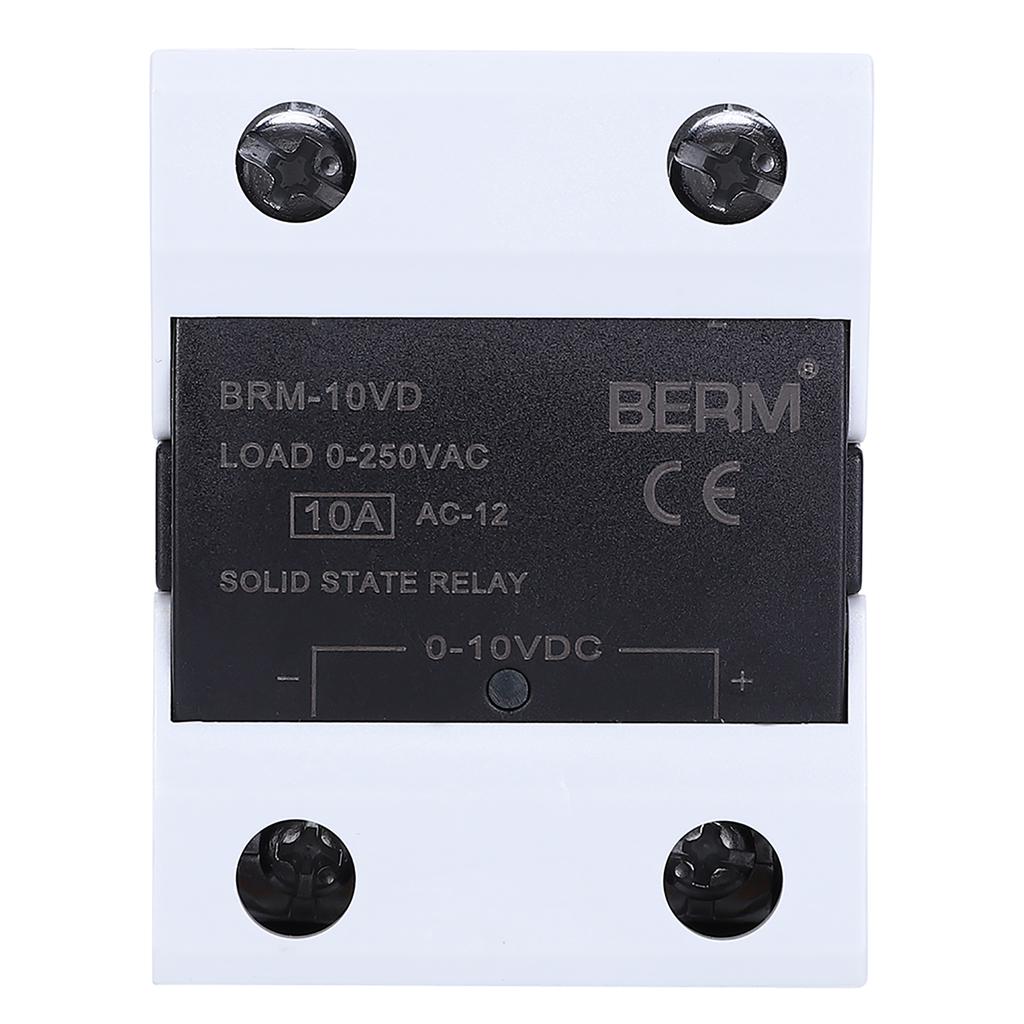

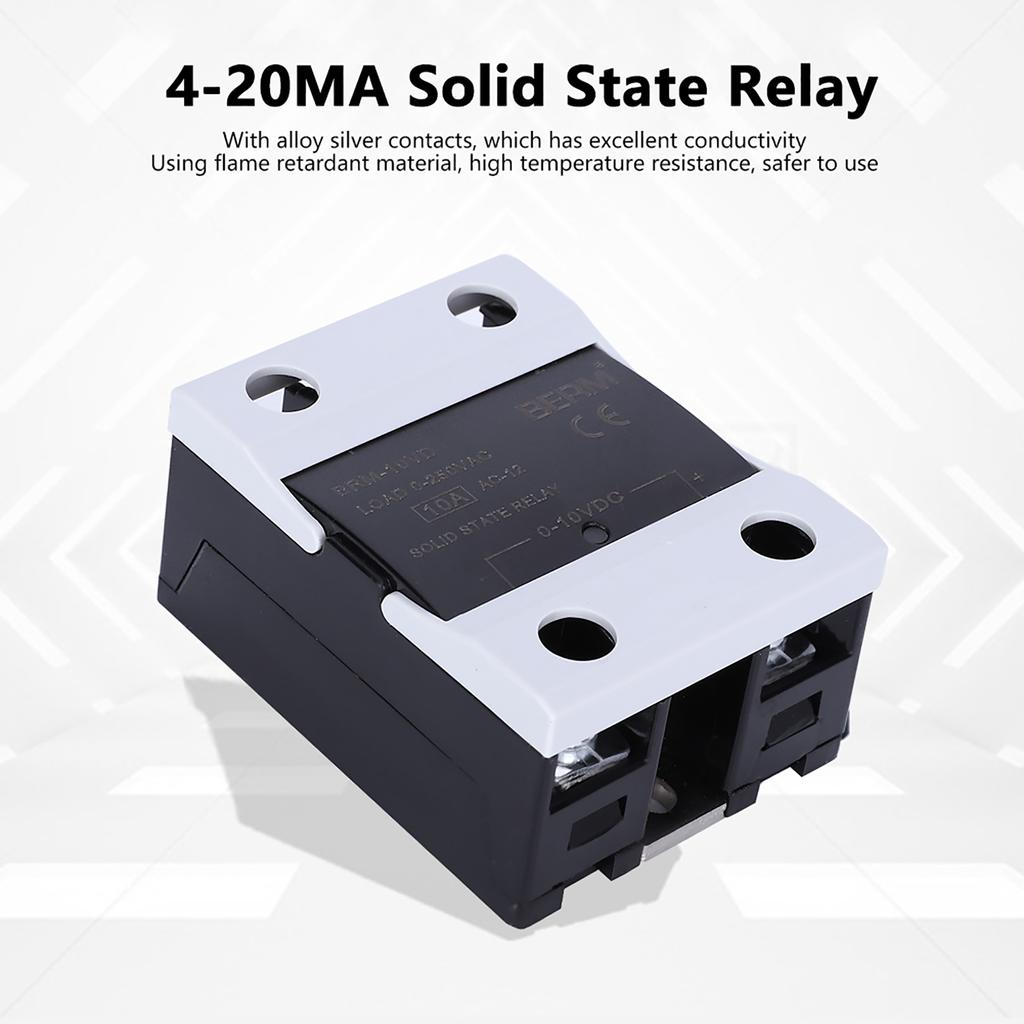

BERM Solid State Relay SSR with LED Light Tube State Indication 420mA 0250VAC

Feature: 1. The bottom is made of pure aluminum material, with super heat dissipation effect 2. With alloy silver contacts, which has excellent conductivity 3. Using flame retardant material, high temperature resistance, safer to use 4. Reasonable size, convenient to install and remove 5. With LED light tube for state indication, clear to operate Specification: Item Type: Solid State RelayBrand: BERMModel: BRM10VD Input Current: 420mA Load Voltage: 0250VAC Rated Current: 10A Leakage Current: <10mA Shutdown Voltage: 1Vmin Onoff Time: <11ms Turnon Current: 5mA Control Current: 325mA Output Voltage Drop: <1.8V Inrush Current: 10ms 700percent State Indication: LED light tubeSize: Approx. 59 x 45.5 x 29.5mm 2.3 x 1.8 x 1.2in . Package List: 1 x Solid State Relay Note: Manual measurement results have errors, the size just for referenceThe bottom is made of pure aluminum material, with super heat dissipation effect With alloy silver contacts, which has excellent conductivity Using flame retardant material, high temperature resistance, safer to use Reasonable size, convenient to install and remove With LED light tube for state indication, clear to operate
