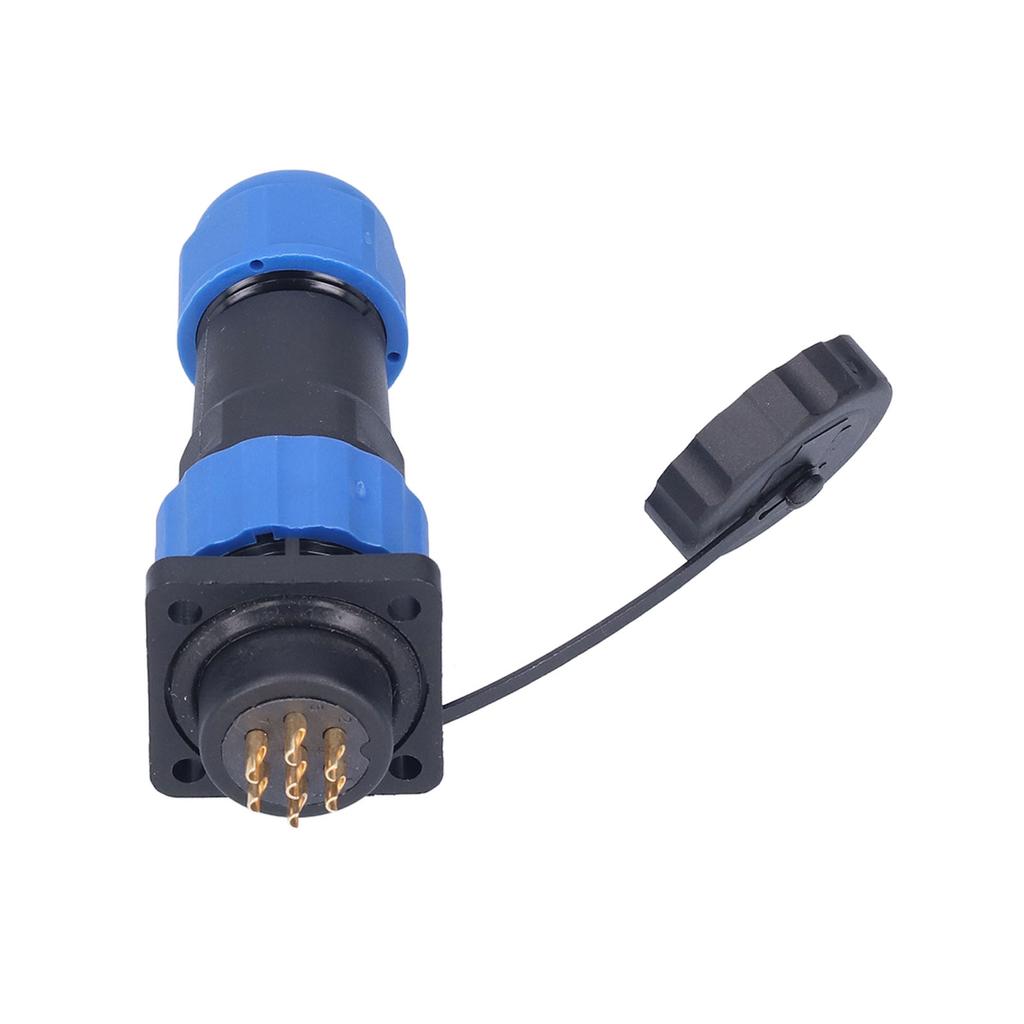

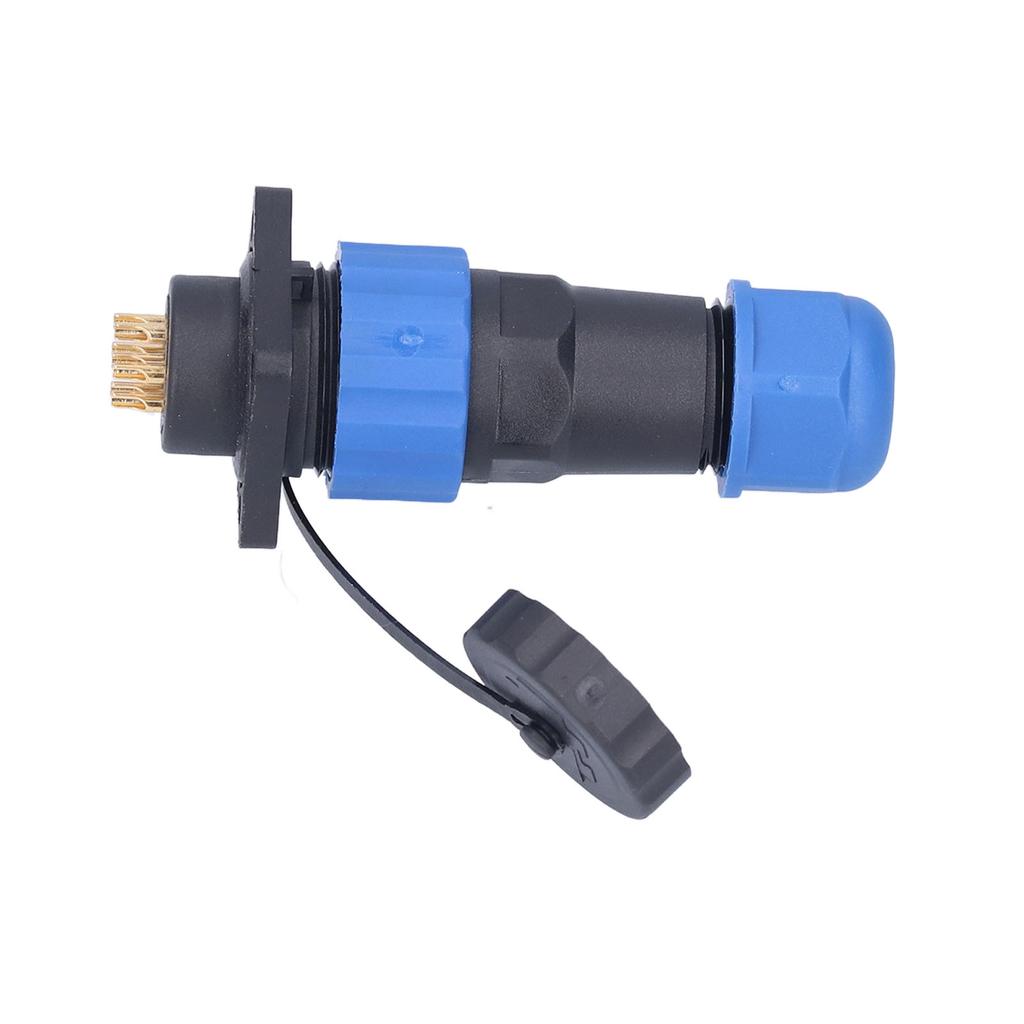

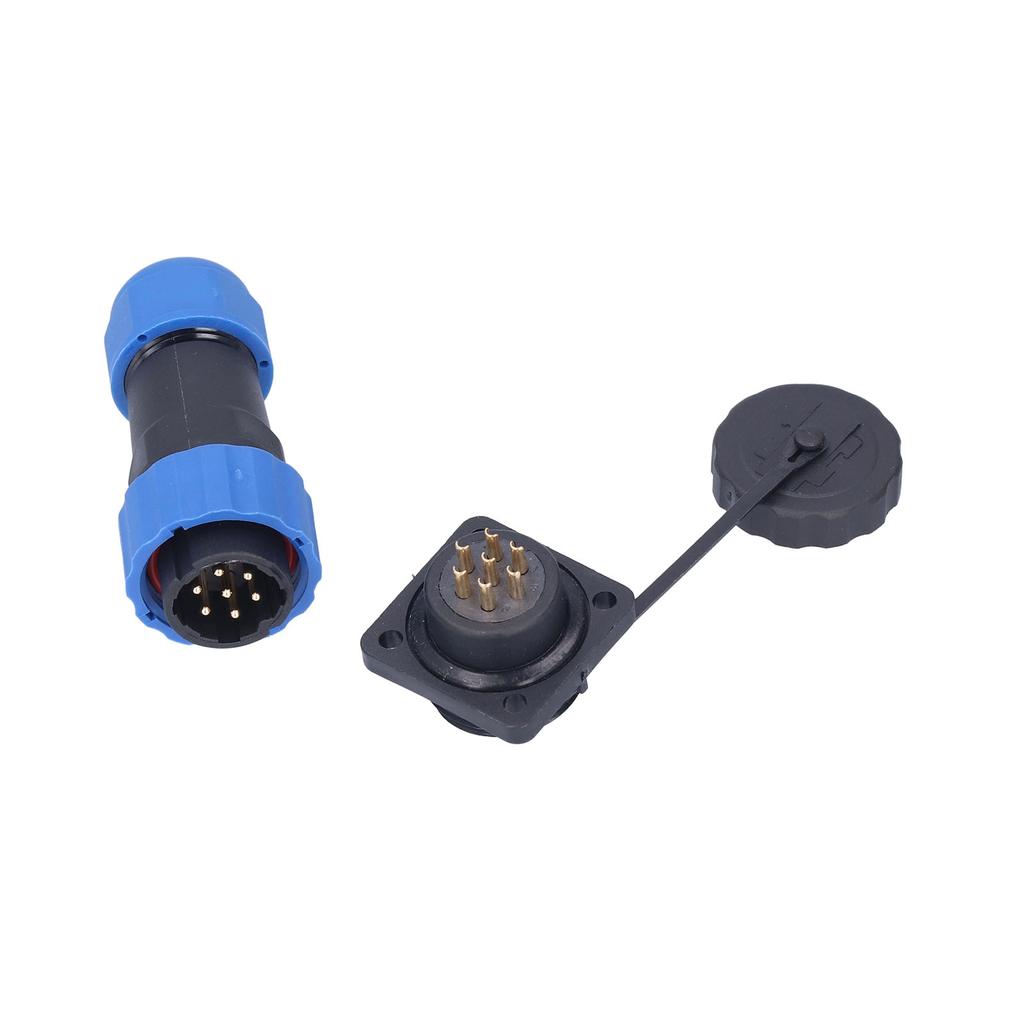

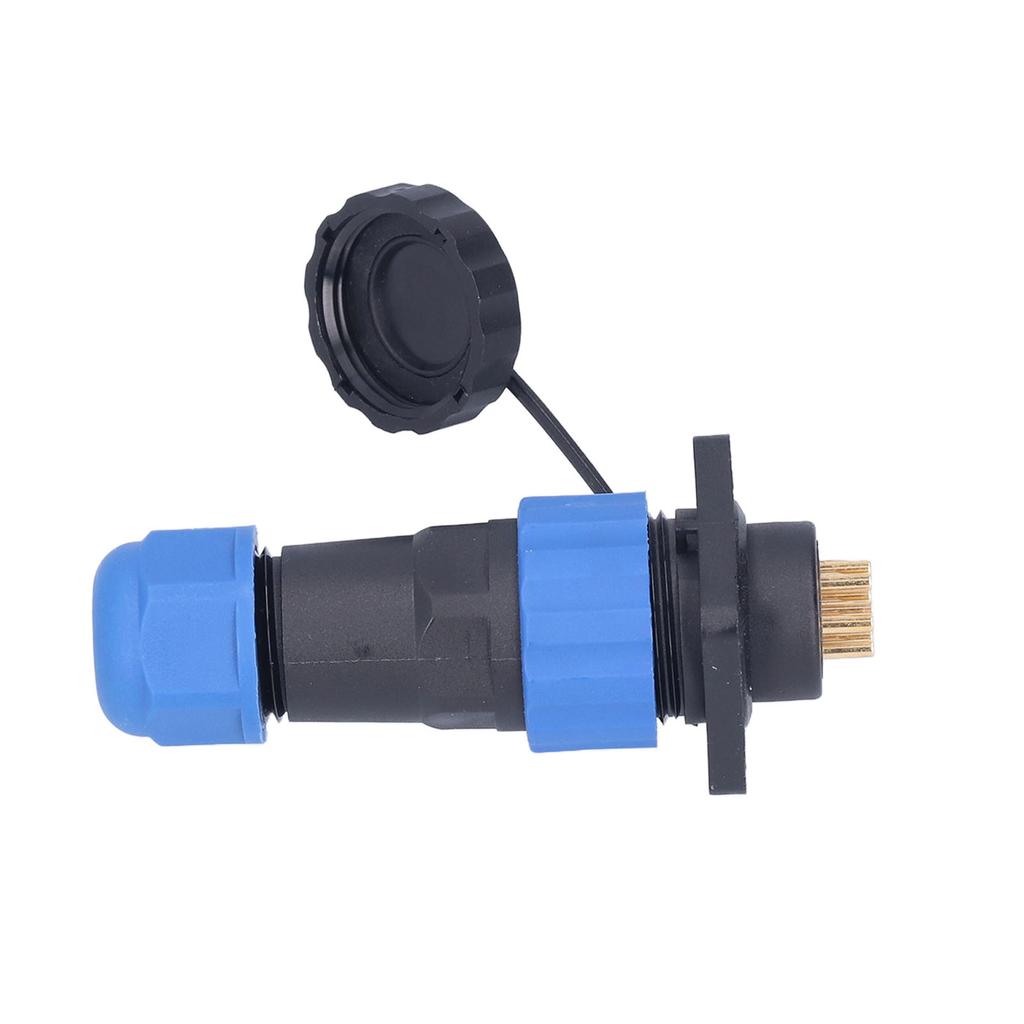

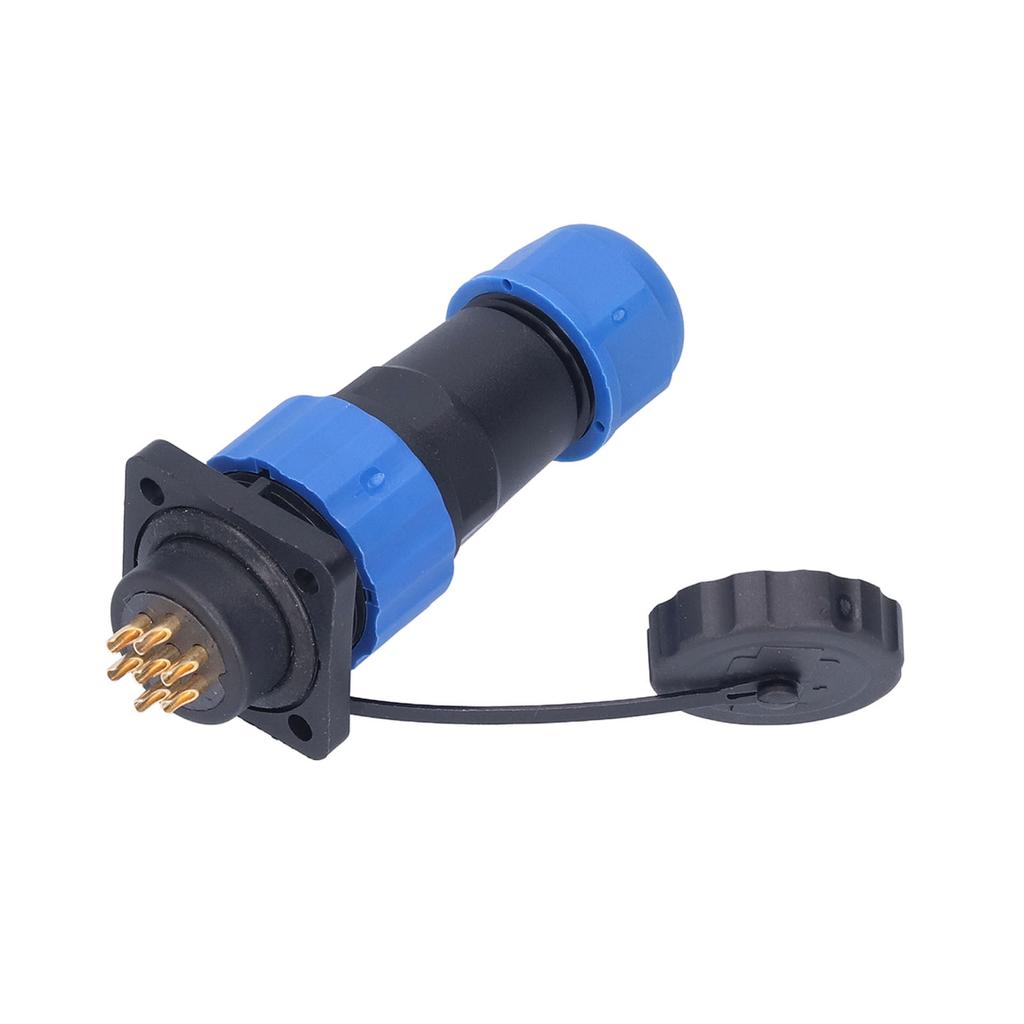

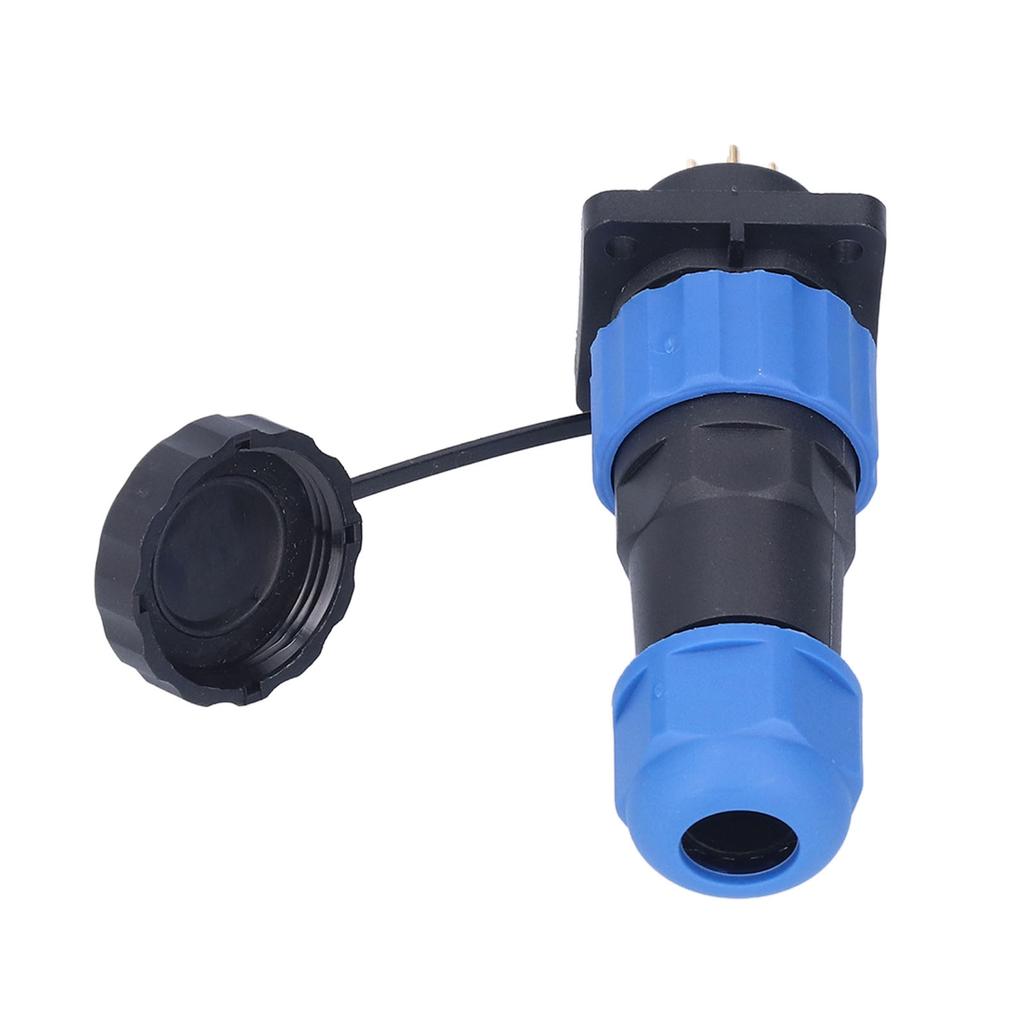

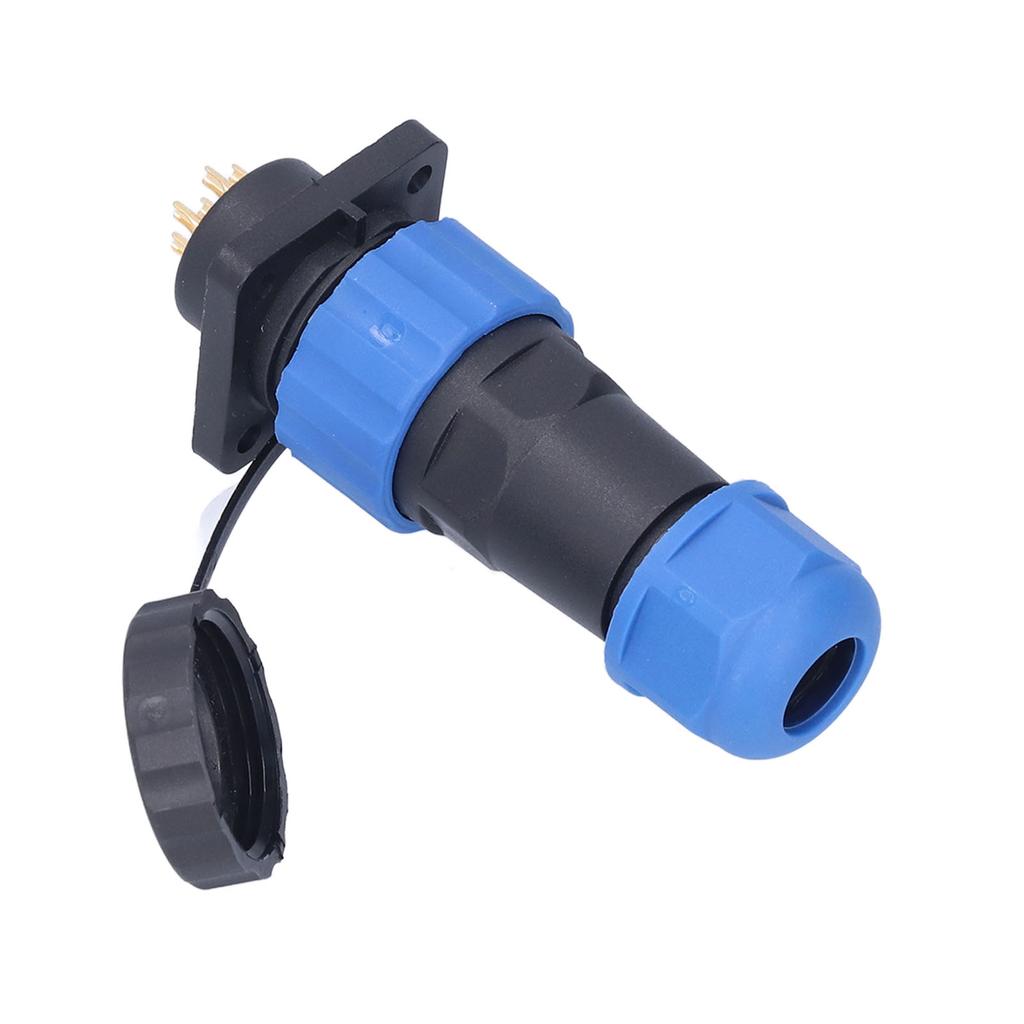

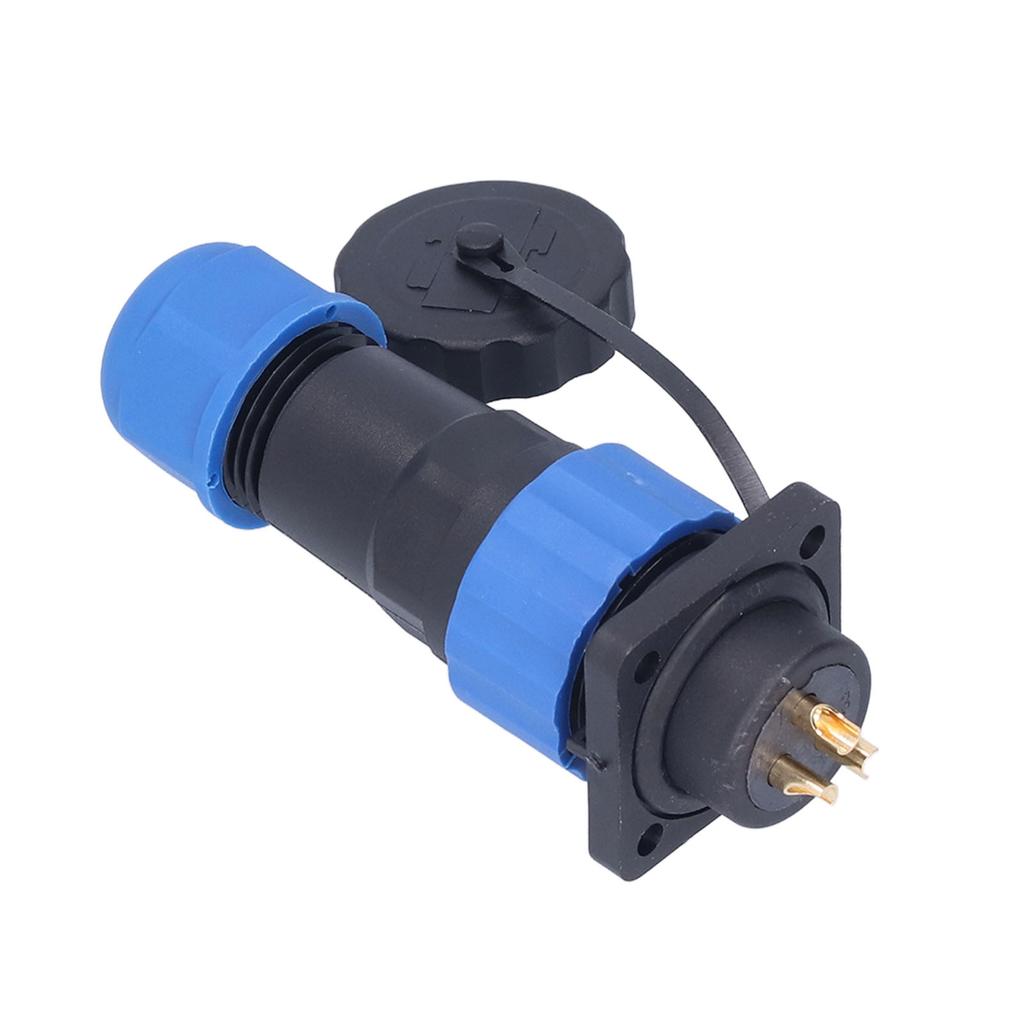

Waterproof Plug Socket Square Aviation Power Connector Butt Terminal Adapter AC 380V SP207 Pin

Feature: 1. Good Performance: The aviation plug socket has IP68 waterproof protection, working voltage is 380V, and withstand voltage is 1500V. 2. Copper Contacts: Using pure copper gold plated contacts, which has good electrical conductivity and oxidation resistance. 3. Durable Shell: The shell is made of PA66 and PA6 materials, which have good corrosion resistance and flexibility, and will not crack due to low temperature. 4. Welding Connection: Use an electric soldering iron to connect the conductive wires to ensure a firmer connection. 5. Multiple Usages: Widely used in communications, instrumentation, computers, program controlled machines, alarms, etc. Specification: Item Type: Waterproof Plug Socket Material: PA66, PPS, silicone, copper Uses: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms and electronic equipment, etc. Shell Material: PA66, PA6 Insulator: Thermoplastic PPS (high temperature resistant 220 celsius ) Contact Material: Copper (gold plated) Wiring Method: Soldering (if solder paste is used, it must be cleaned) Connection Method: Threaded connection Head Size: Approx. 20mm 0.8in Thread Specification: M20 x 1.5mm Insulation Resistance: 2000M Ohm Working Voltage: AC380V Withstand Voltage: 1500V Shell Applicable Wire: 811.5mm2 Mounting Hole Distance: Approx. 22 x 22mm 0.9 x 0.9in Mating Times: More than 500 times Operating Temperature Range: 25 celsius to 85 celsius Tightness: Comply with IP68 Number of Core 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin Contact Diameter 2.8mm 2.8mm 2.8mm 2.8mm 1.8mm 1.8mm Rated Current 25A 25A 25A 25A 10A 10A Contact Wire Gauge

less than 4mm212AWG

less than 4mm212AWG

less than 4mm212AWG

less than 4mm212AWG

less than 1.5mm214AWG

less than 1.5mm214AWG . Package List: 1 x Male Plug1 x Female Socket Note: For soldering with rosin, such as soldering with solder paste, it must be cleaned with related fluids.Good Performance: The aviation plug socket has IP68 waterproof protection, working voltage is 380V, and withstand voltage is 1500V. Copper Contacts: Using pure copper gold plated contacts, which has good electrical conductivity and oxidation resistance. Durable Shell: The shell is made of PA66 and PA6 materials, which have good corrosion resistance and flexibility, and will not crack due to low temperature. Welding Connection: Use an electric soldering iron to connect the conductive wires to ensure a firmer connection. Multiple Usages: Widely used in communications, instrumentation, computers, program controlled machines, alarms, etc.
