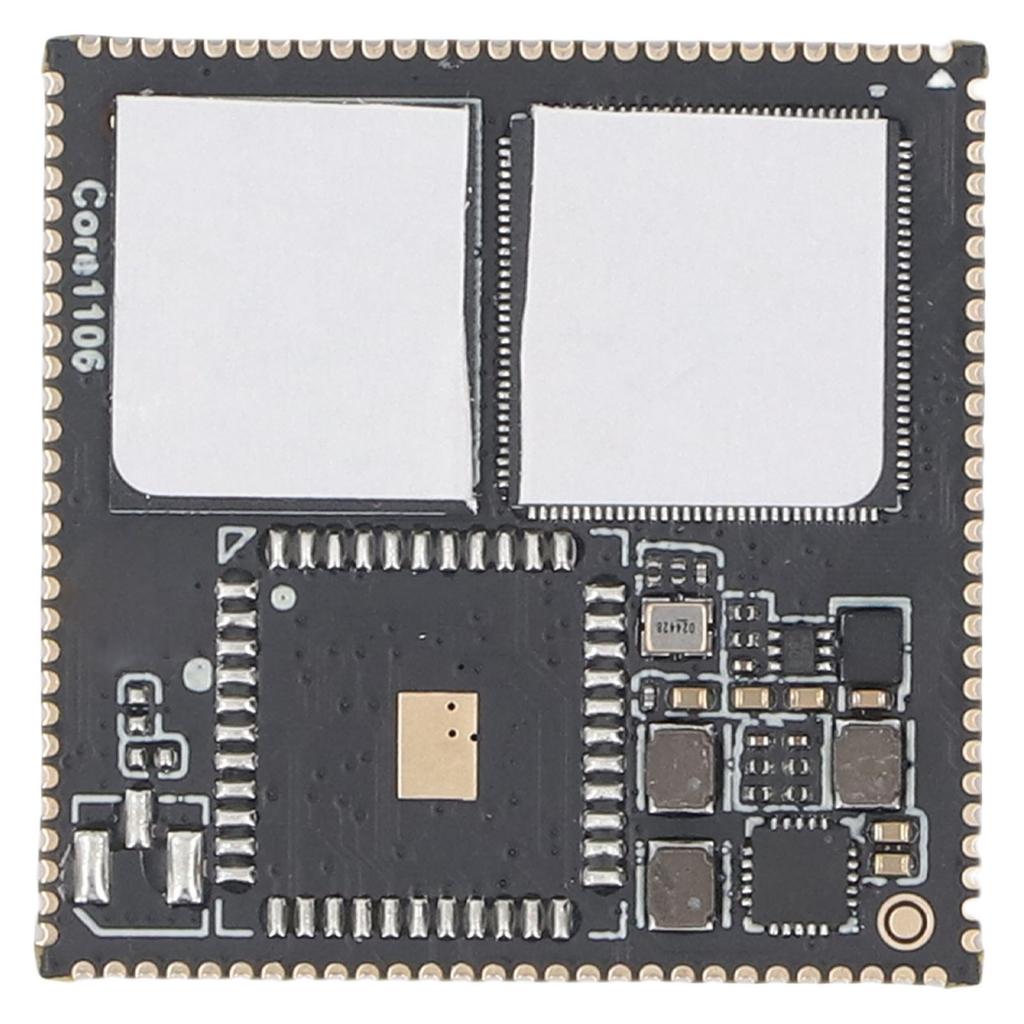

For Core1106 Core Board 0.5TOPS NPU For RV1106 Built In 16 Bit DRAM DDR3L 128MB 5MP 30fps Input

Feature: 1. For Core1106 Core Board: Powered by single core for ARM Cortex-A7 32-bit core, integrated with for NEON and for FPU. Powerful computing performance for various applications. 2. Advanced NPU Capabilities: Core board is equipped with the 4th generation self developed NPU, supporting for int4, int8, int16 mixed quantization. With 0.5TOPS int8 computing power. 3. Superior Image Processing: Built in the 3rd generation self developed ISP3.2, supporting 5MP input, HDR, WDR, and multi level noise reduction, multiple image enhancement and correction algorithms. 4. High Efficiency Encoding: Supports intelligent encoding to save bandwidth up to 50percent compared to conventional CBR mode. Ensures high definition image quality while maximizing storage space. 5. 128MB DDR3L Memory: Built in 16 bit DRAM DDR3L 128MB, designed to meet demanding memory bandwidth needs, supporting seamless multitasking and efficient operating across various scenarios. Specification: Item Type: RV1106 core board Material: PCB CPU: for RV1106G2 Processor: for Cortex A7 1.2GHz NPU: 0.5TOPS, supports for int4, for int8, for int16 ISP: Supports 5MP 30fps input Video Encoding: Hardware encoding, supports MJPEG, H264, H265 Operating Memory: 128MB DDR3L Display Interface: 18-bitx 1 parallel RGB Camera Interface: 2 x MIPICSI2-lane or MIPICSI4-anex Microphone Interface: 2 x Analog differential MIC interface o Output Interface: 1 x LINEOUT USB Interface: USB 2.0 HostDevice Ethernet Interface: 10100M Ethernet controller and embedded PHY Default Storage Medium: eMMC5.1 Other Resources: 12SX3, I2Cx5, SPIx2, SDIOx2, ADCx2, UARTx6, PWMx12 Core Board Size: Approx. 30x30mm 1.2x1.2in Pin Hole: 112 Pin. Package List: 1 x RV1106 Core Board
