Features:
brand new and high quality
Made of high-quality materials,
Electrical connector clamp terminal cable conductor reusable connector DIY quick connector splicing butt cable terminal
Safe and reliable lever nut connector, select the best flame-retardant insulation material, long service life, no , anti-aging, and effectively prevent leakage
compatibility. Connect any combination of solid, multi-strand and flexible copper wires. Suitable for 0.08-4 sqmm / 28-12 AWG
random combination. Both sides of the SPL-1 connector are equipped with slots and buckles, which can be flexibly assembled or disassembled as 2, 3, 4, 5, 5 reciprocal butt connectors
Reusable creative thread nut. When you need to replace other wires, just pull up the small lever, then pull out the required wires and replace them.
Practical terminal push- connector. connection parts for motors, electrical controls, power supplies, household appliances, LED lighting, machinery, .
Product parameters:
Product Name: Connector

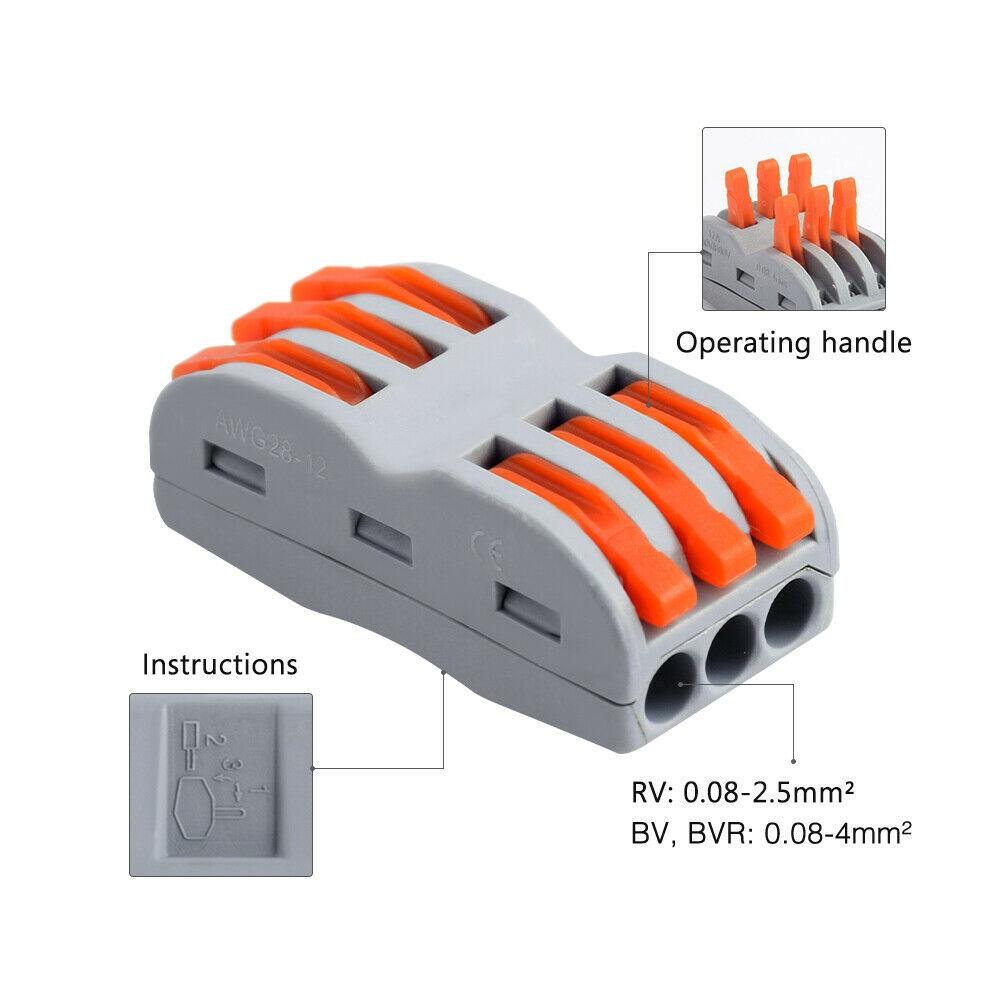

Model: SPL-1, SPL-2, SPL-3 (optional)
Contact material: electrolytic copper (tinned on the )
Shell material: flame-retardant nylon PA66
cross-sectional area: 0.08~4.0mm² (solid), 0.08~4mm² (multi-strand)
size: 28-12 AWG
Rated voltage: 250V / 600V
Rated current: 32A
Stripping length: 9~10mm

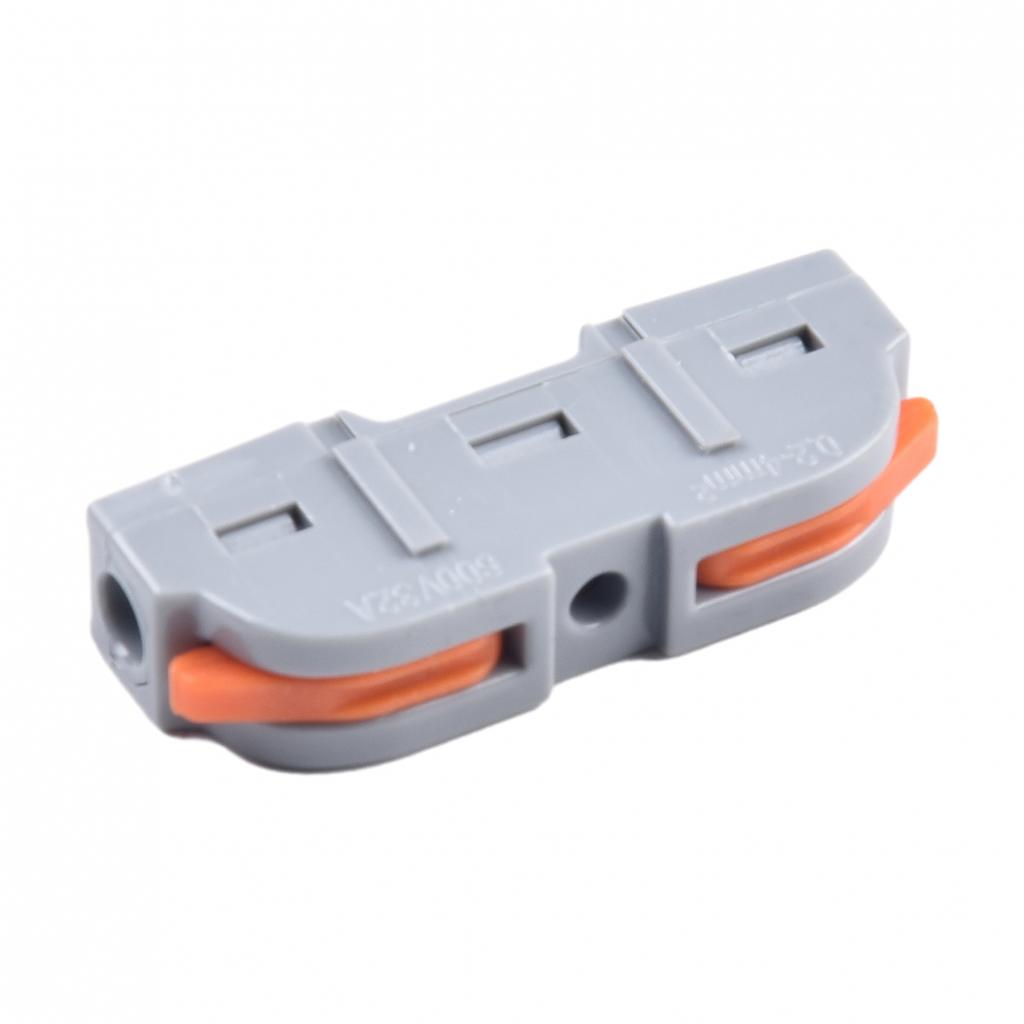

Dimensions (length * width * height): SPL-1 39x9x15mm / 1.53x0.35x0.59"

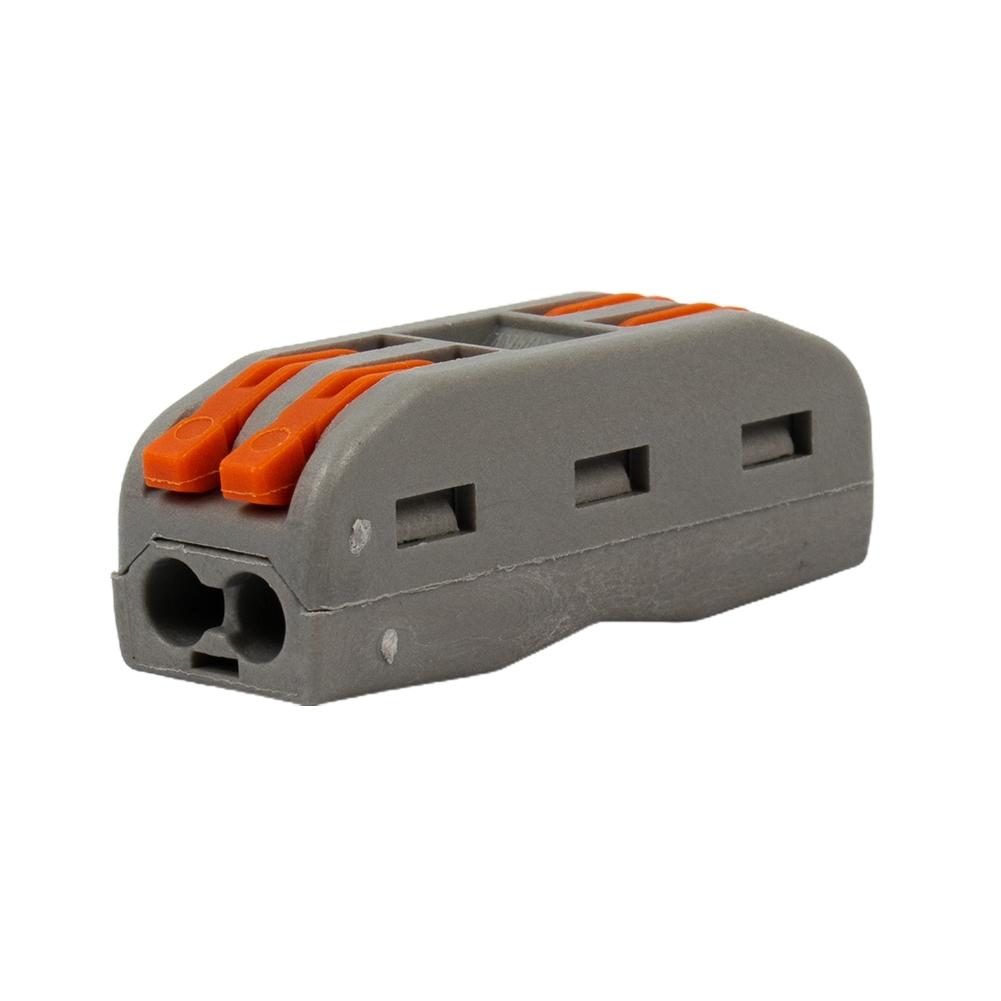

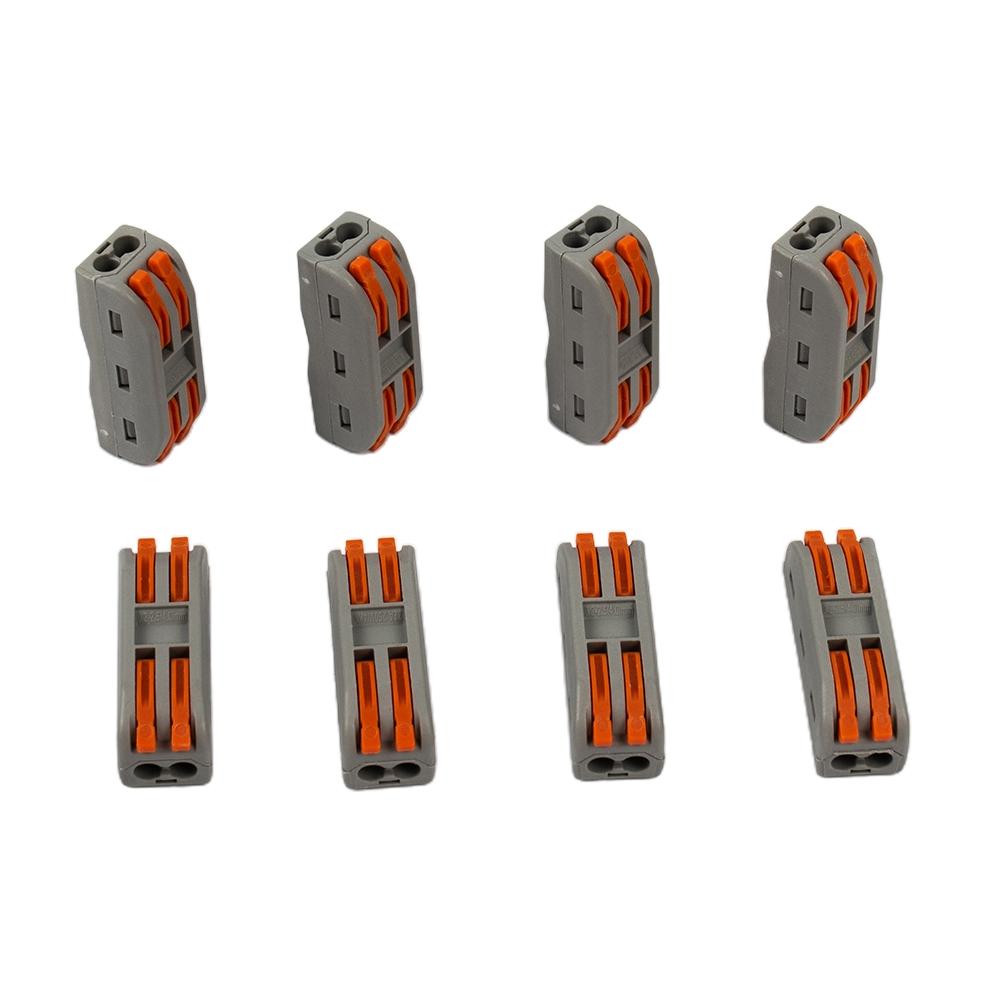

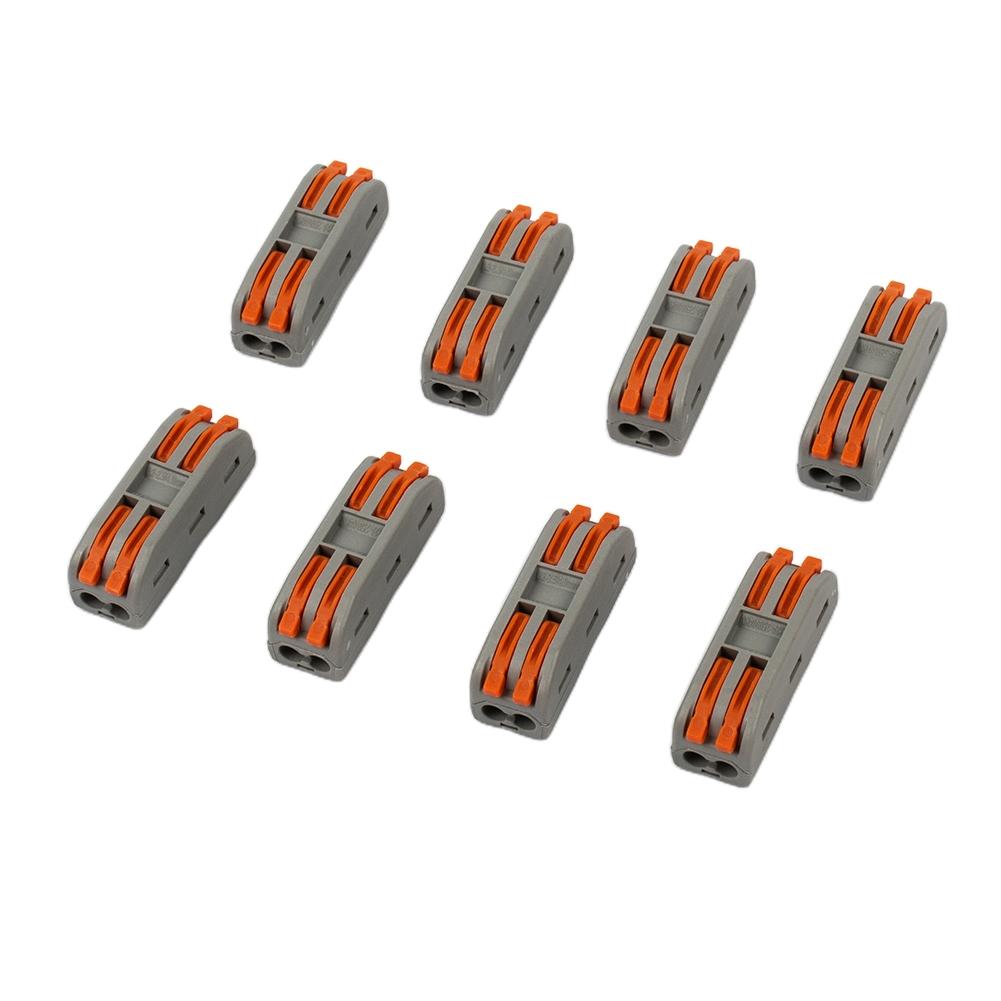

SPL-2 40x13x12mm / 1.57x0.51x0.47"
SPL-3 40x17x13mm / 1.57x0.67x0.51"
How to use :
1. Push the orange handle to 90°
2. Strip 0.35-0.40 inches of the wire casing and make sure the wire is inserted into the end
3. Put back the lever
Package Included:

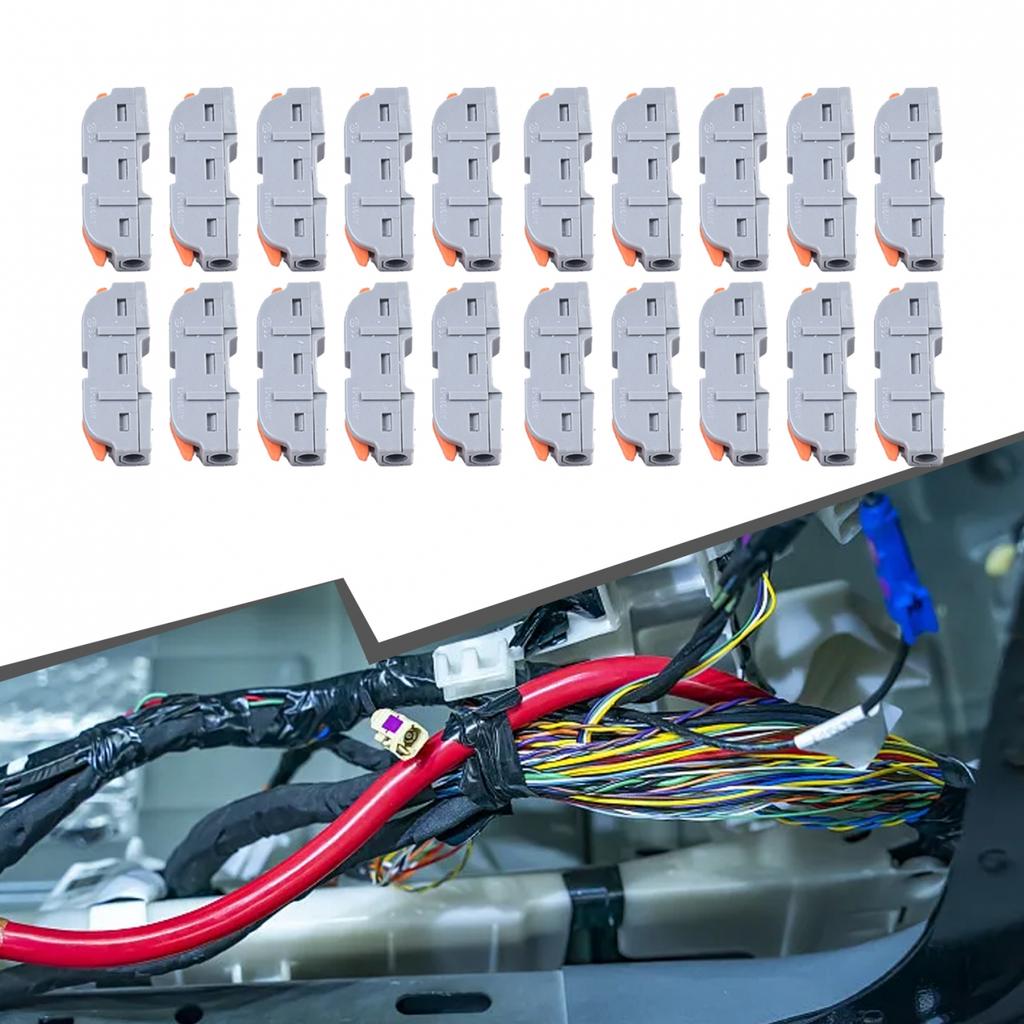

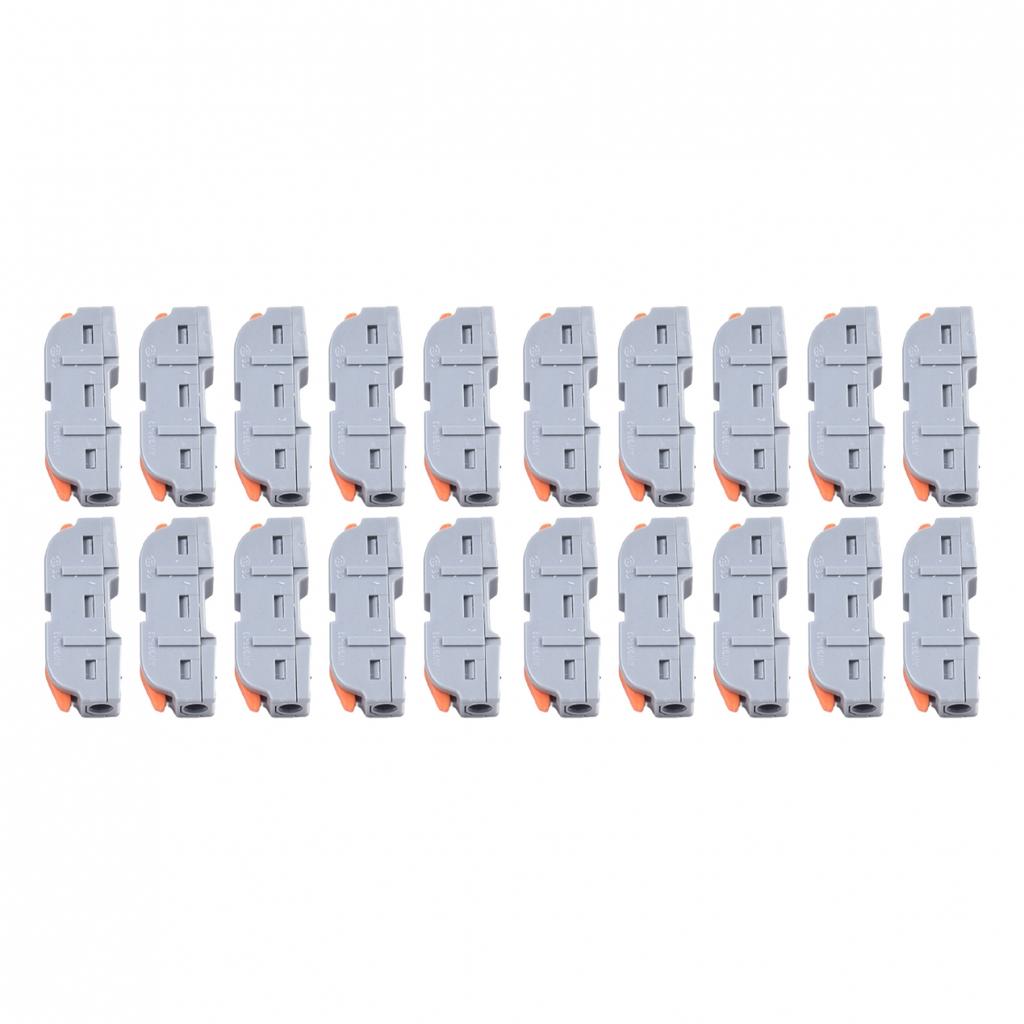

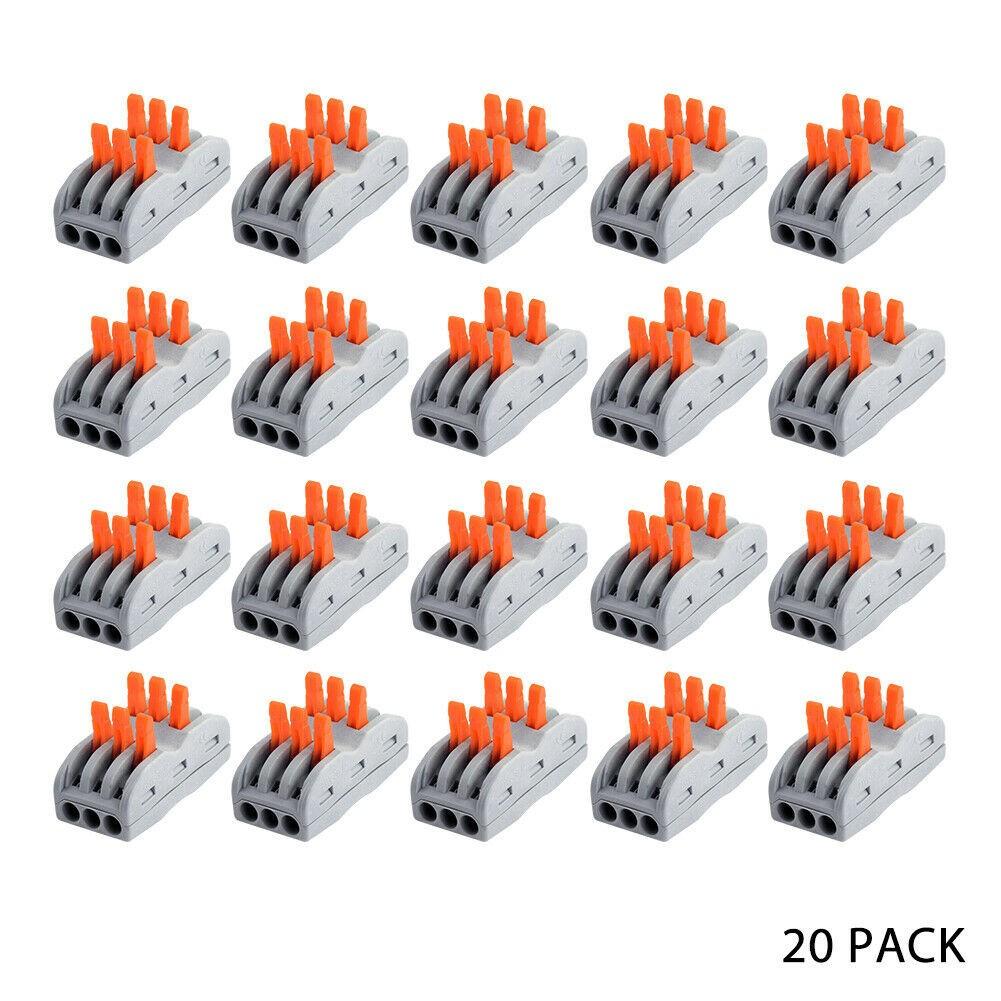

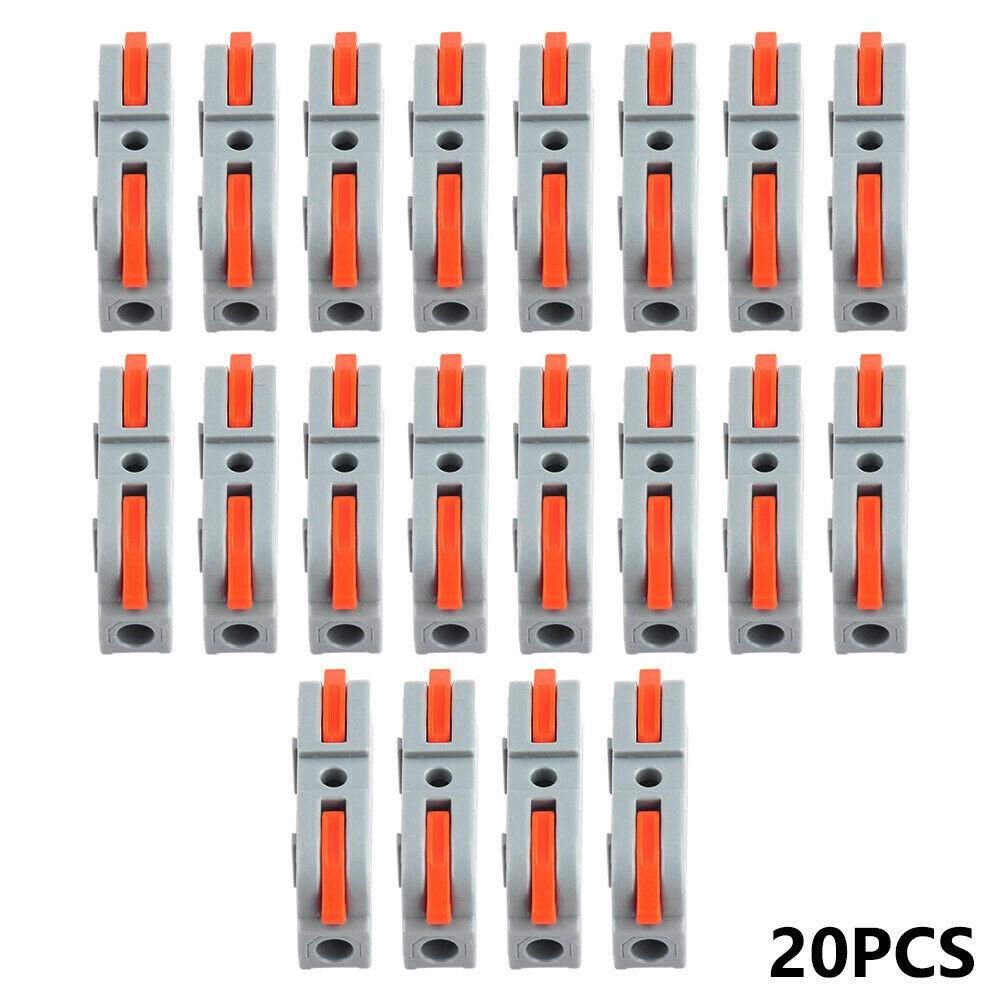

20 * Wire connector
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
