Features:
*Brand new and high quality.
*Up to 400Khz operating frequency, output ripple is very low.
*Input and output 3 LCC multi-layer ceramic capacitors, anti-interference stability.
*PCB adopts kb class A board material, cardboard, garbage board.

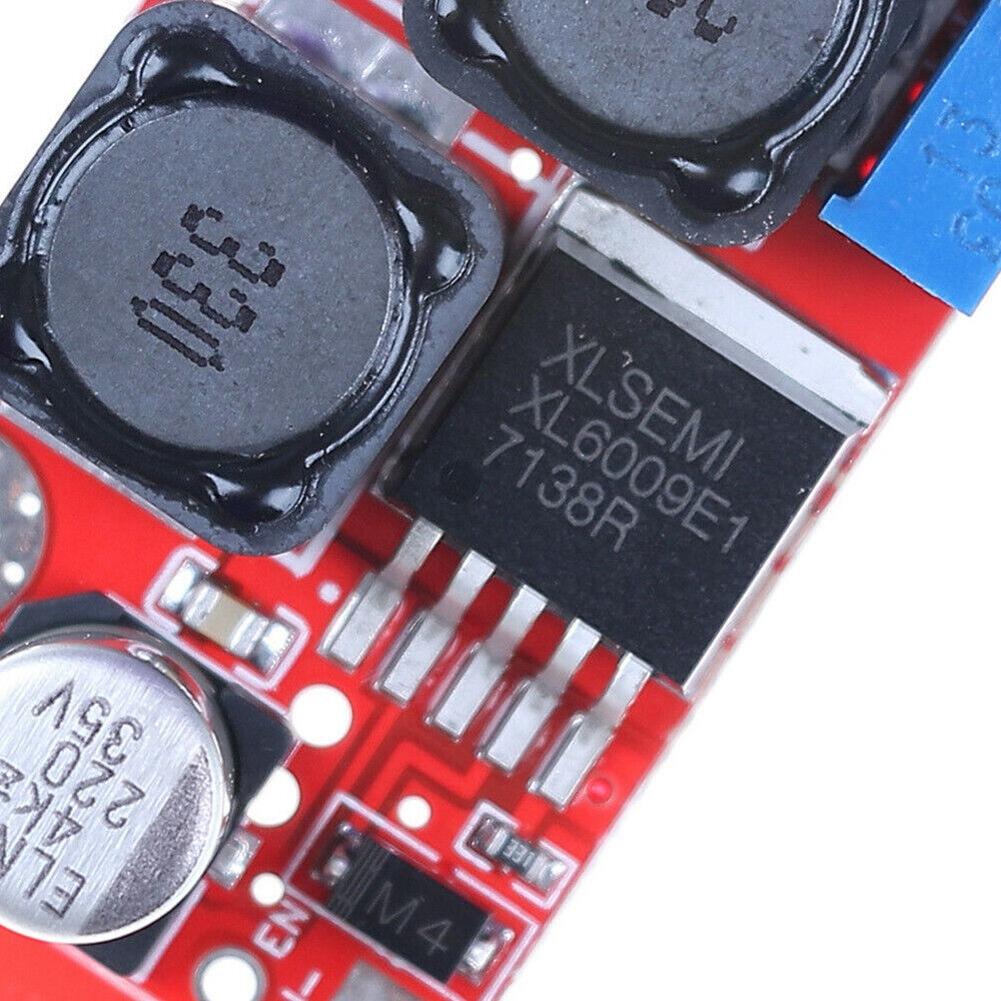

*Built-in MOSFET, say goodbye to the M2577 built-in transistor, and the efficiency reaches 94%.
*The enable port is added to control whether the booster circuit works.
Specifications:
Input voltage: 5-32V
Output voltage: (1) Continuously adjustable (1.2-35V)
Output current: 1.(MAX)
Input current: (MAX)
Output power: natural cooling 20W, plus 25W(MAX) actual power
Output ripple: Input 12V output 240. Ripple 30MV20M bandwidth (for reference only)
Operating temperature: Industrial grade (-40 ° C to +85 ° C) (ambient temperature exceeds 40 ° C, please reduce power use, or strengthen heat dissipation)
Full load temperature rise: 45℃
Operating frequency: 400khz
No-load current: typical 15mA(5V to 12V)
Load adjustment rate: ±0.5%
Voltage adjustment rate: ±0.5%
Dynamic response speed: 5% 200uS

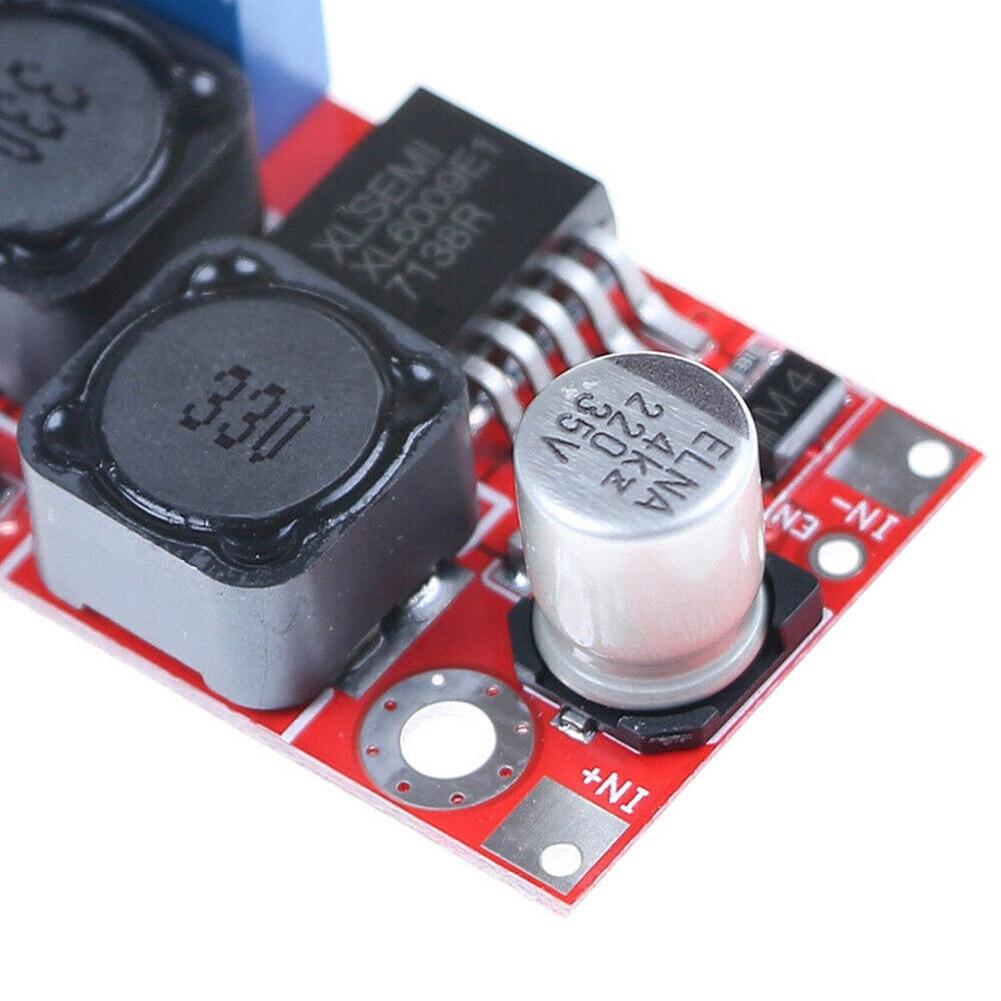

Enable control port: Yes, high 1.4V-VIN(0N), low 0-0.8V(0FF), default high
Short circuit protection: None (Please install fuse or protection circuit in input)

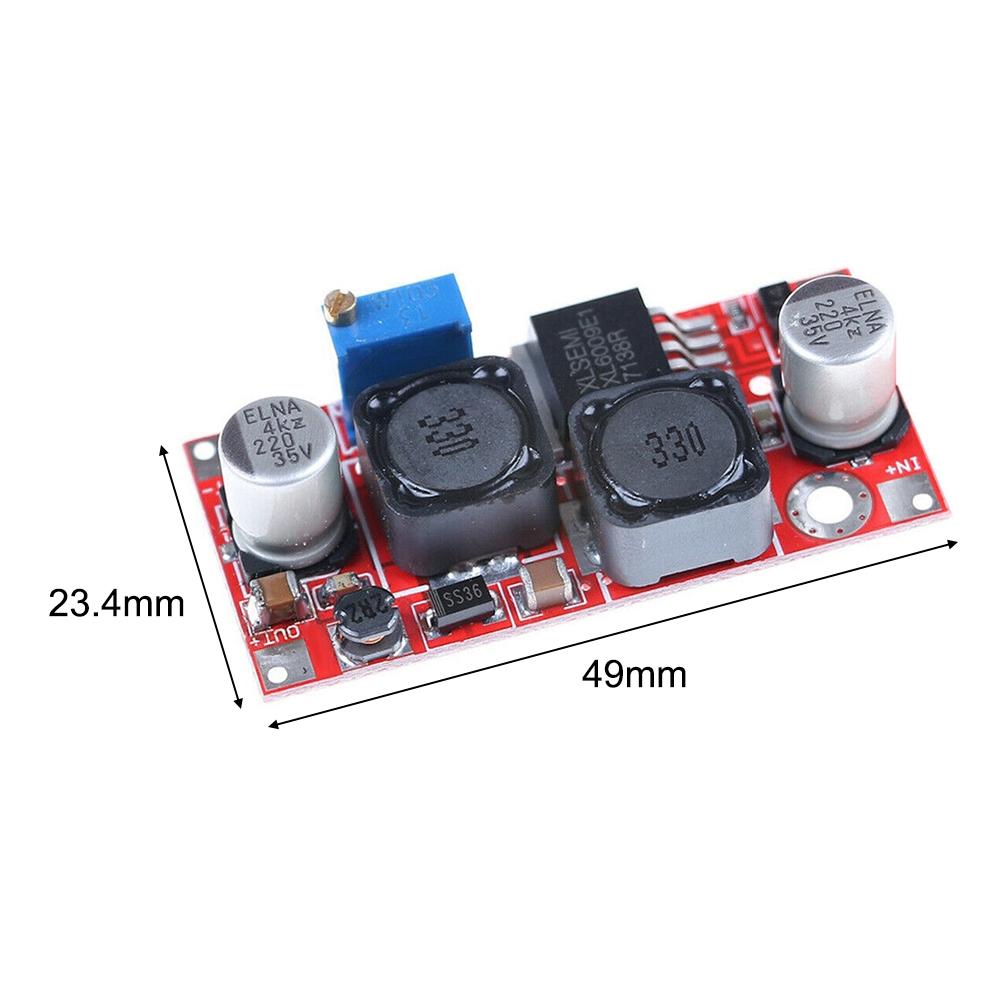

Installation : can be fixed with screws (fixing hole 3 mm), 2 fixing holes
Wiring mode: welding, adding pins can be directly welded to the PCB
Package Included:

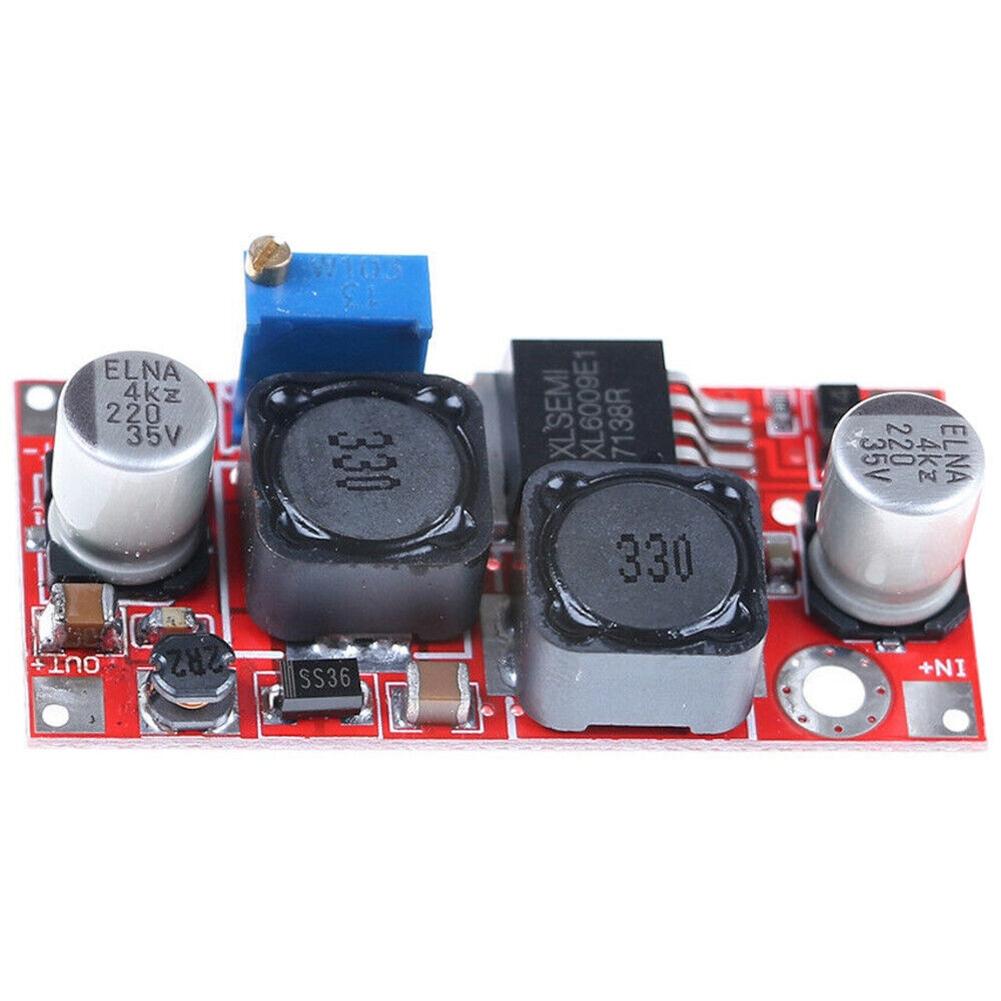

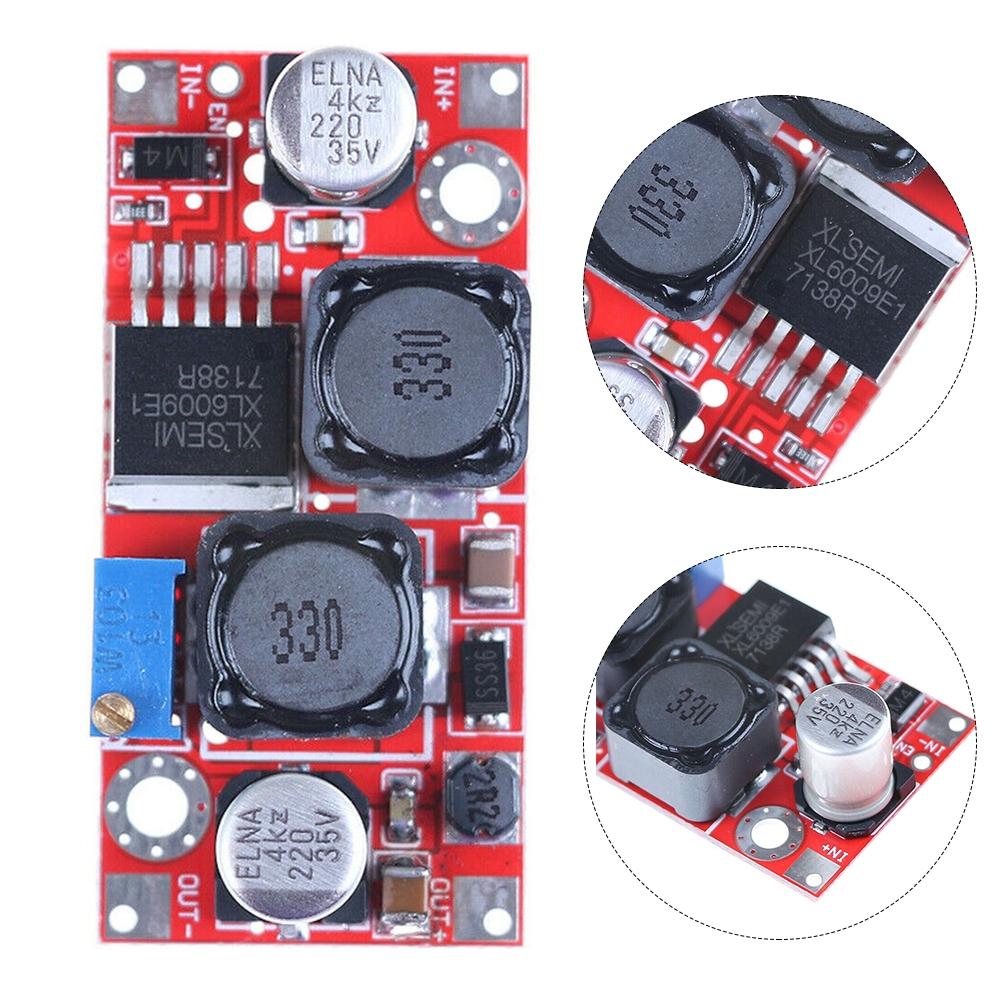

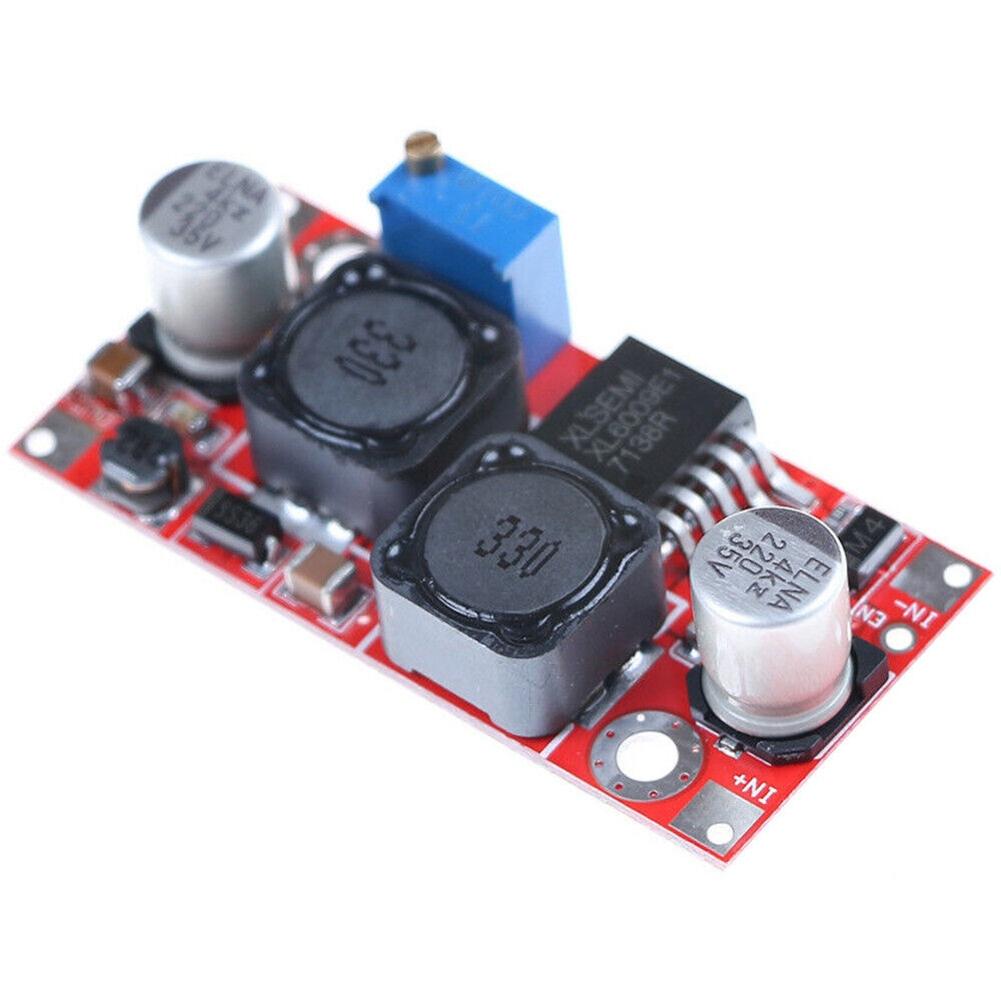

1 x Voltage converter power module
