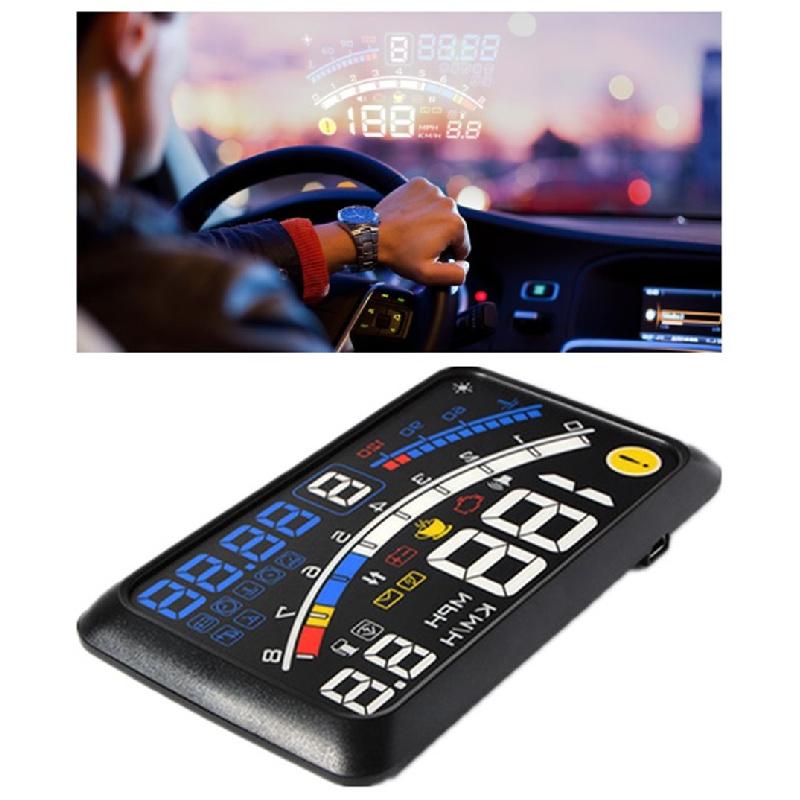

HUD short for Head Up Display.It displays driving datas on the front windshield such as speed, rpm, fuel consumption,water temperature,voltage;avoiding drivers become dangerous because of watching the instrument while driving.Drivers can read the driving information instantly,and can always keep the best state on the way with HUD.
Specifications:
Type: Head-up Display
Display type: Digital
Car Make: Cars with OBD II Interface
HUD size: 150*85*14(mm)
Screen Size: 5.5"
Alarm sound level: >= 30db
Working voltage: DC 9 - 16V
Working current: 180 mA (Max. 300mA)
Sleeping current: 30 mA
Working Temperature: -40°~+80°C
Display Content: Speed, voltage, speed alarm, water temperature alarm, gear alarm, voltage alarm, shift remind, fatigue driving remind, fault code elimination, MPH, KMH
Data measurements: live data, fuel consumption, Vehicle speed, engine temperature, throttle position, reads and clears trouble codes
HUD Main Functions&Features:

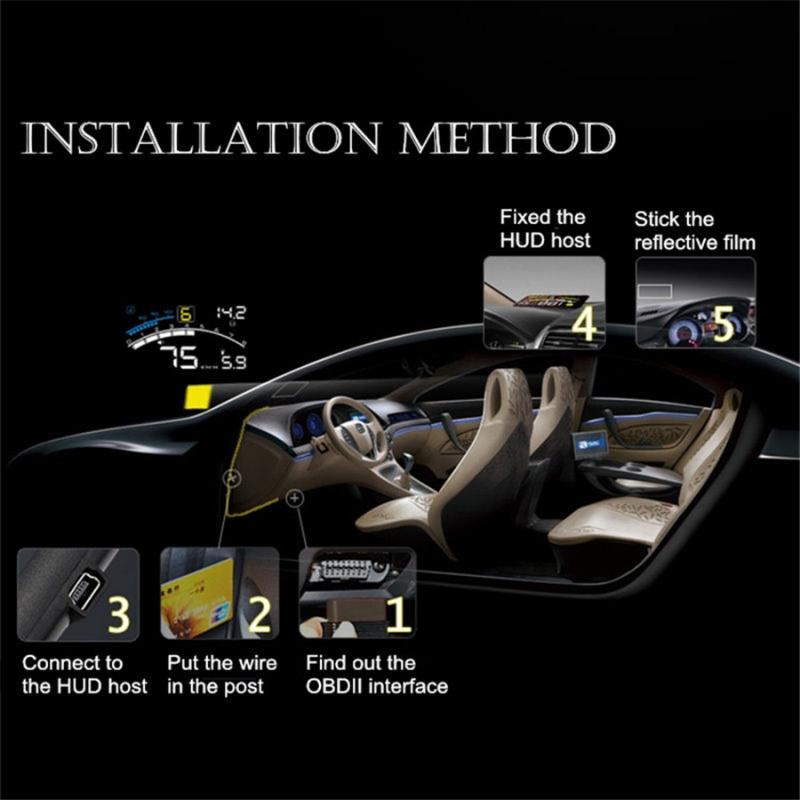

1.Available for cars with OBD2 and EUOBD port(Car automatic diagnosis system) ,plug and play

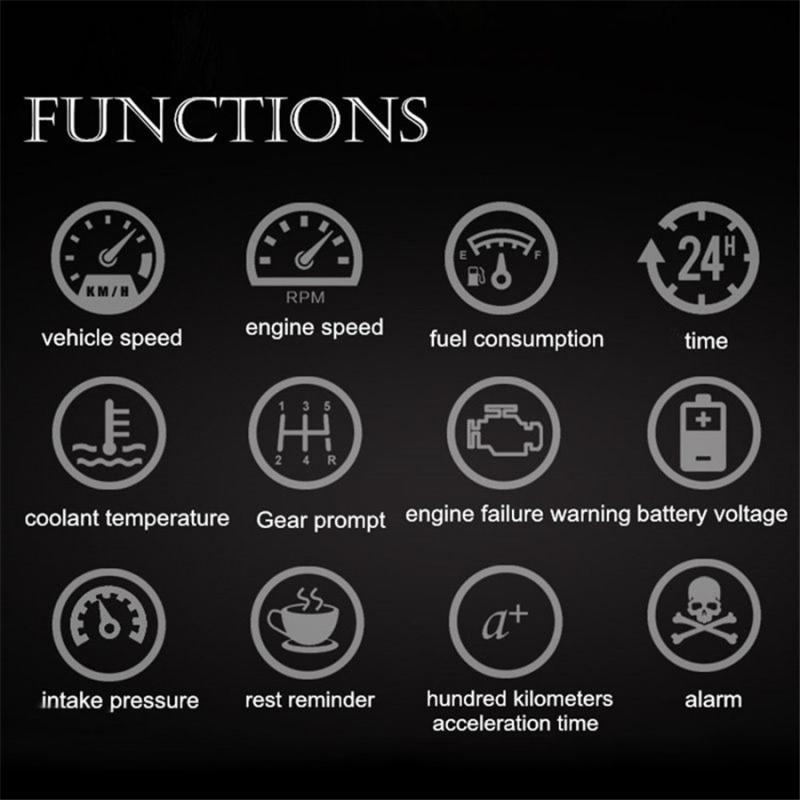

2.Rich contents: Speed, engine RPM,water temperature,voltage, fuel consumption, engine fault code
3.Display mode: default mode, high-speed mode, automatic mode.
4.Kilometer and Mile can be switched freely.

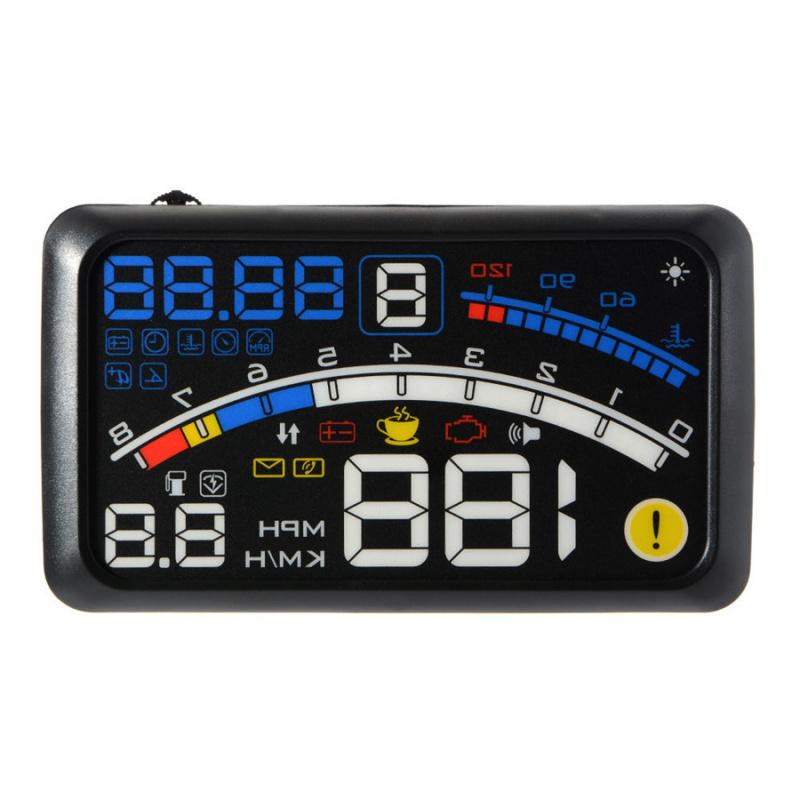

5.Screen 5.5 inch HD display, easy for read
6.Auto power on/off: HUD start and off with vehicle started and shutdown, effective protection of the car battery;retaining the manual switch mode,more easy to control HUD.
7.Over speed alarm include single-speed alarm and four-stage alarm
8.Engine RPM alarm can help to fuel-efficient by shifting, and is good for novice.
9.Automatic and manual brightness adjustment mode,driving without glare

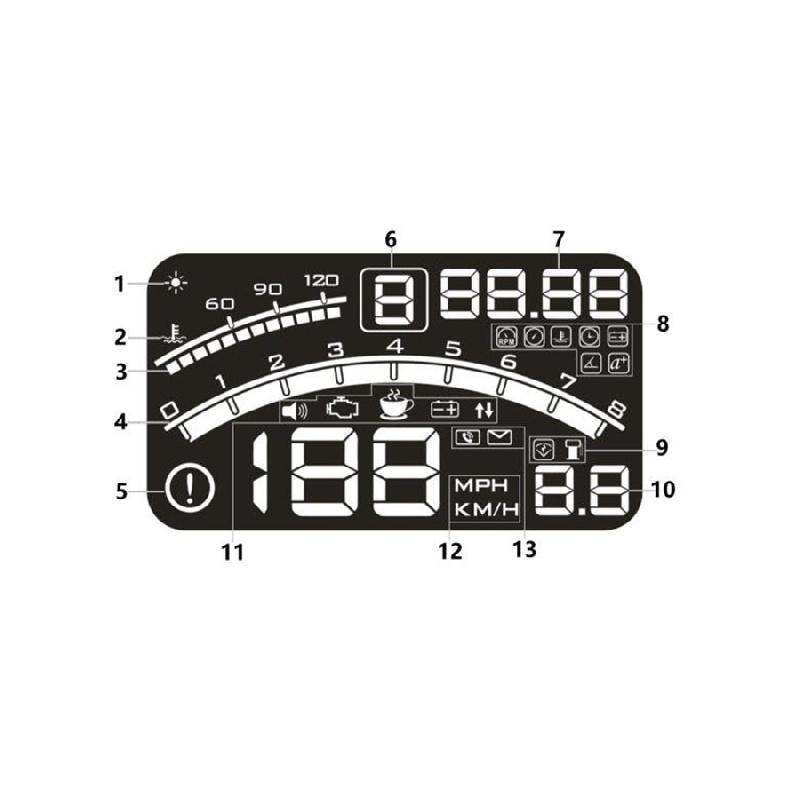

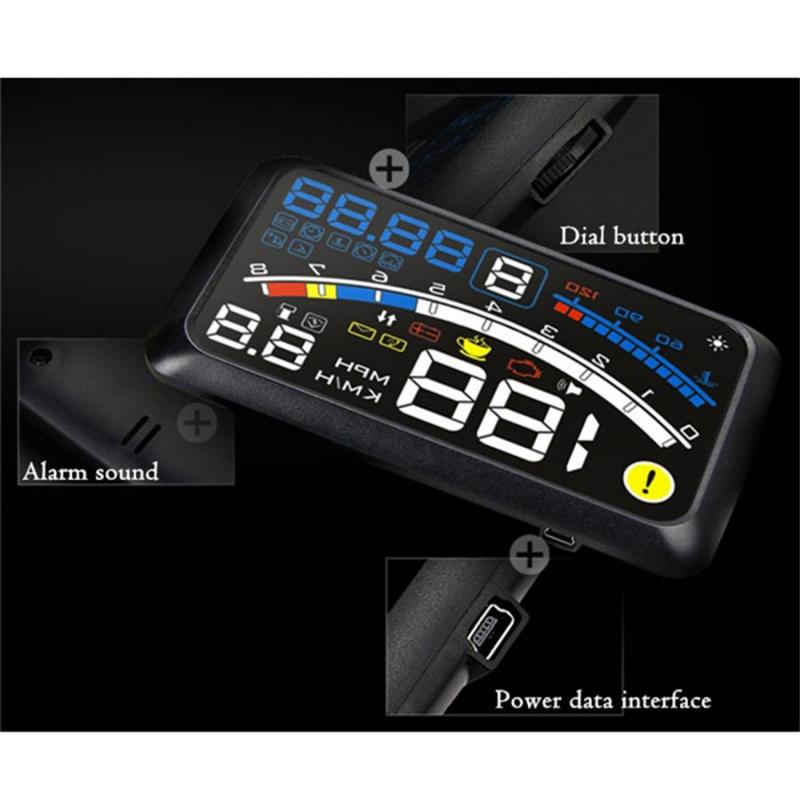

1.Brightness sensor
2.Water temperature icon
3.Water temperature scale
4.Engine RPM scale
5.Over speed alarm
6.Gear display
7.Multi-function value
8.Icon for engine RPM,inlet pressure,water temperature,clock,voltage,ignition angle,acceleration time for 100 Kilometers
9.Throttle position and fuel consumption
10.Multi-function value
11.Buzzer mark,engine fault,fatigue alarm,voltage alarm,data transfer
12.Speed unit
13.Calls and SMS alerts(this function is not opened now)
Package Includes:

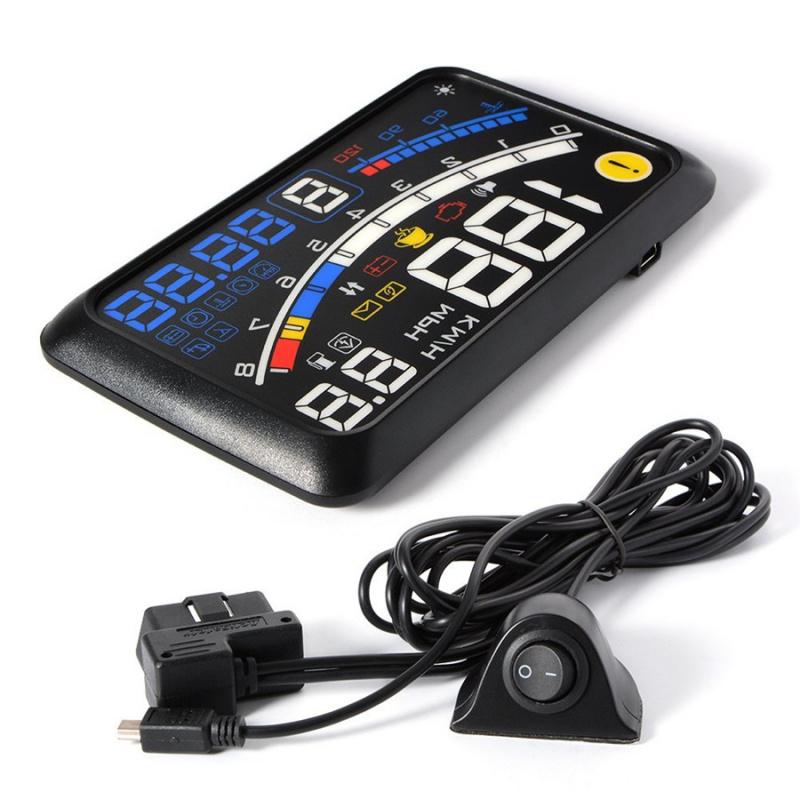

1 x OBD II Head up display

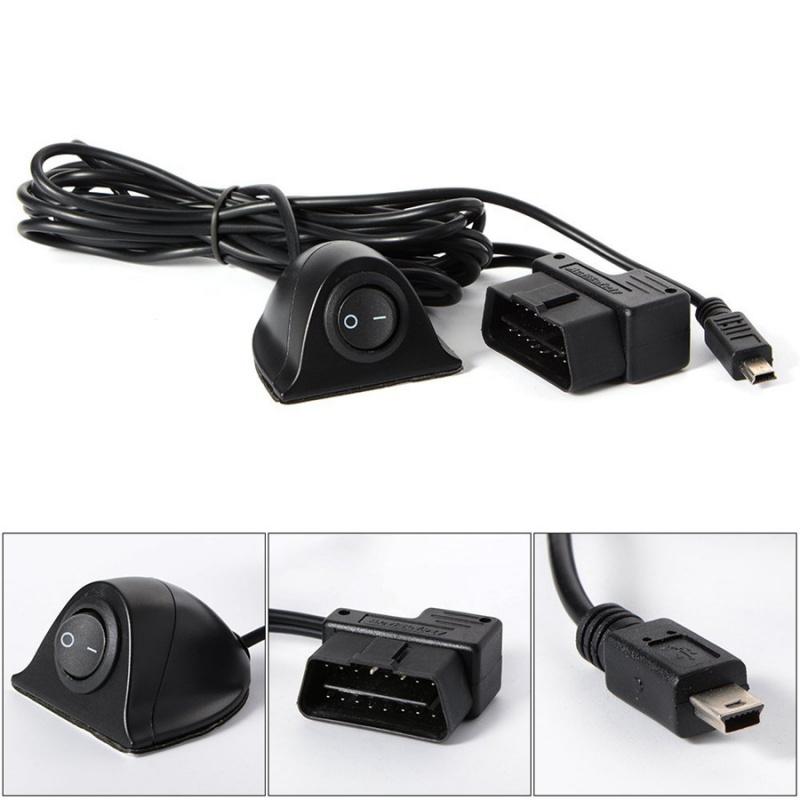

1 x OBD Cable
1 x Non-slip Mat
1 x Reflecting Film
1 x User Manual
No-delivery refund
