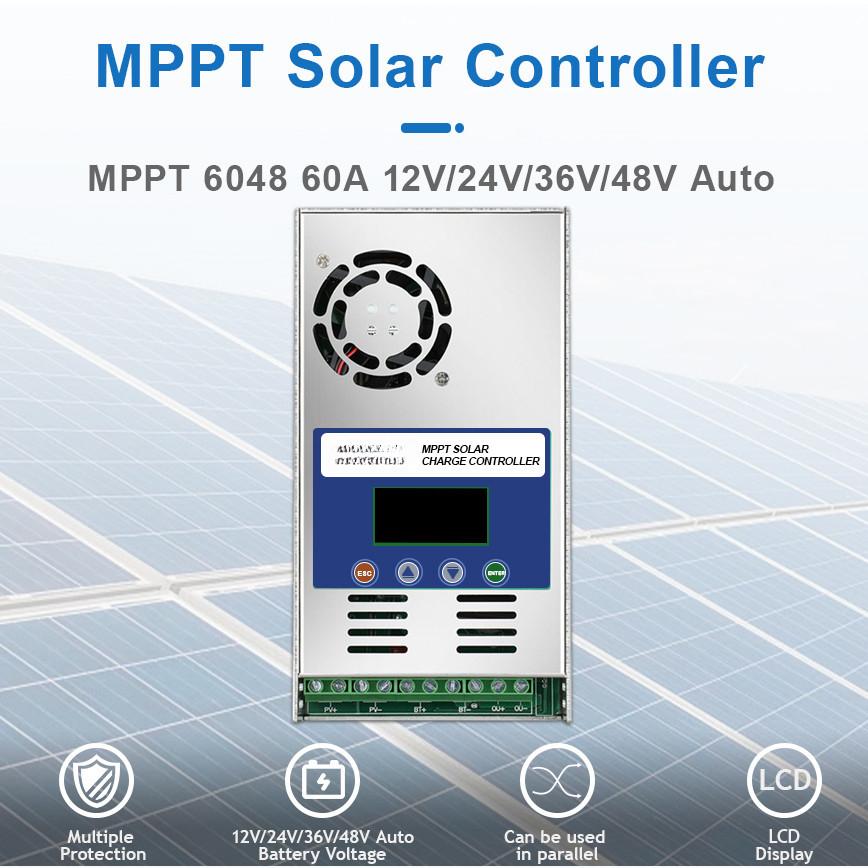

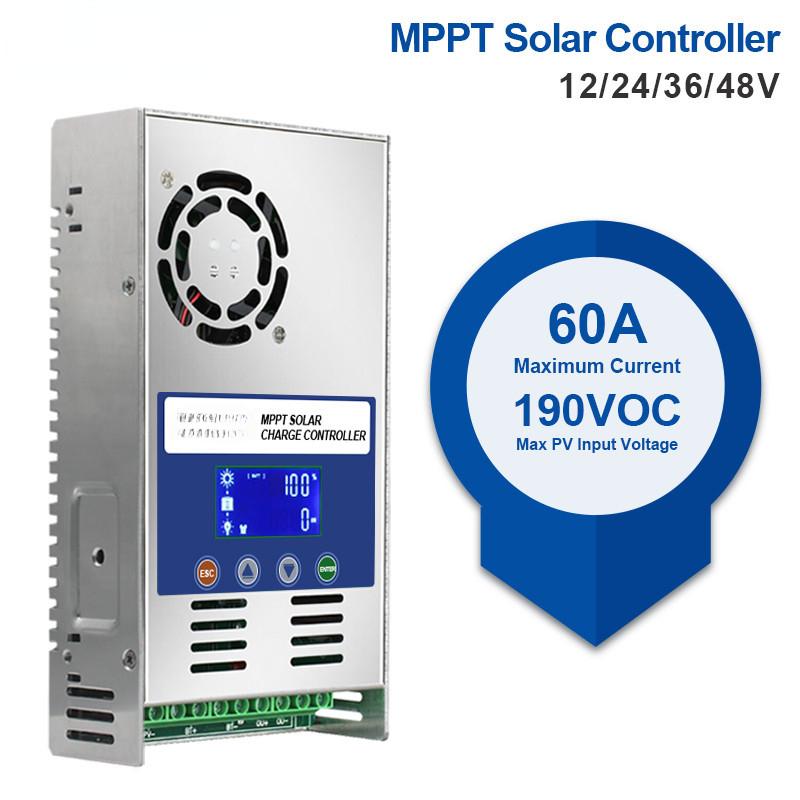

60A MPPT Solar Charge and Discharge Controller 12V 24V 36V 48V Auto for Max PV 190V DC Lead Acid Lithium Battery

Specifications:

Product Category: MPPT Solar Controller

Maximum Current : 60A

Battery System Voltage : 12V 24V 36V 48V

Enclosure : IP21

Fan-off temperature : <40℃

Fan-on temperature : >45℃

Gross weight (Kg) : 1.2KG

Max Solar Input Voltage : 190VOC

PV utilization : 99%

Temperature protection : 75℃

The maximum PV input power : 720W/12V; 1440W/24V2160W/36V; 2880W/48V

Application : Solar System Controller,Solar Working Station,Voltage Controller,Lighting Controller,Charger Controller

Features:

-Automatic battery voltage detection for 12V/24V/36V/48V

-3-stage charging optimizes battery performance

-Overcharge protection, over-temperature protection

-Suitable for battery types such as sealed lead acid,vented gel and lithium battery, etc

-Easy to be mounted

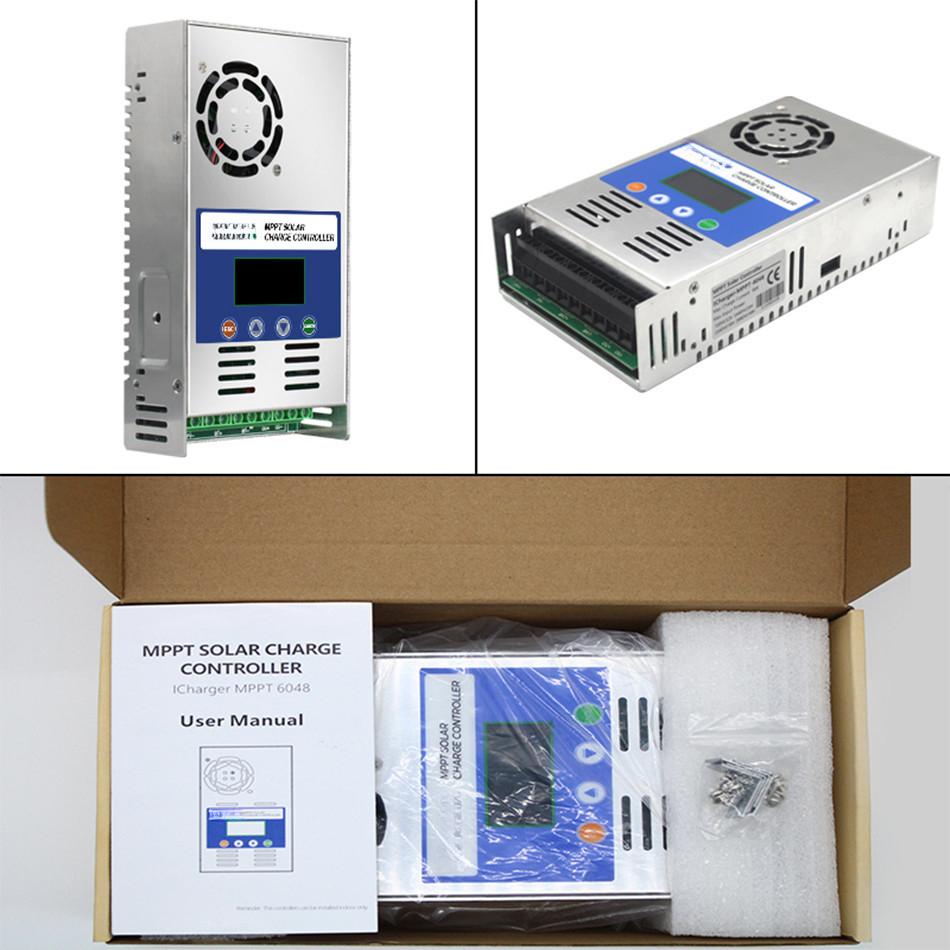

Package Included:

1 x Solar Controller

1 x User Manual
