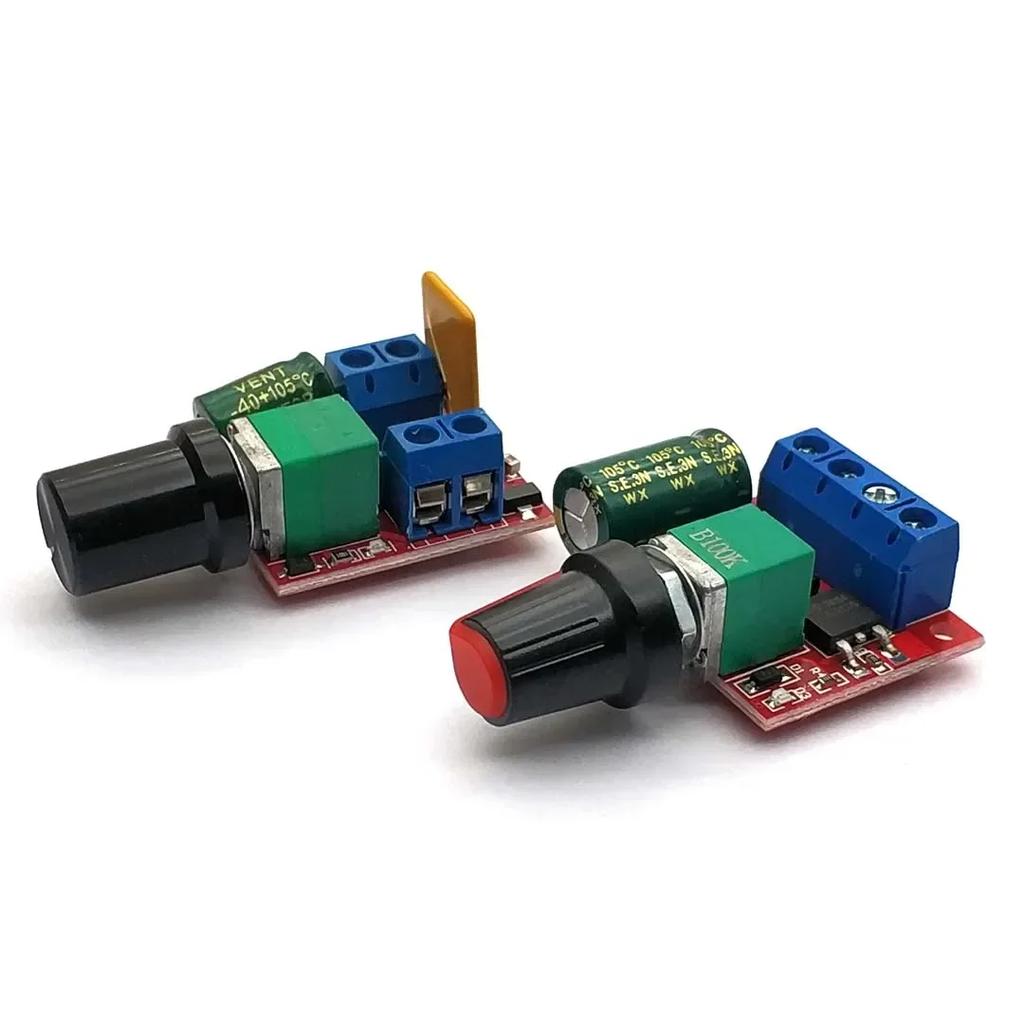

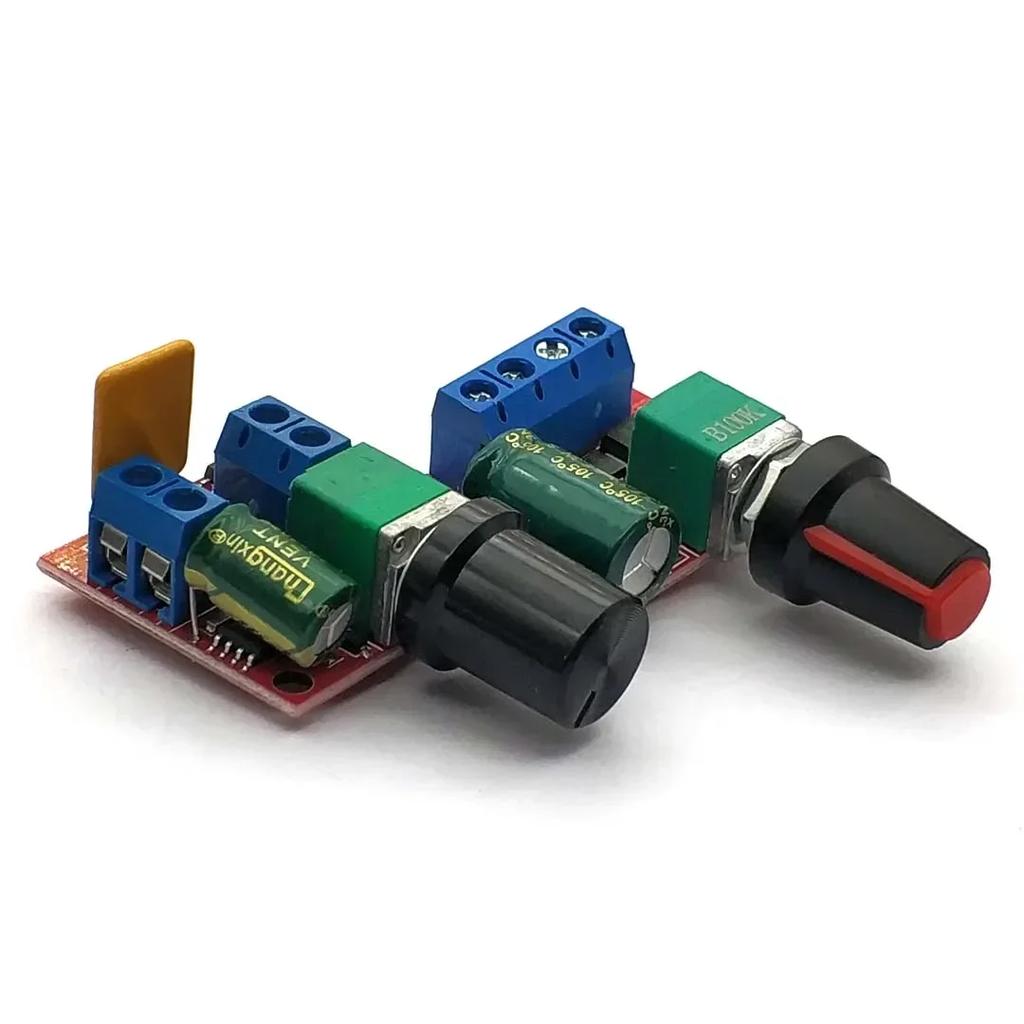

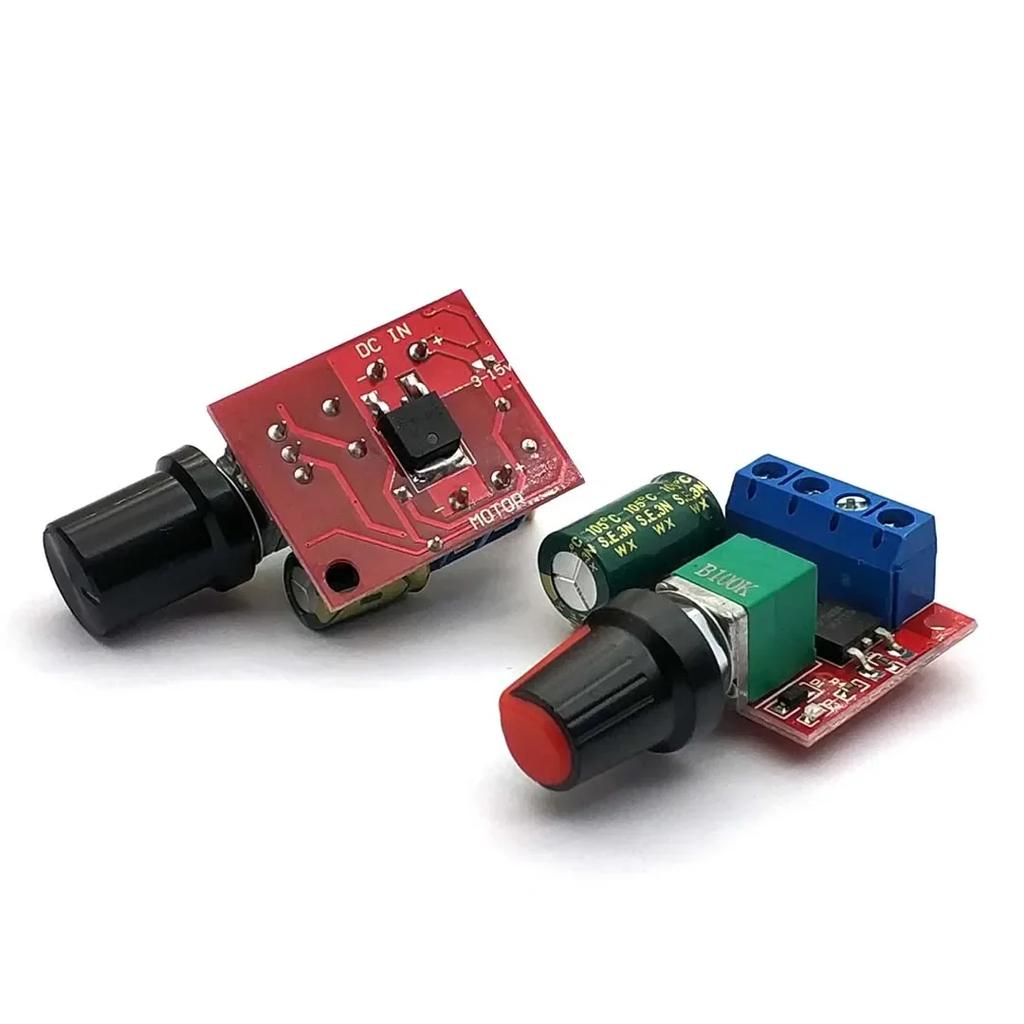

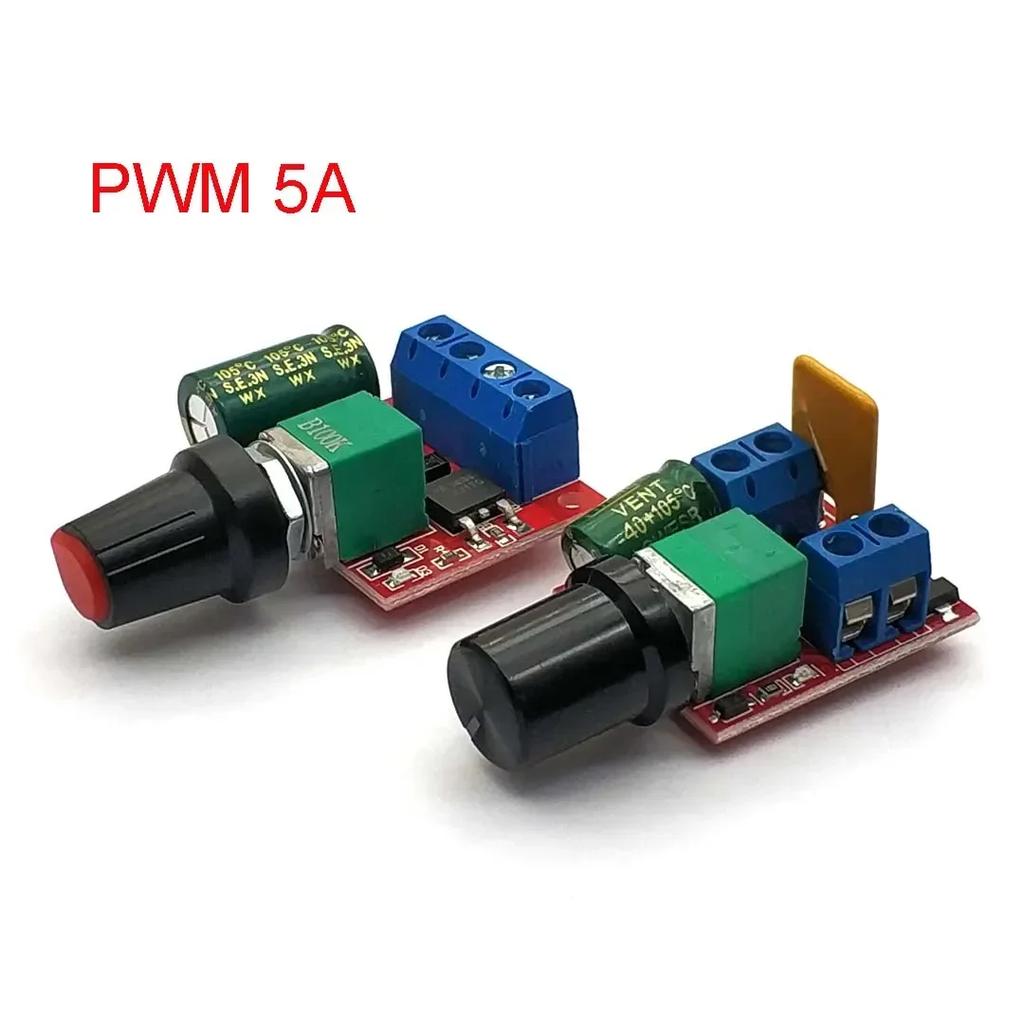

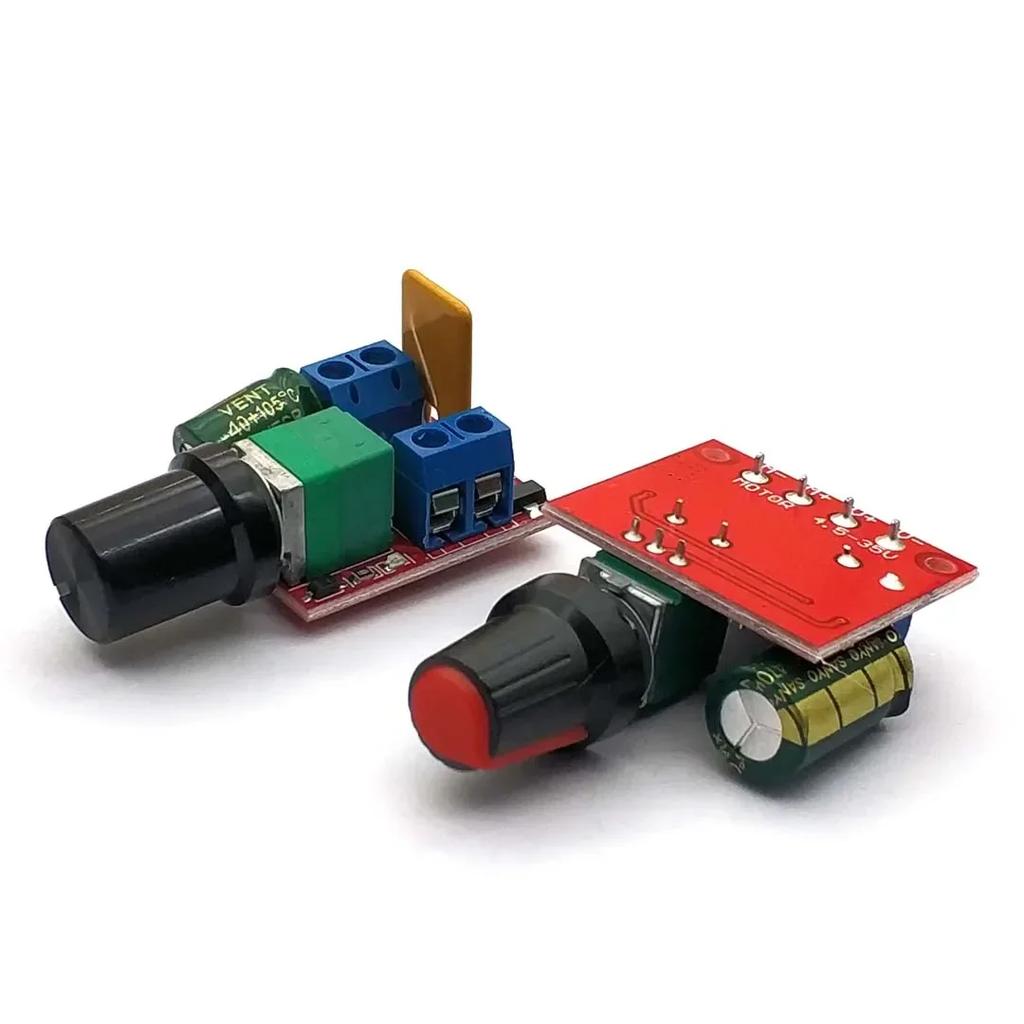

Mini 5A 90W PWM 12V DC Motor Speed Controller Module DC-DC 4.5V-35V Adjustable Speed Regulator Control Governor Switch 24V

Type 1 Operating Voltage: DC 3V-35V Control Power: 90W (maximum) Quiescent Current: 0.015A (standby) PWM Duty Cycle: 1% -100% PWM Frequency: 10khz Size: 24*30mm/0.94*1.18"

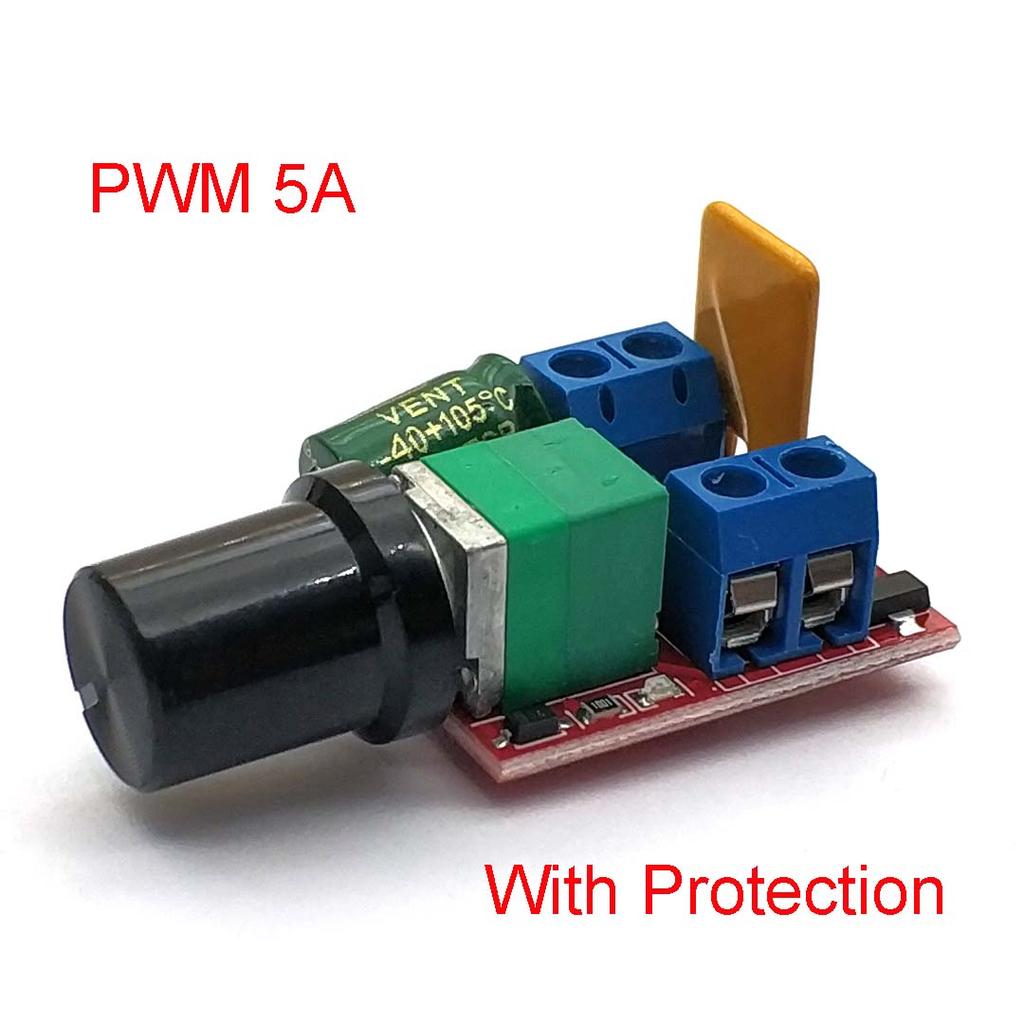

Type 2 Operating voltage: DC4.5V-35V Output current: 0-5A Output power: 90W (max) Quiescent current: 7uA (standby) PWM duty cycle: 1% -100% PWM frequency: 20khz Size: 30mm x 26mm x 14mm (Without Handle)

Type 3 Operating Voltage: DC3V-30V Control Power: 120W (maximum) Quiescent Current: 0.015A (standby) PWM Duty Cycle: 1% -100% PWM Frequency: 12khz Size: 24*30mm

Precautions: DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn! DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged. The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.

Package Included 1 Pcs PWM Speed Control Module
