Feature:
1. Innovative Design: The H36 Combo V1 features a design that runs on for Klipper firmware, setting a new standard for high temperature tool boards.
2. Versatile Communicating Options: CANBUS and USB. With an onboard USB hub, connect up to two USB devices or a combination of a CAN and USB interface, suitable for connecting IDM scanners, level sensors, and cameras!
3. Robust Construction: Built with a 6 layer PCB design and only solid state and tantalum capacitors, this board provides excellent heat dissipation for dependable use.
4. User Friendly Interfaces: Update your firmware effortlessly with onboard IO controlled CAN USB switches, and conveniently positioned RESET and BOOT0 buttons. The integrated 5V at 3A DC to DC supports maximum loads of up to 15W!
5. Advanced Safety Features: Incorporating high power MOSFETs for fan control and heating ensures safer work with reduced heat generation, enhancing overall reliability.
6. Complete IO Options: Equipped with three 3 pin fan connections, multiple IO with level shifters, RGB support, a heating interface, a thermistor, and a status LED everything you need for a comprehensive setup!
Specification:
Item Type: CAN Bus Adapter Board
Function: H36ComboV1.3
Material: PCB
Microcontroller: STM32G0B1T3
Accelerometer: ADXL345
USB Ports: 2+1 (for MCU), powered by CH334P
CANBUS: 1+1 (for MCU)
Fans: 4 (1x2 pin, 3x3 pin)
Heater Output: 1
Temperature Measurement: 1 (PH2.0 connector) and 1 (on board thermistor)
Motor Driver: TMC2209
Sign Inputs and Outputs: 5 (PH2.0) and 7 (pin headers)
RGB LED Strip Control: Default 2, up to 5
Auxiliary Board Support: None
On Board Mounting Nut: None
.

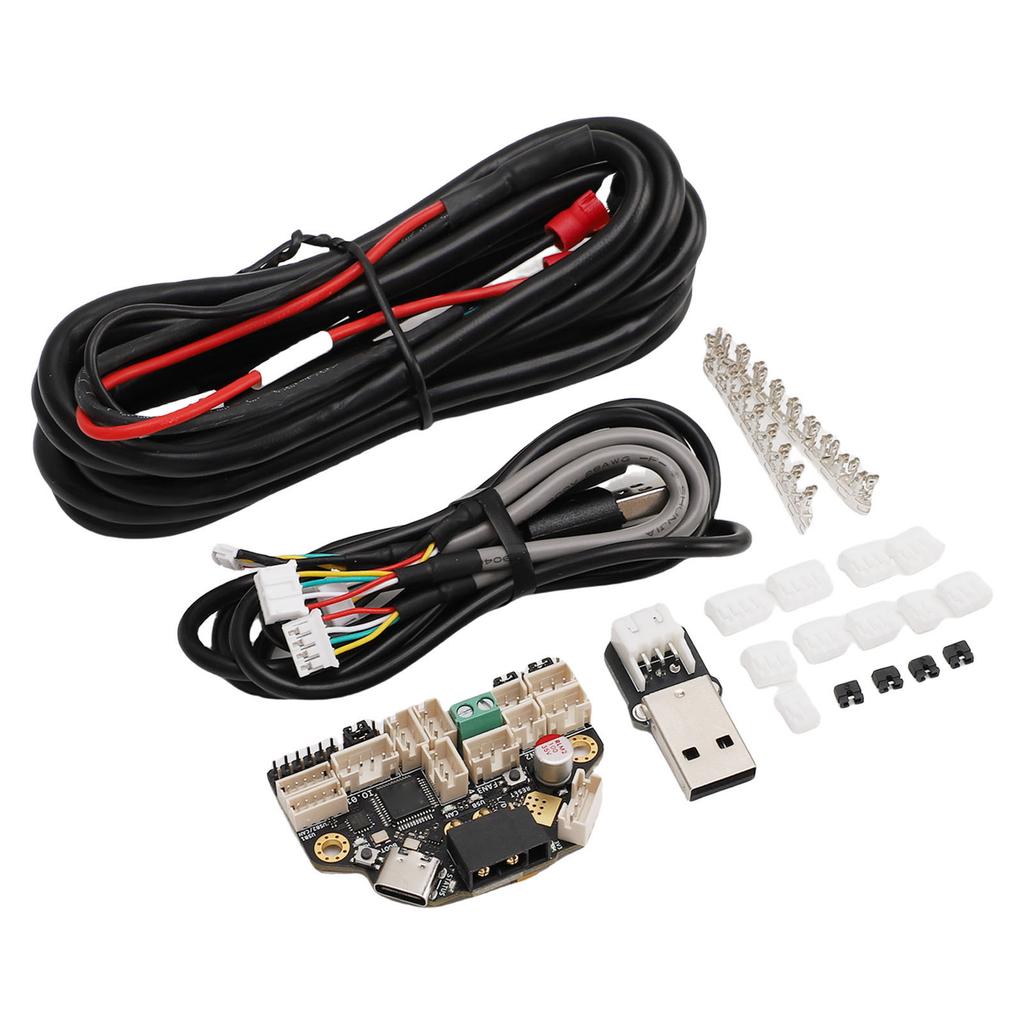

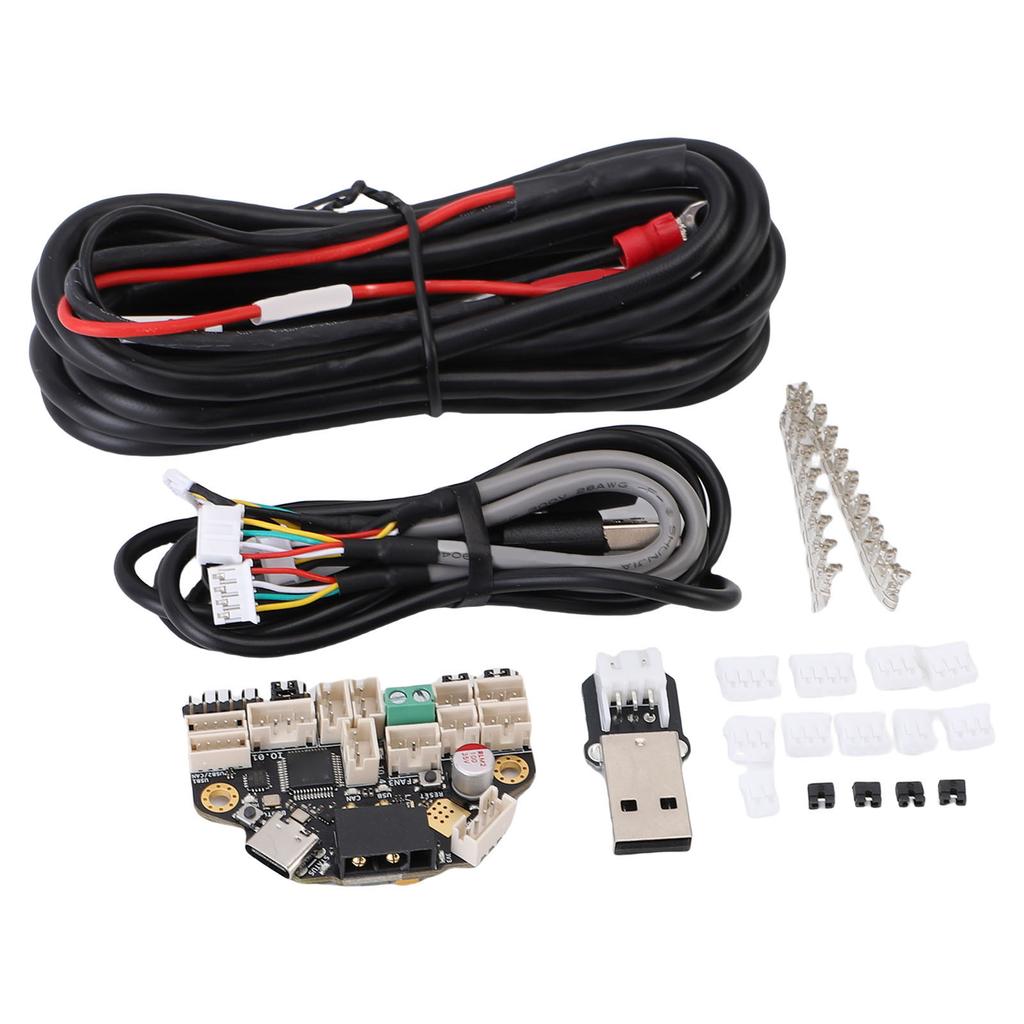

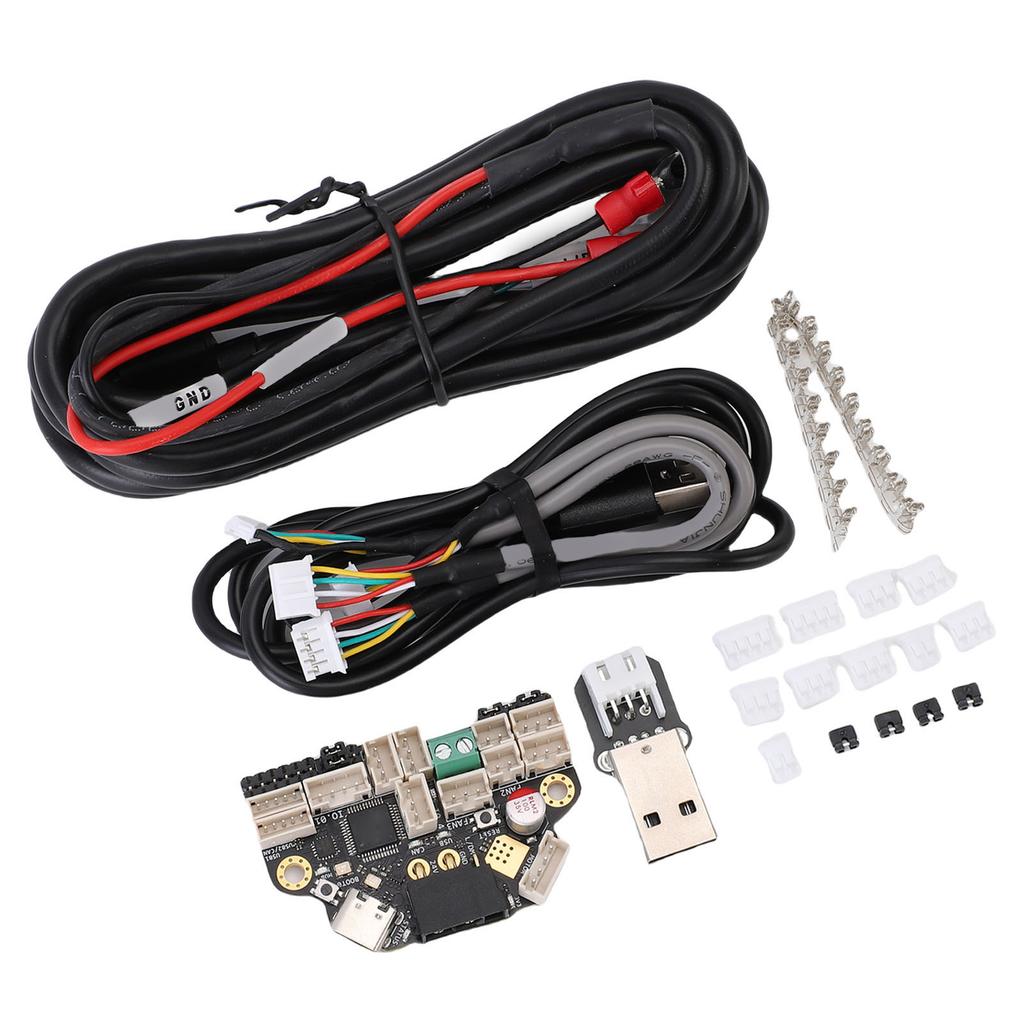

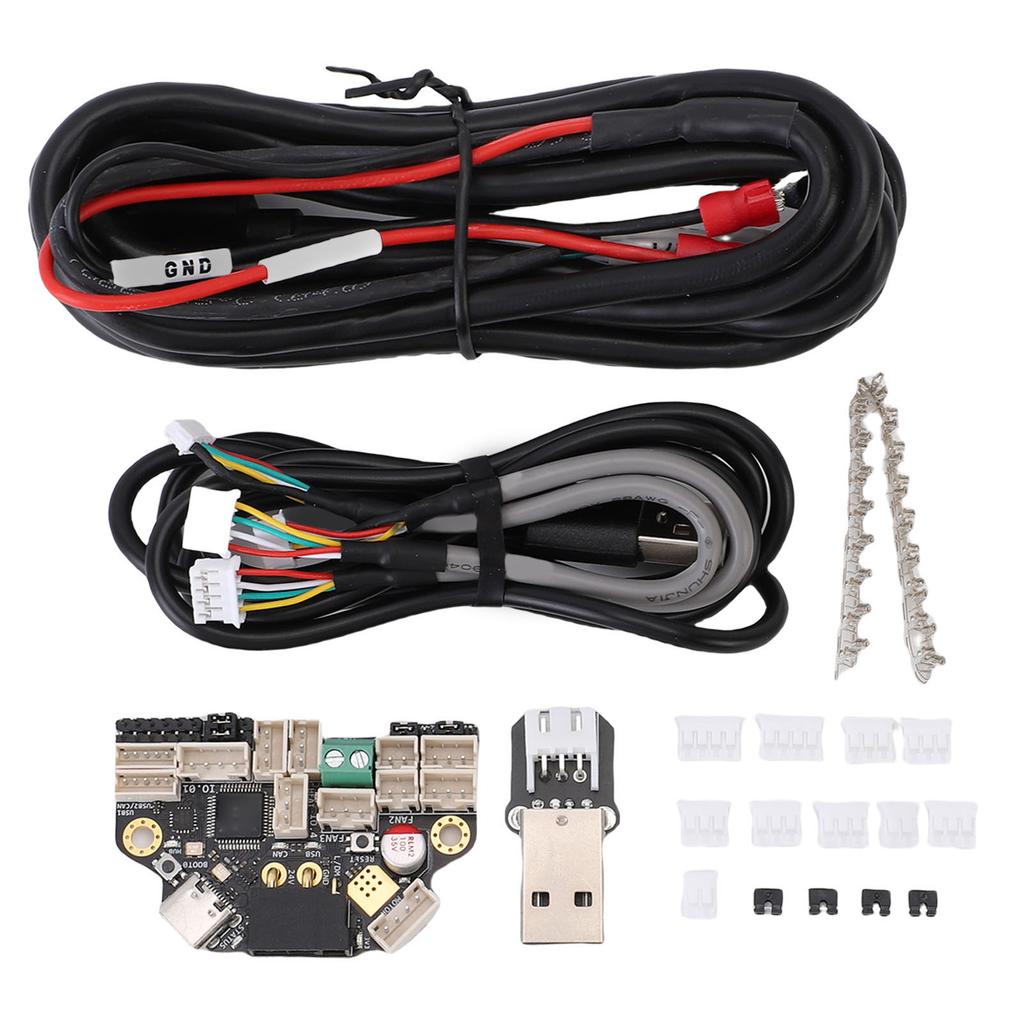

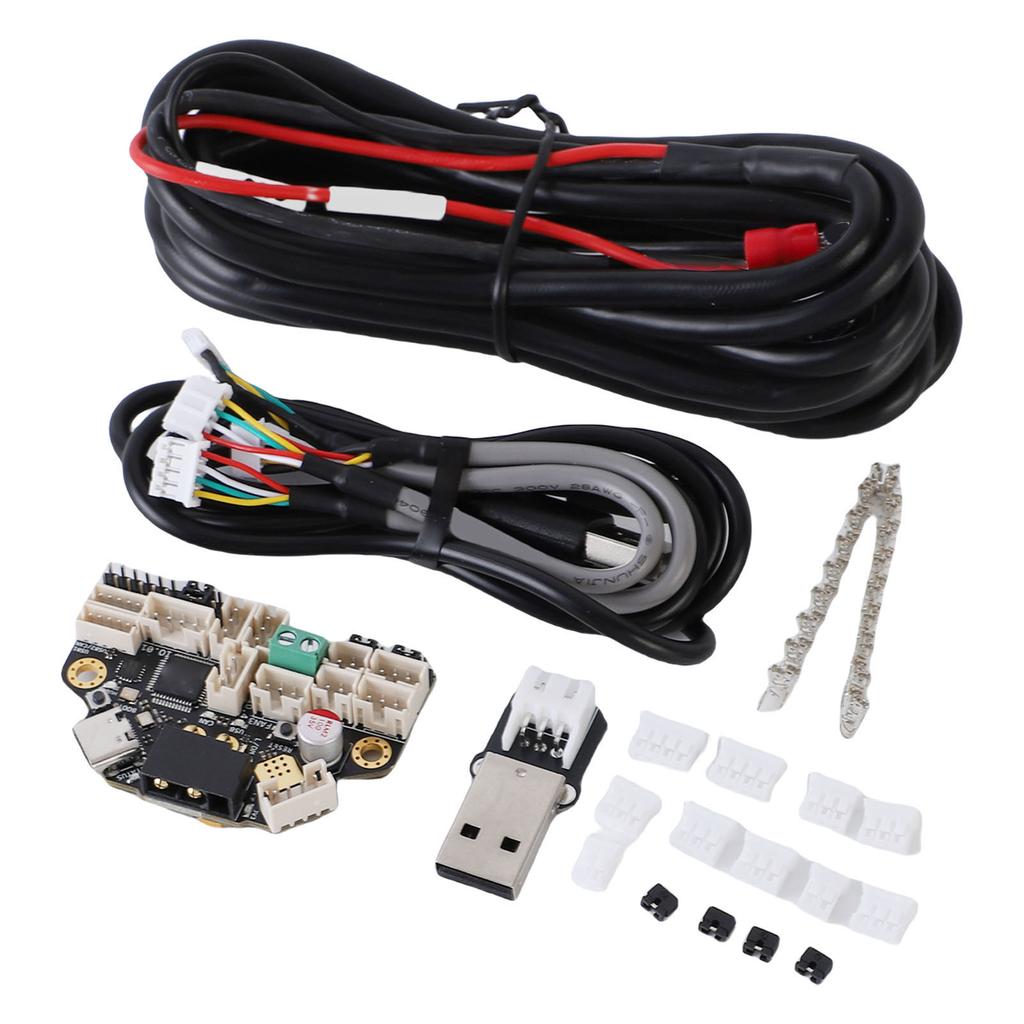

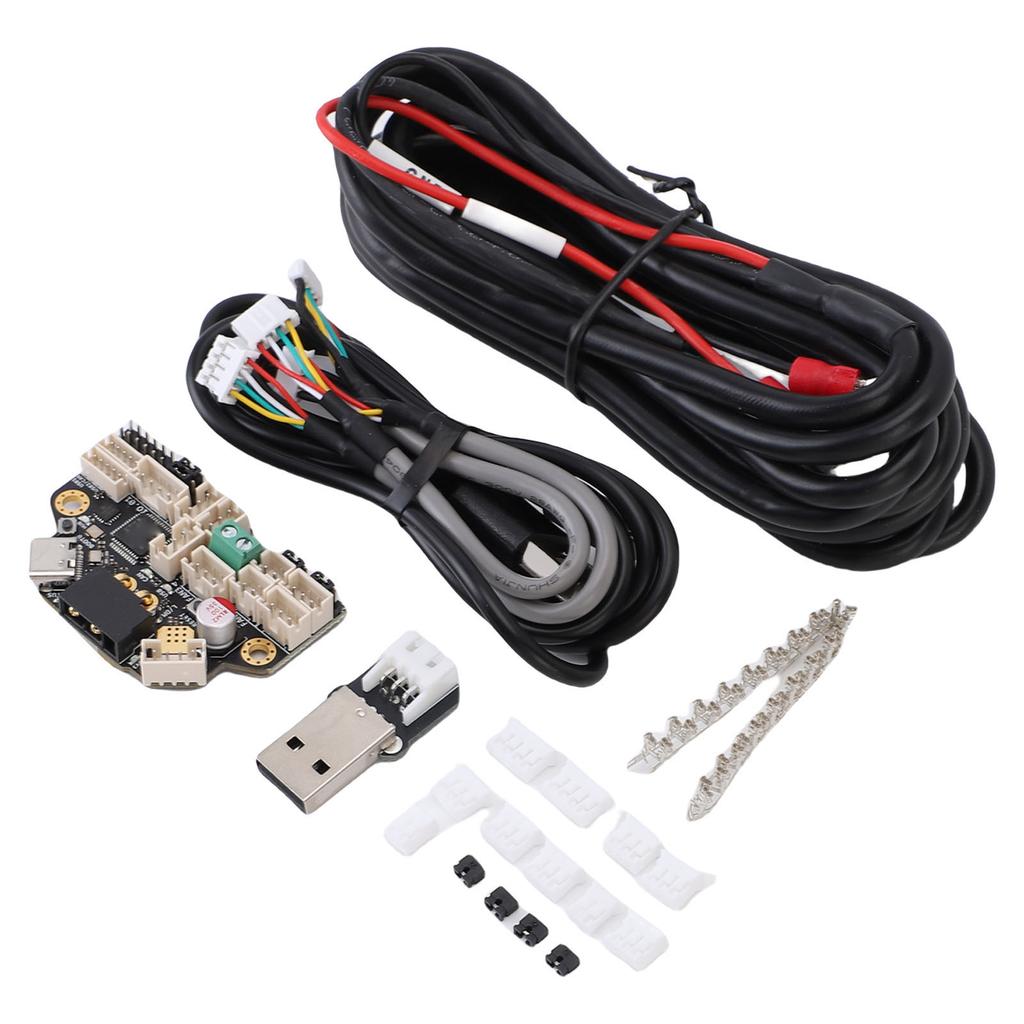

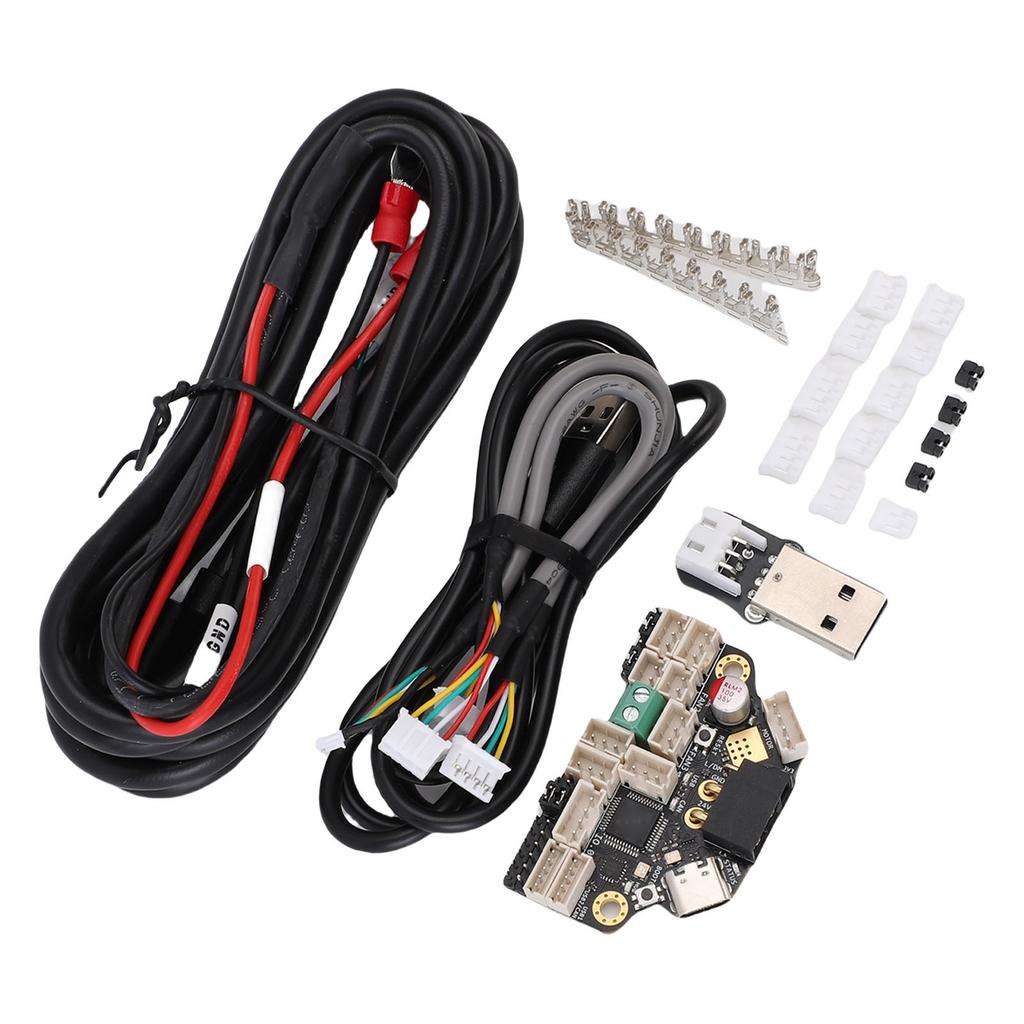

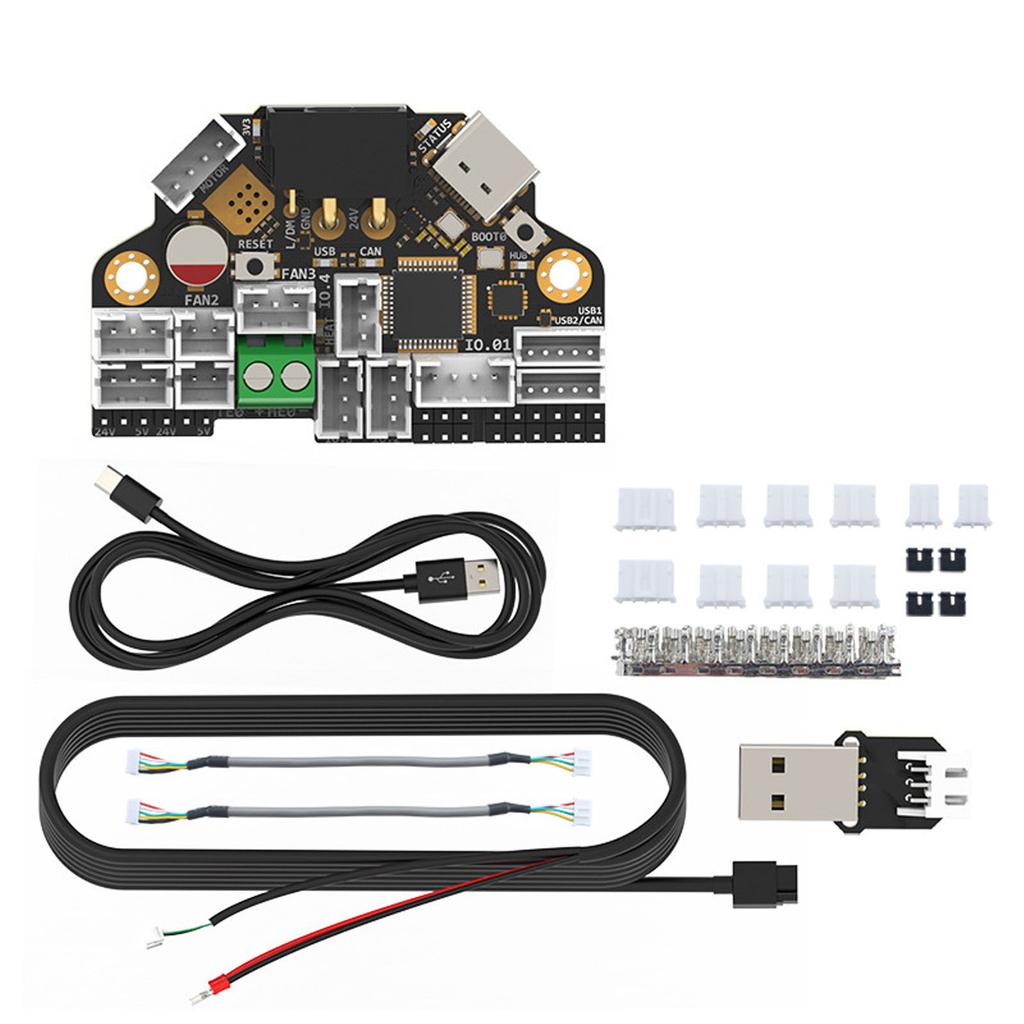

Package List:
1 x H36V1.3
1 x USB C Cable 1m
1 x H36CAN USB Cable V1 2.5m
2 x ZH1.5 PH2.0 Cable 14cm
14 x Connector Terminals
1 x Pin Header
1 x USB ConverterInnovative Design: The H36 Combo V1 features a design that runs on for Klipper firmware, setting a new standard for high temperature tool boards.
Versatile Communicating Options: CANBUS and USB. With an onboard USB hub, connect up to two USB devices or a combination of a CAN and USB interface, suitable for connecting IDM scanners, level sensors, and cameras!
Robust Construction: Built with a 6 layer PCB design and only solid state and tantalum capacitors, this board provides excellent heat dissipation for dependable use.
User Friendly Interfaces: Update your firmware effortlessly with onboard IO controlled CAN USB switches, and conveniently positioned RESET and BOOT0 buttons. The integrated 5V at 3A DC to DC supports maximum loads of up to 15W!
Advanced Safety Features: Incorporating high power MOSFETs for fan control and heating ensures safer work with reduced heat generation, enhancing overall reliability.
