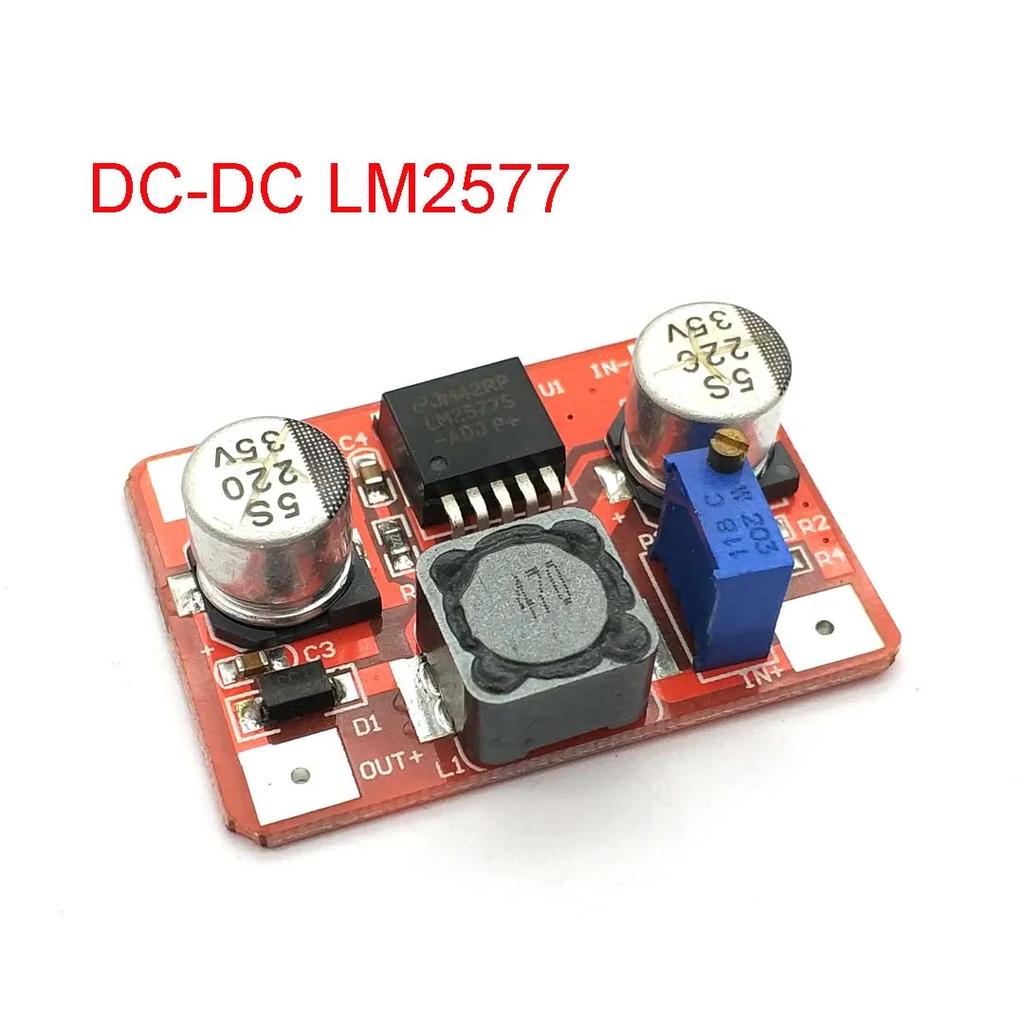

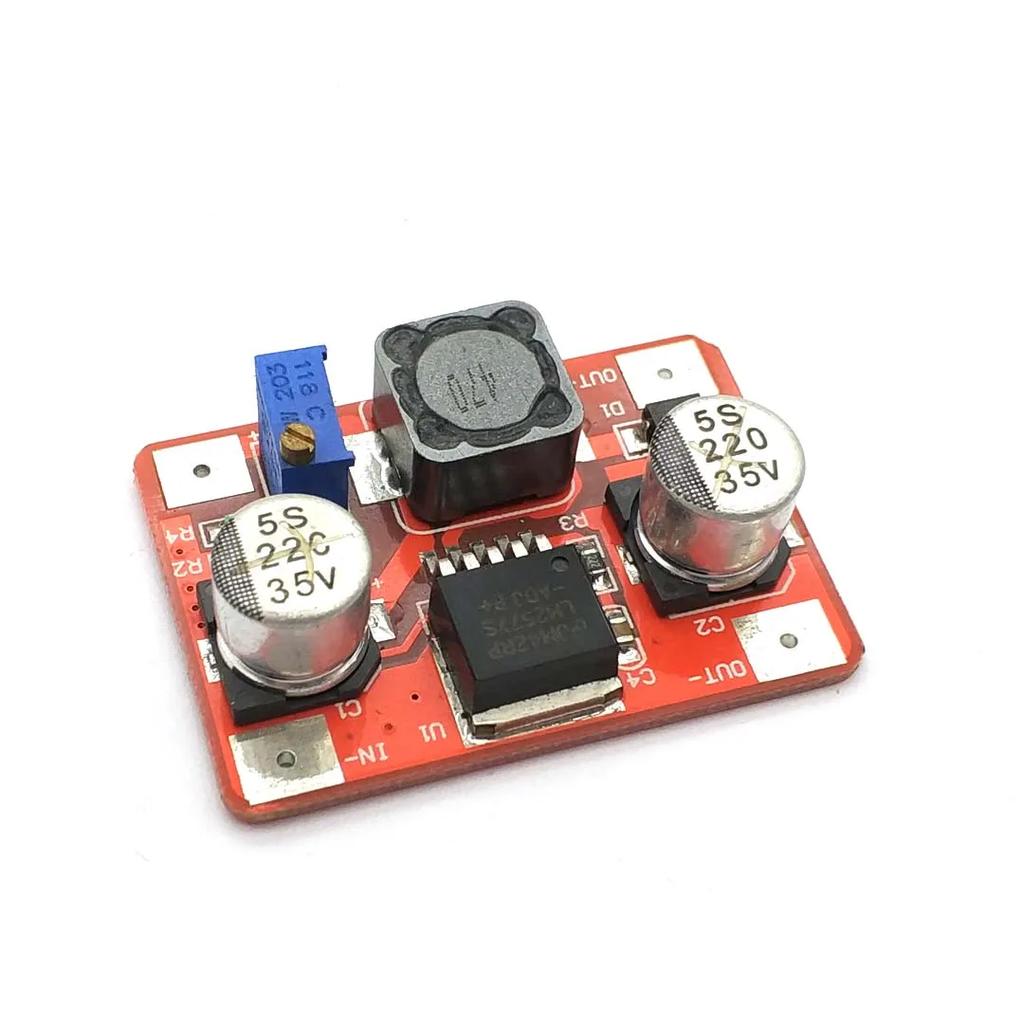

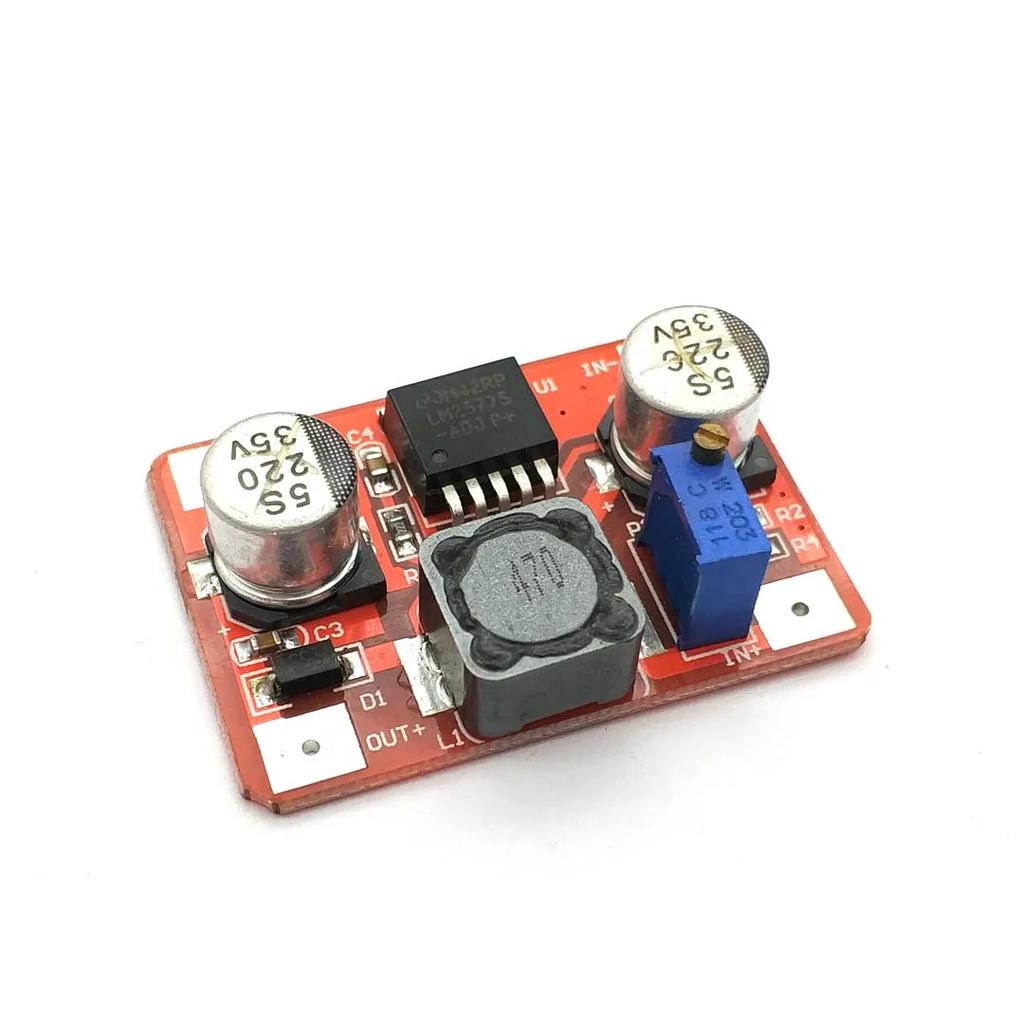

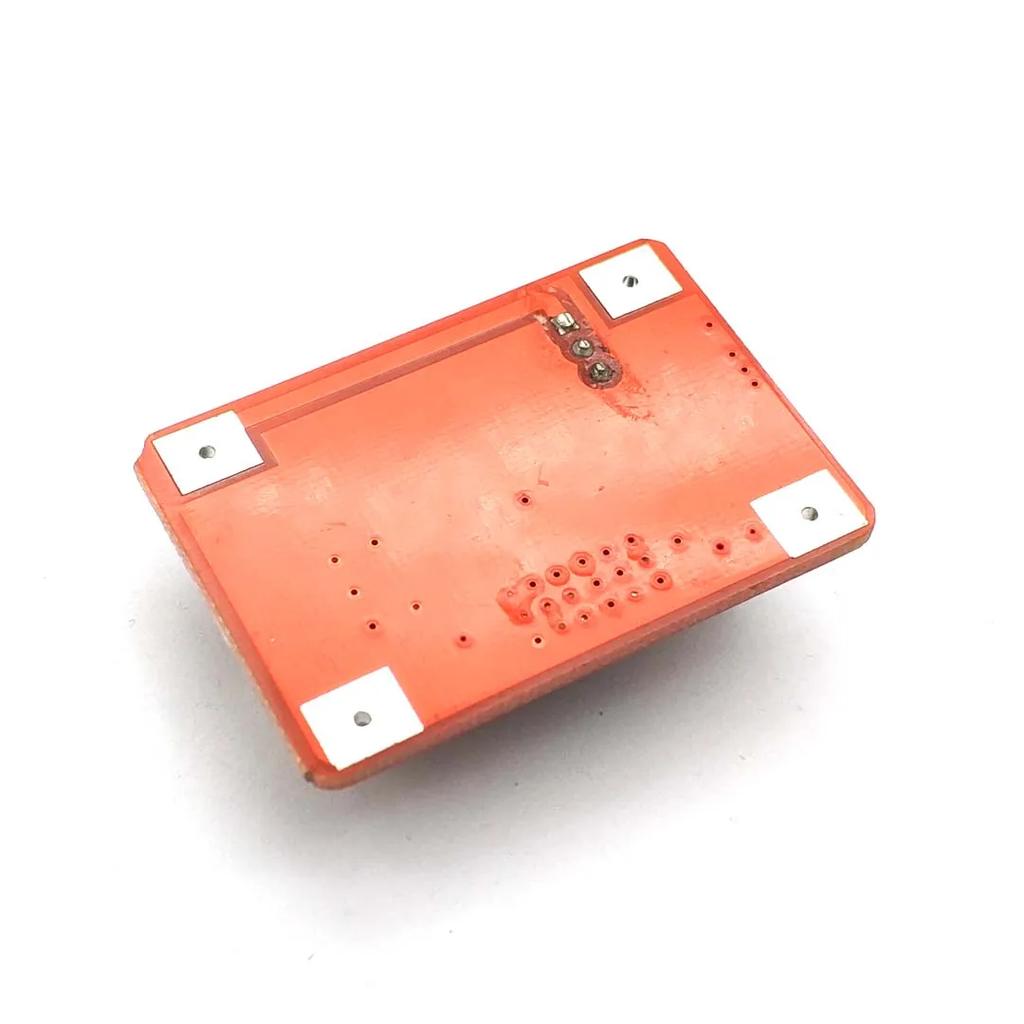

LM2577 DC-DC Boost Module Input IN3.5-30V Output OUT 4-30V High-power Boost Module

When you test the output voltage if the output voltage is not higher than the input voltage, adjust the potentiometer clockwise, the output voltage will rise. Remember not to counterclockwise to adjust the use of antihypertensive modules trying to do, must ensure that the output voltage is set higher than the input voltage, so as not to damage the module! IN + input positive IN - input negative OUT + output positive OUT-output negative Input voltage range: 3.5V-35V (must ensure that set the output voltage is higher than the input voltage) Output voltage range: 4.0V-30V Enter the maximum current: 3A (according to the power conservation to calculate the rated current output current Uin * Iin * Efficiency = Uout * Iout) Input continuous operating current: 2A (ventilation cooling conditions good output voltage and input voltage ratio can not be greater than 3) Dimensions: length * width * height 4.3cm * 3.0cm * 1.2cm

Package Included 1 Pcs LM2577 DC-DC Boost Module
