Feature:

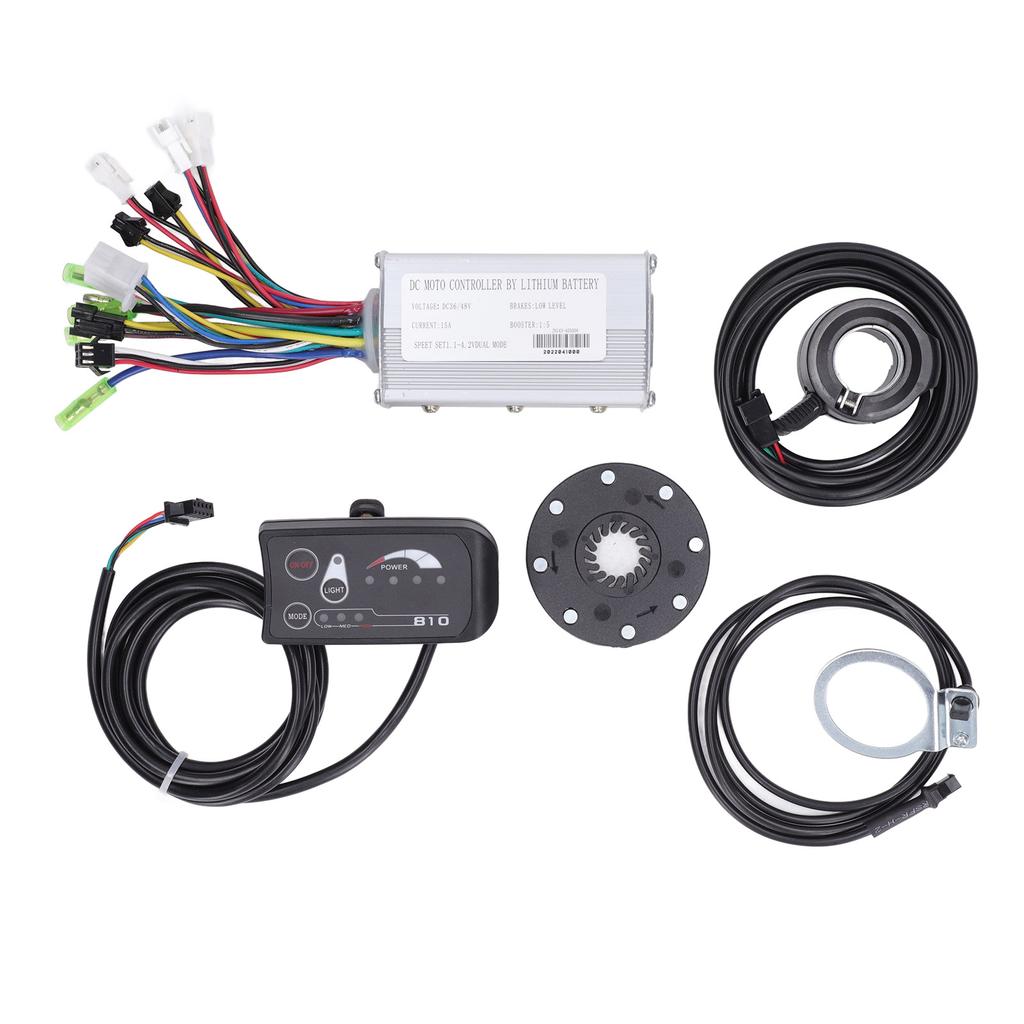

1. Rich Content: There is 15A controller, S18 panel, including bracket and joint, a thumb throttle, a 8C power assist sensor connecting line, a 8C power assist sensor power chip included in the package, the rich content can meet your needs to convert your electric bikes.

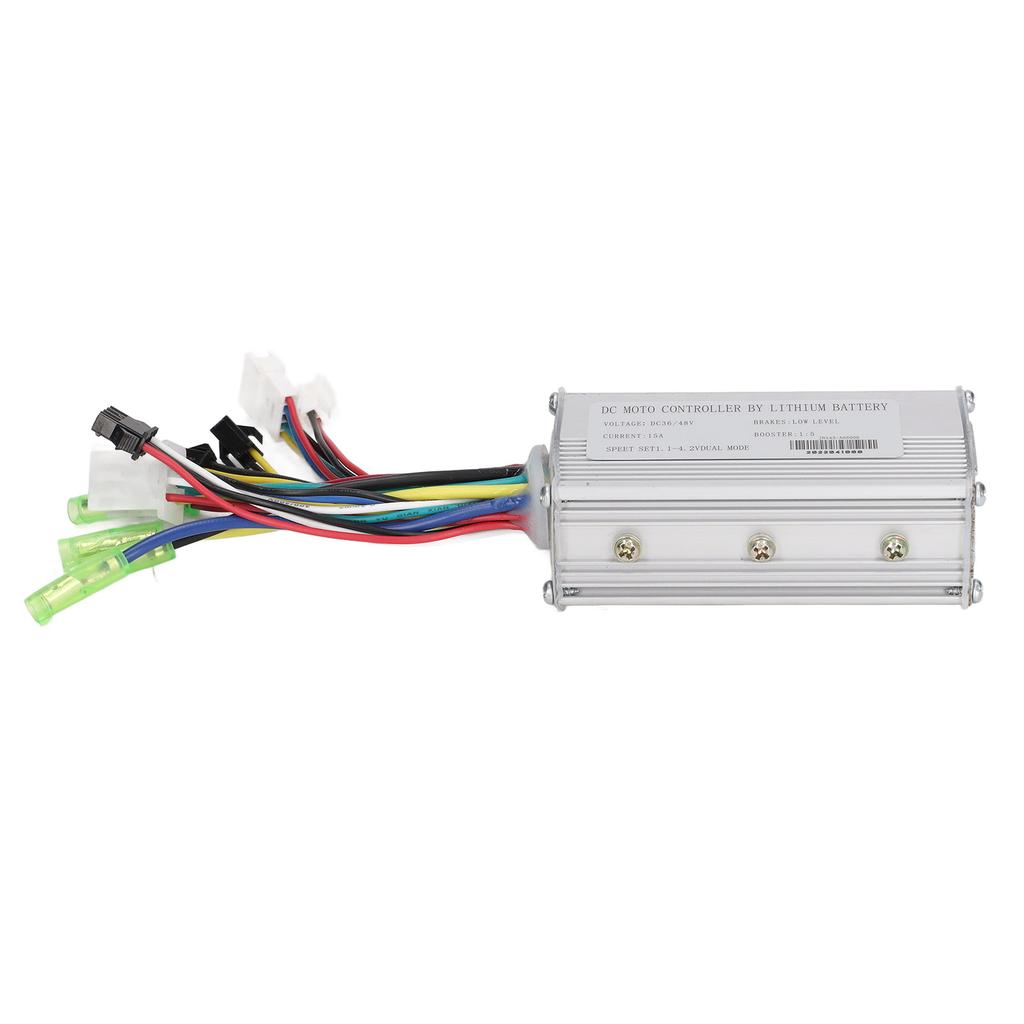

2. Controller Outer Housing: The controller housing is made of premium metal with grooves which is designed to protect the internal circuitry from thermal overload due to good heat dissipation effect.
3. ABS Panel: The electric bike conversion kit adopts premium ABS material which is light weight, has good toughness and waterproof properties, providing better protection for internal circuits, making it more durable.

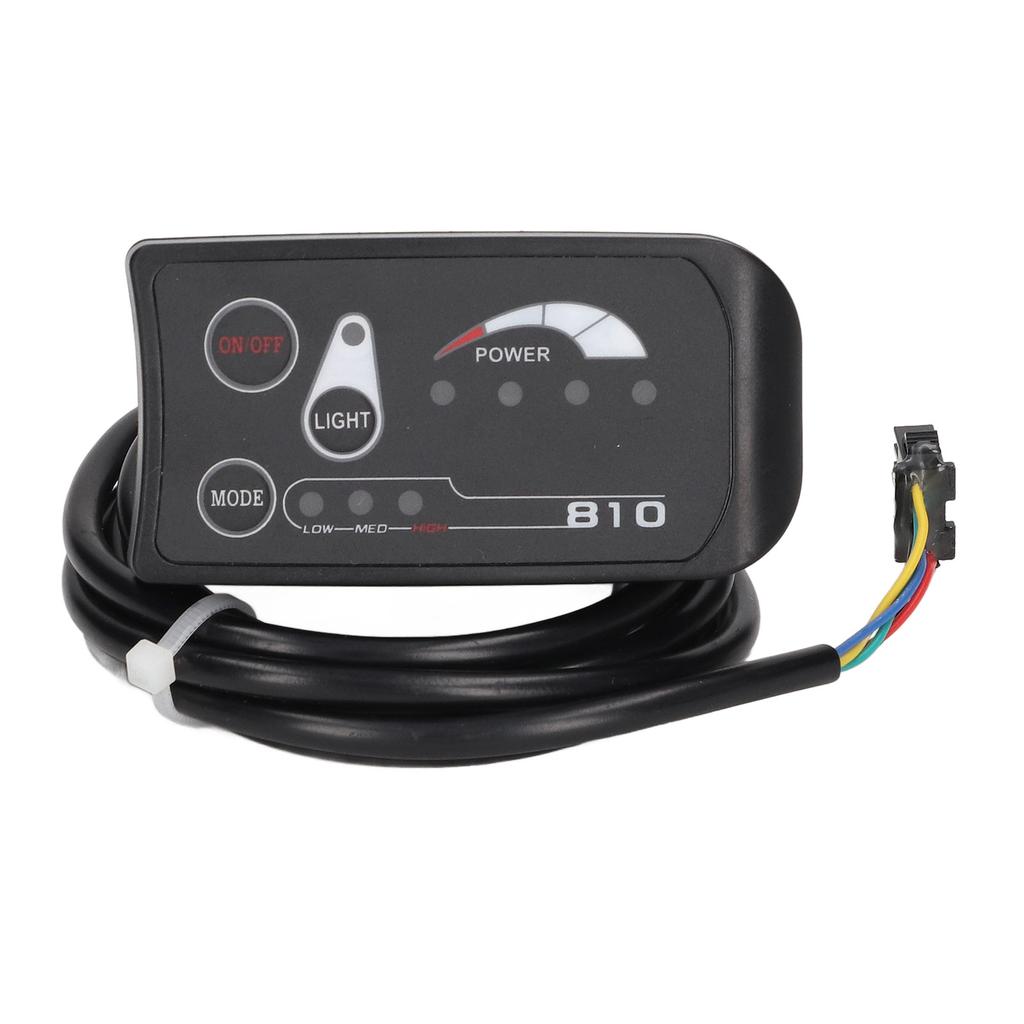

4. Panel Function: S18 panel is compatible with 36V and 48V voltages. While riding, a lot of useful data about your bike can be displayed, such as: turn on/turn off button, light switch, battery display and other functions, helping users to master data anytime.
5. Application Scope: The bike motor controller is suitable for 250W, 350W motor. Main uses is for DIY electric bike, electric bike, electric scooter, folding bikes,etc.; easy to maintain, the lithium ion bike modification greatly enhances the pleasure of riding.
Specification:
Item Type: Electric Bike Conversion Kit
Material: ABS, Rubber, Aluminum Alloy, Metal
Weight: Approx. 482g/17.00oz
Color: As Shown
Size: Approx. 83x53x31mm/3.27x2.09x1.22in
Application: For 250W, 350W Bike Motor, for S810 Controller Kit
Controller Rated Voltage: 36V DC, 48V DC
Controller Current: 15A
Controller Speed Setting: 1.1-4.2v
Supercharger: 1:5
Brake: Input Low Level

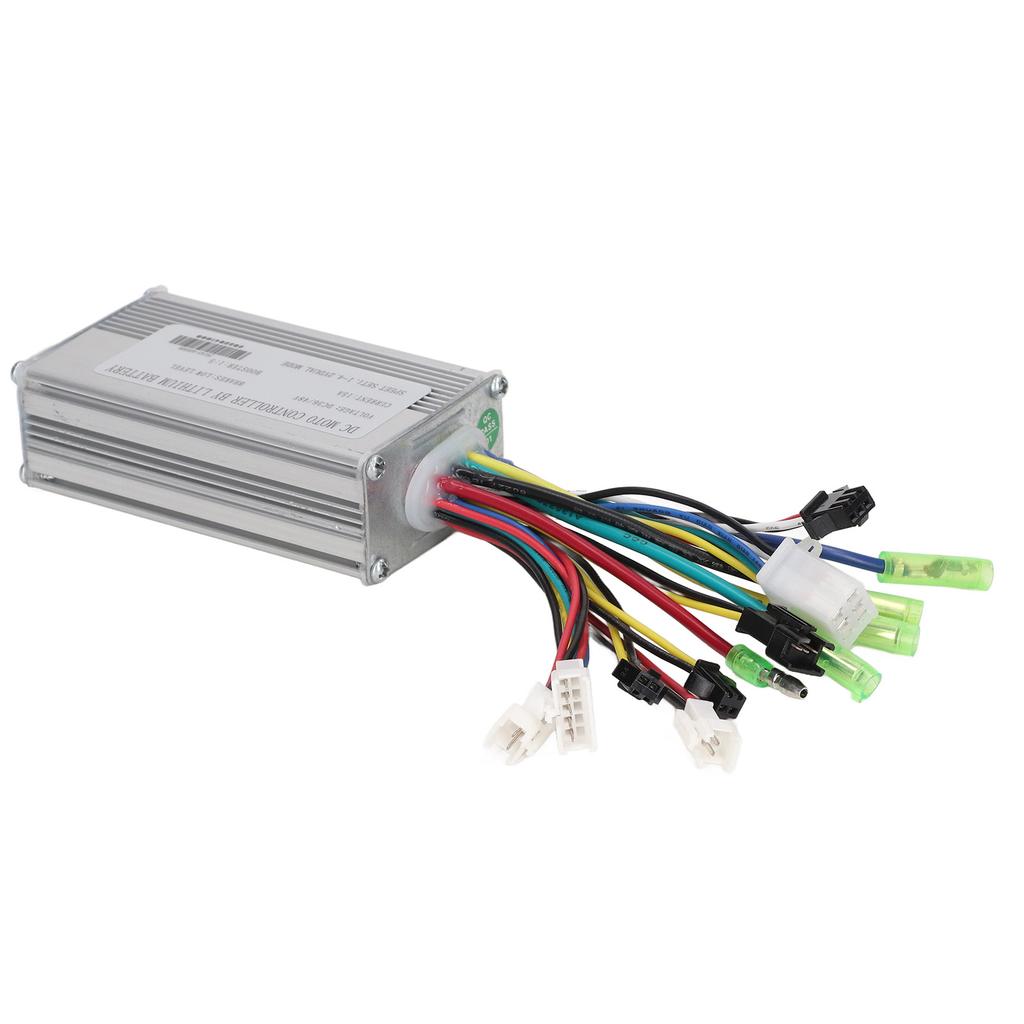

Controller Line Definition:
1. Black, Yellow and Brown Three Cable: Power Magnetic Point
2. Red, Black and White Three Needle Cable: Throttle Cable
3 Black and Yellow Two Needle Cable(2): Power Off Brake Lever Cable
4. Green, Yellow and Blue Single Cable: Phase Cable
5. Multi Color Six Hole Cable: Hall Cable
6. Multicolor Five Needle Line: Panel Cable
7. Black and Red Single Wire: Power Cable
8. Black and Red Needle(2): Headlight Cable?

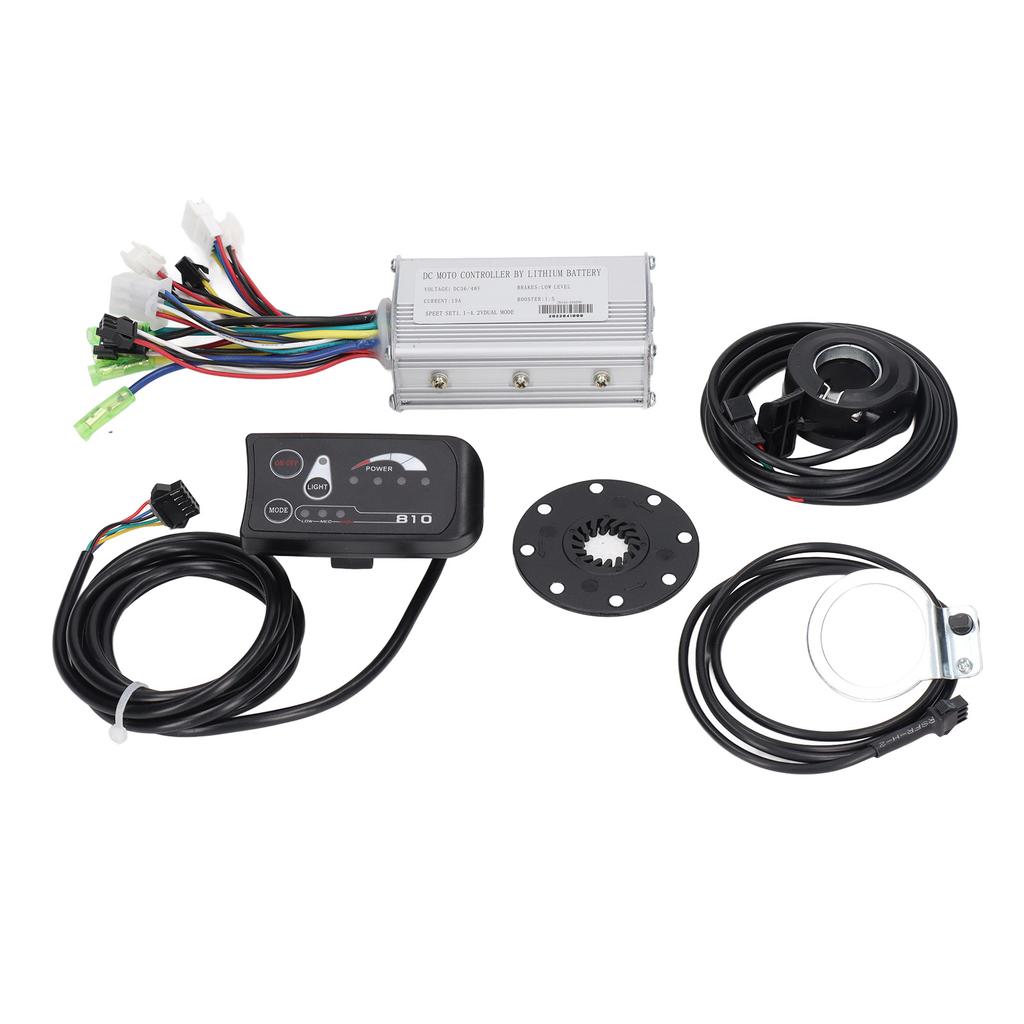

Package List:
1 x Motor Controller
1 x Panel (Bracket and Joint Included)

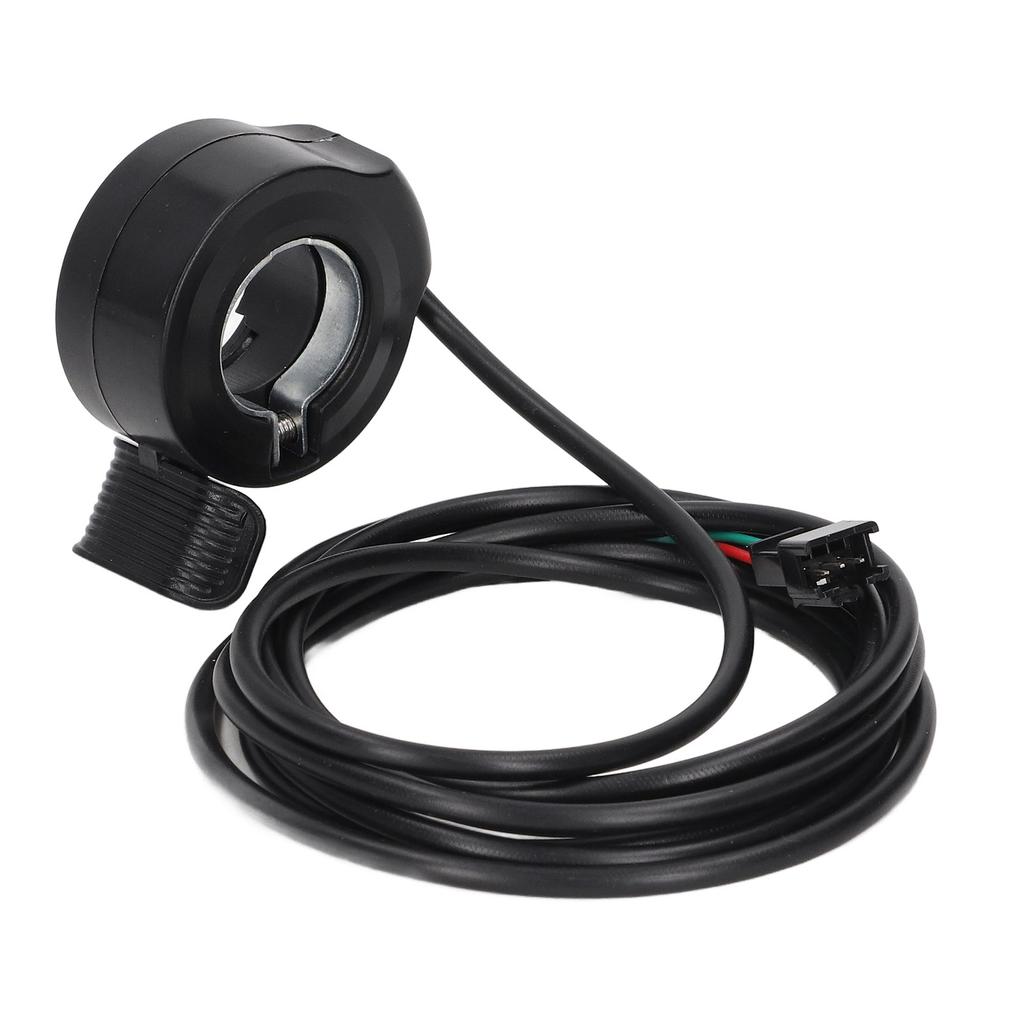

1 x Thumb Throttle

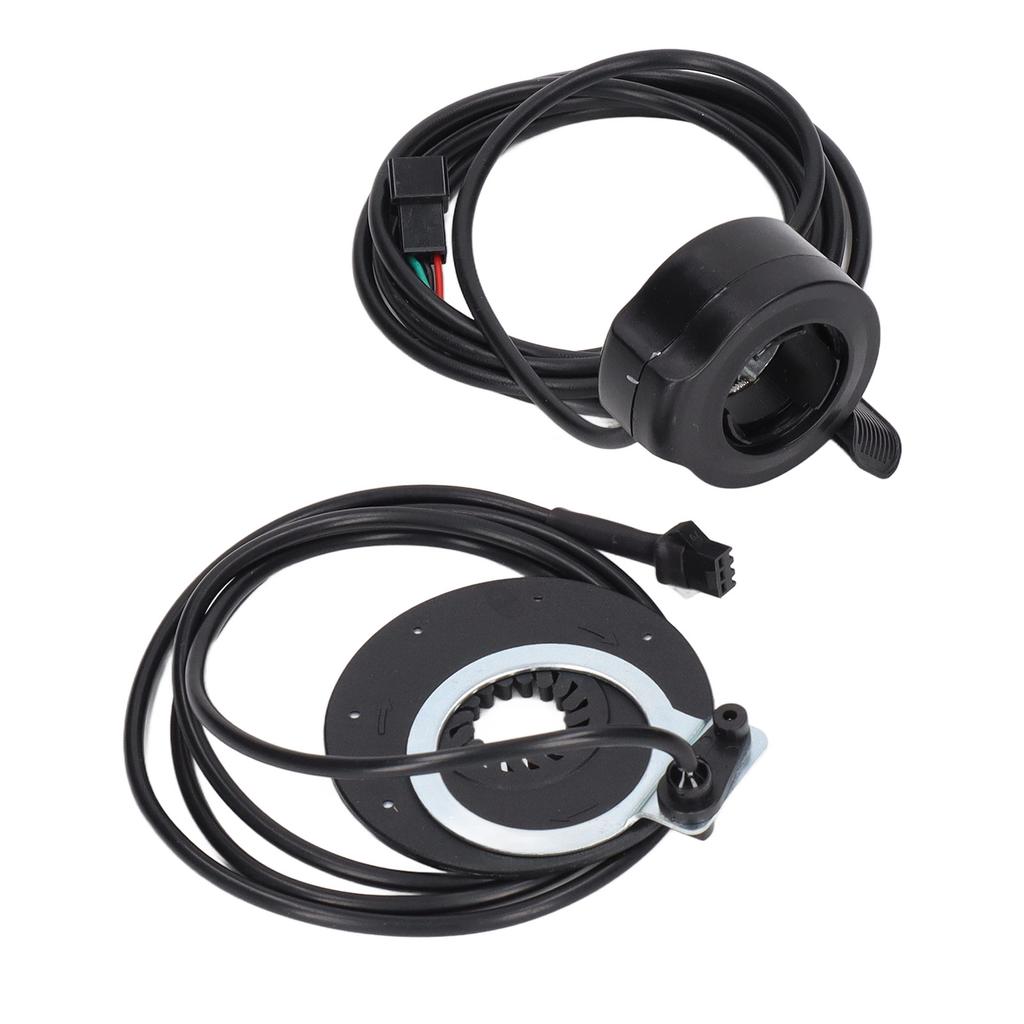

1 x 8C Power Assist Sensor Connecting Line
1 x 8C Power Assist Sensor Power Chip
2 x Use Manual
Note:
The communication protocol is UART
