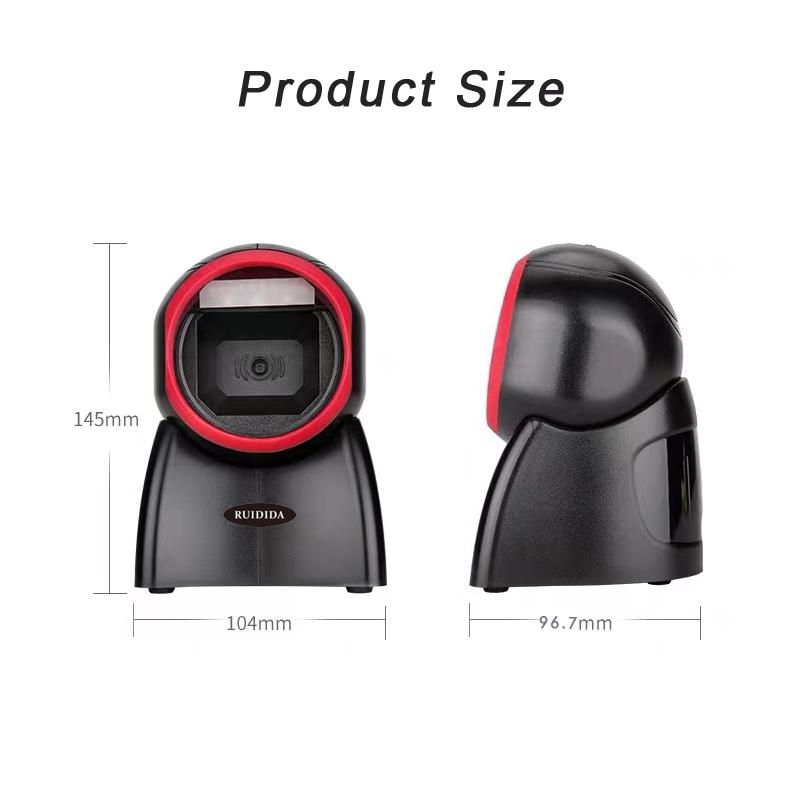

Physical Characteristics;
Voltage: 5±5% VDC
Current: 450mA
Performance Characteristics;
Image (Pixels): 640 pixels (H)x 480 pixels (V)
Light Source: Red color LED
Field of View: 50°
Roll / Pitch / Yaw: 58°(Horizontal) , 45°(Vertical)
Print Contrast: 20% minimum reflective difference

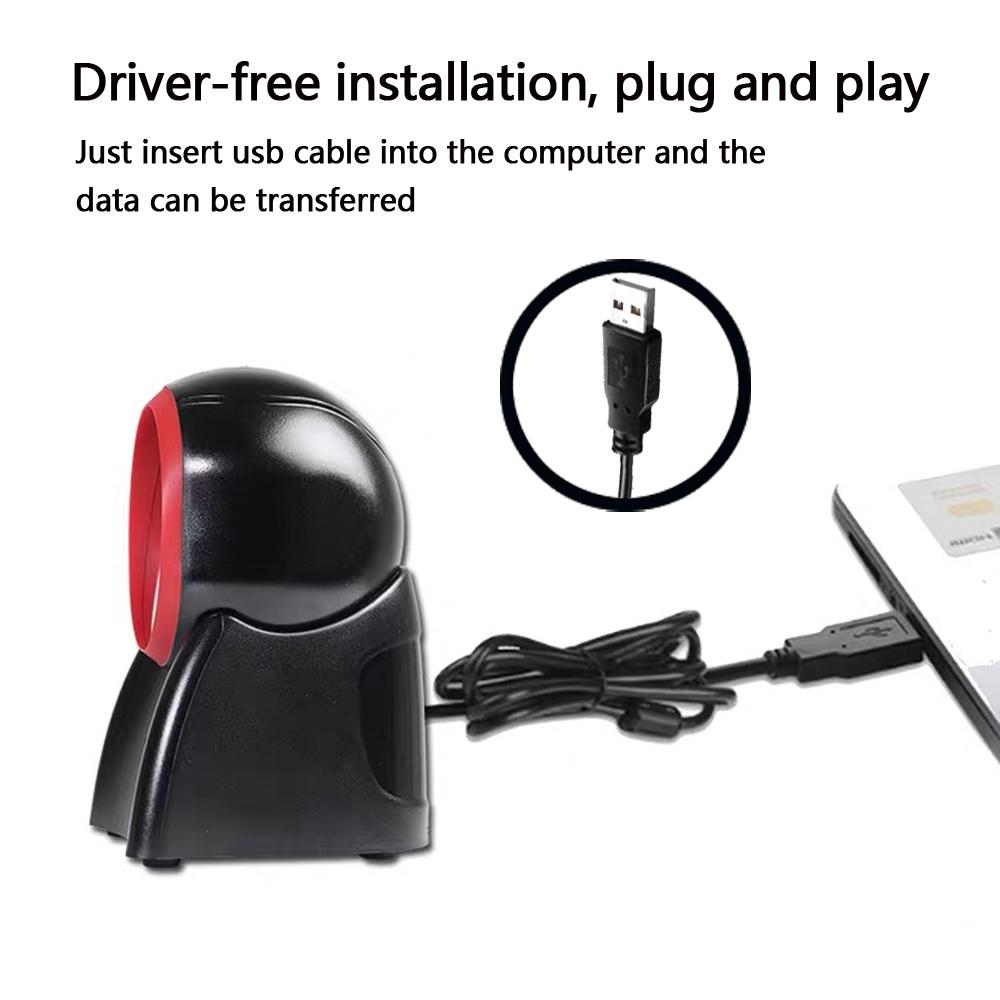

Interfaces Supported:USB
MovementSpeed:2.5m/s

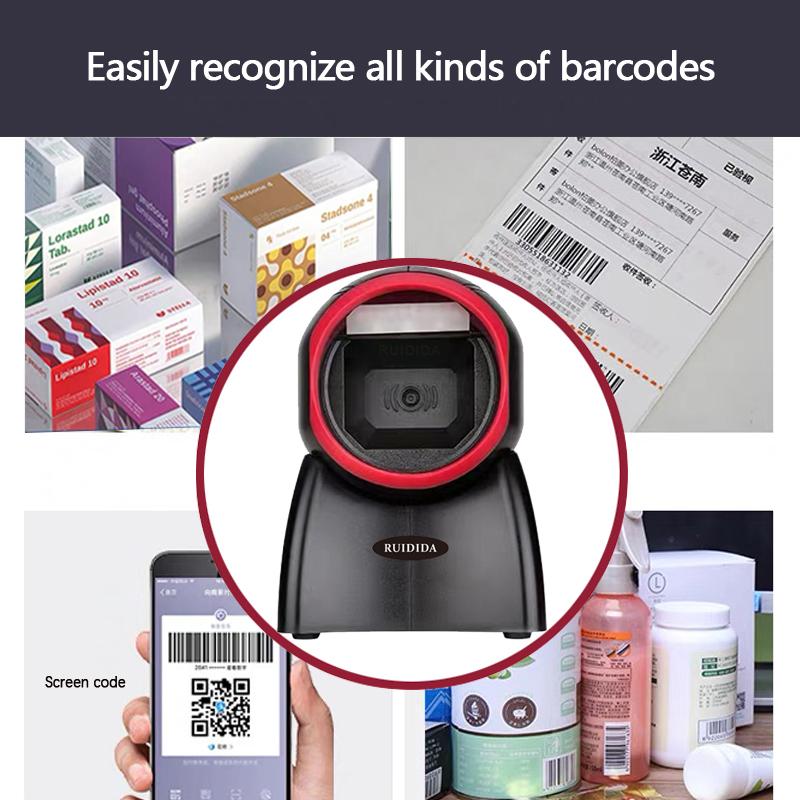

Symbology Decode Capability;
1-D: Codabar,Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc
2-D: DOT Code, GM, PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post,TLC 39,DataMatrix, etc.
Minimum Resolution:≥3.9 mil
User Environment;
Operating Temperature: -20°C to 60°C
Storage Temperature:-30°C to 70°C
Humidity:5% to 95% relative hum idity,non-condensing
Shock Specifications:8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes
Ambient Light Immunity:0-100,000 Lux.
Decode Ranges
5 mil (code39) 0mm-60mm
13 mil (code39) 0mm-170mm
15 mil (PDF417) 0mm-60mm
13 mil (UPC-A) 0mm-150mm
30 mil (QR Code) 0mm-130mm
Performance may be impacted by bar code quality and environmental conditions
Note:
The default setting is English keyboard, if your barcode has specail characters, change your computer keyboard in English.
