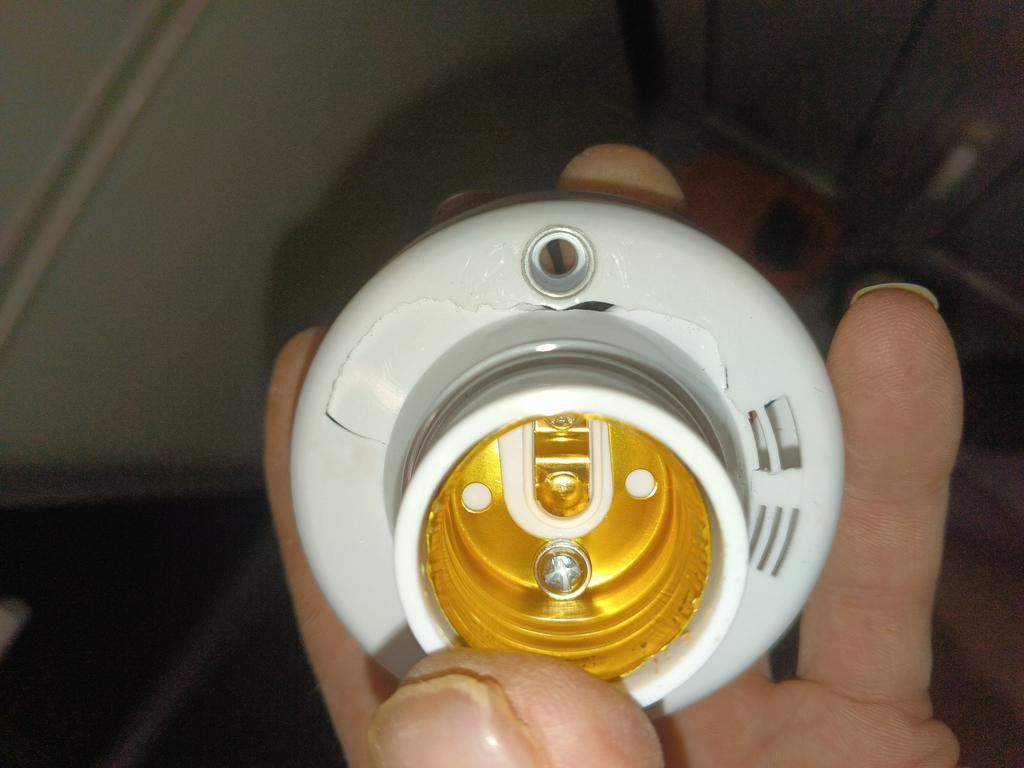

AC 110V-240V E27 Base socket Sound or PIR Motion Human Body Infrared Sensor control Lamp Holder Bulb LED Night Light Delay Time
3 types for choose :
type1:
① Product parameters:
Manufacture Country:China
Load power :40W
Product specification: AC220V/50HZ
Material: PP polypropylene
Mounting hole spacing: 52 mm
Product size: Diameter 71mm, height 40mm
Voice control decibel: 45DB
Sensing range: 360° 4-7m
Wiring mode: Incandescent lamp, energy-saving lamp, LED lamp
② Feature:
Working principle of sound and light controlled lamp holder
The sound and light control delay lamp holder is controlled by a combination of sound and light. During the day or when the light is strong, the light control locks the circuit, achieving a state of no action even when there is sound. However, at night or when the light is dim, the light control circuit is unlocked, and the sound control effect is turned on, achieving the power on and off of the sound control lamp holder.
③ Advantages:
1. Simple installation and convenient wiring, without distinguishing between zero and live wires.
2. The national standard E27 screw socket has a wide range of applications.
3. Energy saving and long service life.
4. Energy saving renovation of property community engineering.
type2 :
【Product features】
1. A new era of induction technology, the light comes on and goes off
2. Simple installation and easy wiring, time-delay adjustable models to choose at will
3. Energy-saving power-saving long service life
4. Property community engineering energy-saving transformation
5. E27 screw head wide range of applications
【Product parameters】
Model specification YX-425
Induction principle human body infrared
Load range <50W
Product size 86*86*40mm
Installation hole distance 60mm
Working voltage AC85-265V
Sensing angle 120°
Sensing distance 2-6 meters
Delay time 25+5s
Light control sensitivity 15LUx+5lux
【Working principle】
1. Can be directly installed ordinary light bulb E27 screw port
2. No switch, lampholder with sensor head
3. Automatic light at night or low light to the light
4. Time delay of about 30 seconds, can continue to sense
type3:
<1>Features:
Easy to install and used widely
Can identify day and night automatically
Adopts good sensitivity detector, integrated circuit
Can start the load at once when one enters detection field
Utilizes the infrared energy from human as control-signal source
Gathers automatism, convenient safe, saving-energy and practical functions
<2>Specifications:
Detection Range: 360°
Power Source: 110-240V/AC
Power Frequency: 50/60Hz
Rated Load: <60W
Detection Distance: 6m max(<24°C)
Time-Delay:
Min. 10sec±3sec
Max. 5min±1min
Ambient Light: 3-2000LUX (adjustable)
Installation Height: 2m-3.5m
<3>Installation method: the installation height of E27 screw socket lamp head is recommended to be 2m-3.5m/6.56-11.48ft
❀Packages:
1 x E27 lamp holde
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
