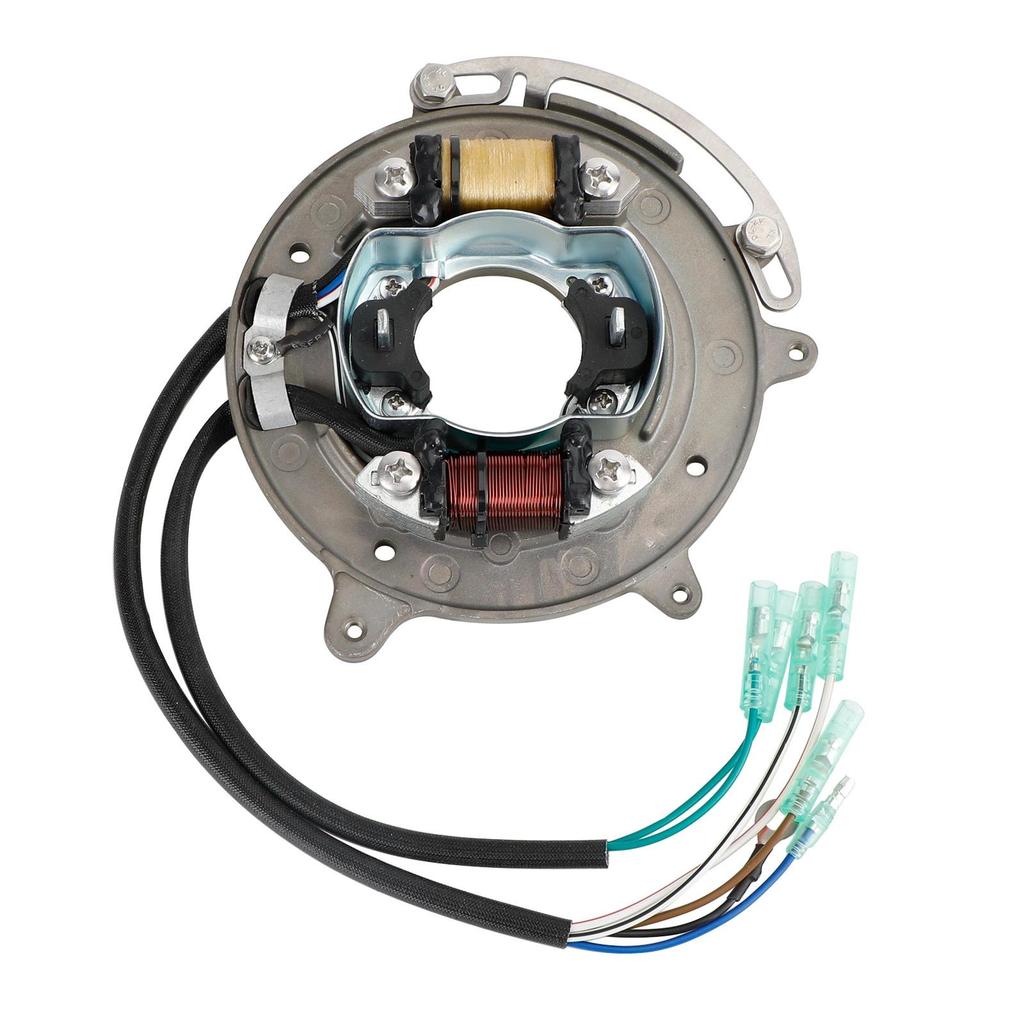

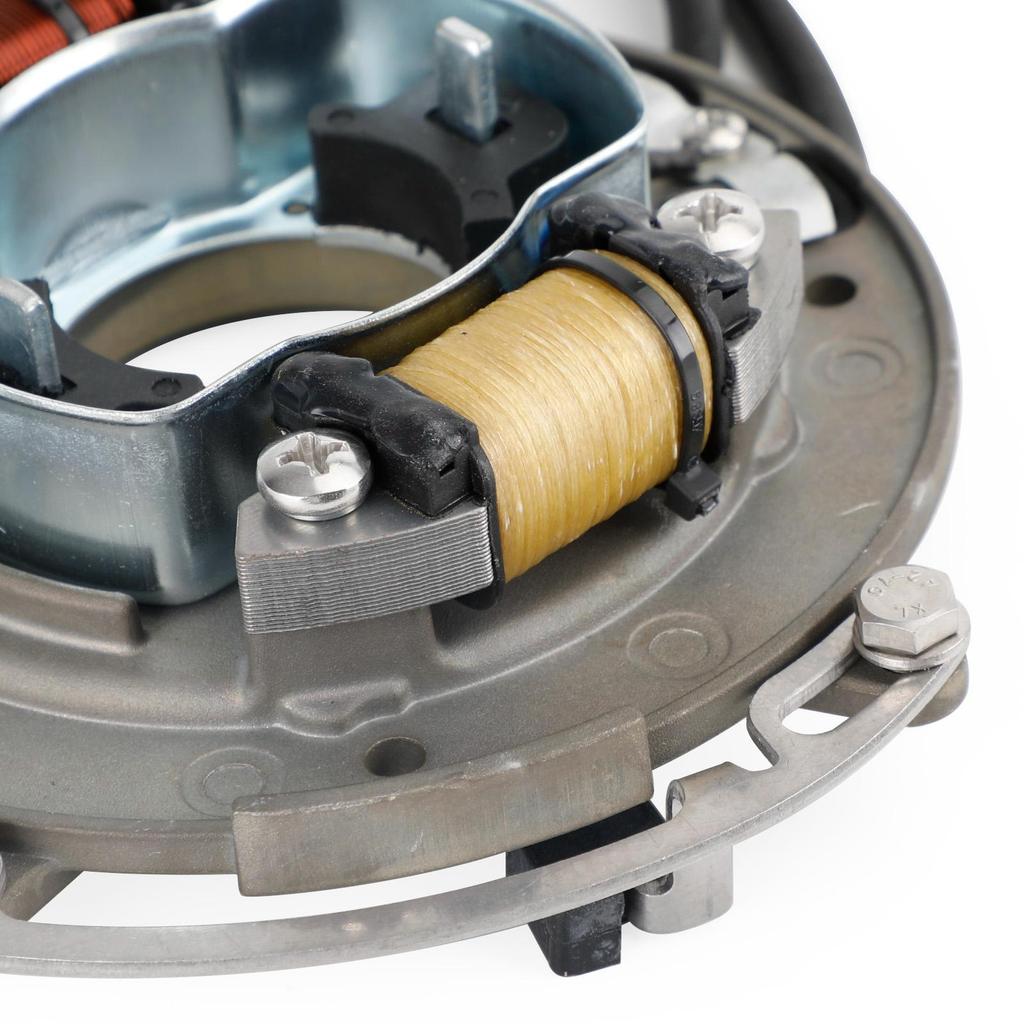

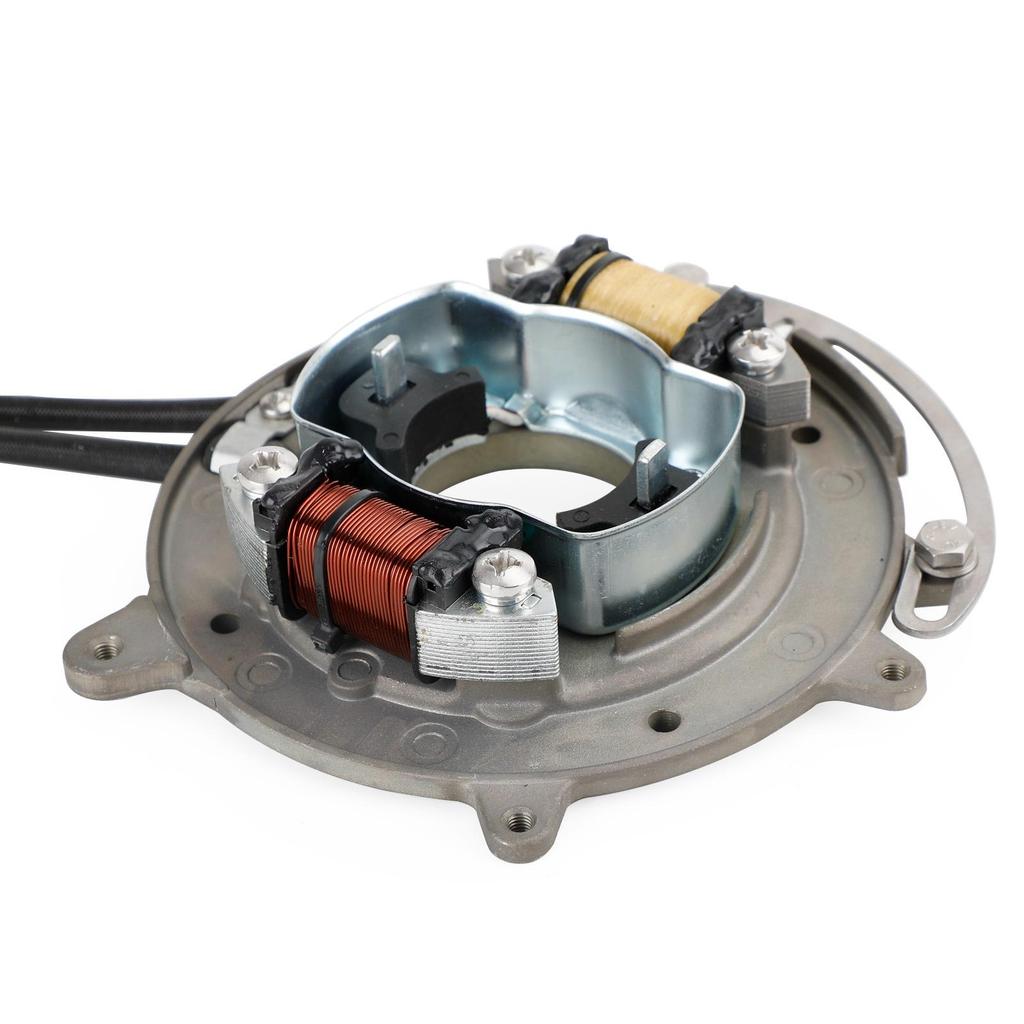

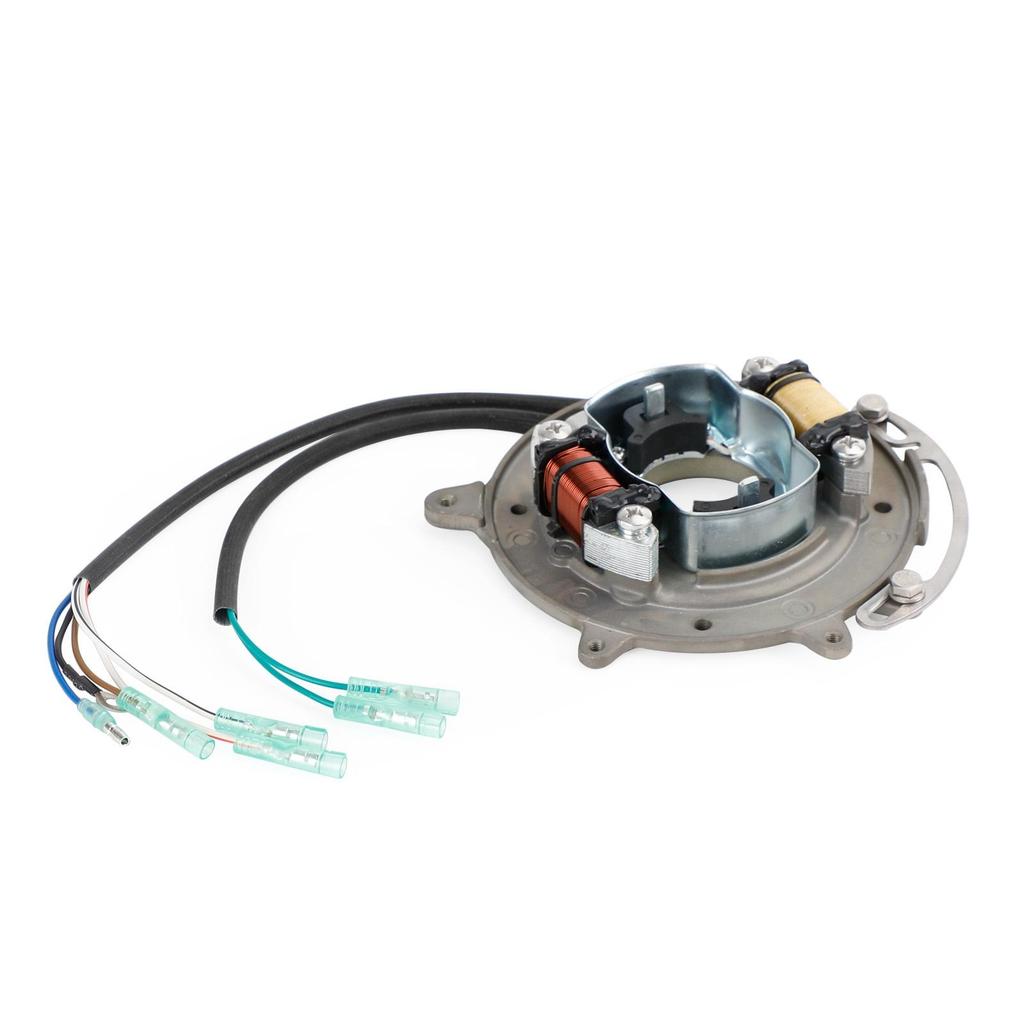

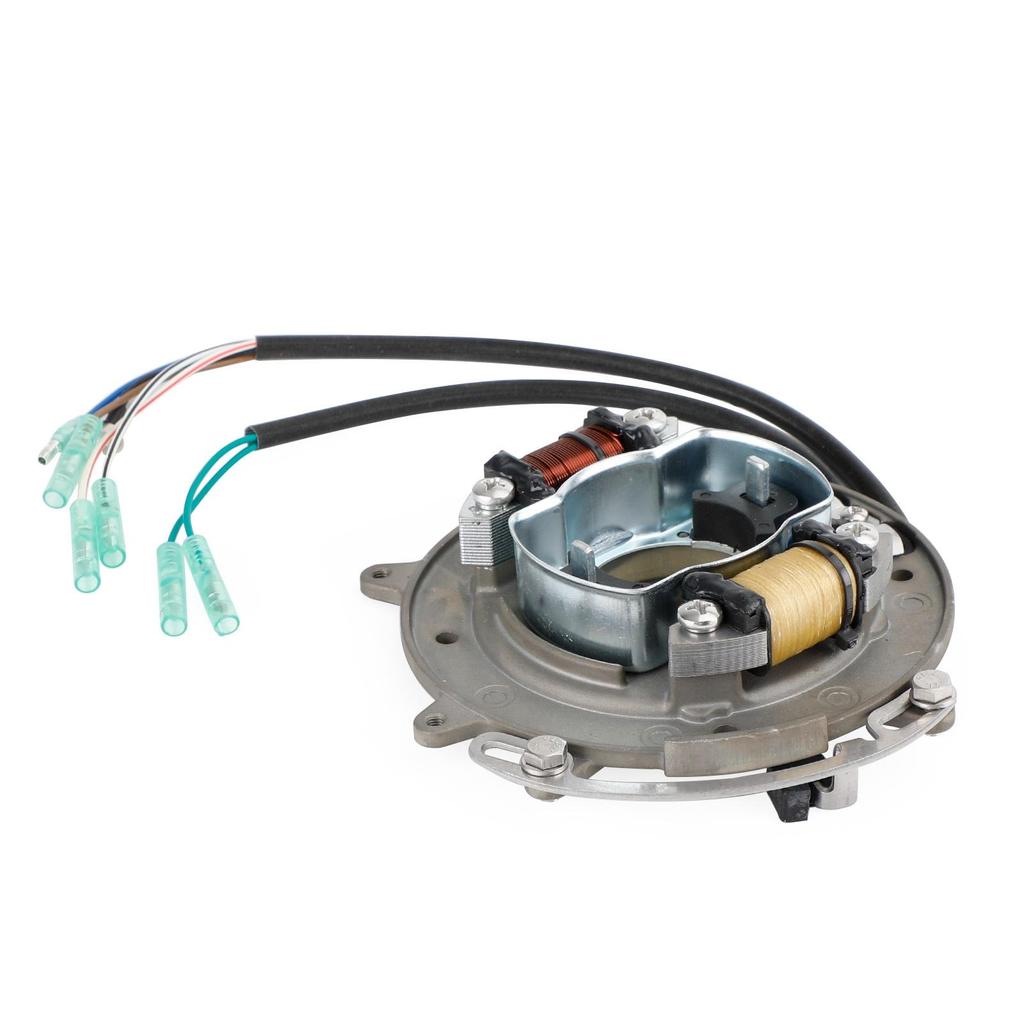

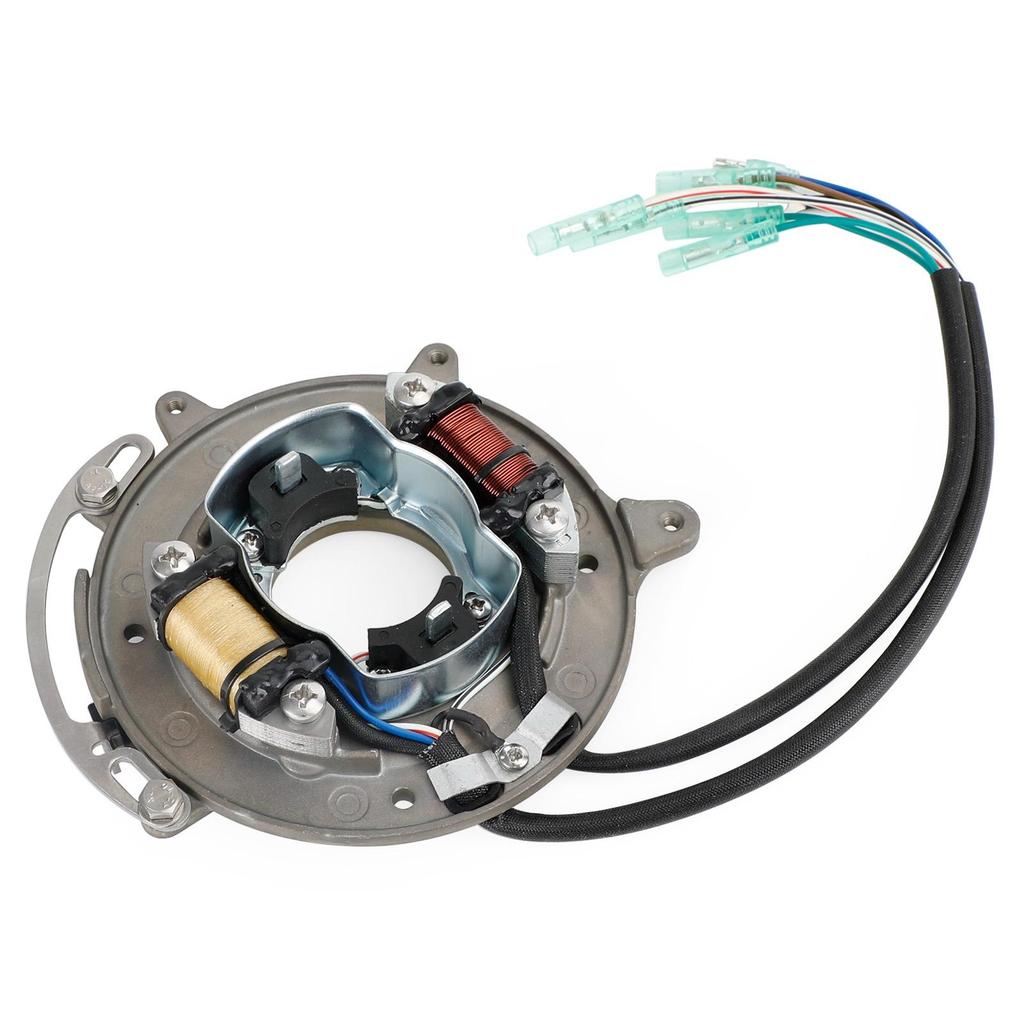

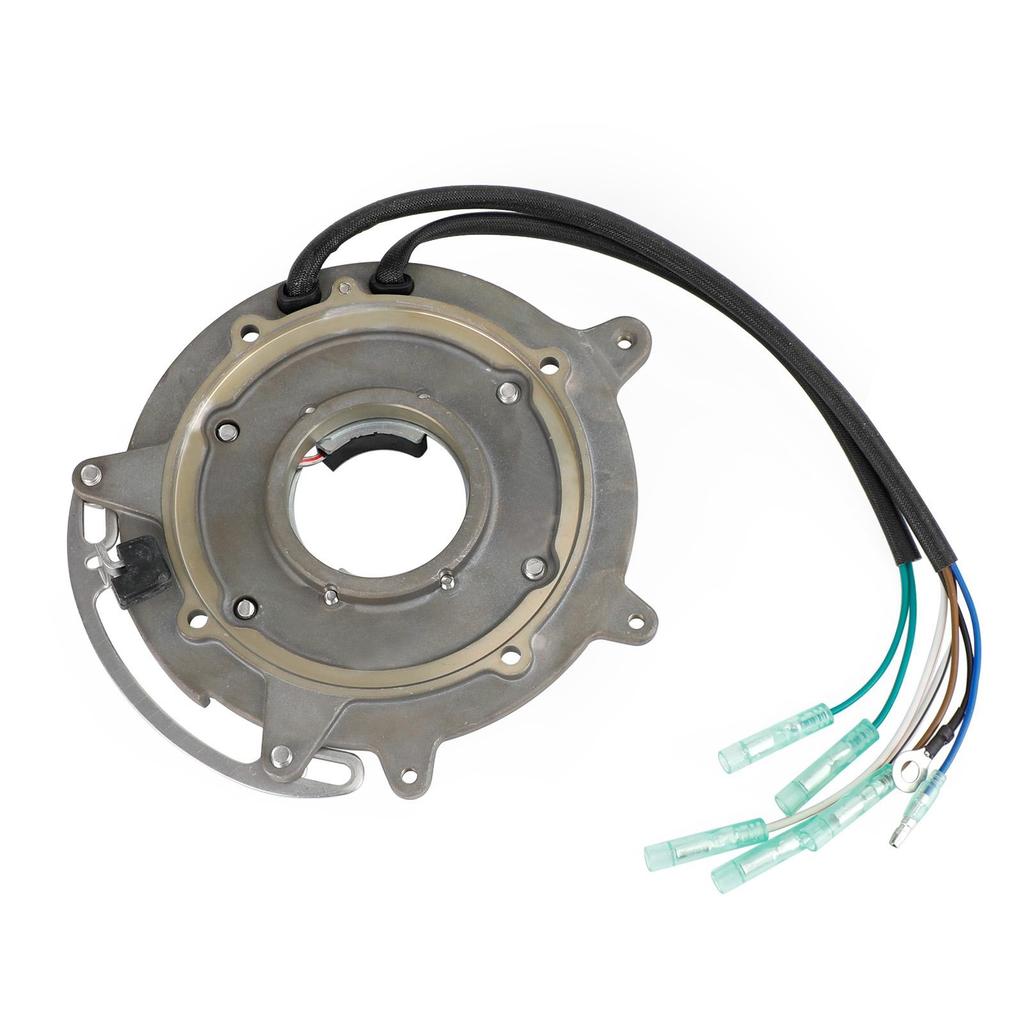

Charge Lighting Coil Base Assy Fit for Yamaha Outboard Motor 25Hp 30Hp # 69P-85560-00-00
Features:
Direct replacement to your original unit
Plug-and-play , direct fit , easy installation.
Pulsar coil included.

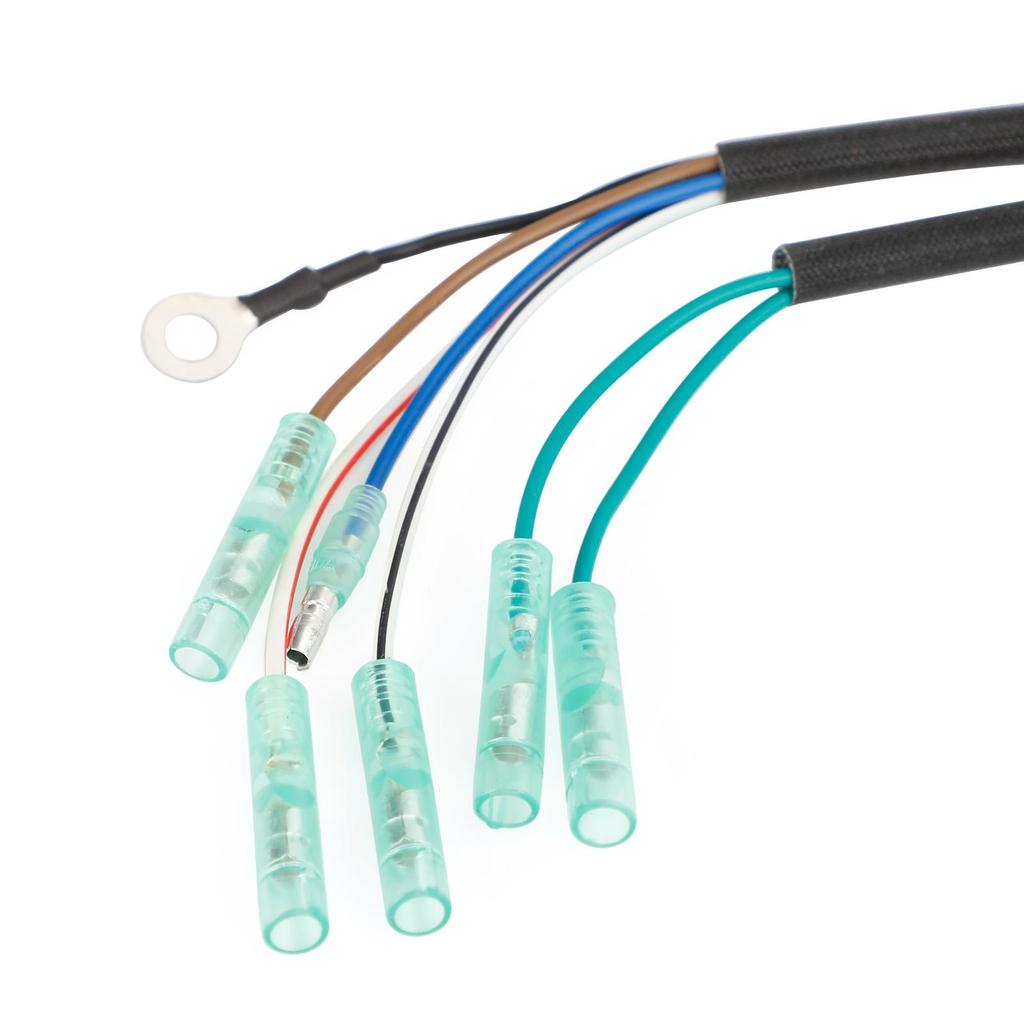

Connector included.
Base assy includes magneto base,cover , charge coil and lighting coil.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Base Assy
Other specifications:
Number of wires: 7
Number of plugs: 7
Number of pins: 7
Replacement Part Number:
Base Assy: 69P-85560-00
Charge Coil: 69P-85541-09
Lighting Coil: 61N-81313-09
Pulser Coil: 61N-85543-09 , 61N-85543-19
Magneto Base: 69P-85561-00
Cover: 61N-85537-00
Fits Models:
Fit for Yamaha 25HP 25B MHS 2010
Fit for Yamaha 25HP 25B M/W/HCS 2010
Fit for Yamaha 25HP 25B W/MHS 2010
Fit for Yamaha 25HP E25B MHS/L 2003
Fit for Yamaha 25HP EK25 MHS/L 2003
Fit for Yamaha 25HP 25B WHS/L 2001-2008/2010
Fit for Yamaha 25HP 25B MHS/L 2001-2005/2010
Fit for Yamaha 30HP 30H WL 2012
Fit for Yamaha 30HP 30H WCS/L 2010
Fit for Yamaha 30HP E30H MHS/L 2003
Fit for Yamaha 30HP 30H MHS 2010/2012
Fit for Yamaha 30HP 30H WCS 2012
Fit for Yamaha 30HP 30H WCL 2012
Fit for Yamaha 30HP 30H MH/WCS 2010
Fit for Yamaha 30HP 30H W/MHS/L 2010
Fit for Yamaha 30HP 30H WHS/L 2006-2010
Fit for Yamaha 30HP 30H MHS/L 2001-2005/2012
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package included:
1x Base Assy
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in , always use locking compound.
If our stator includes a pickup coil , always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part , to clarify , for which vehicle the product on offer fits.
