MSK Intake Air Water Jacket 180 Assembly Kit

Installation kit for a fireplace with a water jacket

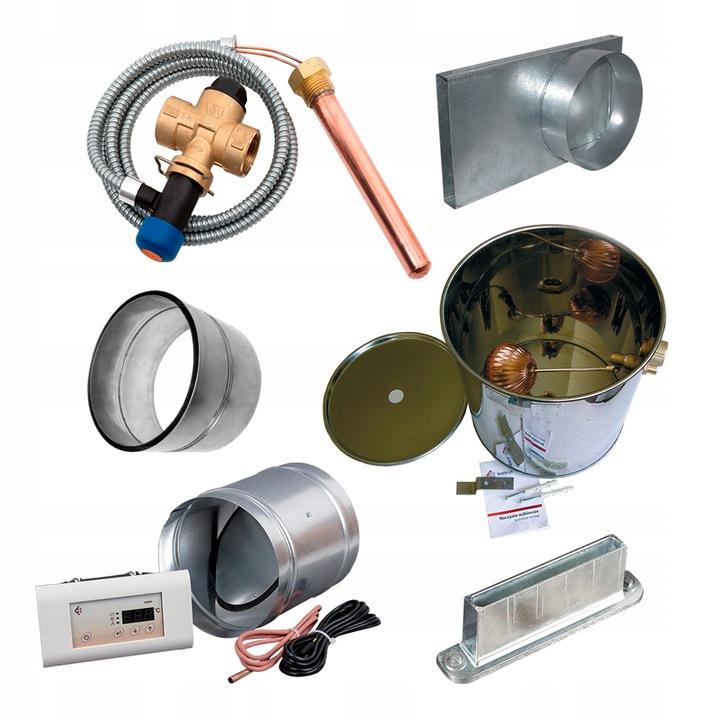

For fireplaces that do not have a built-in air intake in the fireplace and have a chimney inlet with a diameter of 180 mm. Catalog number: ##ZEST/MON/DOL/MSK/PLASZCZ/180## The kit includes:

1 pc. external air intake with electronic damper

1 pc. MSK controller for a 25 mm diameter fireplace

1 pc. 125 mm diameter intake pipe transition

1 pc thermal safety valve

1 pc universal expansion vessel

1 pc anti-condensation chimney cap

SET COMPONENTS

MSK CONTROLLER, diameter 125 mm

A device that automatically regulates the supply of cold air to the fireplace from outside the building, eliminating the need for manual adjustment. This allows for automatic combustion control.

Set:

microprocessor controller

temperature sensor with a 2-meter silicone cable

electronic damper with automatic air supply control

ADVANTAGES

control of two central heating pumps and one independently adjustable device

precise dosing of combustion air

protection against fireplace overheating

warning alarm

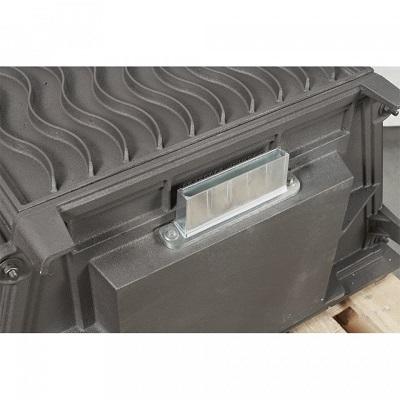

INTAKE

This is a pipe for installation in a cast iron fireplace. Its purpose is to supply fresh air to the fireplace. It is installed next to the fireplace insert. Air “flows” through it into the chamber. In order for the fireplace to function properly, it must be supplied with approx. 8-10 m3/h of air per 1 kg of wood, for which purpose we install an air intake.

Dimensions: length 195.2 x height 34.5 x depth 62.4

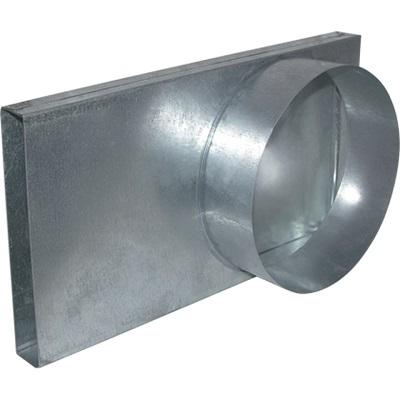

INLET TO PIPE CONNECTION

This element is used to connect the inlet in the fireplace to the damper. Connection dimensions: 25x152 mm Pipe connection dimensions: 125 mm Material: galvanized sheet metal

SAFETY VALVE

Model STS 20 S WATTS 3/4 95°C

This is a thermostatic valve that protects water jacket fireplaces against the possibility of water boiling in the central heating system.

Thermal drain protection is required for variable flame boilers and solid fuel heating systems. The STS20S drain protection is a pressure-independent valve, activated by the temperature of the medium at the outlet of the heat source. At a temperature of 97°C (+/-) 2°C, the domestic water outlet from the heater is opened. In this way, the valve prevents the temperature from rising above 110°C (maximum opening). The thermal drain protection is manufactured in accordance with DIN 3440. Description:

Min. operating temperature: -10°C

Min. opening temperature: 97°C

Maximum operating temperature: 110°C

Maximum flow: 6.5 m3/h

body and cover made of brass [58% Cu, 3% PbJ CW617N in accordance with PN- EN 12165: 2011 E]

Viton seal

stainless steel spring

plastic manual drain button

copper capillary tube, 1300 mm in cover

EXPANSION TANK WITH SELF-RELEASING VALVE

This is a hydraulic safety device for a fireplace with a water jacket. Its task is to compensate for changes in water volume caused by changes in its temperature. The tank is connected to a network of pipes and receives water from the central heating system when its volume increases as a result of a rise in temperature. The vessel is made of stainless steel sheet metal.

Description:

copper float with valve - for automatic replenishment of the water system of an installation supplied by a fireplace with a water jacket or a fireplace with a water heat exchanger;

brass mounting fittings - ensuring the tightness of the overflow and expansion pipe connection.

diameter 320 mm

height 325 mm

material: stainless steel sheet

capacity: 20 l.

Water inlet connection - 3/4 inch

Other connections (expansion pipe and overflow pipe) - 1 inch. CONDENSATE DRAIN RING Used for 180 mm diameter steel pipes The cap has a double-layer design and seals the outlet from the fireplace flue to the chimney. Thanks to this, condensation resulting from temperature changes in the chimney flows into the fireplace, where it is heated and turns into steam. The water that drips from the chimney does not escape outside the chimney system, causing corrosion and the illusion of leaks in the fireplace welds. NOTE! The flange only fits 2 mm sheet metal pipes.
