1. Strong Anti-Interference Capability: The 540 brush motor features a large torsion, sophisticated circuit design, strong anti-interference capabilities, bidirectional bearings, powerful magnetic force, low heat generation, and high power output.
2. Low Friction: High-strength magnets, low friction, low noise, external carbon brushes, and high-purity copper windings maximize efficiency.
3. Multi-Protection: Multi-protection features, strong current resistance, excellent heat dissipation, and overheating protection. When the temperature reaches 100°C, the output power will decrease and the speed will slow down. Once the temperature drops, the speed will return to normal.
4. Precise Design: The precise design ensures maximum energy conversion. The precisely balanced and smooth rotor improves reliability and top speed.

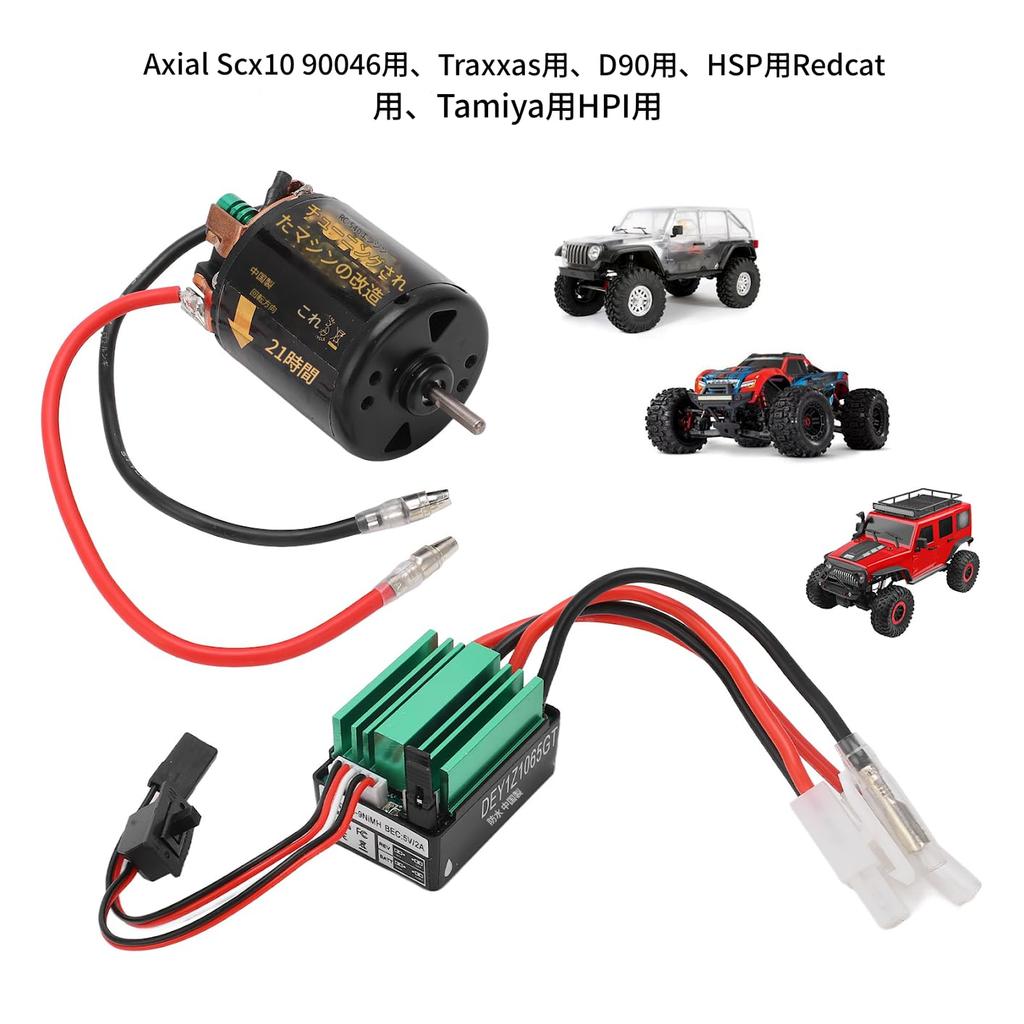

5. Application: 65A waterproof ESC compatible brush motor for Tamiya white plug, high power, suitable for various types of RC boats and RC cars.
Specifications:

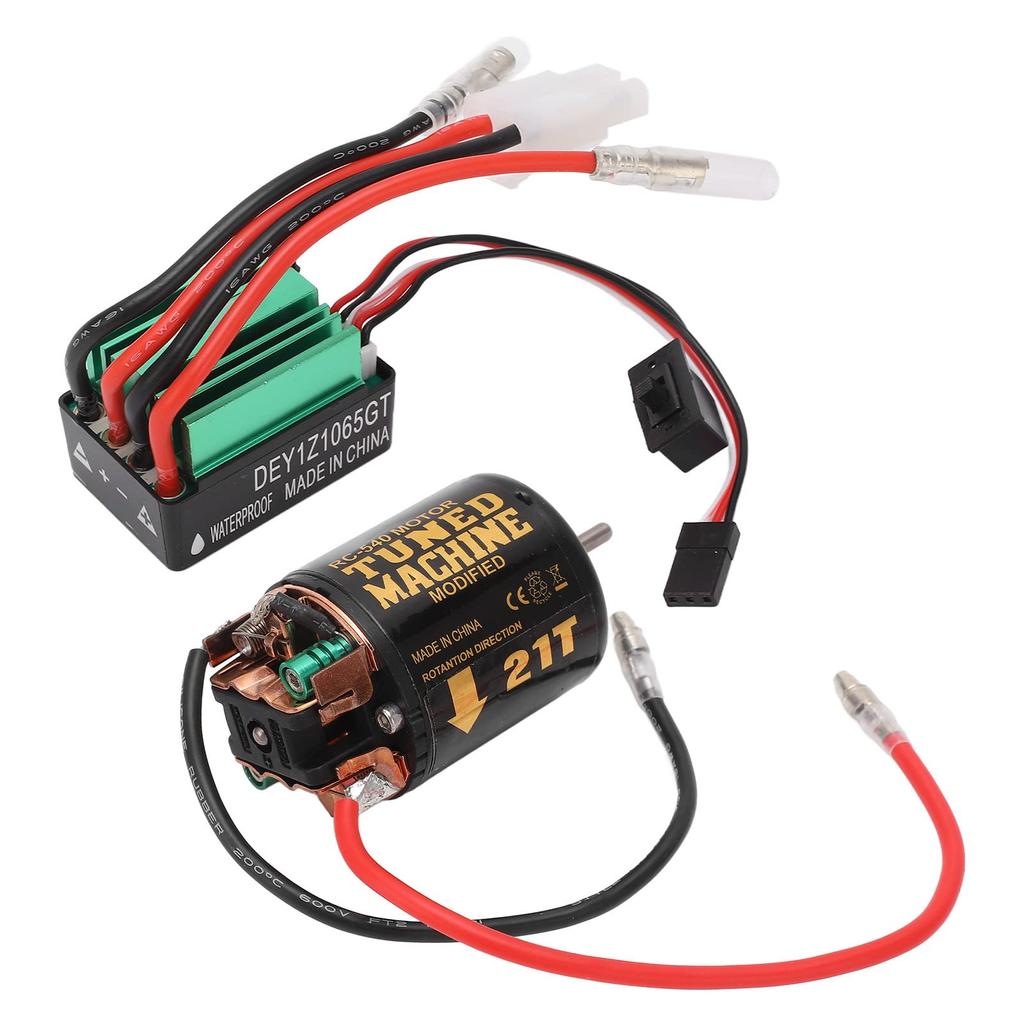

Item Type: Brushed Motor ESC Combo
Material: Iron, Copper, Plastic
Color: Black/Green
540 Brushed Motor:
T Number: 21T
Working Voltage: 7.2-7.4V
Maximum Voltage: 12V
Length: Approx. 53mm/2.1 inches (without shaft)
Diameter: Approx. 36mm/1.4 inches
Shaft
[Strong Anti-Interference] The 540 brushed motor features a large torsion angle, sophisticated circuit design, strong anti-interference, bidirectional bearings, strong magnetic force, low heat generation, and high output.
[Low Friction] High-strength magnet, low friction, low noise, external carbon brushes, long operating time, and high-purity copper windings maximize efficiency.
[Multi-Protection] Multi-protection function, strong current resistance, excellent heat dissipation performance, and overheating protection. When the temperature reaches 100°C, output will decrease and speed will slow down. Speed will return to normal once the temperature drops.
[Precise Design] Precision design ensures maximum energy conversion. The precisely balanced and smooth rotors improve reliability and top speed.
Product Specifications: Product Type: Brushed Motor ESC Combo; Material: Iron, Copper, Plastic; Color: Black/Green; 540 Brushed Motor: 21T; Operating Voltage: 7.2-7.4V; Maximum Voltage: 12V; Length: Approx. 53mm (without shaft); Diameter: Approx. 36mm (1.4 inches); Shaft Length: Approx. 12mm (0.5 inches); Shaft Diameter: Approx. 3.175mm (0.13 inches). 65A Brushed ESC: Compatible with 5-9NiMH, 4-6NiCd (4.8V-7.2V) batteries; 2-3S Li-ion battery: 7.4V-11.1V; Current parameters: Forward 320A, Reverse 160A, Brake 270A; BEC Output: 5V 2A (to power the receiver and servos); Functions: Forward and Brake, Forward, Brake and Reverse; Product Size: Approx. 43 x 30 x 28mm / 1.7 x 1.2 x 1.1in (excluding cables)
