The BHT-002 range has been developed to control electric underfloor or water heating or water/gas boiler system.These units are designed for use in commercial, industrial, civil and domestic properties.
Model distinguish:

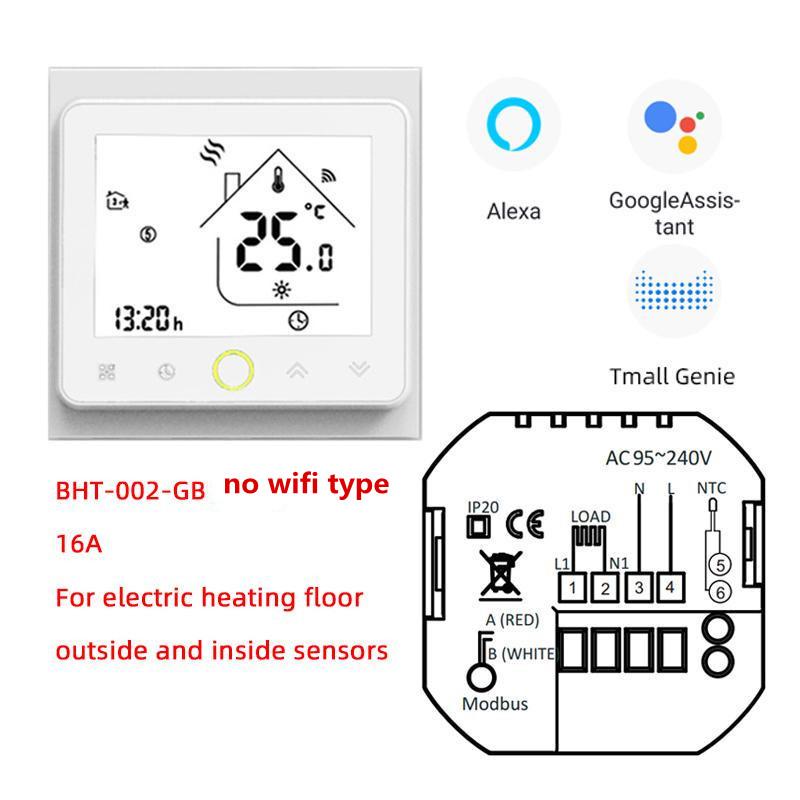

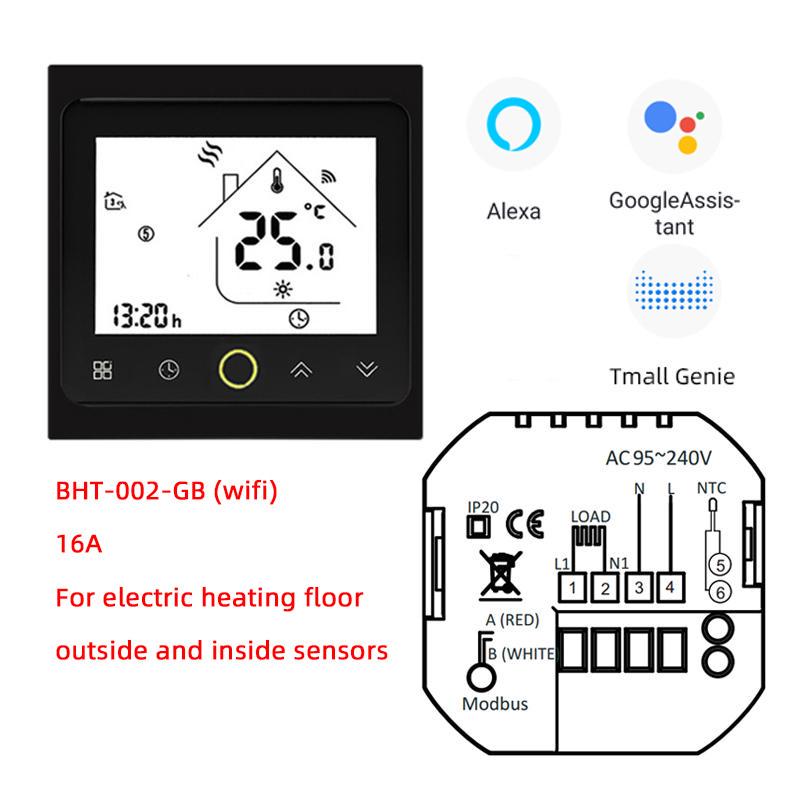

BHT002GB wifi type is used for electric heating floor,16A, with WIFI function and Voice control,

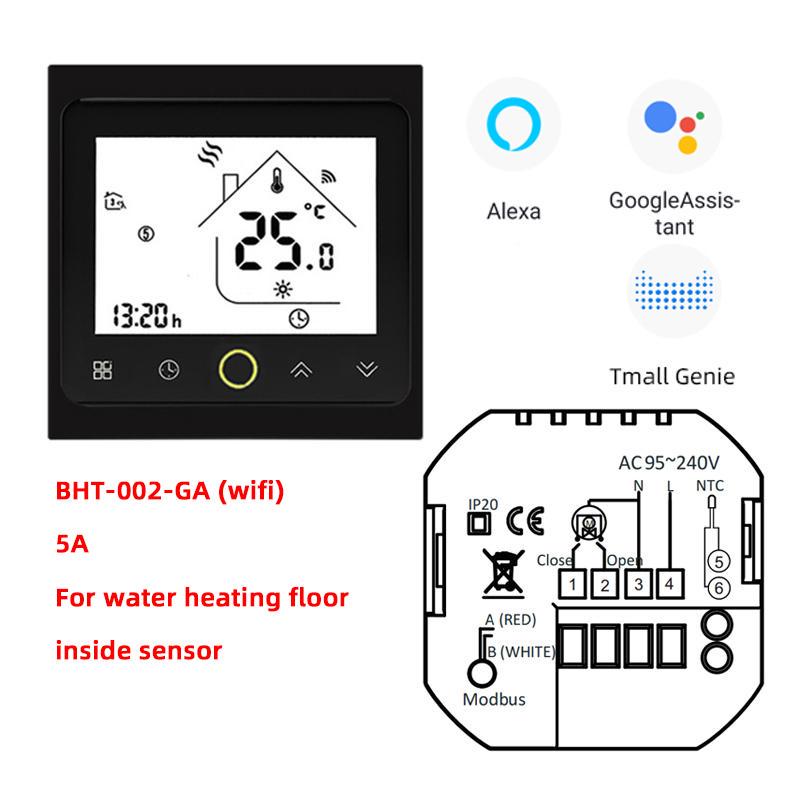

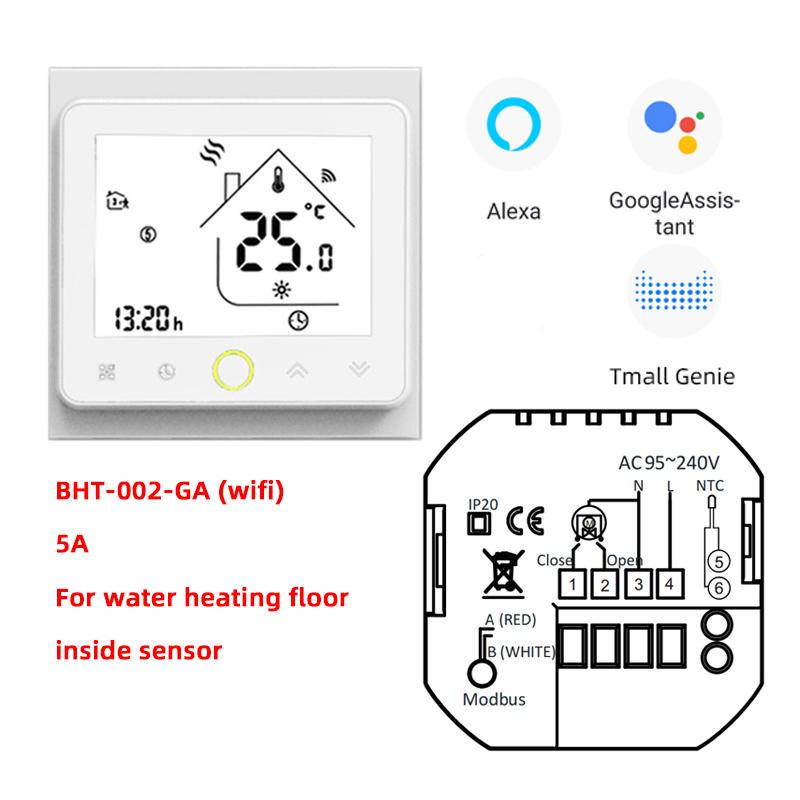

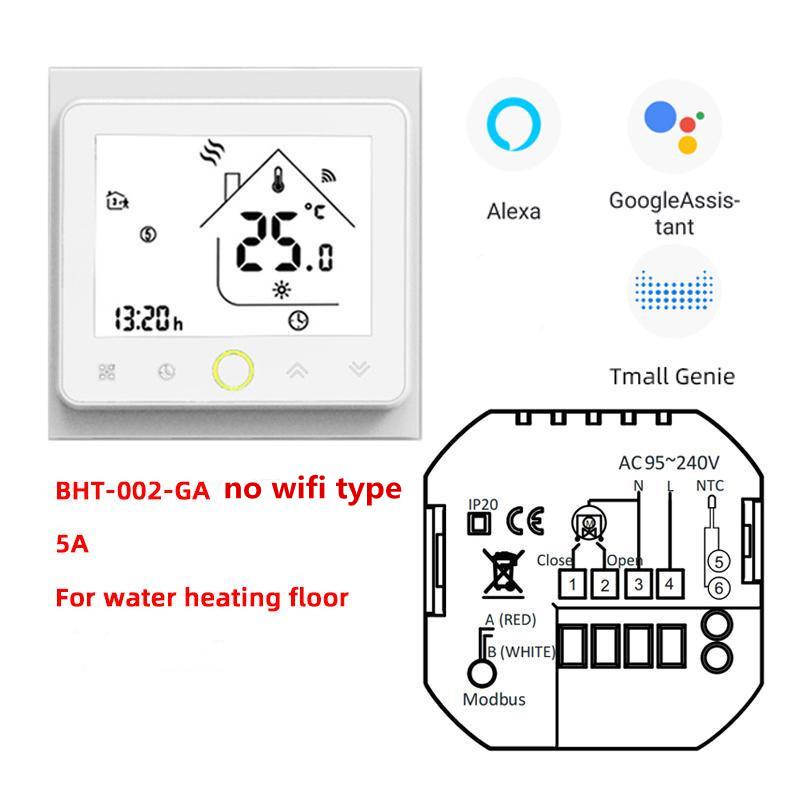

BHT002GA wifi type is used for water heating floor, 5A, with WIFI function and Voice control,

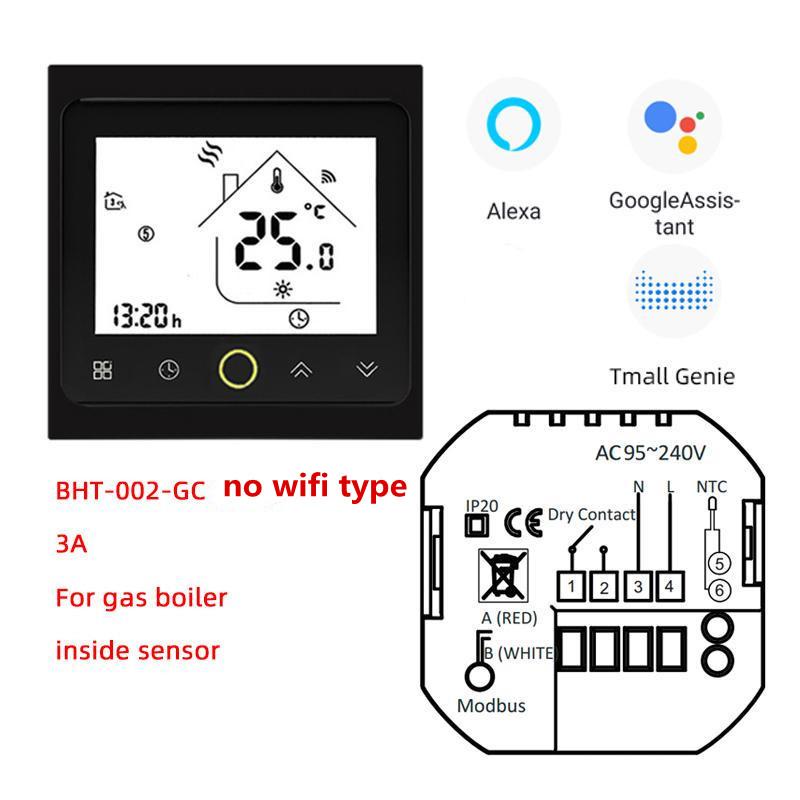

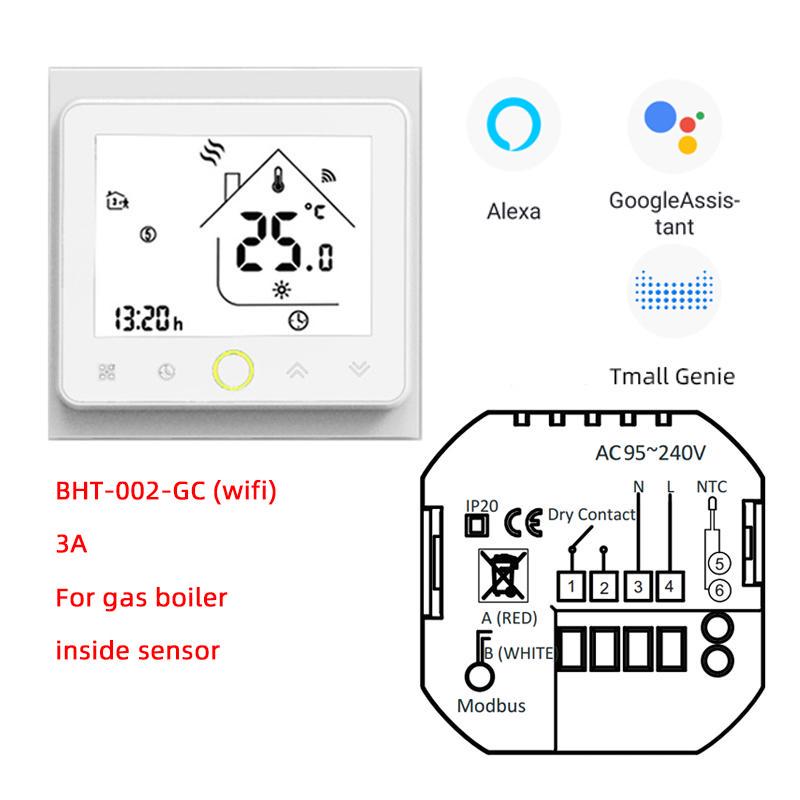

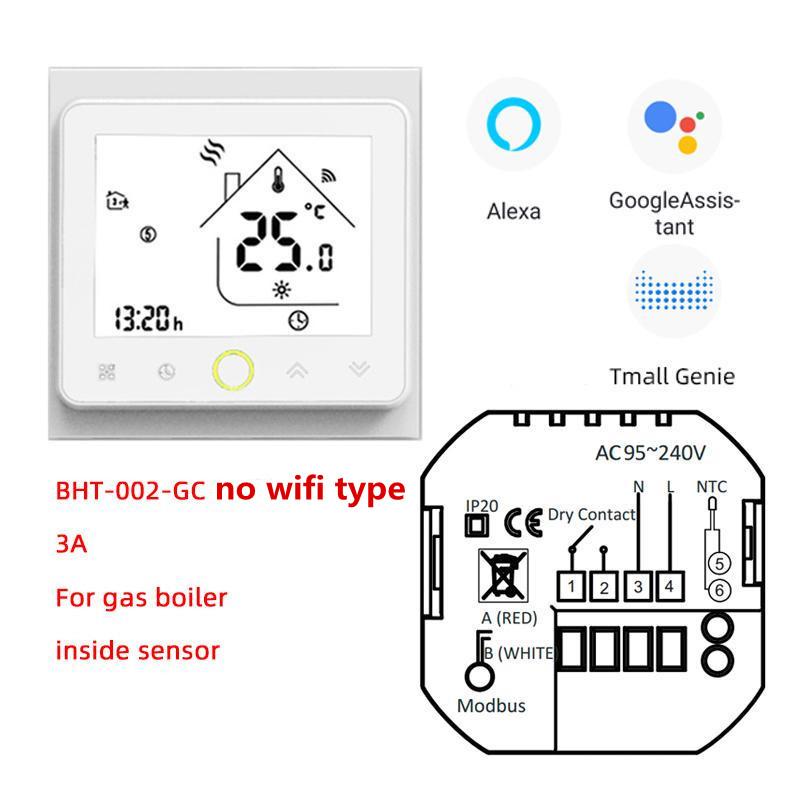

BHT002GC wifi type is used for gas boiler, 3A, with WIFI function and Voice control.
Specifications:
- Power Supply: 95~240VAC, 50~60HZ
- Display accuracy: ±1℃
- Sensor: NTC
- Set temperature range: 5~35℃
- Display temperature range: 5~99℃
- Ambient temperature: 0~70℃
- Ambient Humidity: 5~95% RH(Non Condensing)
- Storage temperature: -5~45℃
- Power Consumption: <1.5w
- Running program: Set per 1 week as a cycle

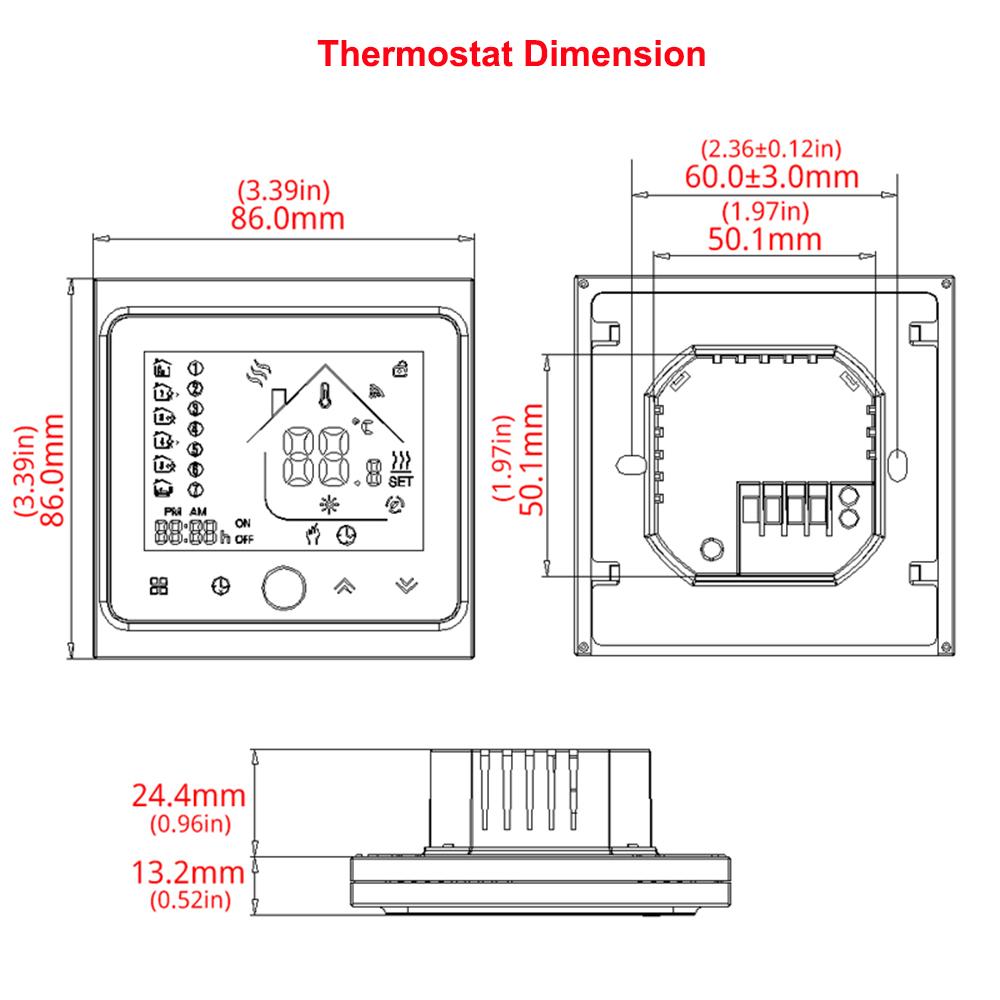

- Installation Box: 86*86mm Square or European 60mm Round Box
- Wire Terminals: Wire 2* 1.5mm2 or 1* 2.5mm2
- Protection Class: IP20
- Shell material: PC+ABS (flame retardant)
Features:
1. Memory Function
Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.
2. Programmable Function
Support 5+2 days Weekly Programmable, six periods programmable controlling temperature setting.

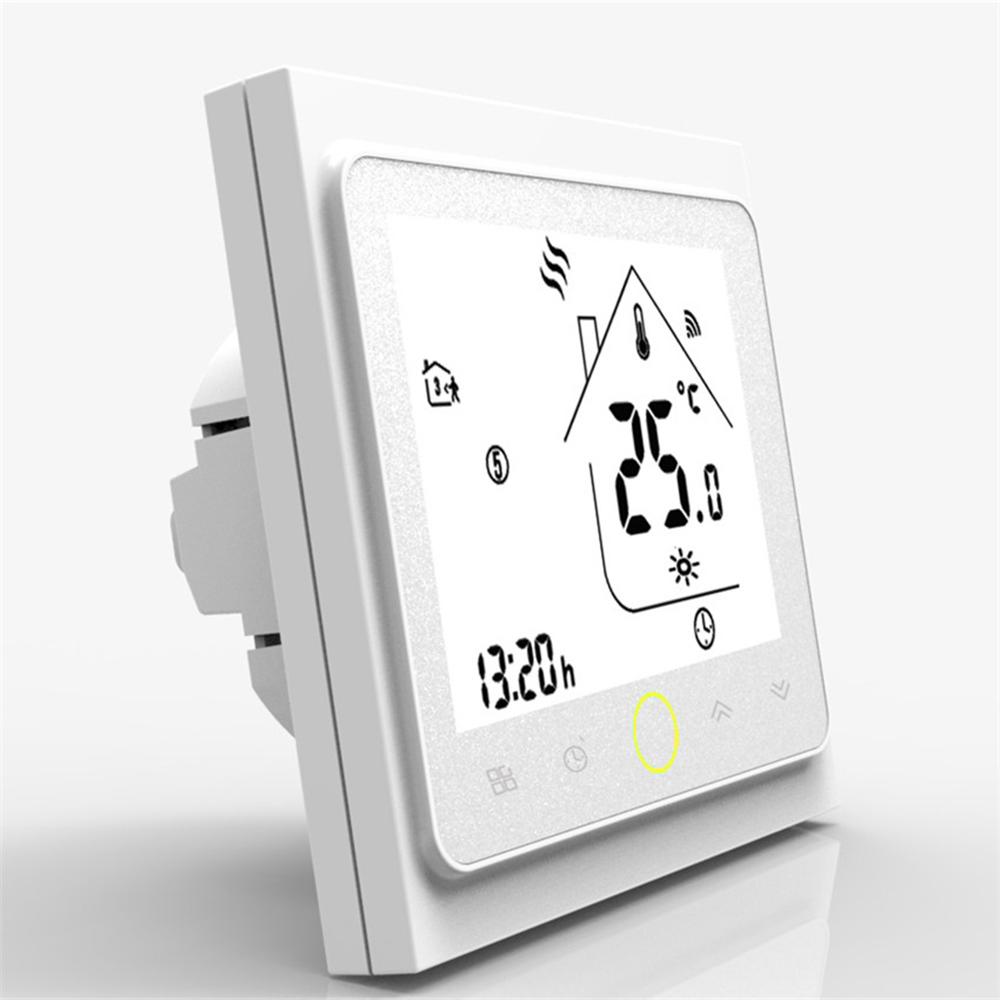

3. Elegant chrome frame, feather touch control panel.
4. RS485/MODBUS communication optional.
5. 12/24 hour system is switchable.
6 Children lock to avoid misoperation.
7. Wifi function(only wifi type)

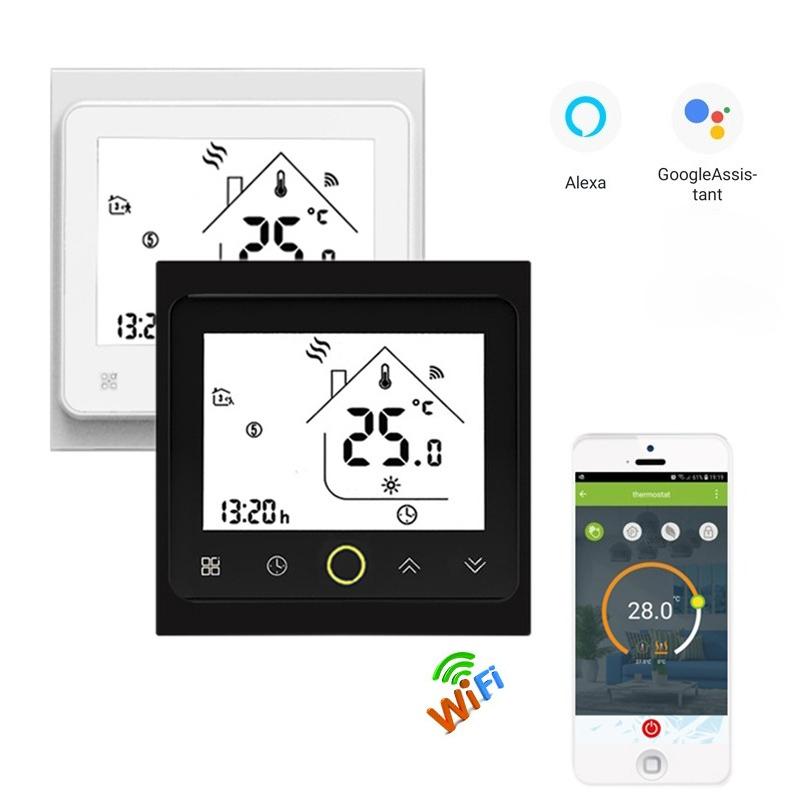

The wifi thermostat can be controlled by Mobile APP wherever you are.
8. Support to be voice control by Alexa.(only wifi type)

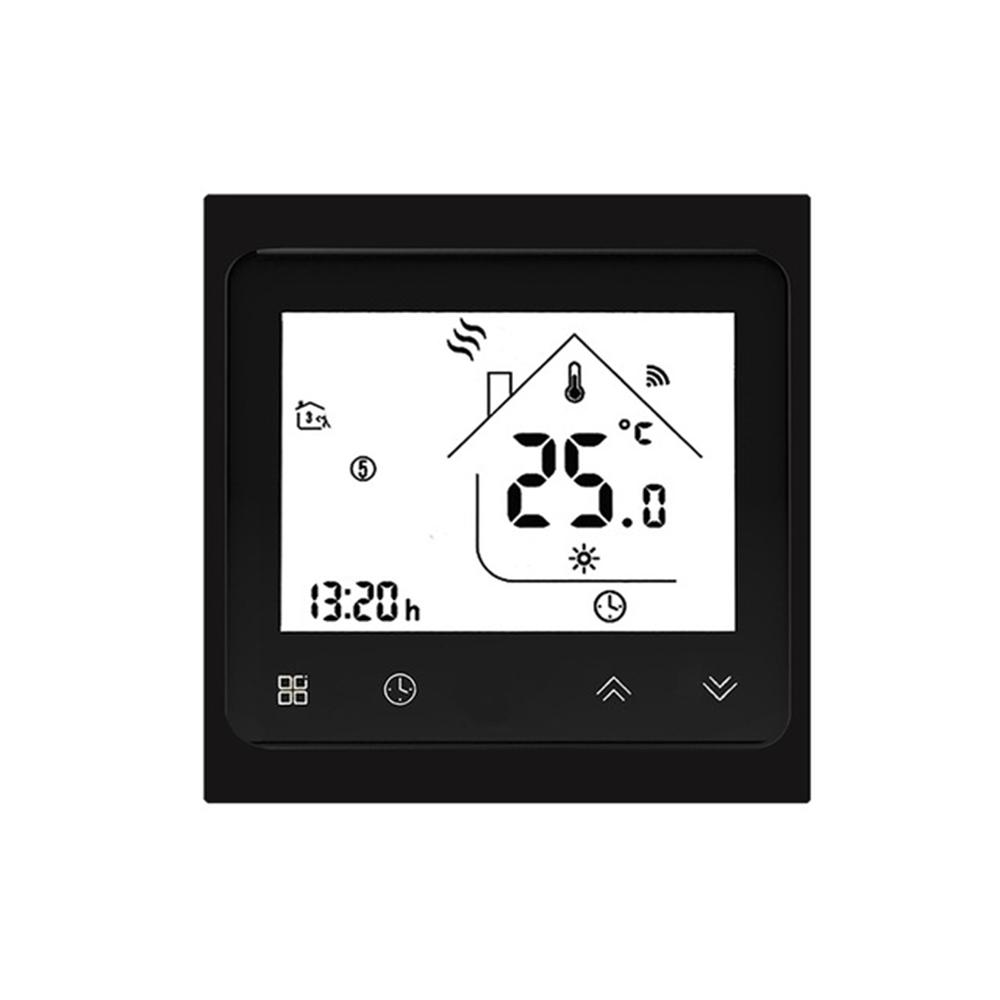

9.Acrylic face plate, large and backlit display.

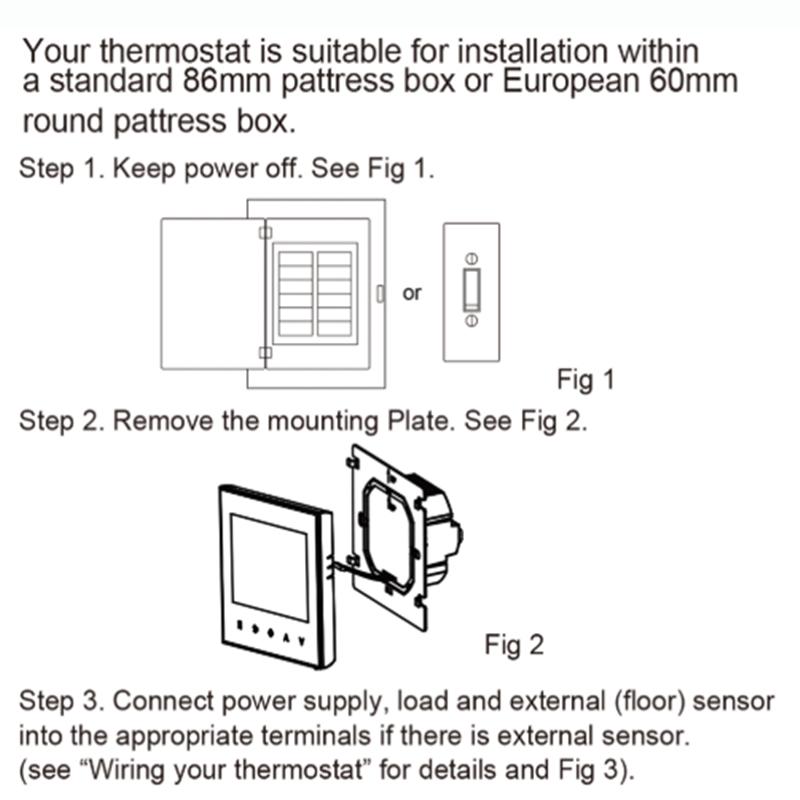

10.Simple installation
Suitable for installation in a standard single pattress box or European 60mm round box
Package includes: 1 X thermostat
1 X 2.5 meters external sensor---GA(water type) and GC(boiler type) not included
2 X screws
1 X English user manual
Power Consumption: 2W
Ambient Temperature: -5C~50C
Setting Range: 5C~90C
Protective Housing: IP20
