Product Introduction

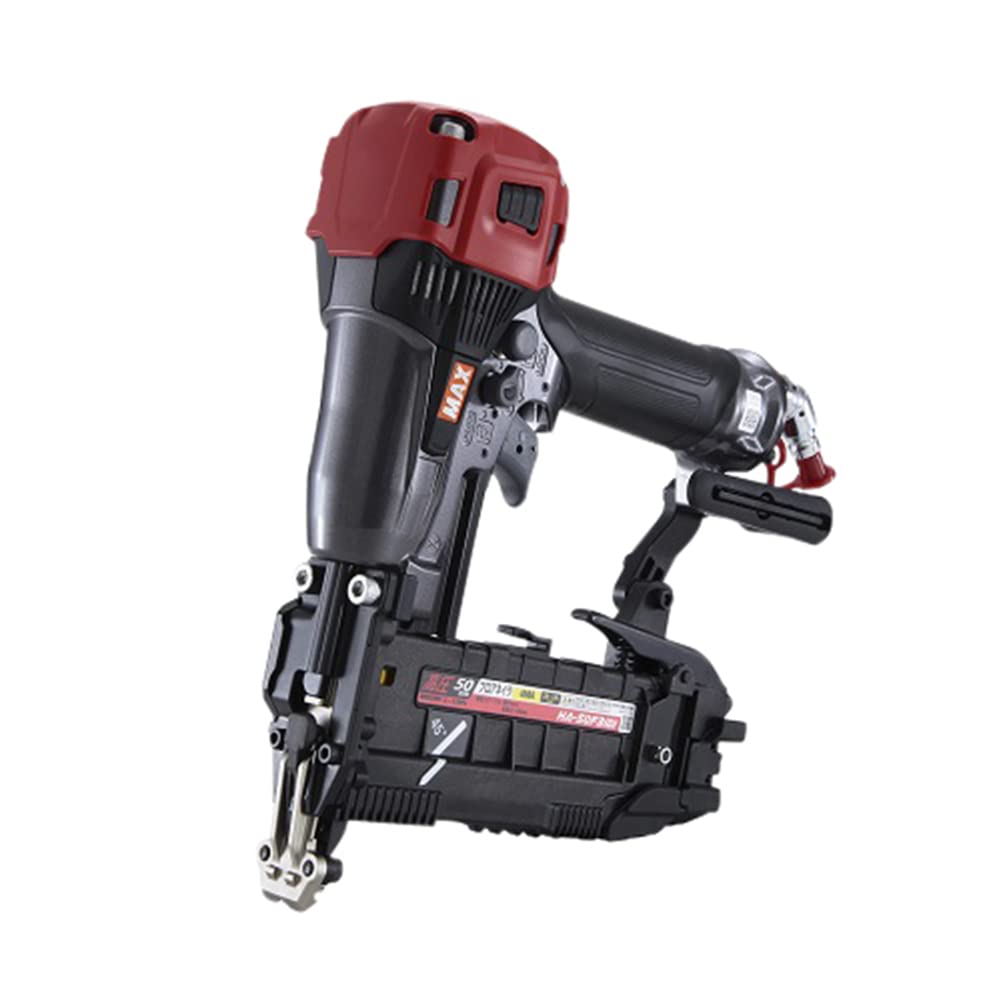

The high-pressure 50mm 4MA floor nailer is now even more compact.
[Application]
Floor nailer
[Features]
- With a height 19mm lower than previous models, this model is smaller and lighter, making it easier to nail when finishing off floors.
- One-handed air volume control for exceptional convenience.
- Features a dry-firing prevention mechanism that activates when there are no staples remaining.
- Inside guides reduce tip narrowing and buckling.
- The tip opens when the bolt is removed, making it easy to remove jammed staples.
[Precautions]
*Depending on the hardness of the material (single-ply solid wood) and the temperature combination, it may not be possible to drive the staples properly.
*In addition, using low air pressure may result in improper driving (loose staples, etc.).
*Be sure to read the instruction manual before use.
*When using this product, both the operator and those around you must wear eye protection.
*Never use with any power source other than an air compressor.
*Do not use if you notice any abnormalities.
Caution (Disclaimer) > Please Read
Depending on the material's hardness (single-ply solid wood) and temperature, staples may not be able to be driven properly. Also, low air pressure may result in improper driving (such as loose staples). Always read the instruction manual before use. When using the tool, ensure that the operator and anyone nearby wears eye protection. Never use any power source other than an air compressor.
Dimensions: 263mm H x 77mm W x 280mm L, Weight: 1.6kg
Staple Capacity: 84 staples (single row), Staple Leg Lengths: 25, 28, 32, 38, 45, or 50mm
Air Pressure: 1.2-2.3MPa (approx. 12-23kgf/cm2), Hose: 5mm or larger inner diameter, 30m or less in length
Safety: Mechanical, trigger lock
Accessories: Safety glasses, jet oiler (filled with oil), flat-head attachment, carrying case
