Ayzeze: Please note that in most European countries the speed limit for electric scooters is 20 km/h.
-----
Kukirin AI Foldable Electric Scooter
💗Advantages: All Kukirin scooters can be set to a speed limit mode, so there's no need to worry.
⚡The 800W motor delivers smooth and powerful power, making it easy to navigate common urban streets, residential roads, and gently undulating slopes.
🏃♀️45km/h Top Speed Improves Travel Efficiency: With a maximum speed of 45km/h, it significantly reduces travel time compared to traditional bicycles or low-speed scooters.
🔋48V 15AH Battery, 45km Range: Equipped with a 48V 15AH battery, the scooter boasts a stable maximum range of 45km. For daily commutes under 20km, a single charge can cover 2-3 days of travel.
💪120kg Maximum Load Capacity, Reliable and Practical: Crafted from sturdy, durable materials, it can carry a maximum load of 120kg.
📦Foldable Design, Convenient Storage and Portability: The folding function is simple and easy to use, requiring no complex tools and can be folded in minutes. The folded scooter is significantly smaller, easily fitting in a car trunk for road trips.
Product Specifications:
Packing info Packing size 1170*250*620mm
Product basic parameter Weight Product G.W 29.5±0.5kg
Product N.W 25.5±0.5kg
Size Expend size 1154*580*1298mm
Fold size 1154*580*535mm
Handlebar size 580mm
Pedal to Handlebar size 510*220mm
Chassis height 990mm
Pedal size 160mm
Max Load 120kg
Speed Max speed 45km/h
1st、2nd、3rd(speed limit) 1st gear:15 、2st gear:20 、3st gear:25
1st、2nd、3rd(65kg Load) 1st gear:20 、2st gear:30 、3st gear:45
Mileage Middle speed mileage(65kg Load) ≤45km
Performance Climbing ability ≤20° slope
Brake system Front and rear disc brakes + power-off brake
Brake distance 6-8m
Waterproof level IPX4
Material Frame material Steel Frame
Motor Motor type Brushless DC Hub Motor
Voltage 48V
Acclerate mode Sine Wave
Power date Rated power 800W
Instantaneous maximum power 1000W
Rated speed 1100rpm
Max output torque 25N.m
Battery Model 18650 Li-battery
Voltage 48V
Capacity Single cell capacity 2600mAh
Battery pack capacity 13Ah
Standard power consumption KW.H 0.624kW·h
Battery protect system BMS
Charger Input voltage 100~240V/50~60Hz
Input current 2.5A
Output voltage 54.6V
Output current 2A
Charging time 7-8h
Shock absorber system Front shock absorber Glue filling shock absorption
Rear shock absorber Glue filling shock absorption
Light System Headlight type LED
Headlight power 1.7W
Headlight illumination angle adjustable
Headlight irradiation area 6㎡
Turn light Yes
Taillight Yes(Steady light, high light when braking)
Tire Size 10in
Type Vacuum tire
Optimum tire pressure 330-360kPa (48-53psi)
Disc brake disc Outer diameter 140mm
Thread hole diameter M6

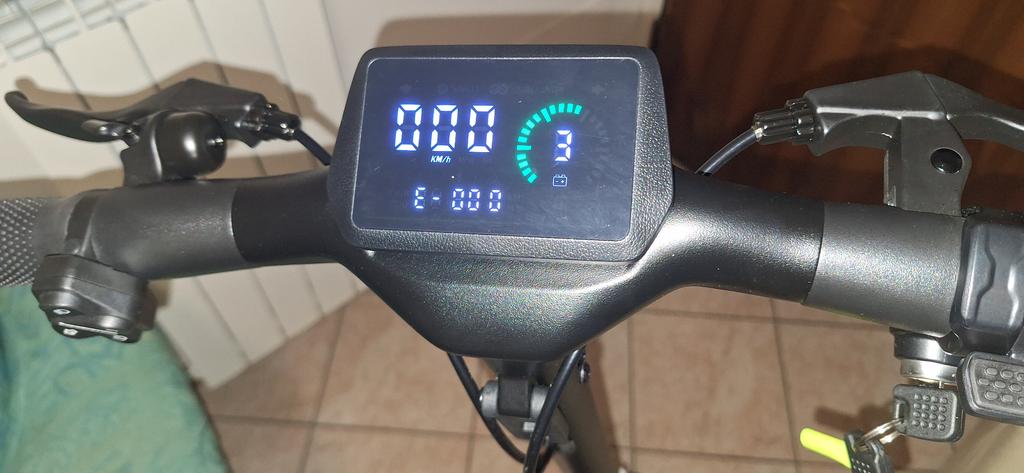

Instrument Type LED
Instrument material Instrument case ABS
Size 80*50mm
Show content Speed, battery level, cruise control, speed mode, start mode, headlight icon, mileage unit mode, etc.
Function setting
(1)Button: Insert the key into the ignition switch hole, turn the key clockwise to the start position, and then press and hold the power button to turn on the device. After turning on the device, short press the power button once to adjust the gear position. Short press three times in a row to enter the menu setting interface, and long press to turn off the device. Light button: Short press to switch the instrument display data, and long press to turn on the headlights, LOGO, and taillights.
(2)Menu settings: After short pressing the power button three times in a row to enter the menu settings interface, the instrument will display P1, P5, P6, P8, PA, PB, and PC, which respectively represent: P1 for kilometer/mile selection setting; P5 for cruise and no cruise selection setting; P6 for non-zero start and zero start selection setting; P8 for automatic sleep time setting; PA for starting force setting; PB for braking force setting; PC for total mileage clearing setting.
(3)Speed limit mode setting: Squeeze the brake lever and double-click the power button at the same time to enter speed limit mode.
Packing list Charger*1, Instruction manual*1, Allen wrench*2, Pole screws*4, Desiccant*2, Key*2
