Features:
Wide Compatibility – Supports current inputs of 4-20mA and 0-20mA, with adjustable voltage outputs of 0-3.3V, 0-5V, or 0-10V for seamless microcontroller integration.
Accurate & Stability – High-accuracy sampling resistor ensures reliable signal conversion with minimal temperature drift, delivering industrial-grade performance.
Adjustable Calibration – Customize zeros point and full-scale output for flexible calibration to meet different application requirements.
Broad Power Supply Range – Works efficiently across a wide voltage range, making it suitable for diverse industrial and electronic projects.
Excellent Linearity & Durability – Provides stable, high-accurate signal conversion with superior linearity for consistent, long-term performance.
Specification:

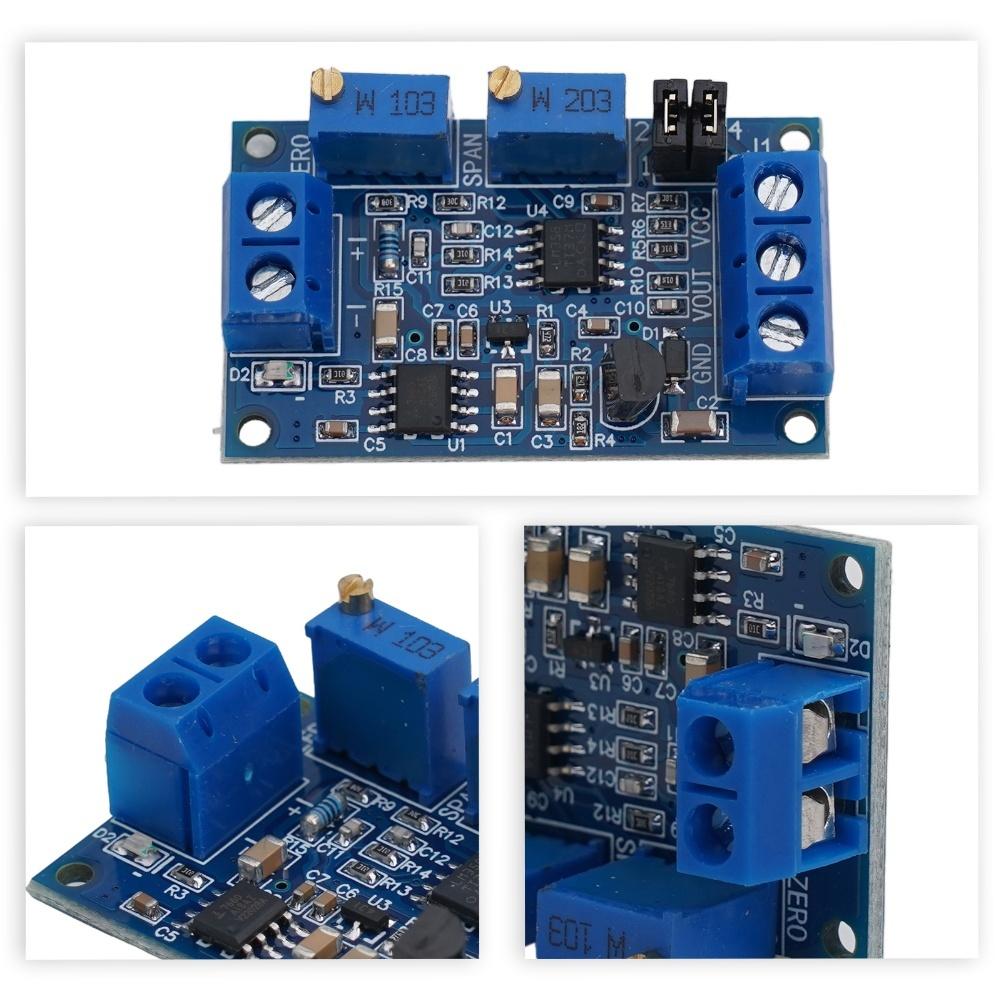

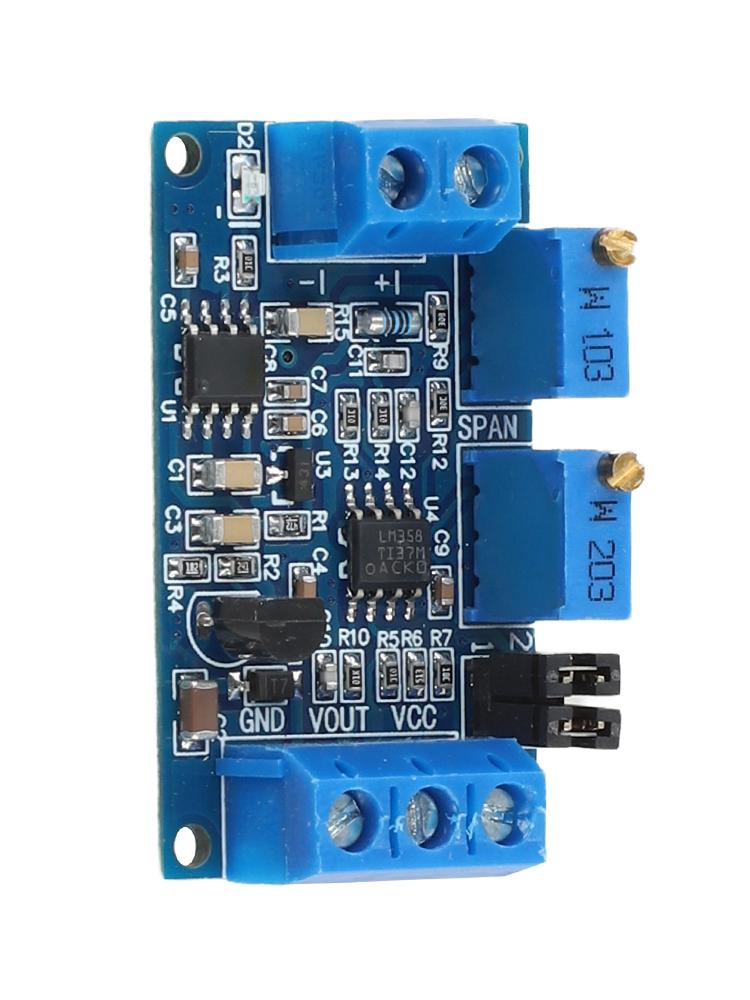

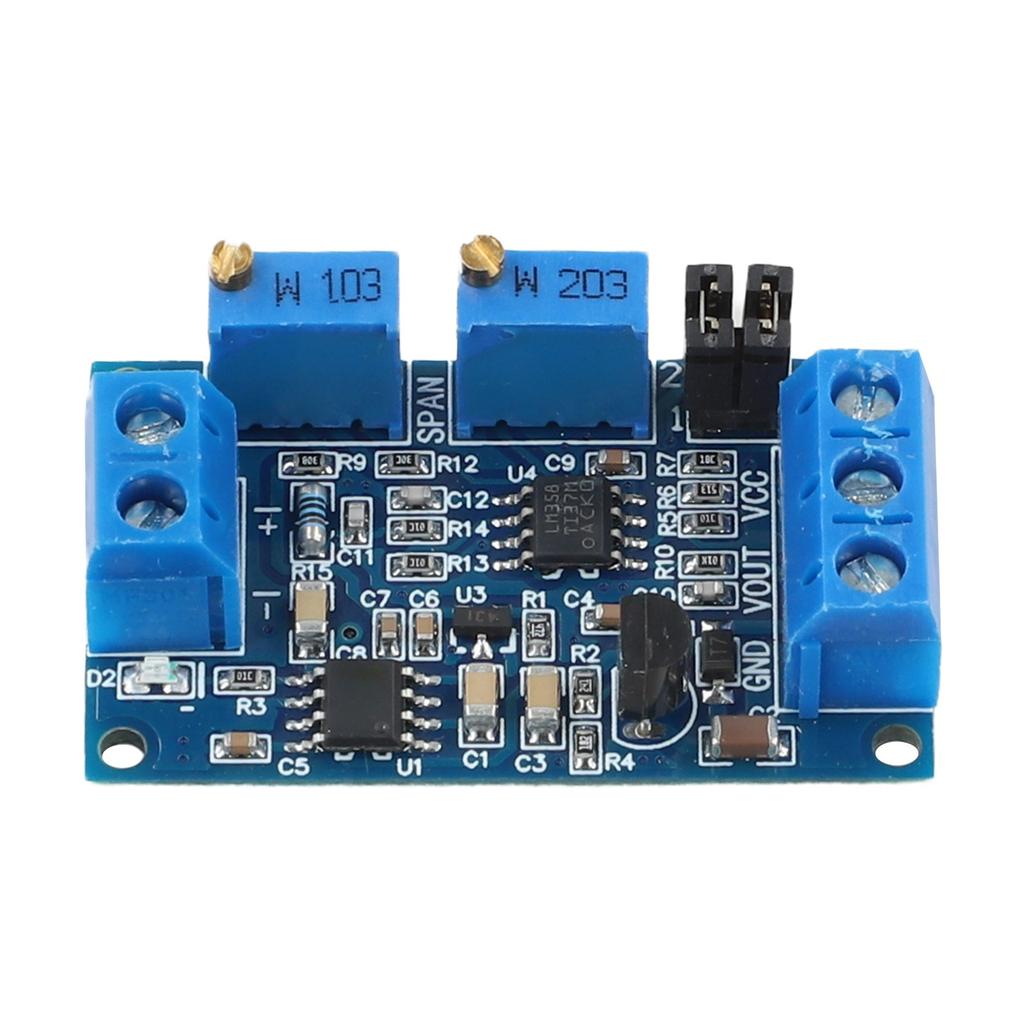

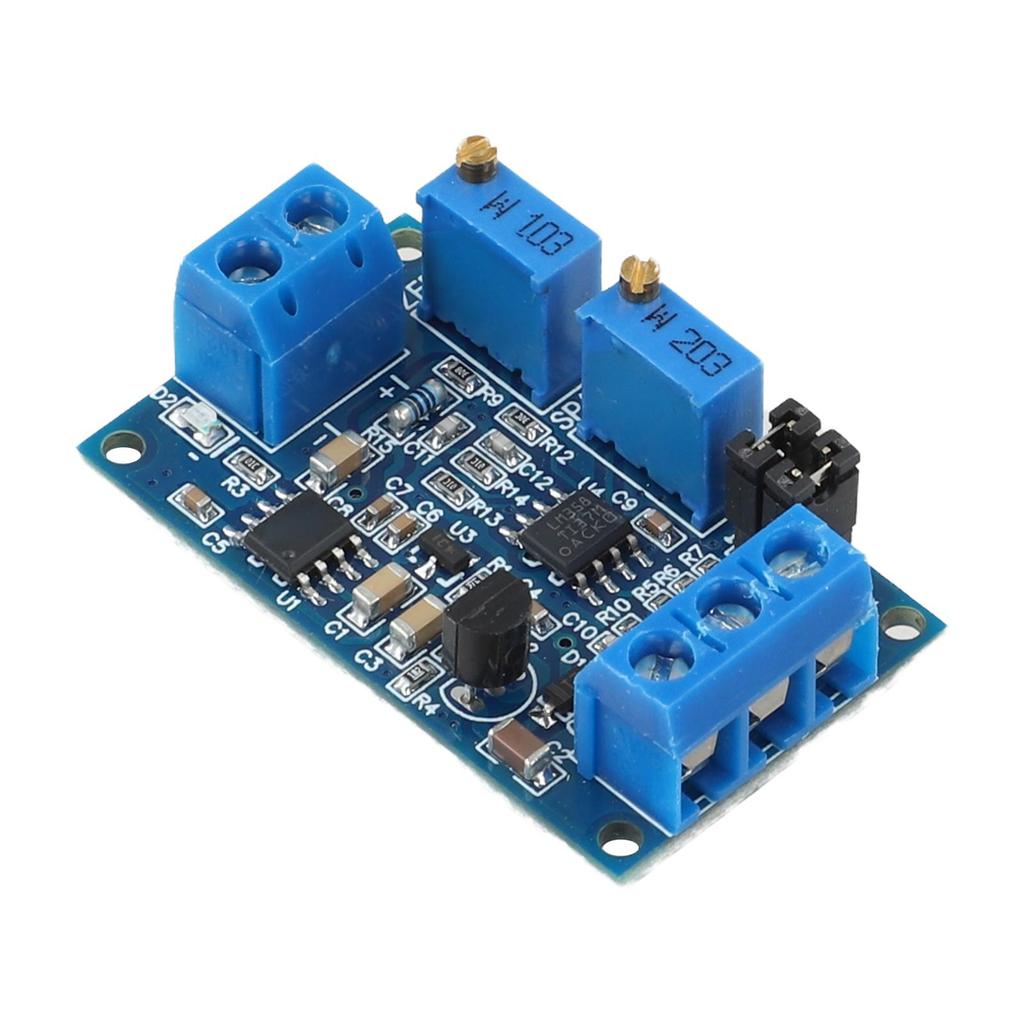

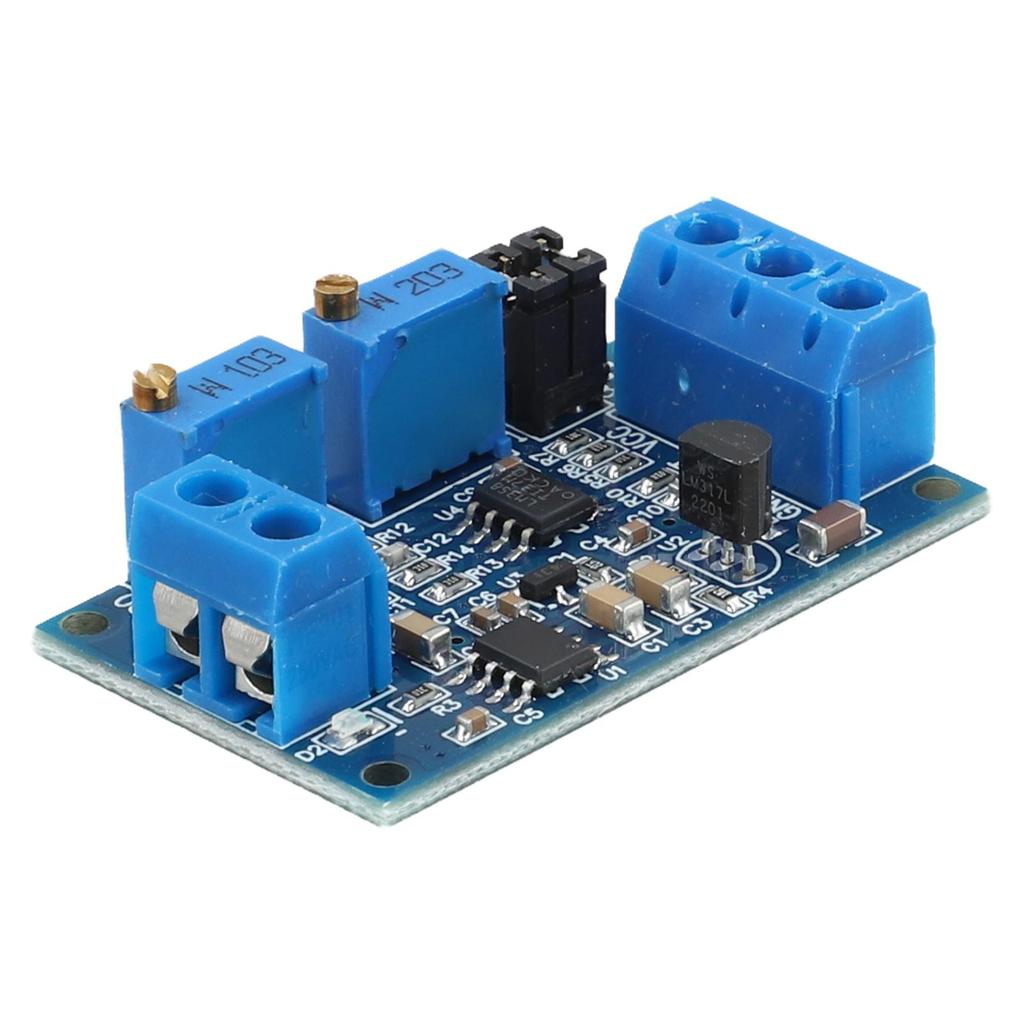

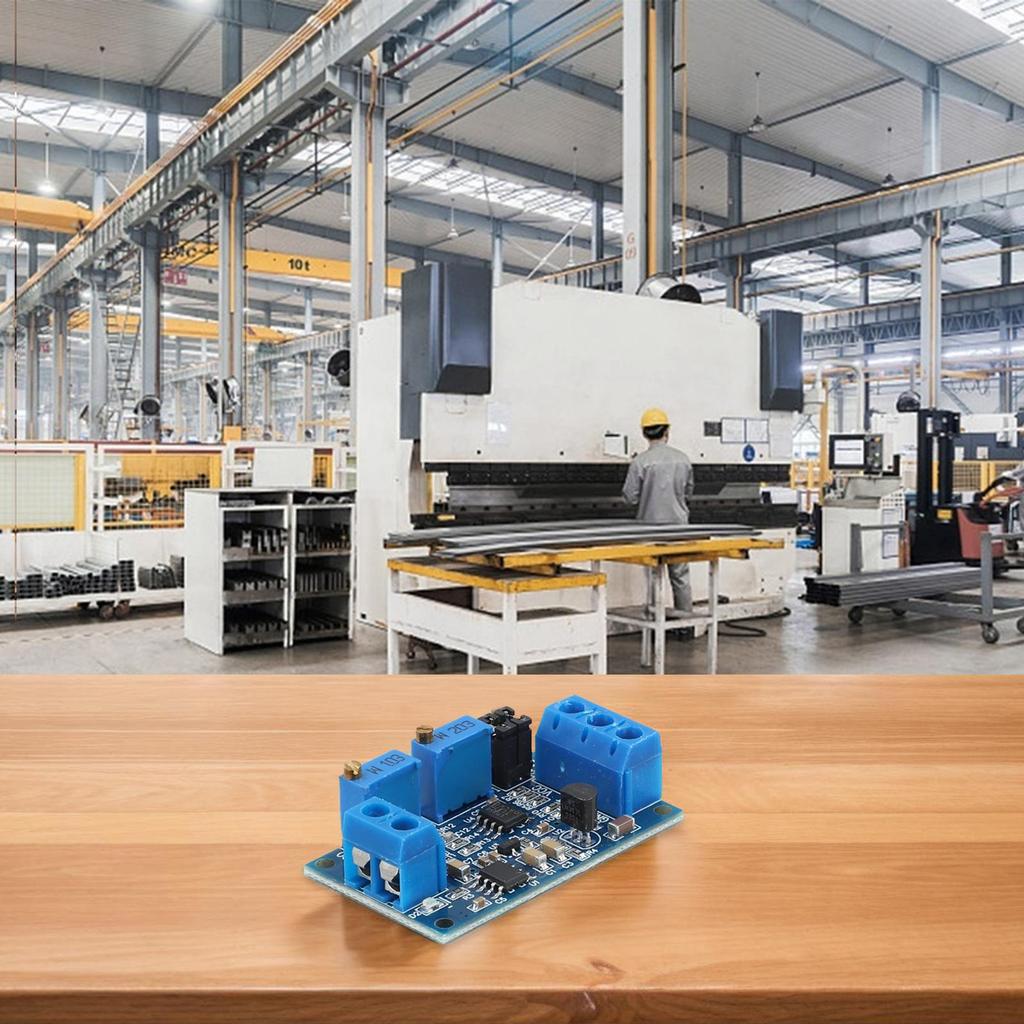

Part name:Current to voltage module
Model: XY-ITOV
Material: plastic
Color: As shown in the picture
Current input: supports 4-20Ma, 0-20mA
Voltage output: supports 0-3.3V 0-5V 0-10V
Size: 45*25.20mm
Weight: 10g

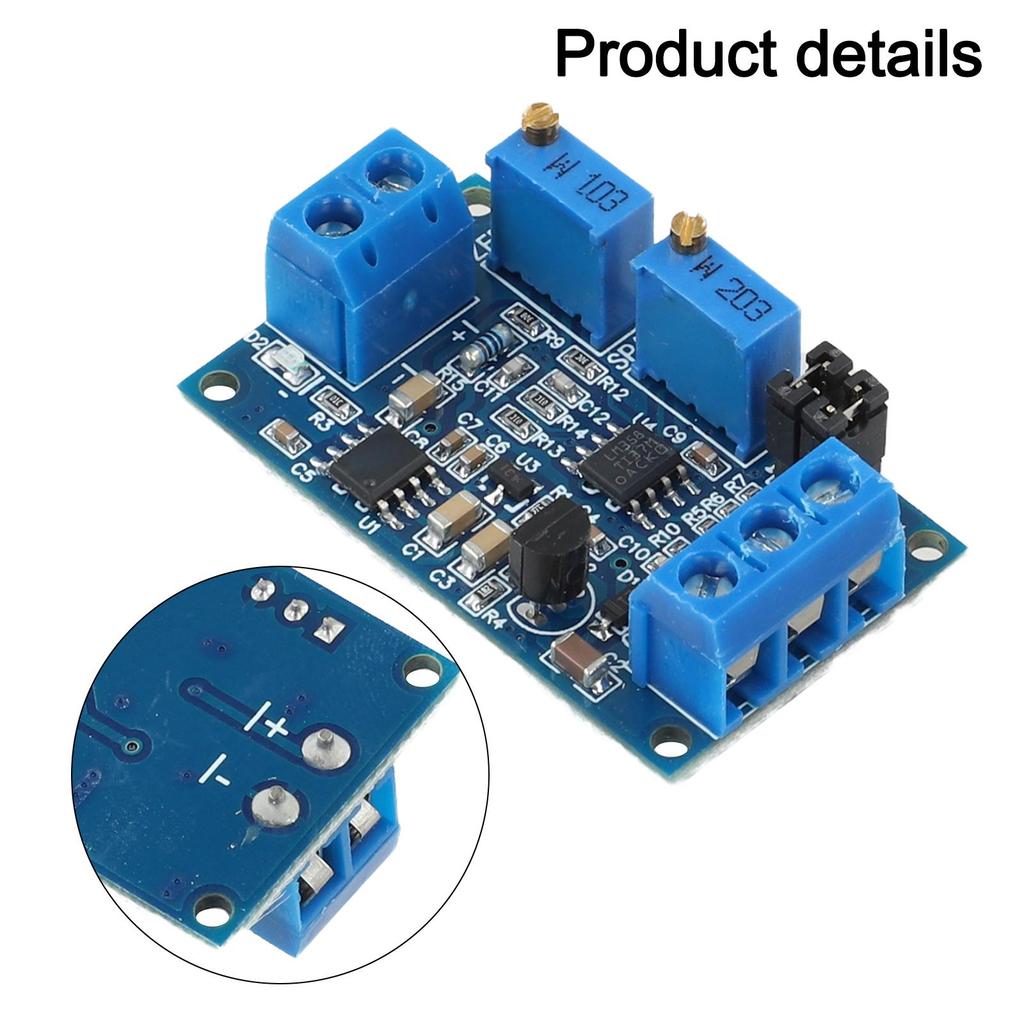

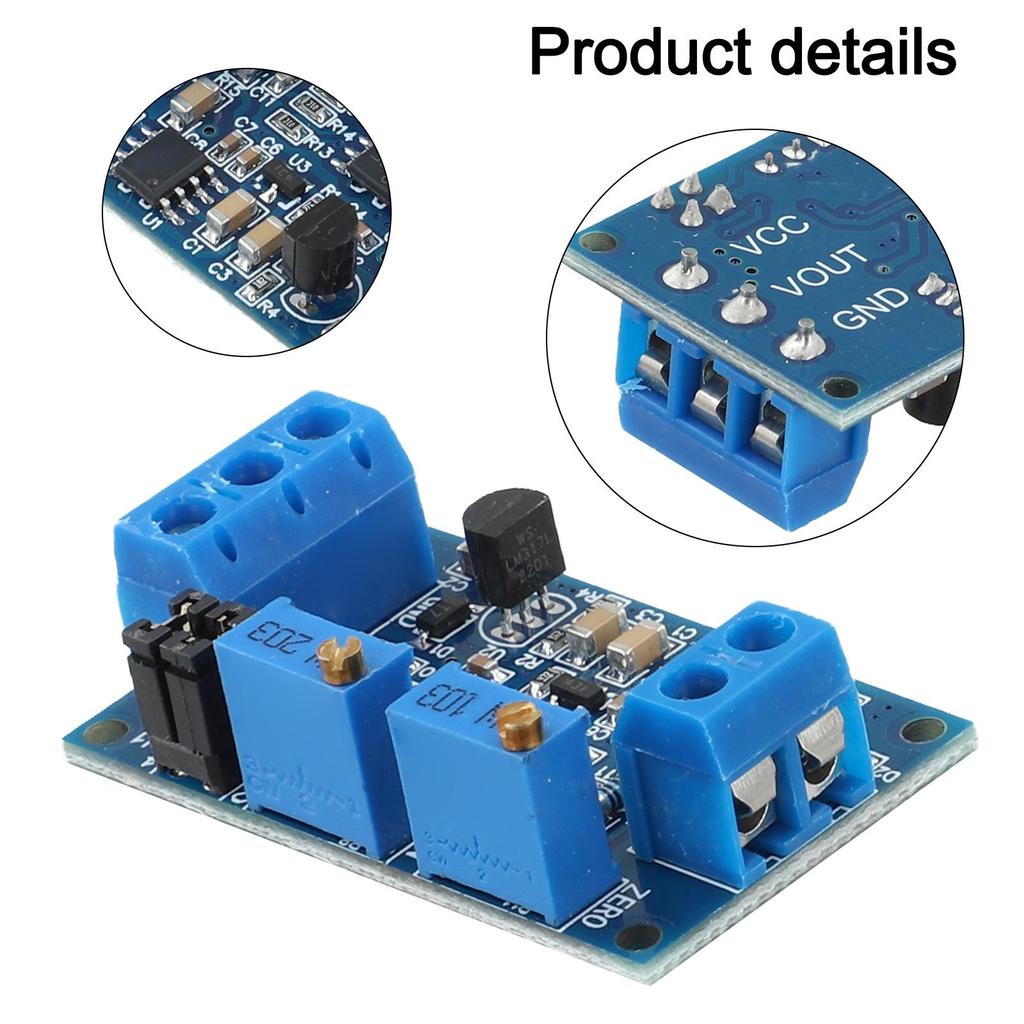

1. The module is wired according to the definition, and the power supply voltage is 7-36V (if the output is to be 10V, the power supply voltage must be greater than 12V)
2. After powering on, the D2 light should be on, otherwise please check the wire connection. The board has reverse connection protection and will not burn when connected in reverse.

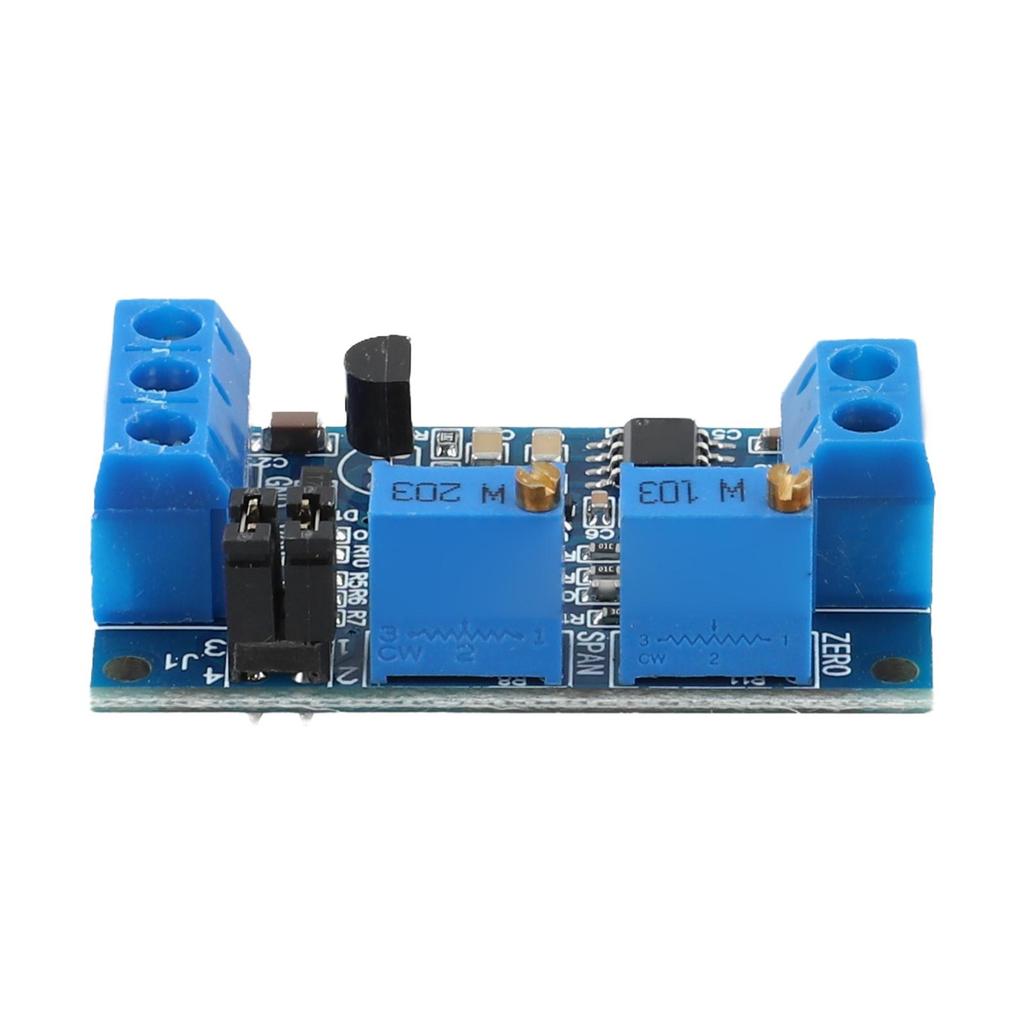

3. When the current input is at the minimum value (0mA or 4mA), adjust the Zeros potentiometer so that the VOUT output is at the minimum value (0.0V or other voltage)
4. When the current input is at the maximum value (20mA), adjust the SPAN potentiometer so that the VOUT output is at the maximum value (3.3V or 5V or 10V. When the input is 4-20ma, the minimum output can be 2.5V).
Package Contents:
1*Current to voltage module
