Feature:

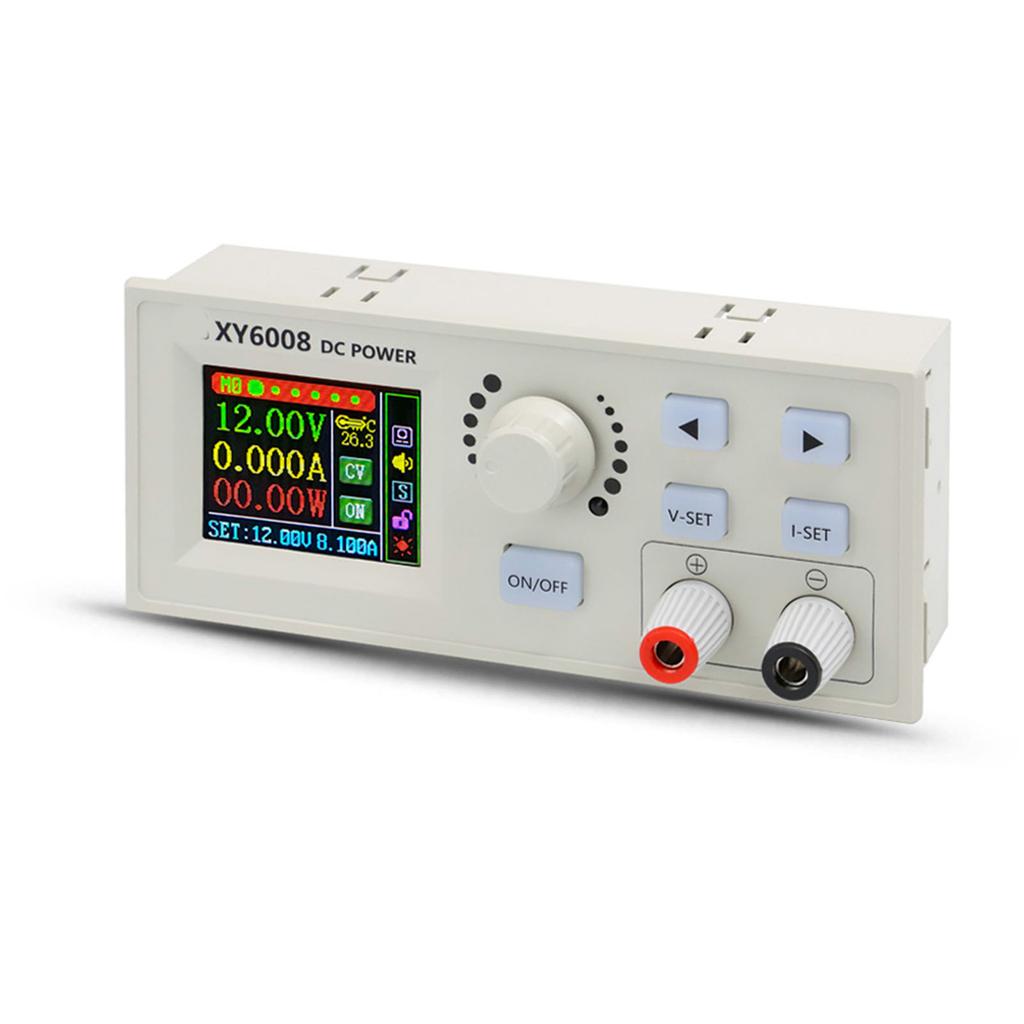

1. Digital control direct current voltage stabilization power supplys, is compact in size, with full digital keyboard, minimal operation, convenient and fast.

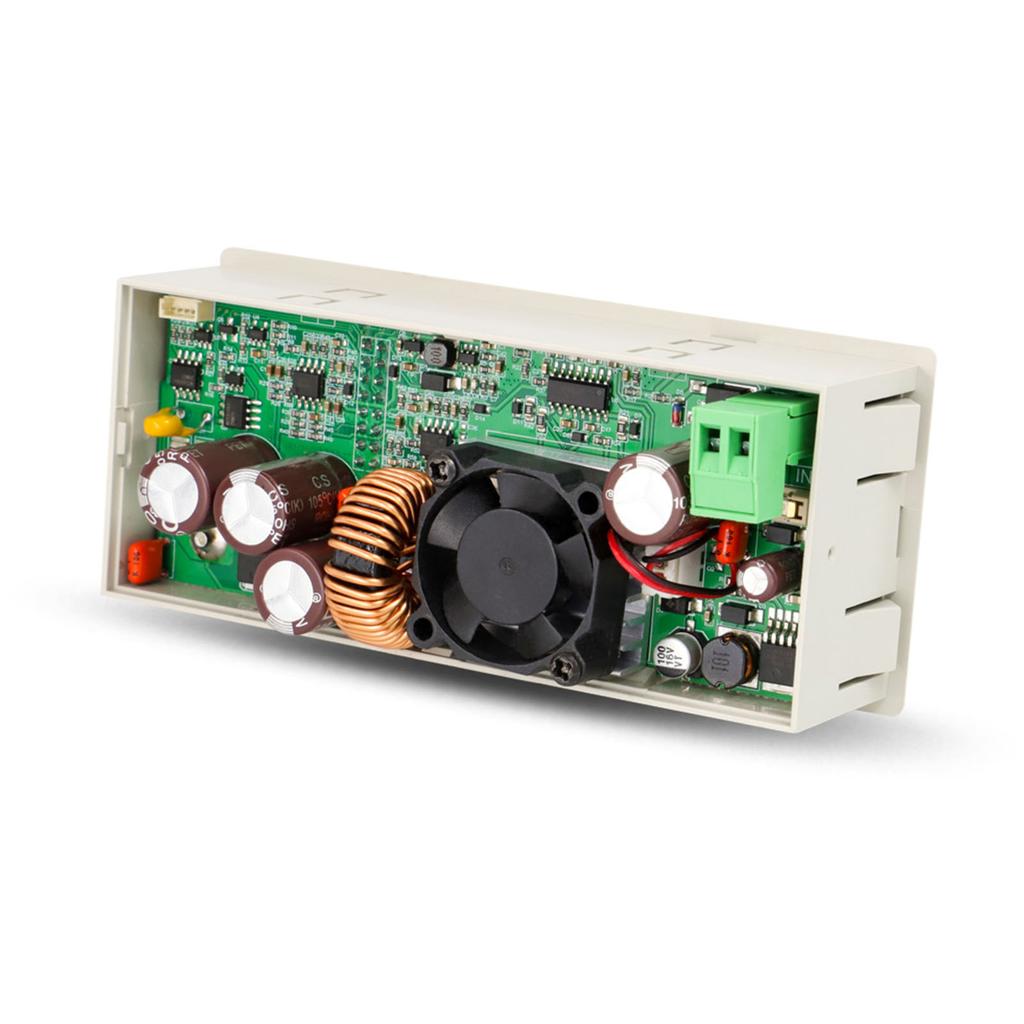

2. Fine workmanship, adopts quality component, uses SMT process production, can provide stable and reliable working performance.

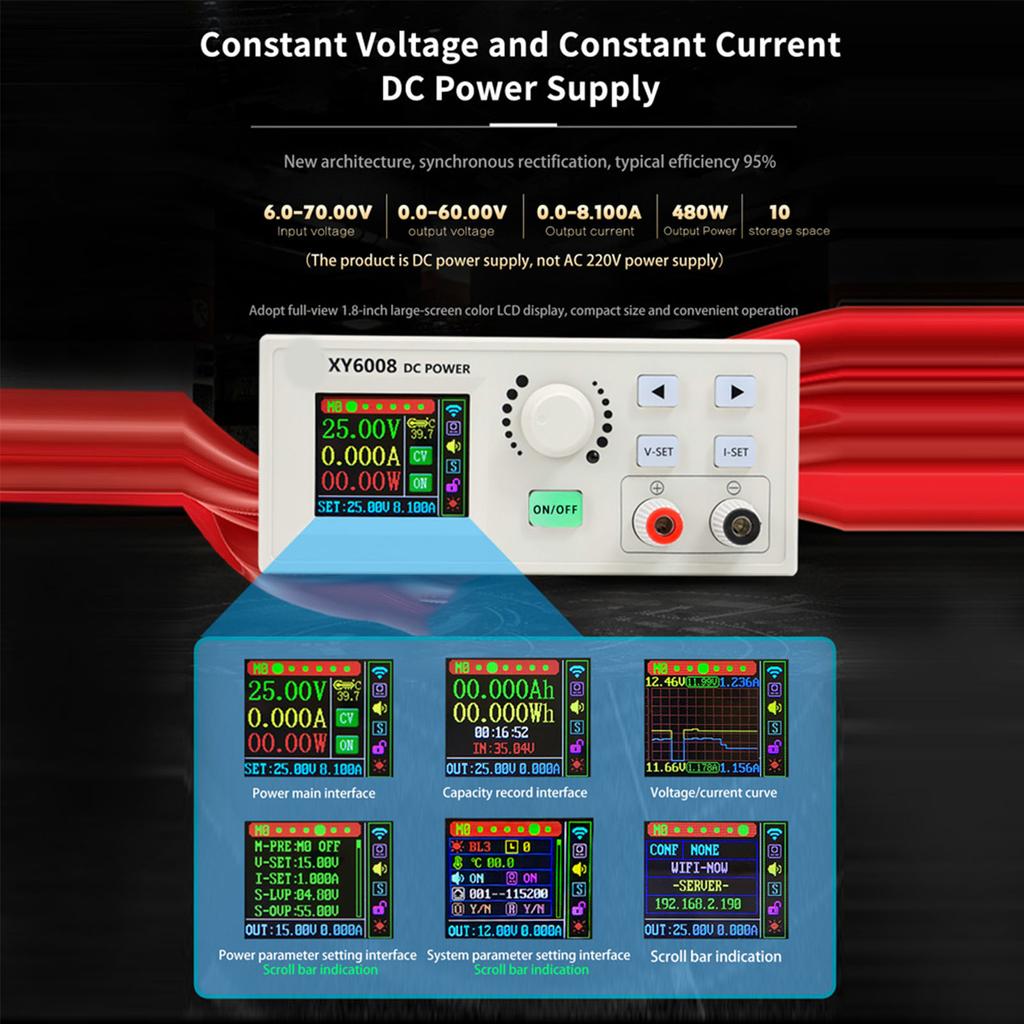

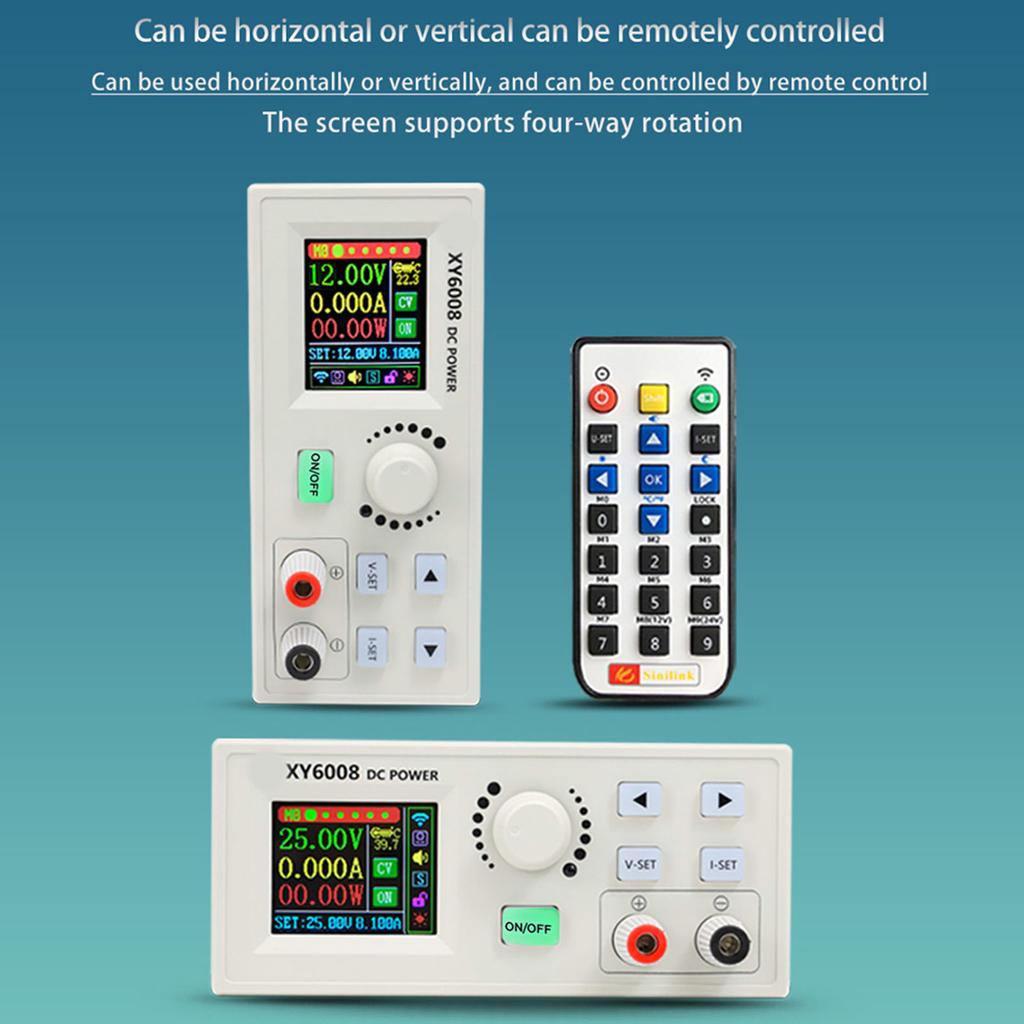

3. With a full view 1.8inch color LCD display, the large screen supports four way rotation, which makes it can be used horizontally or vertically, and can be controlled by remote controller.
4. Screen brightness settings, 6 levels(0 5 level) of brightness adjustment design, you can adjust the brightness based on current lighting conditions.
5. Display color adjustable design, the theme background color, output voltage color, output power color, theme foreground color, output current color, voltage and current color can be set with free, support setting 8 colors.
6. 2 models are available, you can choose XY6008 or XY6008 W according to the use requirements.
7. XY6008 W Only:

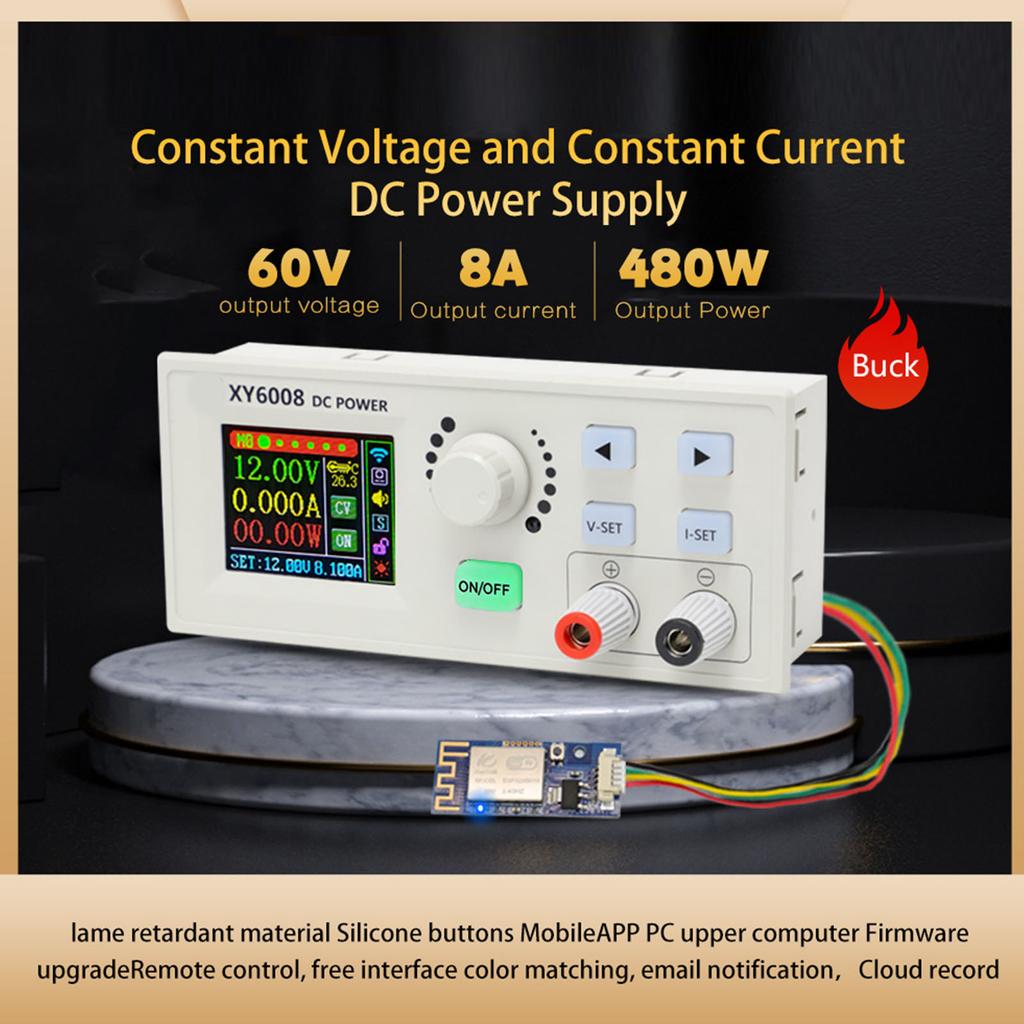

8. Support network control, LAN penetration, real time communication; outer net remotely control, no distance limitation.
9. Support WeChat notification, cloud record.
10. Support computers upload, cellphone APP control, support both Android and iOS system.
11. Firmware upgrade, WIFI remote upgrade, eliminating the tedious wiring, can be easily handled.
12. Support domestic weather system and global WiFi timing system.
Specification:
This digital control direct current voltage stabilization power supplys, is compact in size, with full digital keyboard, minimal operation, convenient and fast. With a full view 1.8inch color LCD display, the large screen supports four way rotation. Screen brightness settings, 6 levels(0 5 level) of brightness adjustment design. Display color adjustable design, support setting 8 colors. 2 models are available, you can choose XY6008 or XY6008 W according to the use requirements.
Features:
Digital control direct current voltage stabilization power supplys, is compact in size, with full digital keyboard, minimal operation, convenient and fast.
Fine workmanship, adopts quality component, uses SMT process production, can provide stable and reliable working performance.
With a full view 1.8inch color LCD display, the large screen supports four way rotation, which makes it can be used horizontally or vertically, and can be controlled by remote controller.
Screen brightness settings, 6 levels(0 5 level) of brightness adjustment design, you can adjust the brightness based on current lighting conditions.
Display color adjustable design, the theme background color, output voltage color, output power color, theme foreground color, output current color, voltage and current color can be set with free, support setting 8 colors.
2 models are available, you can choose XY6008 or XY6008 W according to the use requirements.
XY6008 W Only:

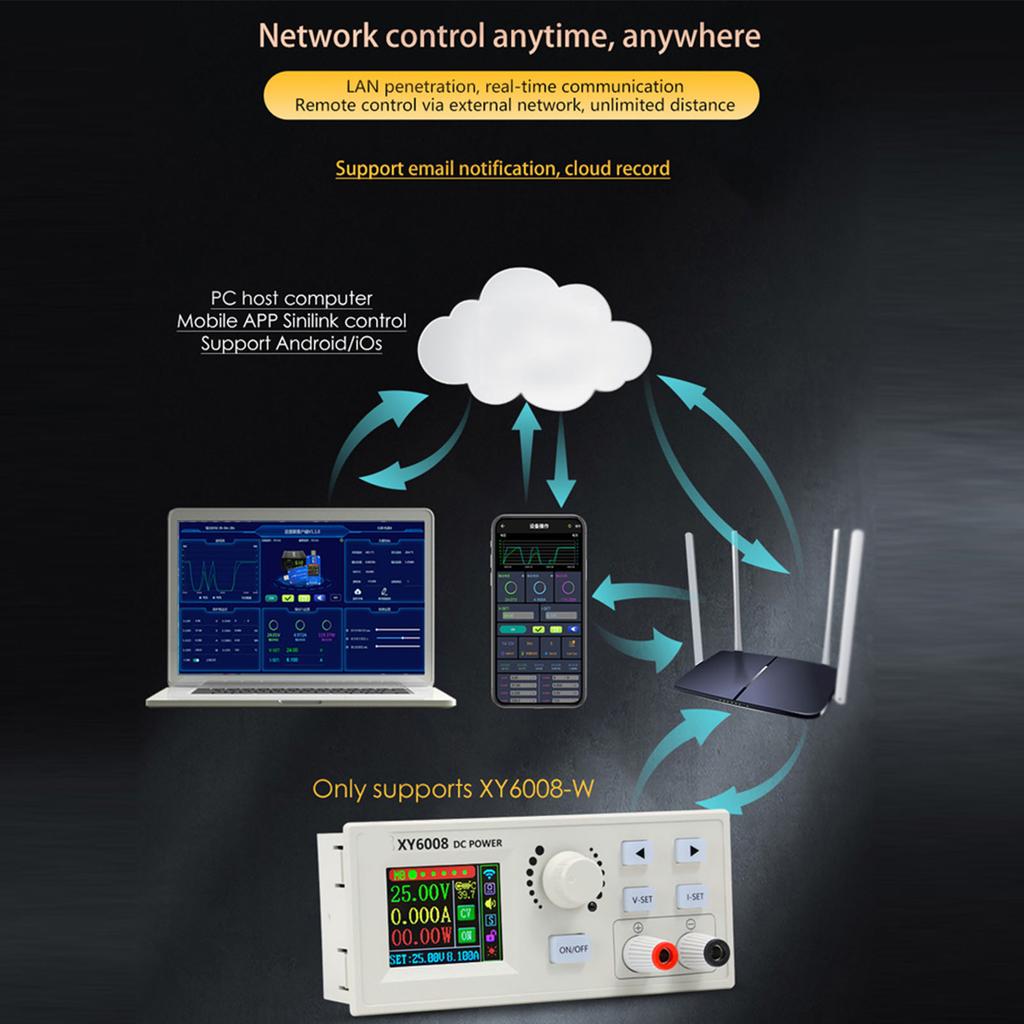

Support network control, LAN penetration, real time communication; outer net remotely control, no distance limitation.
Support WeChat notification, cloud record.
Support computers upload, cellphone APP control, support both Android and iOS system.
Firmware upgrade, WIFI remote upgrade, eliminating the tedious wiring, can be easily handled.
Support domestic weather system and global WiFi timing system.
Specifications:
Name: Step down Module
Material: plastics
Model: XY6008, XY6008 W (optional)
Remote controller battery: 1 * CR2025 battery (included)
Screen brightness setting: 0 5 a total of 6 level
Display screen: 1.8 inch color LCD display
Input voltages ranges: 6 70. 00V

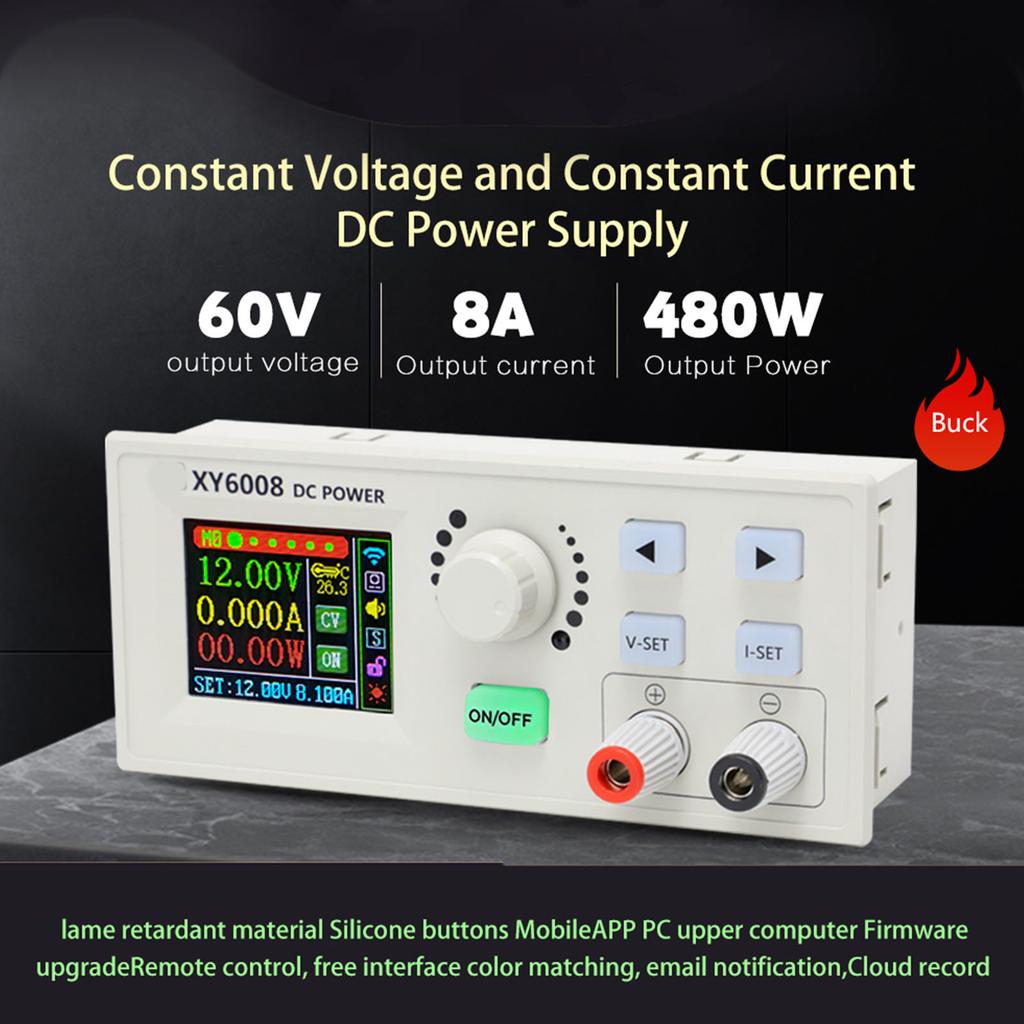

Output voltages ranges: 0 60.00V
Output current ranges: 0 8.000A
Output power ranges: 0 480.0W
Input voltages measurement resolution: 0.01V
Output voltages setting measurement resolution: 0.01V
Current setting measurement resolution: 0.001A
Input voltages measurement accuracy: ±(1percent +5 words)
Output voltages setting and measurement accuracy: (0.4percent +1 word)
Output current setting and measurement accuracy: ±(0.5percent +3 words)
Typical output ripples: 100mv VPP
Product working temperature ranges: 10 celsius 40 celsius
Capacity measurement ranges: 0 99999Ah
Energy measurement ranges: 0 99999Wh
Statistical error of capacity and energy: ±2percent
Running for time measurement ranges: 0 1000h
Maximum output voltages: (input voltages÷1.1) 2
Cooling fan turned on: current>2A power>50W temperature>50 celsius
The cooling fan is turned on and then turned off: current <1.5A power <45W temperature <45 celsius
Over temperature protections: default 110 celsius
Item size: 125 * 55 * 66mm 4.92 * 2.17 * 2.60in
Package size: 150 * 90 * 100mm 5.91 * 3.54 * 3.94in
Package weight: 258g 9.10ounce

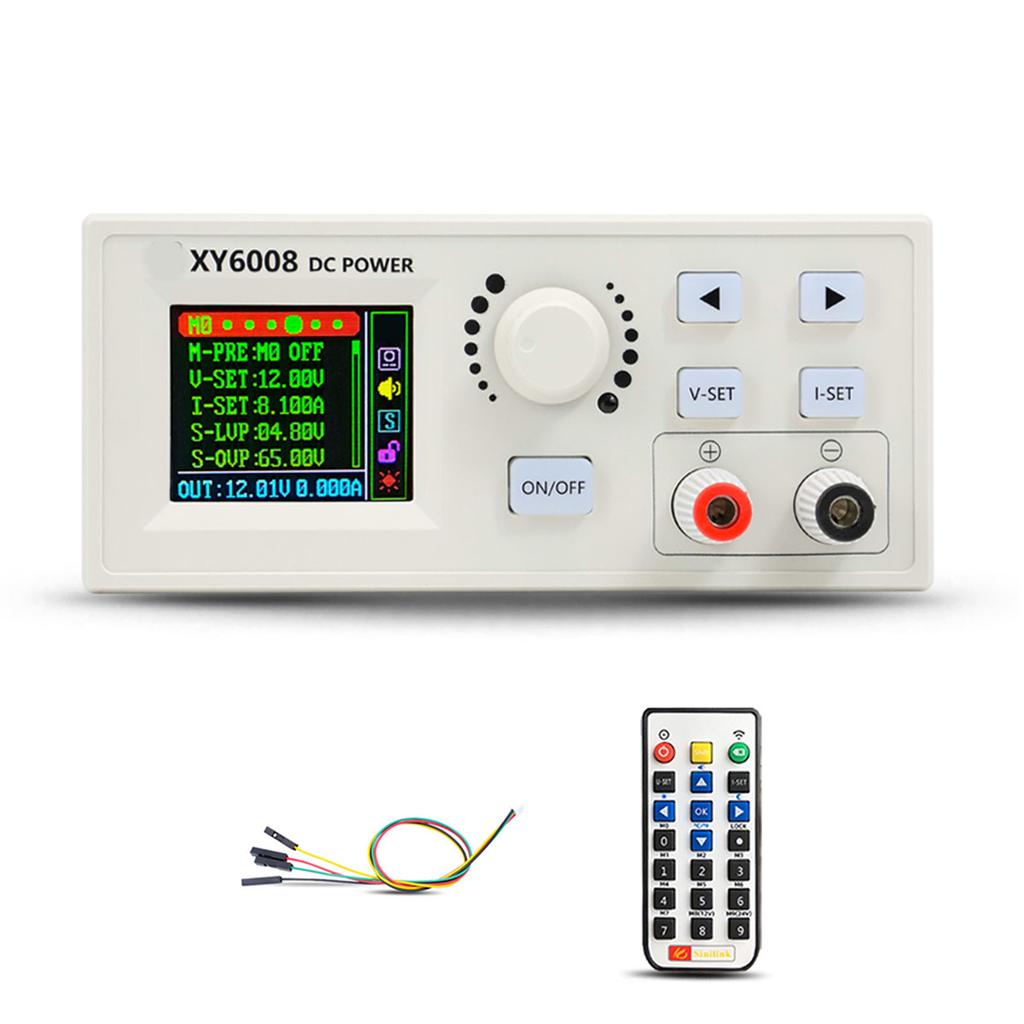

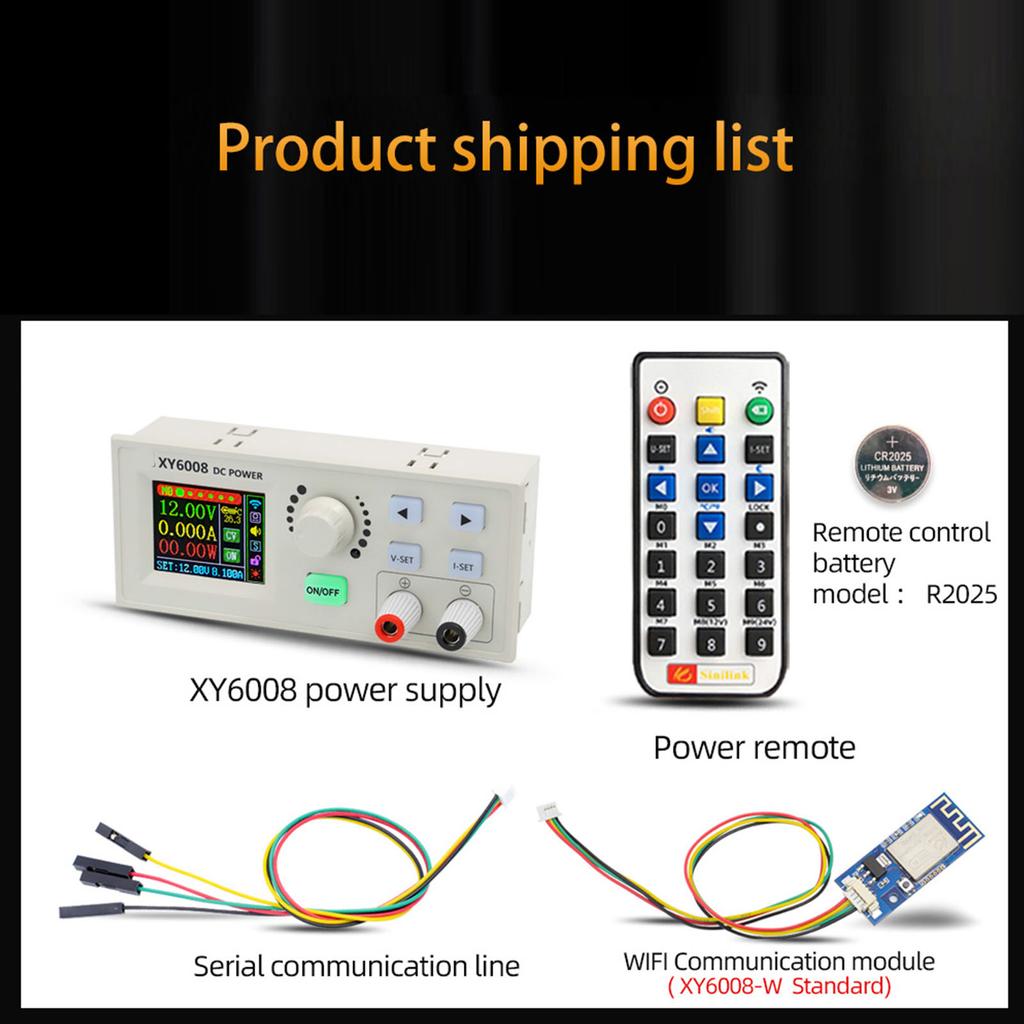

Packing List (XY6008):
1 * Step down Module
1 * Remote Controller
1 * Serial Port Communication Cable
OR

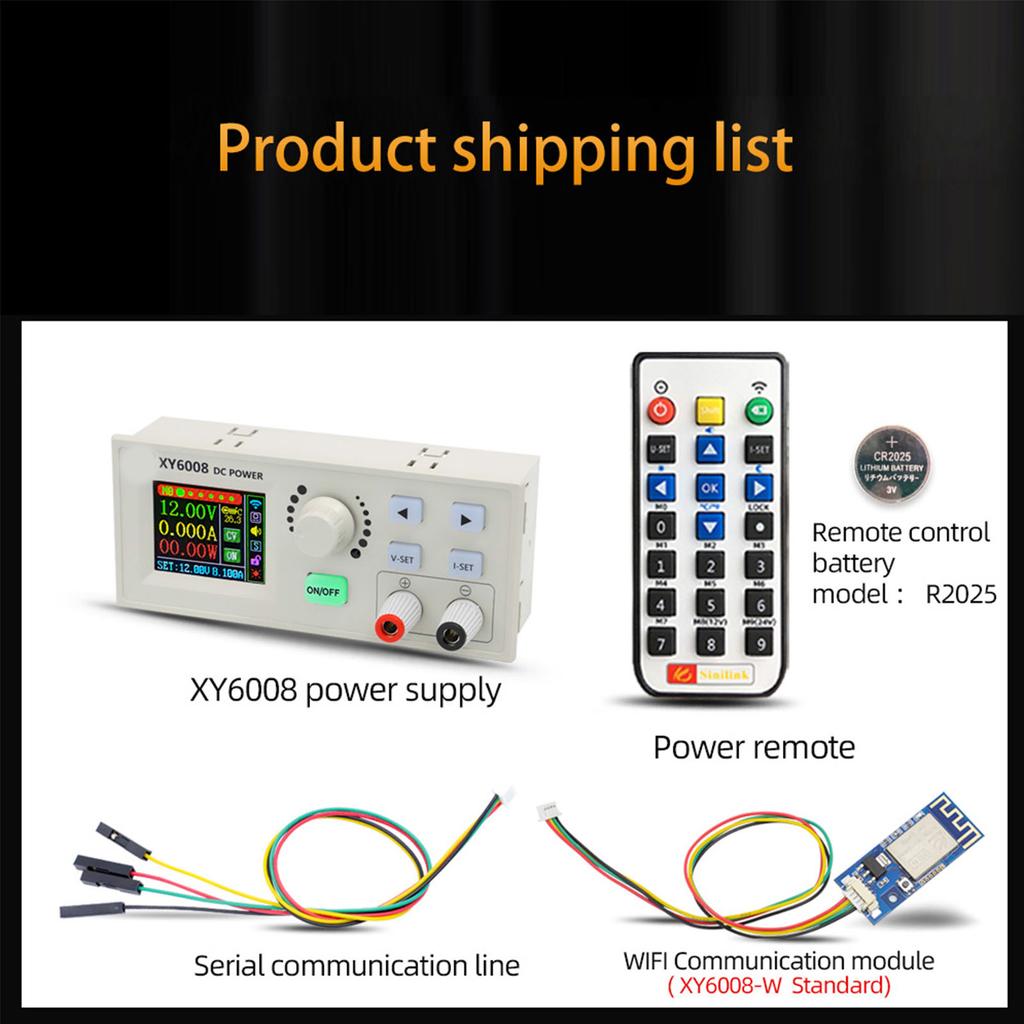

Packing List (XY6008 W):
1 * Step down Module
1 * Remote Controller
1 * Serial Port Communication Cable
1 * Wifi Communication Module
Package List:
(XY6008):
1 * Step down Module
1 * Remote Controller
1 * Serial Port Communication Cable
OR
Packing List (XY6008 W):
1 * Step down Module
1 * Remote Controller
1 * Serial Port Communication Cable
1 * Wifi Communication Module
