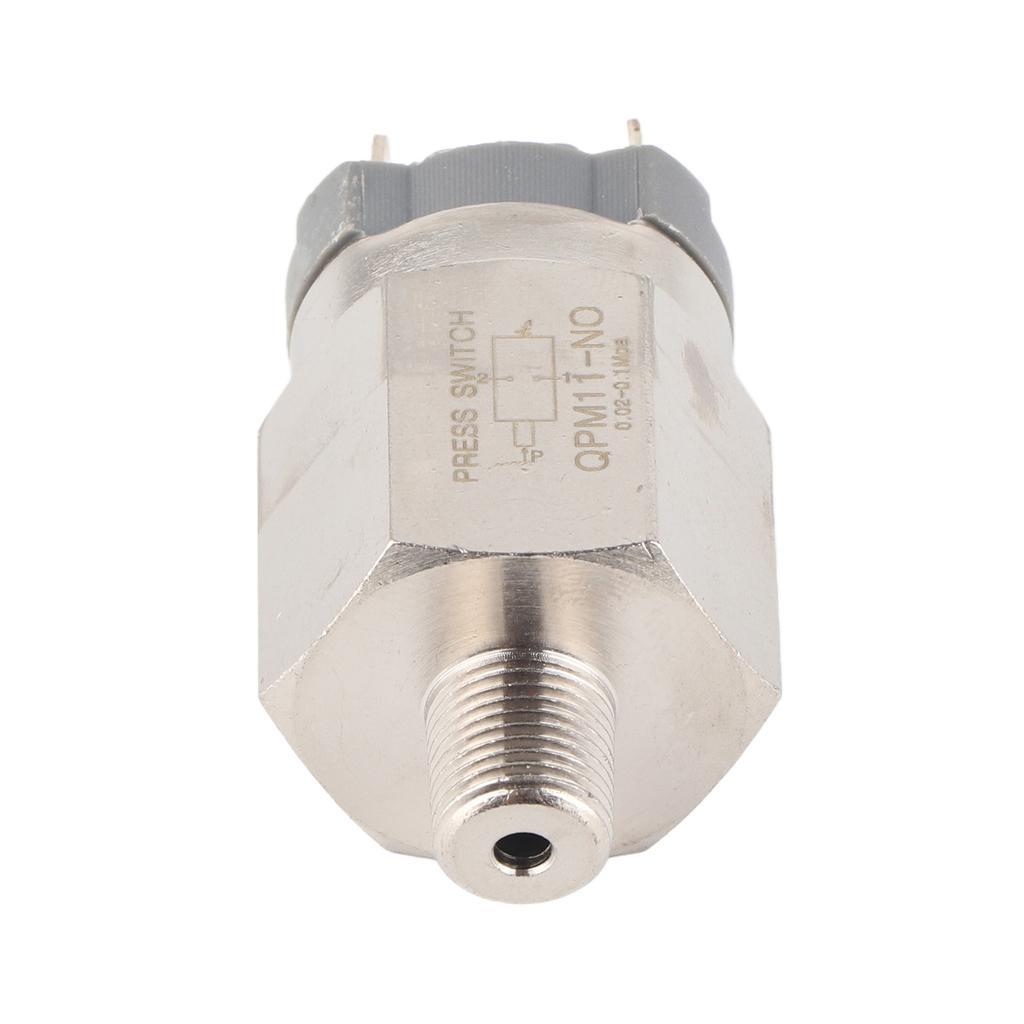

Normally Open Pressure Switch G1 8in QPM11‑NO 0.02 0.1Mpa Switch AC220V 48VAC DC

Features: The switch is working in pressure between 0.02 0.1MPa. Wide temperature fitness,can work normally between 5 60 celsius . The switch has a high insulation voltage of 1500V,more safe. The maximum pulse quantity is 200 circle min with a maximum service of 1,000,000 circles. High protection level of IP54,more durable and reliable. Specification: Item Type:Pressure Switch Applicable Medium: Air Operating Pressure Range: 0.02 0.1Mpa Environment And Medium Temperature: 5 60 degrees C Working Form: Adjustable Pressure Caliber: G1 8in Working Voltage: AC220V, 48V AC, DC Maximum Operating Current: 500mA Maximum Power: 100VA, 24VA Insulation Voltage: 1500V, 500V Maximum Number Of Pulses: 200 Circles min Service Life: 1,000,000 Circles Protection Level: IP54 Package List: 1 x Pressure Switch .
