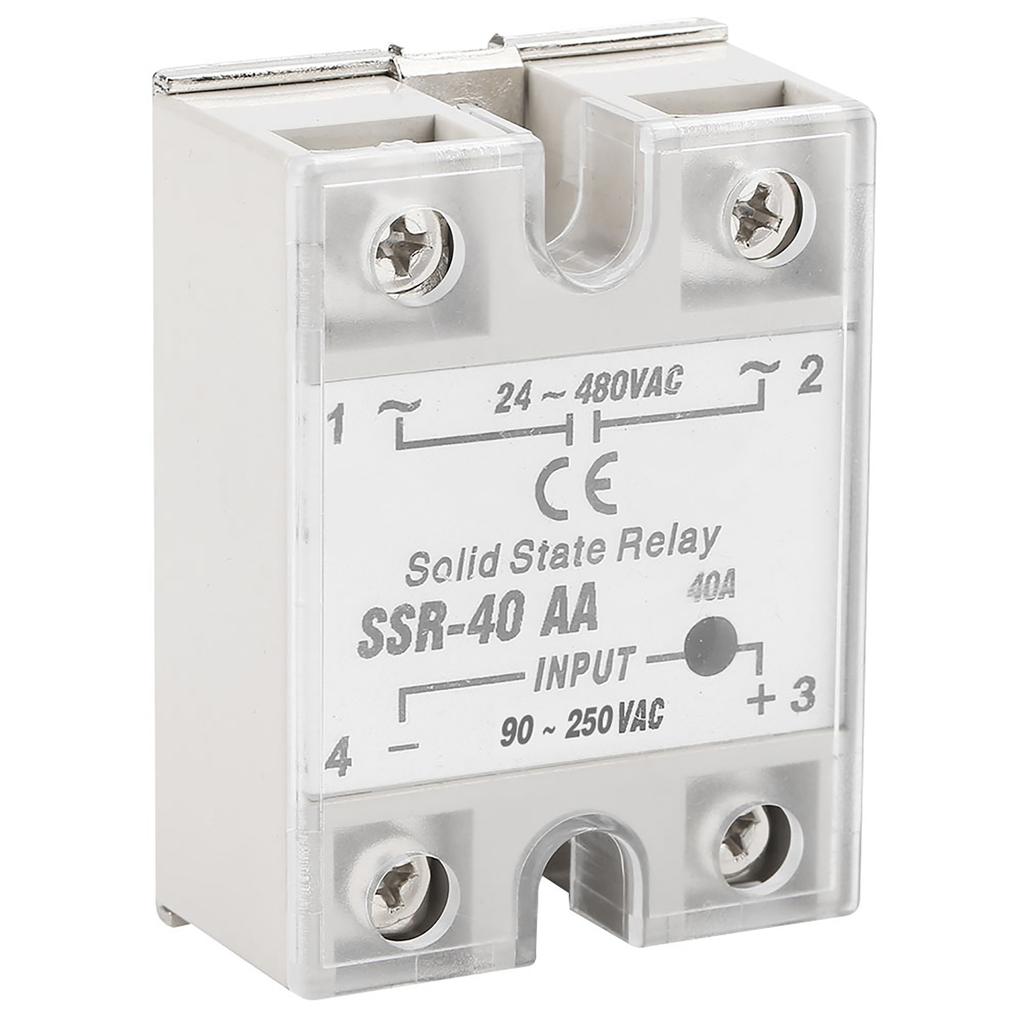

SSr 40AA 40A Solid State Relay Module AC AC Input 90 250V AC Output 24 480V AC

Features: Dual way SCR input, starting voltage is zero volt and Ioff is zero. Opto isolator is between the input circuit and the output circuit. Isolation withstand voltage is 2500V between input and output. Pass load current aging test. Get ec CE certification and international ISO9000 certification. LED light displays the working status in real time. Specification: Material: Plastic+Metal Color: Shown As Pictures Weight: 124g Type: Solid State Relays Trigger Current: 40 Contact Switching Voltage: 480 Reverse Repeat Peak Voltage: 480 Off Speed: Normal Heat Dissipation Function: no heat sink Power Characteristics: medium power Rated Forward Average Current: 40 Frequency Characteristic: intermediate frequency Maximum Stable Working Current: 40 Poles: 3 poles Application: solid state Pick Up Current: 40 Control Mode: AC AC Load Current: 40A Load Voltage: 24 480V AC Control Voltage: 90 250V AC Control Current: AC:12mA On State Leakage Current: less than 2mA General Antihypertensive: no more than 1.5V AC Breaking Time: less than or equal to 10mS Pressure Resistance: 2500V AC Insulation Resistance: 500 m Ohm 500 VDC Ambient Temperature: 30 celsius to + 75 celsius Installation: Bolted Work Instruction: LED Package List: 1 x Solid State Relay . Note: It can only be used within 30percent of 40a (12A) and a radiator should be added at the bottom.
