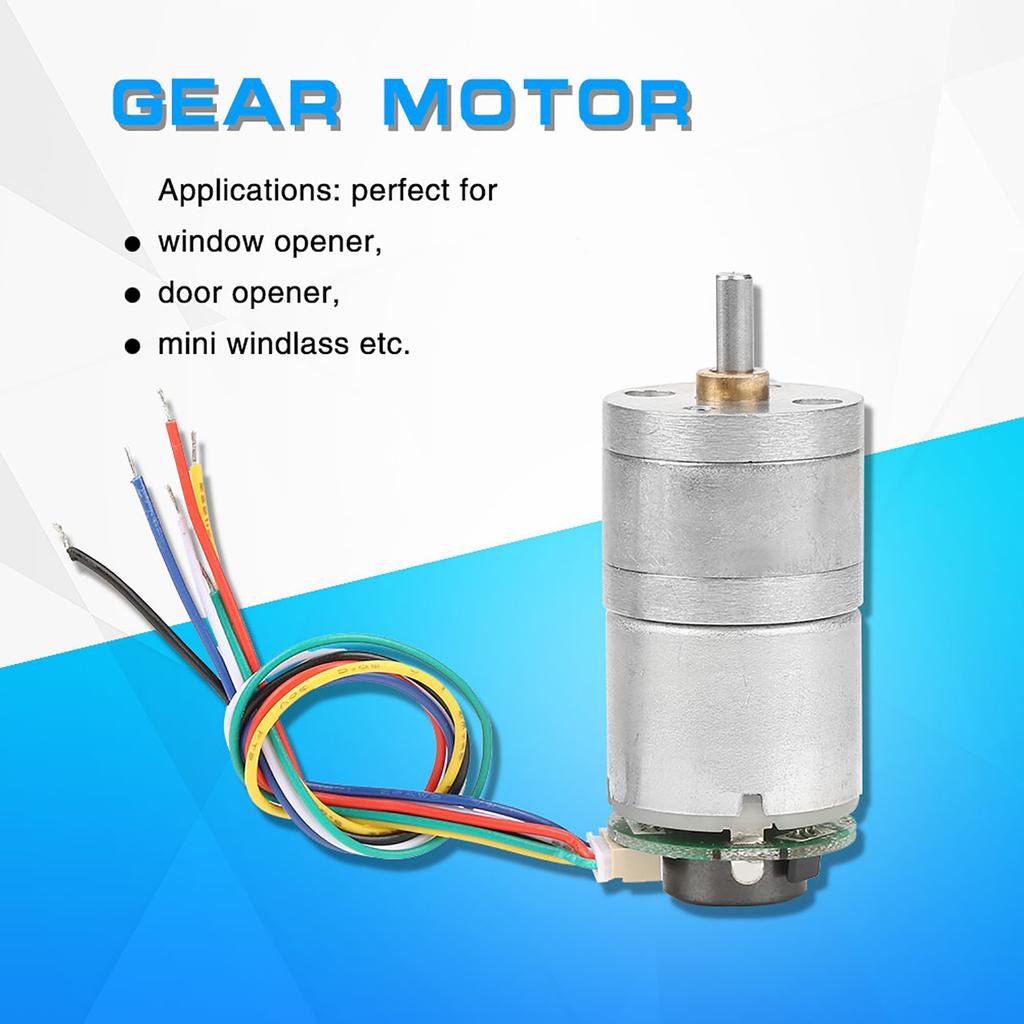

12V 25GA‑310‑128 DC Encoder Gear Motor Metal Speed Reduction Motor (DC12V 70RMP)

Features: This DC motor features large moment of force, low speed, and low noise. The gear motor is primarily designed to reduce speed in a series of gears, which in turn creates more moment of force. Applications: perfect for window opener, door opener, mini windlass etc. This motor is adopted of pure copper wire coil, with low heat and low loss. The motor is made of metal gear, wear resisting, avoid tooth breaking, so with long serving life. Specification: Material: metal Model: 25GA 310 128 Product type: brush dc motor Rated voltage:12 (V) Rated power: 2 (W) Speed:30 70 100 500RMP (Optional) Size: 6*2.5cm 2.4*1in Weight: Approx.73g 2.6oz Voltage Gear ratio No load Load Stall Speed(Optional) Current Speed Current Moment of force Current Moment of force 12V 1 : 300 30RPM

less than 150mA 28RPM

less than 17mA 850g.cm

less than 2.1A 6.4kg.cm 12V 1 :150 70RPM

less than 170mA 65RPM

less than 155mA 680g.cm

less than 2.1A 5.8kg.cm 12V 1 :90 100RPM

less than 170mA 91RPM

less than 150mA 550g.cm

less than 2.1A 4.8kg.cm 12V 1 :18 500RPM

less than 180mA 455RPM

less than 185mA 380g.cm

less than 2.1A 4.8kg.cm Wire method: Green:motor wire Red:Encoder power supply Yellow: encoder output A phase White: encoder output B phase Black:encoder ground wire Blue: motor wire + Package list: 1 x DC Encoder Gear Motor with cable Note:

.
