Feature:

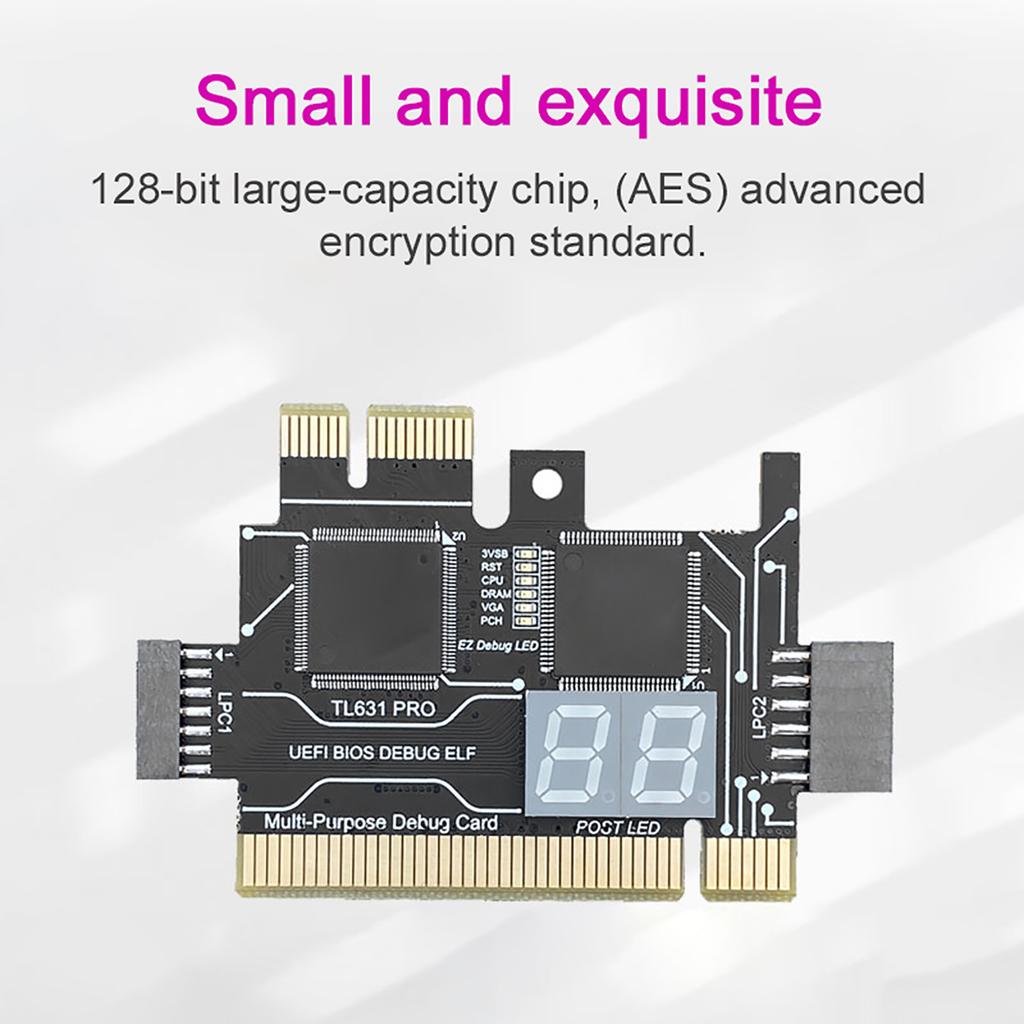

1. Small and exquisite, 128 bit large capacity chip, high encryption standard.
2. Newly innovated BGA type driver module, prevents drop parts, looks beautiful and elegant, and can be used more freely.
3. Self developed binding digital tube, quality LED light bead, bright and comfortable, thin and scientific.

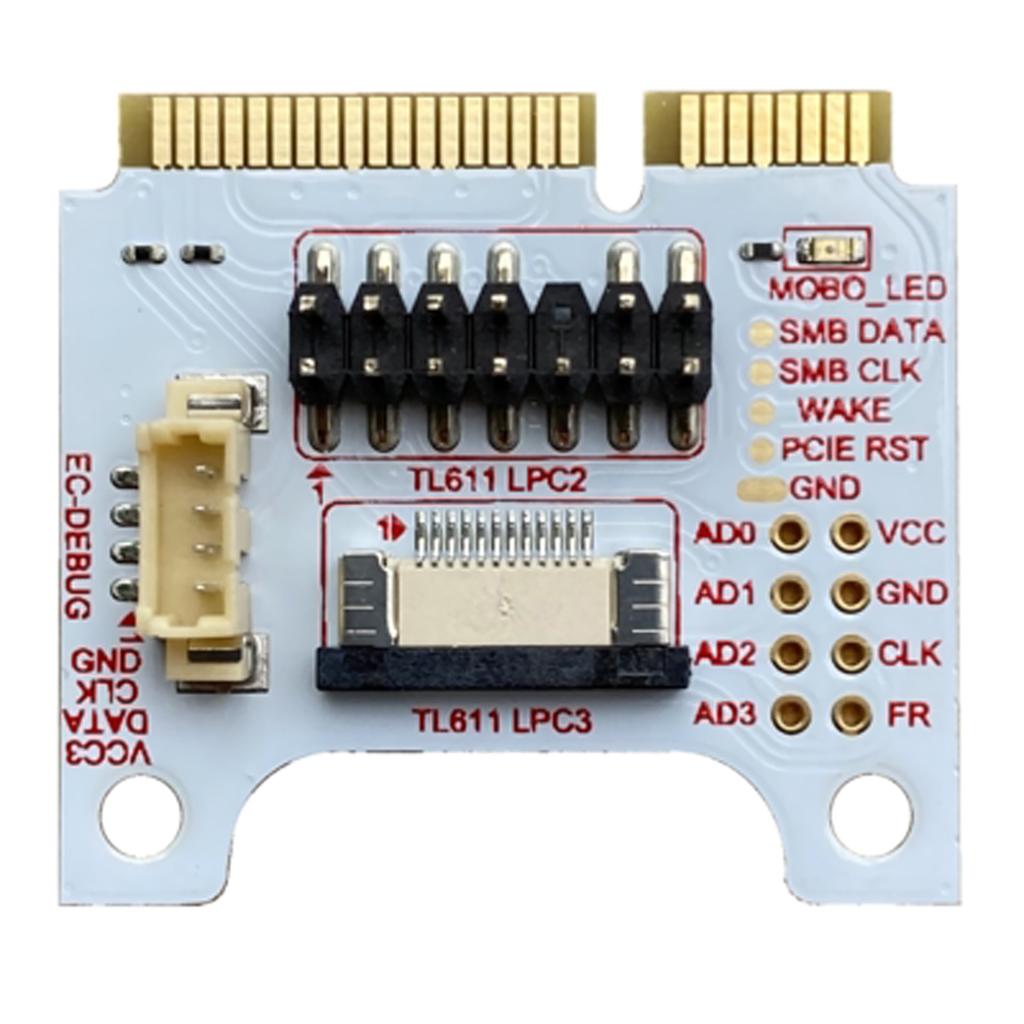

4. LPC1 high speed shared channel, connect to the motherboard 2.0 small pin header LPC interface, 2.0 module (module expansion LPC3 interface which can be connected to notebook MINI PCIE conversion card, A DEBUG conversion card, notebook DEBUG CON, EC DEBUG)

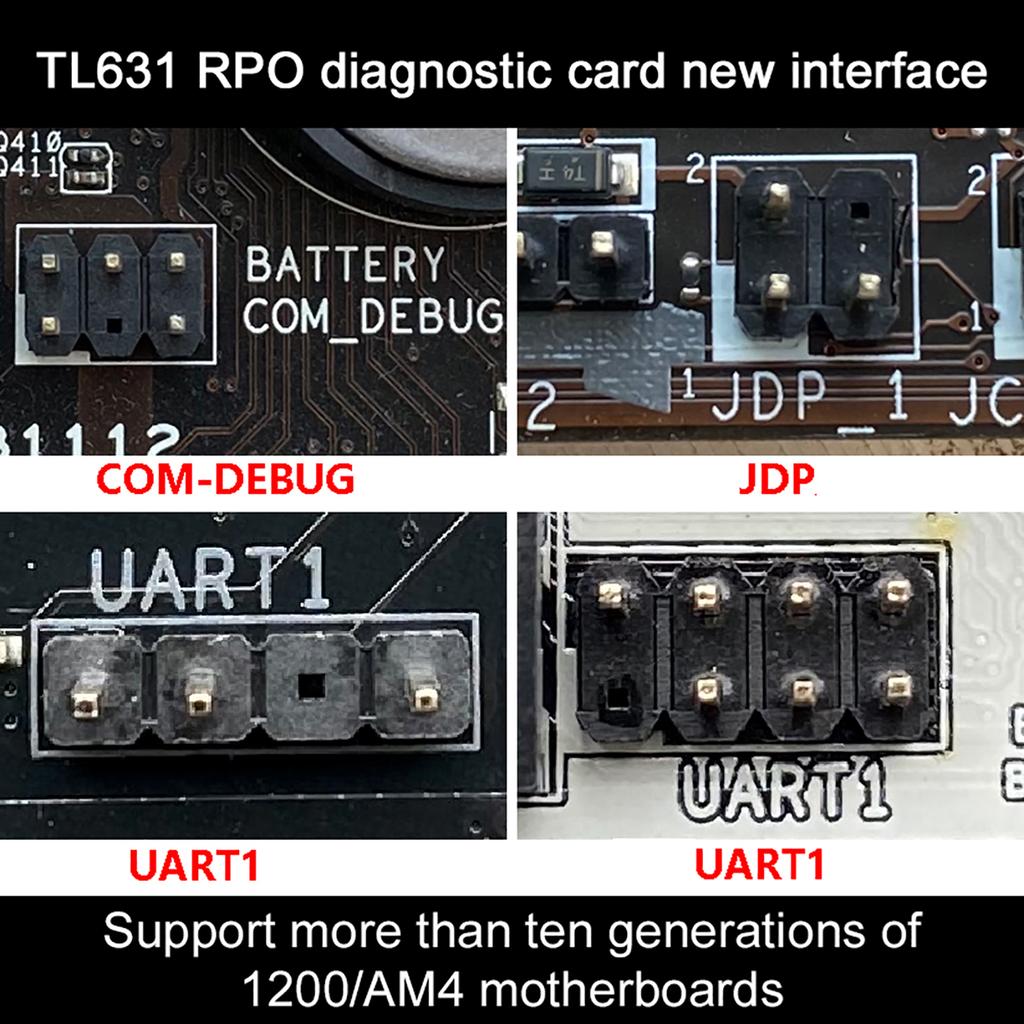

5. LPC2 shared high speed channel, connect to the motherboard 2.54 large pin LPC interface, COM DEBUG, ASRock UART1, Supermicro SPl.
6. PCIE X1 high speed channel, support Gigabyte no PCI motherboard (other brands do not support).
7. 3VSB power indicator to detect whether the power is normal.
8. RST reset indicator to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)
9. DRAM memory indicator to detect whether the memory module is normal.
10. VGA graphics indicator light to detect whether the graphics card module is normal.
11. PCH indicator light to detect whether the southbridge module is normal.
12. CLK signal display, FRAME frame signal display.
Specification:
Small and exquisite, 128 bit large capacity chip, high encryption standard. Newly innovated BGA type driver module, prevents drop parts, looks beautiful and elegant, and can be used more freely. Self developed binding digital tube, quality LED light bead, bright and comfortable, thin and scientific. Two configuration adjustable, Card only or Full Set, you can choose according to your demands.
Features:
Small and exquisite, 128 bit large capacity chip, high encryption standard.
Newly innovated BGA type driver module, prevents drop parts, looks beautiful and elegant, and can be used more freely.
Self developed binding digital tube, quality LED light bead, bright and comfortable, thin and scientific.
LPC1 high speed shared channel, connect to the motherboard 2.0 small pin header LPC interface, 2.0 module (module expansion LPC3 interface which can be connected to notebook MINI PCIE conversion card, A DEBUG conversion card, notebook DEBUG CON, EC DEBUG)
PCI high speed channel, support all PCI slots.
LPC2 shared high speed channel, connect to the motherboard 2.54 large pin LPC interface, COM DEBUG, ASRock UART1, Supermicro SPl.
PCIE X1 high speed channel, support Gigabyte no PCI motherboard (other brands do not support).
3VSB power indicator to detect whether the power is normal.
RST reset indicator to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)
CPU indicator light to detect whether the CPU module is normal.
DRAM memory indicator to detect whether the memory module is normal.
VGA graphics indicator light to detect whether the graphics card module is normal.
PCH indicator light to detect whether the southbridge module is normal.
CLK signal display, FRAME frame signal display.
Specifications:

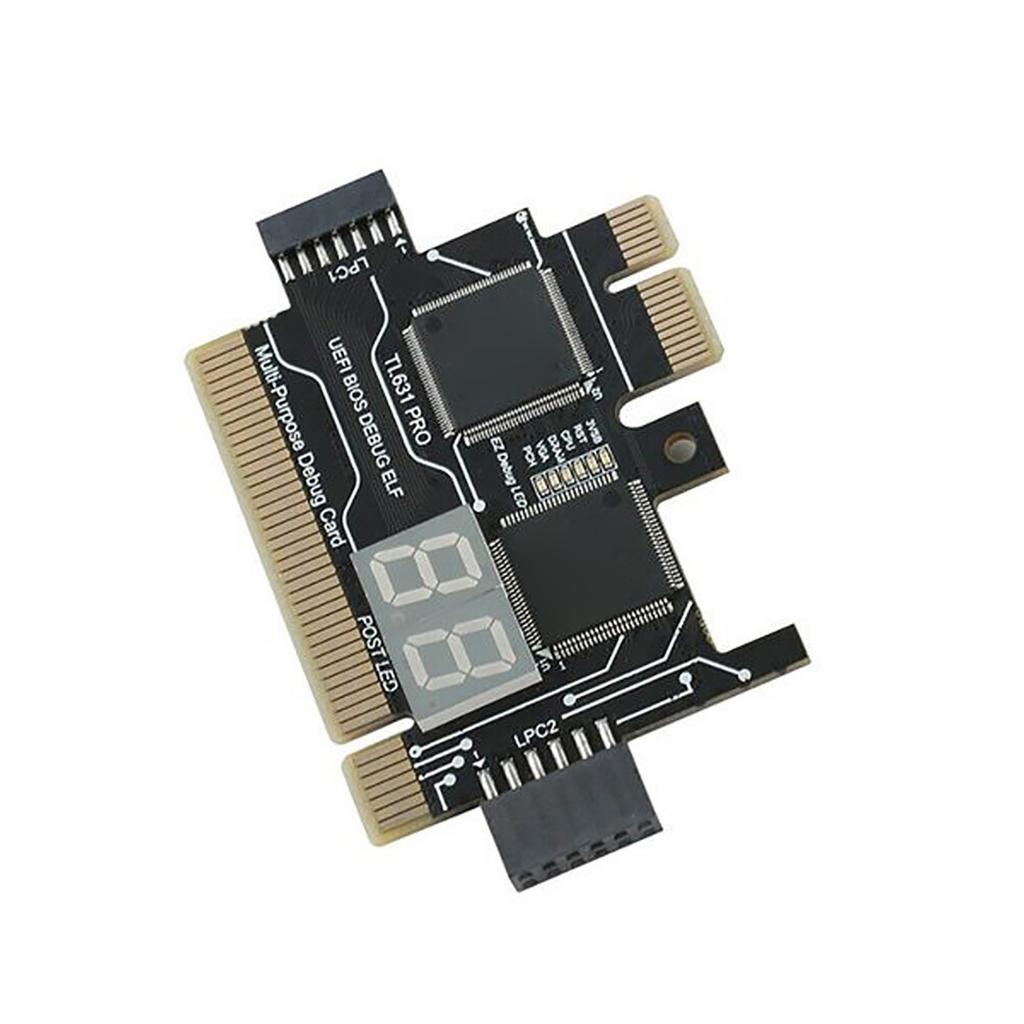

Name: Diagnose Card
Material: printed circuit board
Item size: 78 * 52mm 3.07 * 2.05in
.
Package List:

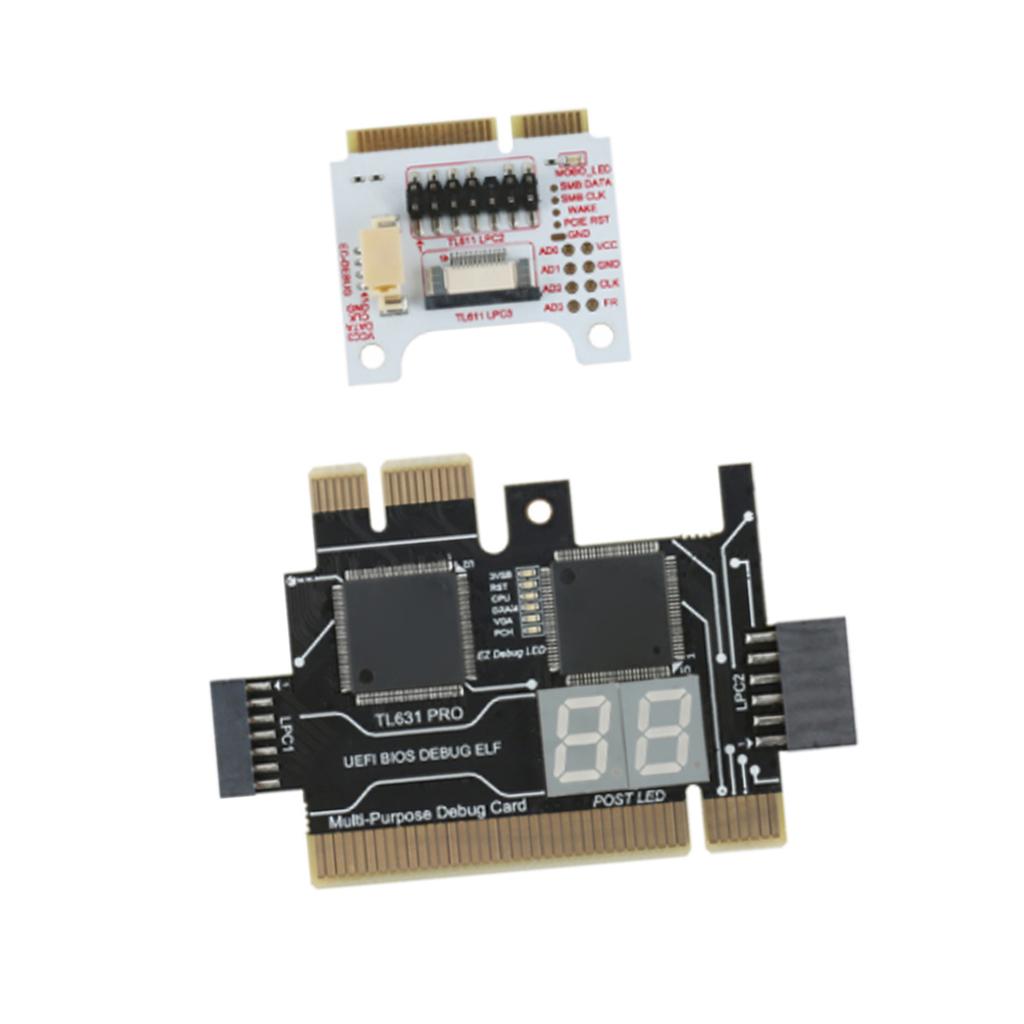

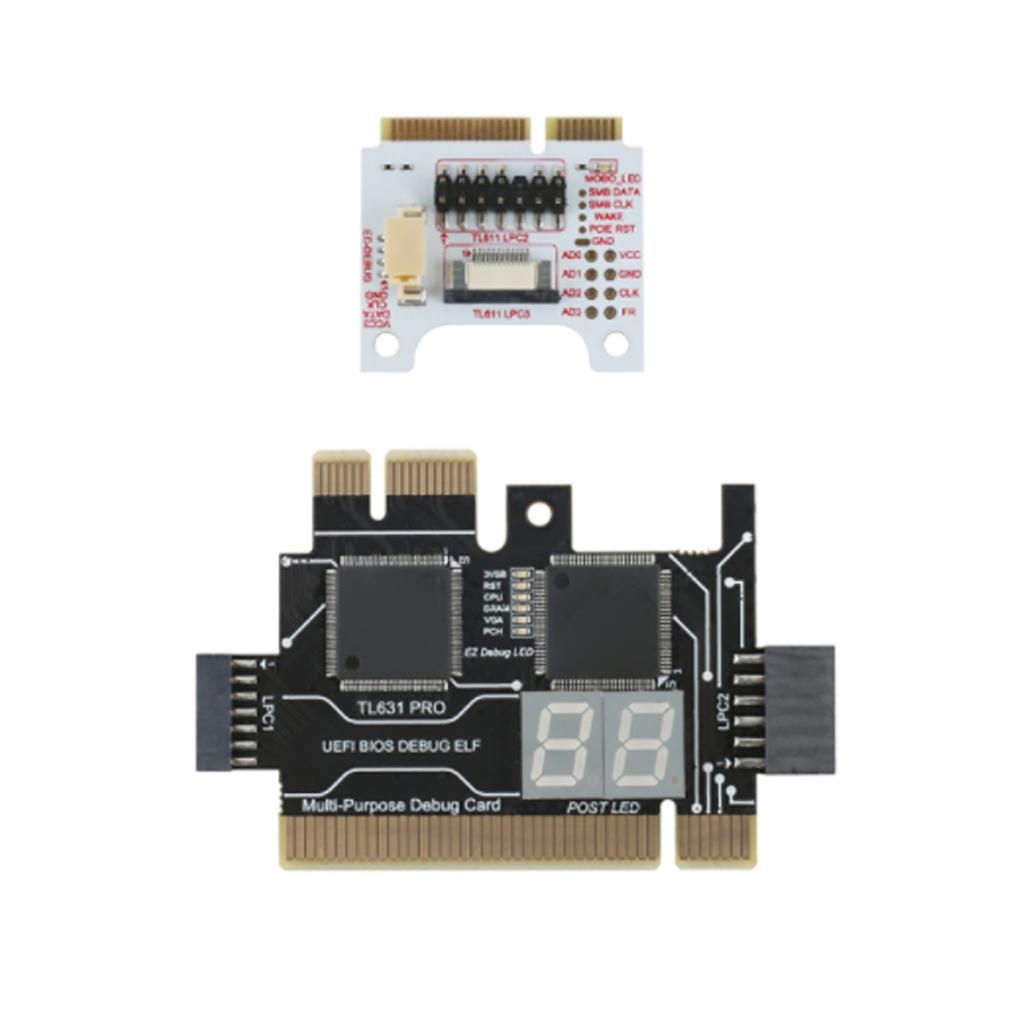

TL631 Pro diagnostic card*12.0 module*1cables*15Expansion card*1Power cord*1Flexible cables*2
