Dual-mode oscilloscope and multimeter: This digital multimeter features a dedicated chip, automatic waveform capture, time base calibration, data storage, data export, and easy operation. It can be used to measure AC/DC voltage/current, resistance, diode, capacitance, and on/off tests.
[Faster Sampling Speed] 10MHZ bandwidth 48MSa/s high-speed data collection, high sampling rate, high bandwidth combined with 2000mAh rechargeable, you will experience excellent durability and can work outdoors without fear.

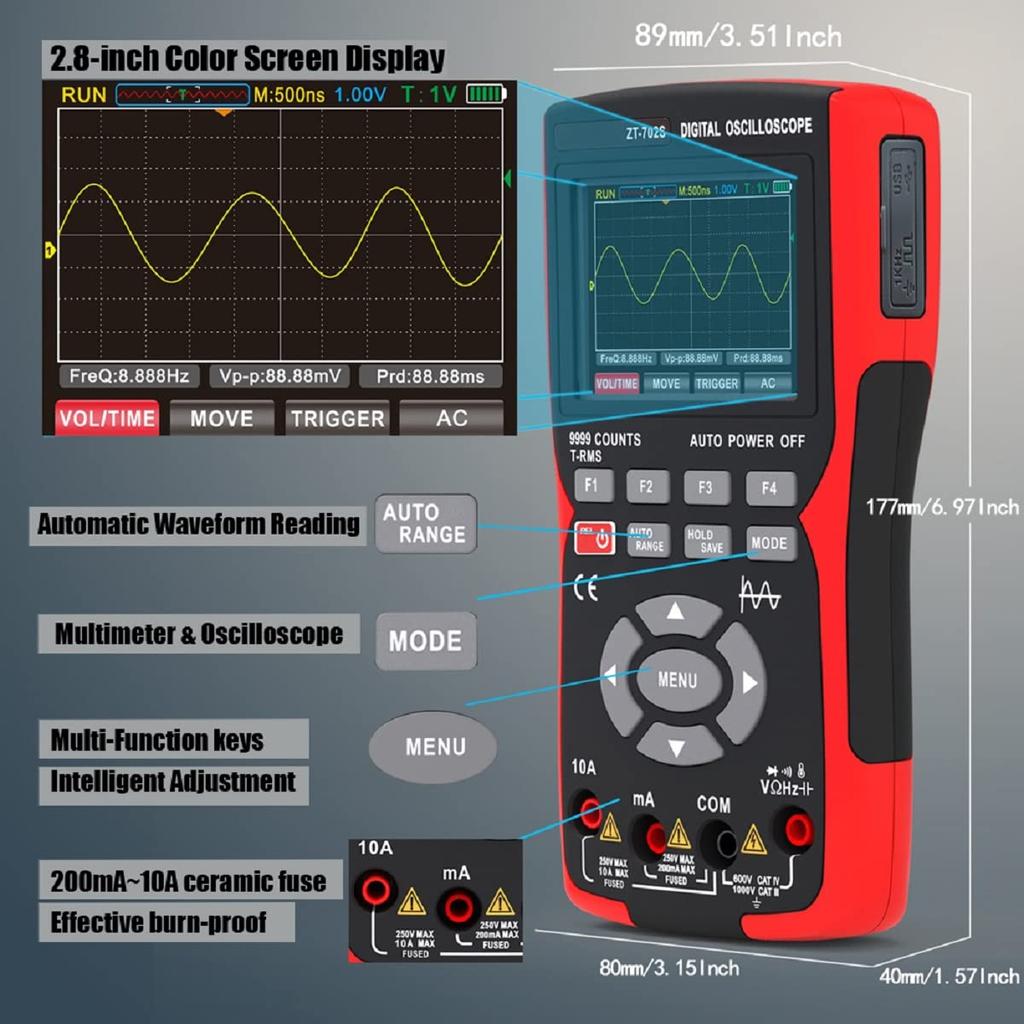

【2.8-inch IPS full-view color screen】High-definition display, accurate and clear data, support brightness adjustment and shutdown time setting customization, give you free control over your device.
【Safety Overload Protection】Complies with CTA III 1000V and CTA II 600V safety levels, meets CE certification requirements, A/D high sampling conversion, 200mA-10A double ceramic fuse, ABS + TPE double injection molding process, strong durability.
[Rich Configuration] The package includes: 1 x Oscilloscope Multimeter, 1 x Oscilloscope Probe, 1 x Thermocouple, 2 x Test Leads, 1 x USB-C Cable, 1 x User Manual, 1 x Screwdriver, 1 x Portable Bag. With a wide range of accessories, it can be used in any situation.
Product introduction:

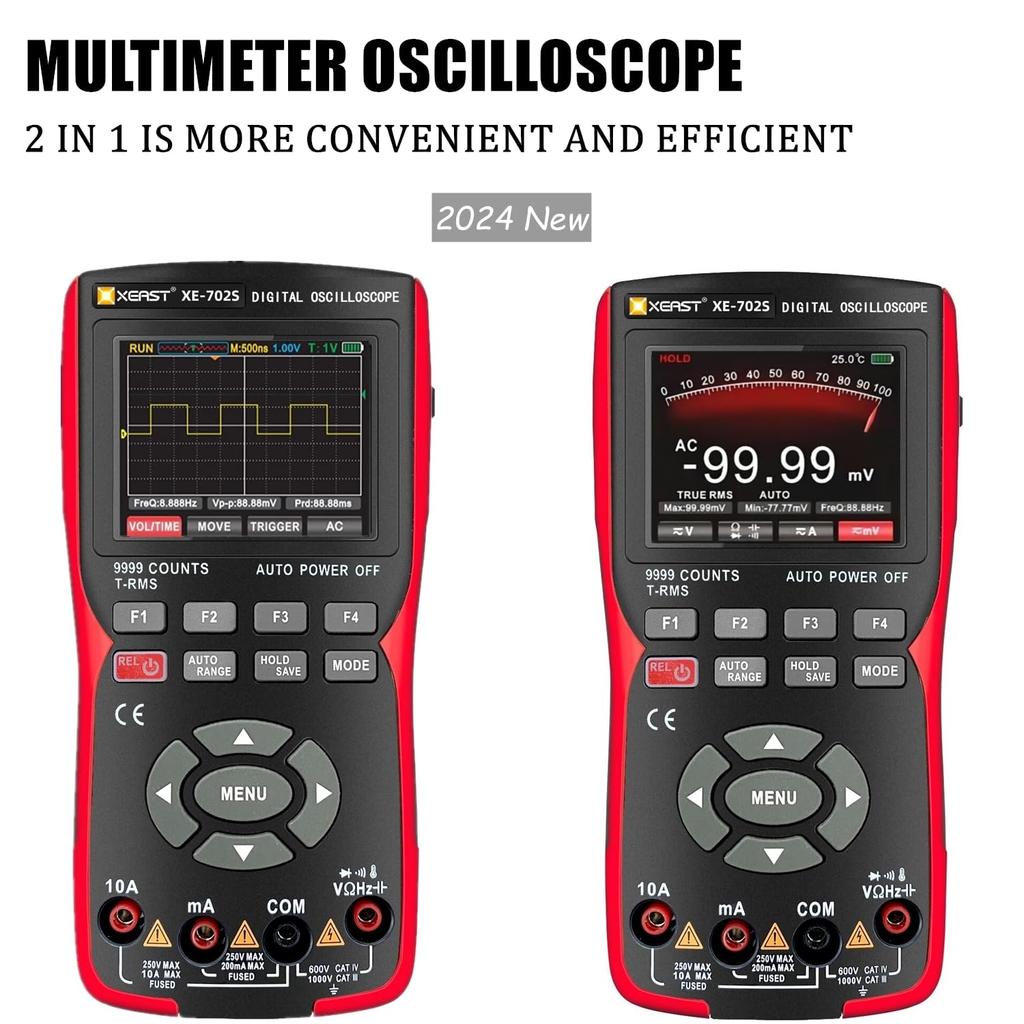

XE702S is a newly released handy, cost-effective, full-featured handheld multimeter oscilloscope from XEAST.

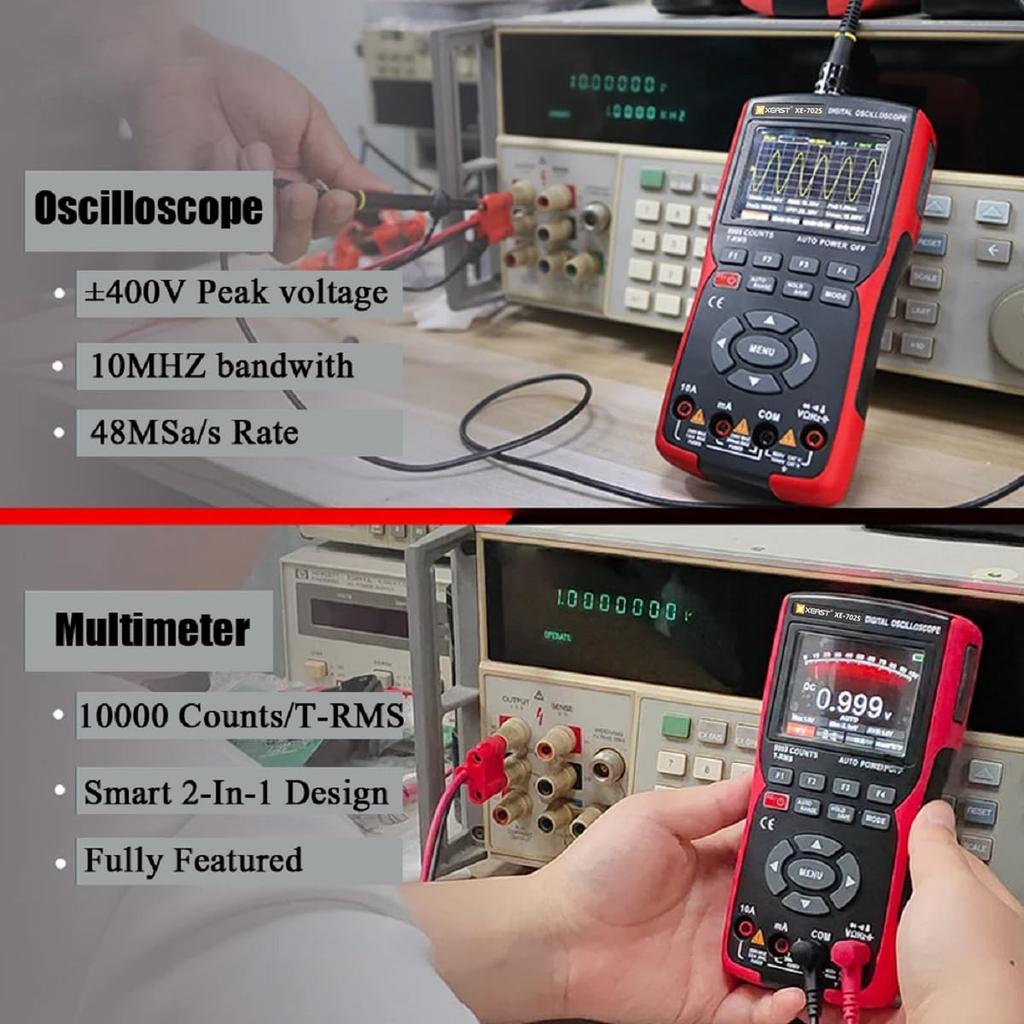

Oscilloscope Mode: 2.8-inch IPS LCD color oscilloscope, 10MHz bandwidth, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.
【Multimeter Modes】: 9999 counts, MAX/MIN value, capacitance, current, temperature, diode, voltage, resistance, frequency, continuity test.
[Save and send data]: You can save and send the test data.
【Color LCD Display】: The color LCD display greatly improves your reading experience and is very easy to read in bright sunlight or low light.

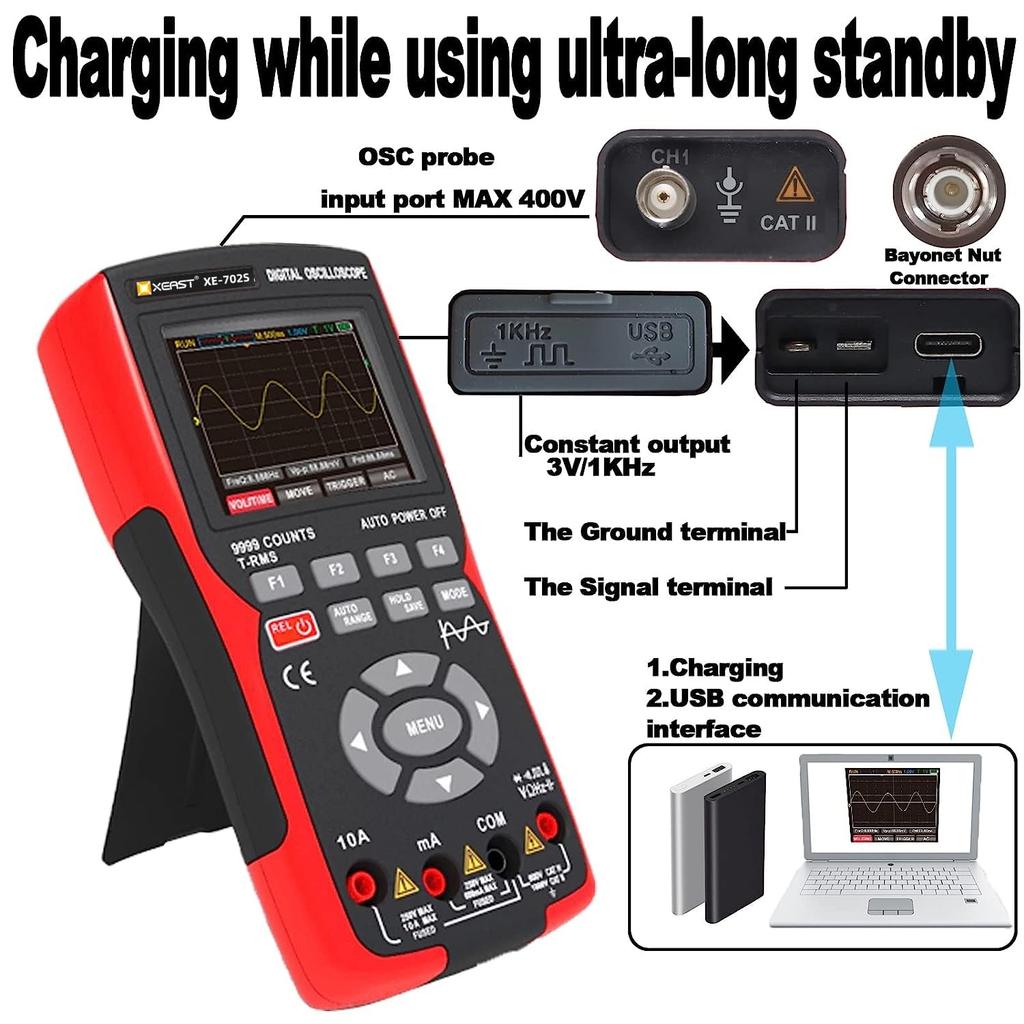

【Rechargeable】: Comes with a rechargeable battery. As long as you have a charging data cable, you don't need to worry about power issues.
specification:
Display: 9999 counts
Screen size: 2.8 inches
Bandwidth: 10MHz
Real-time sampling rate: 48 MSa/s
Input impedance: 1MΩ, @16pf
Maximum input voltage: 400 V (DC+AC peak)
Horizontal SEC Range: 50 ns/div -20 s/div
Vertical sensitivity: 20mV/div -10V/div
DC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V＜ br＞0.001mV/0.01mV/0.1 mV/0.001V/0.01V/0.1V ±(0.5%+3)
AC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V
0.001mV/0.01 mV/0.1mV/0.001V/0.01V/0.1V ±(1.0%+3)
DC current:
9999μA/99.99mA 1μA/0.01mA ±(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.0%+3)
Alternating current:
9999μA/99.99mA 1μA/0.01mA ±(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.2%+3)
resistance:
99.99Ω0.01Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ ±(0.5%+3);
9.999MΩ 0.001MΩ ±(1.5%+3); 99.99MΩ 0.01MΩ ±(3.0%+5)
Capacitance: 9.999nF 0.001nF ±(5.0%+20);
99.99nF/999.9nF/9.999 μF/99.99μF/999.9μF 0.01nF/0.1nF /0.001μF/0.01μF/0.1μF ±(2.0%+5);
9.999mF 0.001mF ±(5.0%+5)
frequency:
99.99Hz/999.9Hz/9.999kHz/99.99kHz /999.9kHz/5.000MHz
0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz ±(0.1%+2) Temperature:
-20℃-1000℃/-4℉-1832℉ ±(2.5%+5)
Diode: Yes
Continuity: Yes

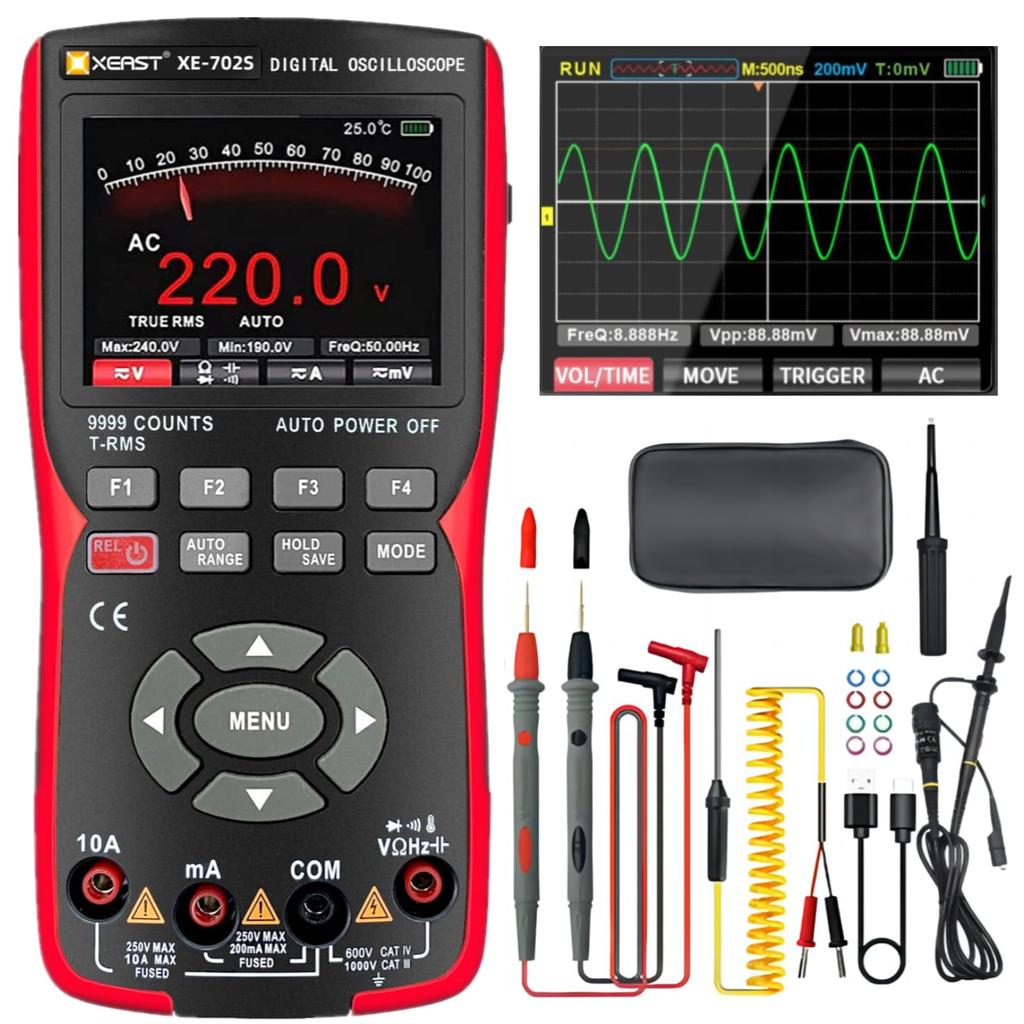

Package Includes:
1 x Oscilloscope
1 x Test Lead
1 x Oscilloscope Probe
1 x Thermocouple
1 x Carrying Case
1 x screwdriver
1 x User Manual
