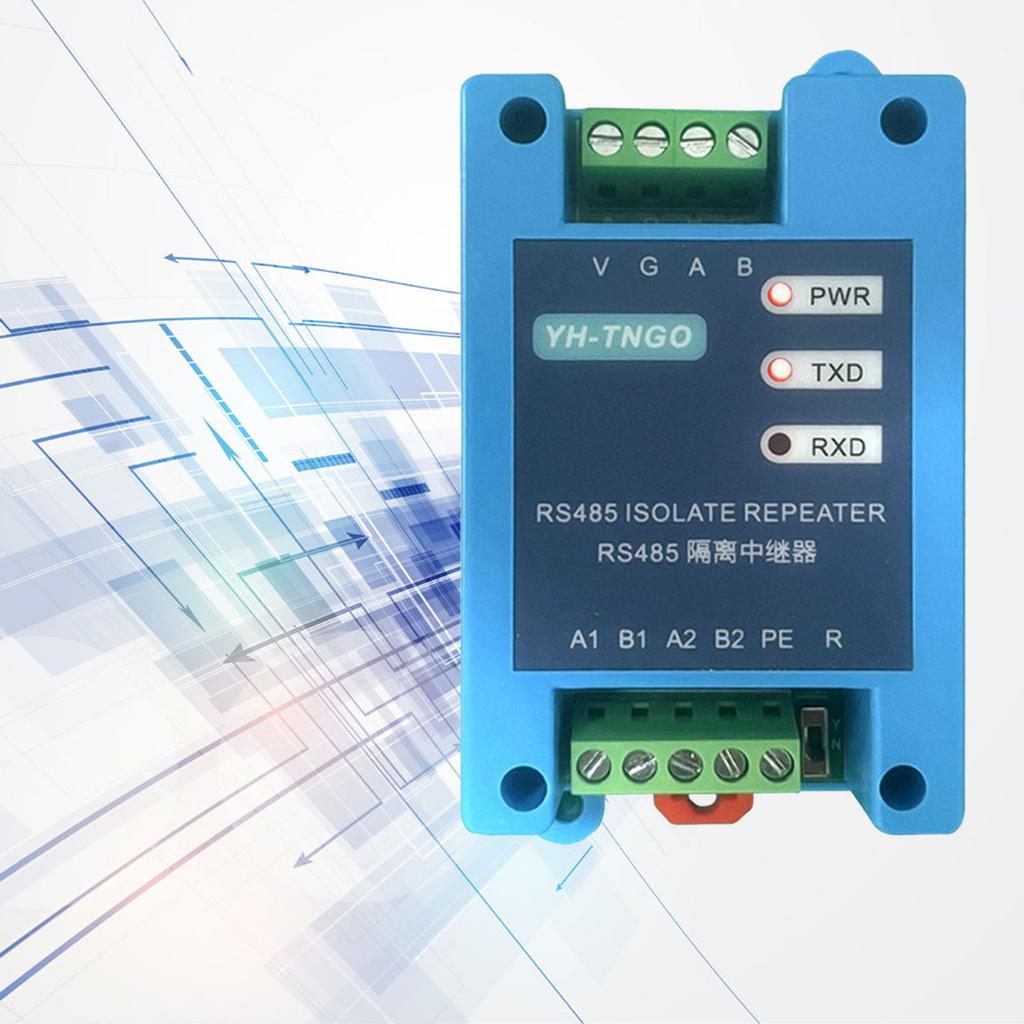

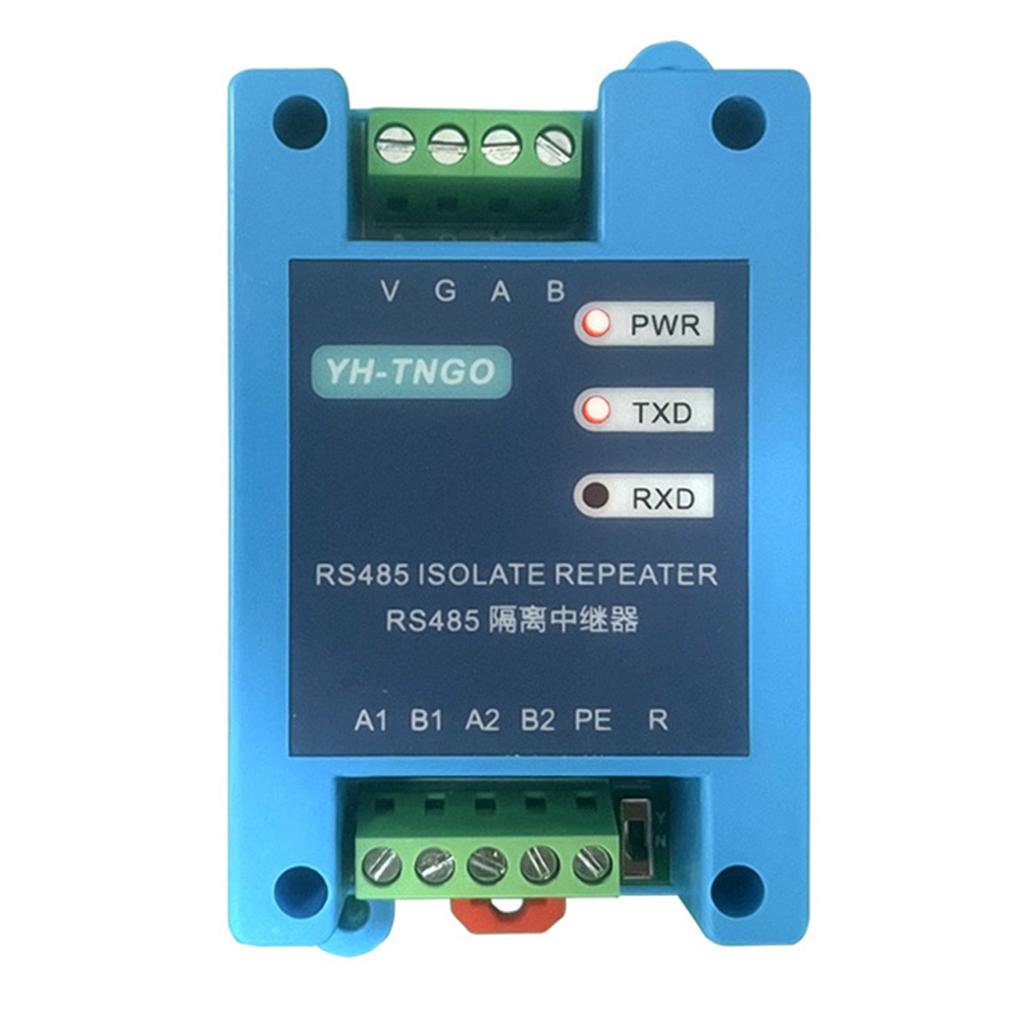

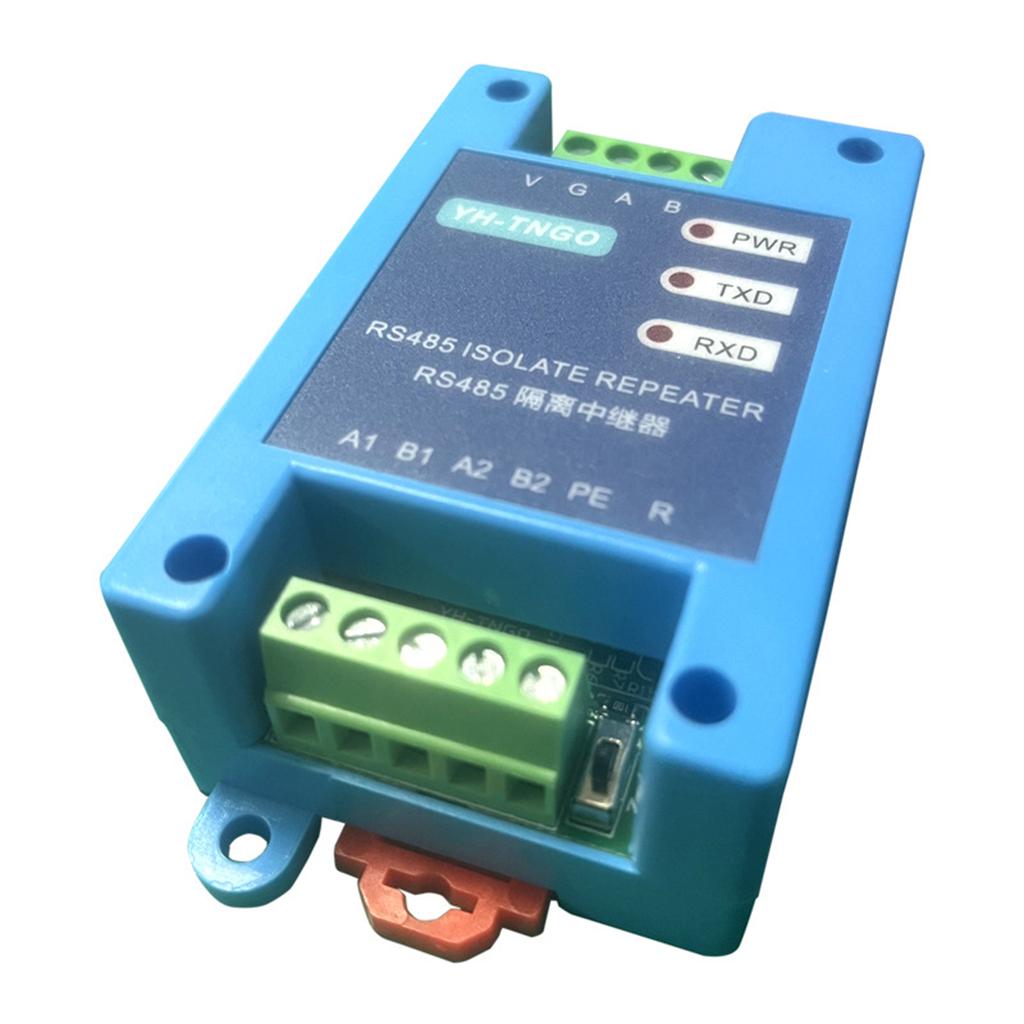

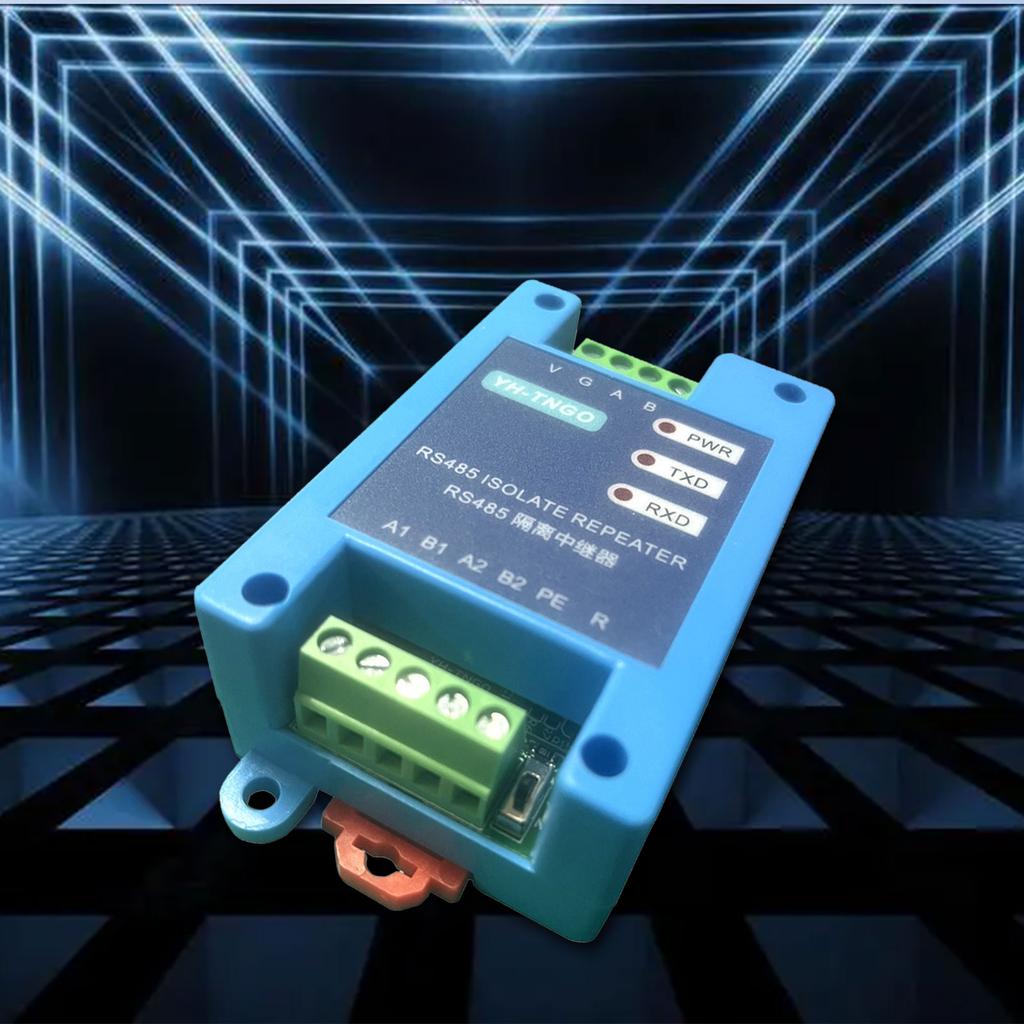

2 Channel RS485 To RS485 Repeater Photoelectric Optocoupler Isolation Industrial Grade Isolated Communication Converter

Features: Input/output independent power supply, supports RS485 bus speed 0-500KBps, transparent transmission, rate adaptive.

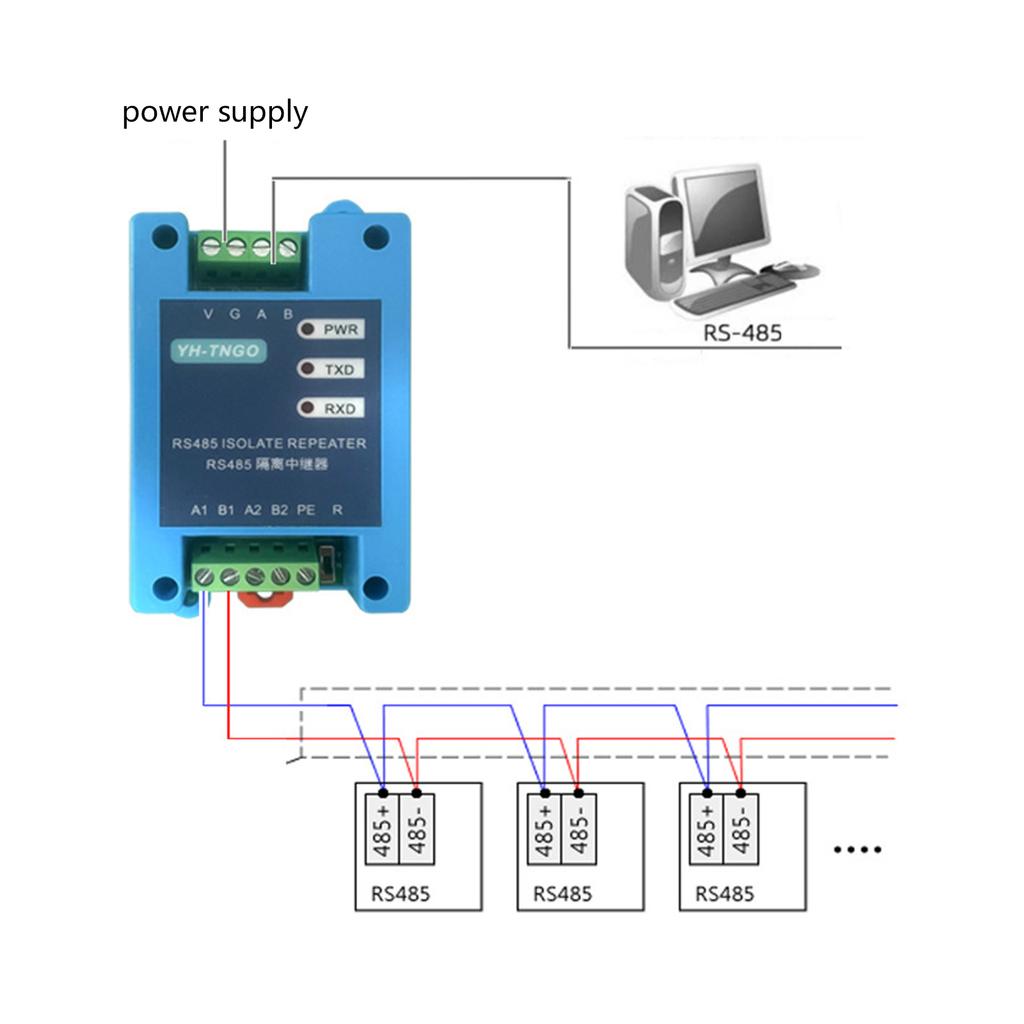

Support point-to-point, star shaped, and cascaded topology structures.

Equipped with power indicator light and data transmission indicator light.

Featuring features such as electrostatic protection, lightning protection, and self-healing diodes.

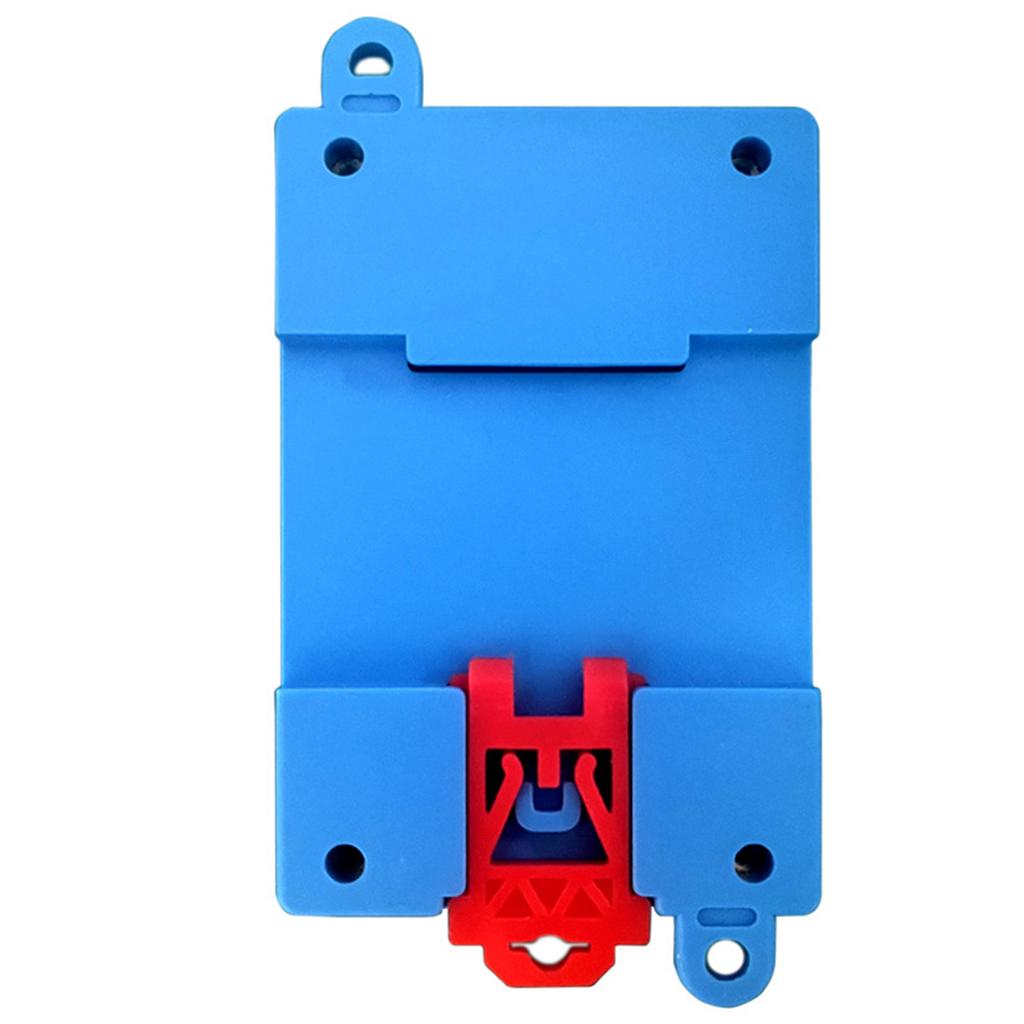

DIN35mm industrial card rail installation, with a 120 ohm terminal resistance switch at the output end, can be selected according to needs for convenience and speed.

Specifications: Material:ABS Input interface: 1 RS485 interface Output interface: 2-channel (internal parallel) RS485 interface Communication rate: 0-500KBps rate adaptive Working power supply: DC9-36V 200mA, internal two isolated power supplies Communication distance: 2000meters (9.6Kbps), 1500meters (19.2Kbps), 800meters (187.5Kbps), 200meters (500Kbps) Isolation protection: power reverse connection protection, self recovery overcurrent protection, RS485 ESD protection, TVS diode protection, lightning protection Installation method: DIN35 guide rail or fixed hole installation

Note: Please allow 1mm errors due to manual measurement. Due to the differences between different monitors, the picture may not reflect the actual color of the item.

Package includes: 1Piece RS485 Repeater
