Application: The angle grinder diamond saw blade is specially designed for engineering, road construction, home and DIY, stone processing applications, suitable for Kingthai electric cutters, table saws and other equipment, can cut granite, marble, concrete, brick, artificial stone, paving stone mortar tiles, stone slabs, cutting mode is dry cutting (also can be wet cutting).
Features: The overall use of thinning design, cutting can reduce material waste; the diamond cutter, the cutter head adopts a streamlined turbine design, more thorough chip removal, faster and smoother cutting; sharper feed knife, lighter and more efficient feel; special matrix, high temperature pressure sintering, the combination of cutter head and matrix makes the diamond cutter high strength; the matrix is normalized, the edge is high strength, and it is not easy to deform.
Note: The arrow on the concrete cutter should point in the same direction as the tool's rotation. When cutting, avoid lateral pressure or curved cuts, feed the knife smoothly, and avoid contact between the concrete cutter blade and the workpiece to prevent danger. When cutting dry, avoid long periods of continuous cutting, and when cutting wet, add sufficient water to cool the concrete cutter to avoid affecting its lifespan and cutting effect.
Suggestions for Use: After installing the grinder blade, let it idle for 1-2 minutes to ensure there is no shaking or skipping. First, try cutting a few knives on a grinding stone or firebrick, then perform normal sawing for best results. If the diamond cutter's sharpness is not sufficient, use a silicon carbide grinding stone. Generally, when sawing softer stones like marble, you can increase the feed rate to improve sawing speed. If the feed rate is too low, the diamond edge will be easily smoothed. However, when sawing softer, harder, and uneven granite, you can increase the feed rate of the grinder blade to achieve a more uniform granite. Otherwise, it may cause blade vibration, which will result in diamond breakage and reduce sawing efficiency. The feed rate for granite saws is generally selected in the range of 2.5-3 m/min (for example, a 350-spec saw blade with a thickness of 10-15 mm).

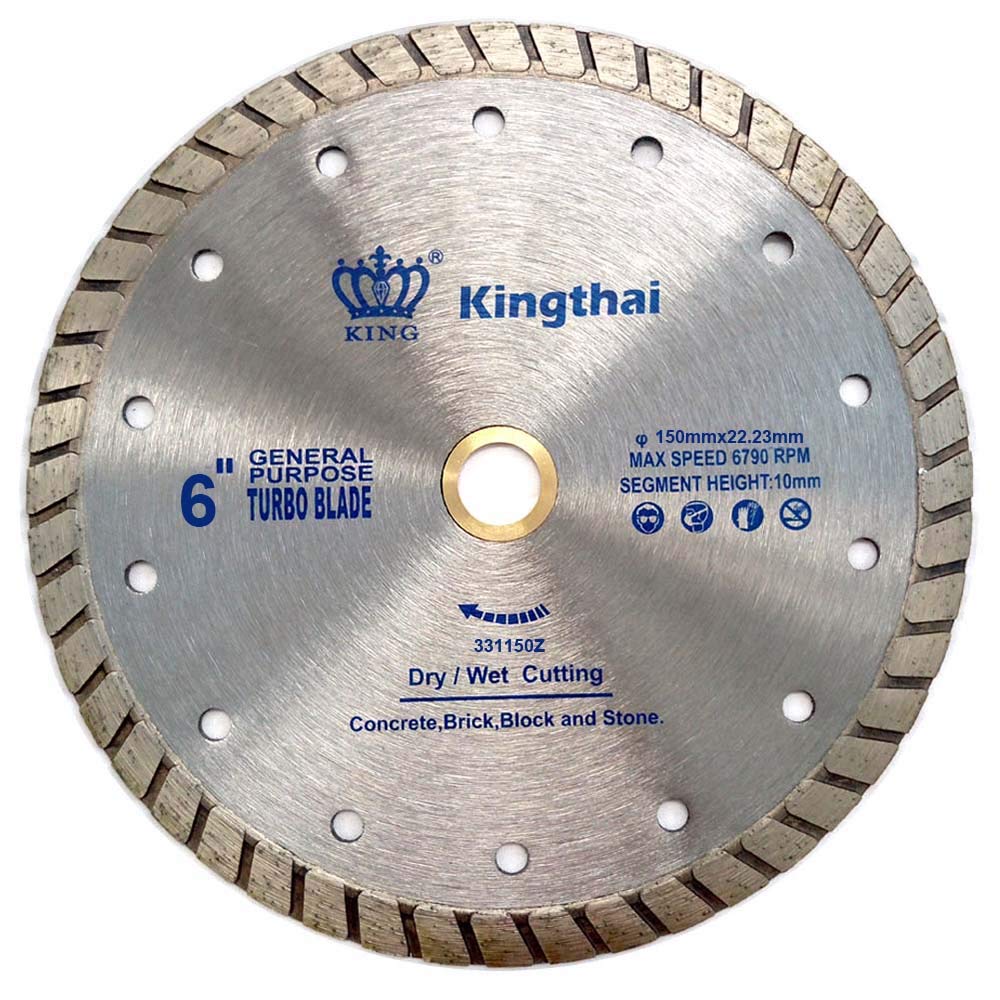

Specifications: Diameter: 150 mm, Mandrel: 22.23 mm, Adapter: 20 mm, Sawpath: 2.3 mm, Segment height: 10 mm
Kingthai Diamond Tools Co., Ltd. has developed six categories of approximately 200 different products. Our main products include laser-welded diamond saw blades, hot-pressed sintered saw blades, diamond core bits, diamond-ground cup wheels, grinding discs, and grinding segments. Our products have been recognized by customers worldwide for their safety, consistent quality, and excellent value. Our hot-pressed sintered saw blades, especially our laser-designed blades, are highly regarded for their excellent quality. They are widely used in cutting, grinding, and drilling concrete, reinforced concrete, green concrete, hardened concrete, mortar removal, stone, rebar, brick, block, asphalt, abrasives, granite, building materials, rebar, paving blocks, red brick, marble, medium-hard granite, washboard concrete, ceramic, IC, porcelain, fire brick, and various building materials. Our products are also used in marble cutters, angle grinders, circular saws, handheld power saws, masonry saws, tile saws, wall saws, ring saws, wire saws, floor grinders, floor saws, core drilling machines, and handheld saws.
Suitable for assembling drills, drilling machines, handheld drills, grinding machines, electric drills, early entry saws, core drill bits, etc. Diamond drill bits, crown bits, drilling machines, handheld drills, grinding machines. If you have any questions about our products and services, please feel free to contact us.
