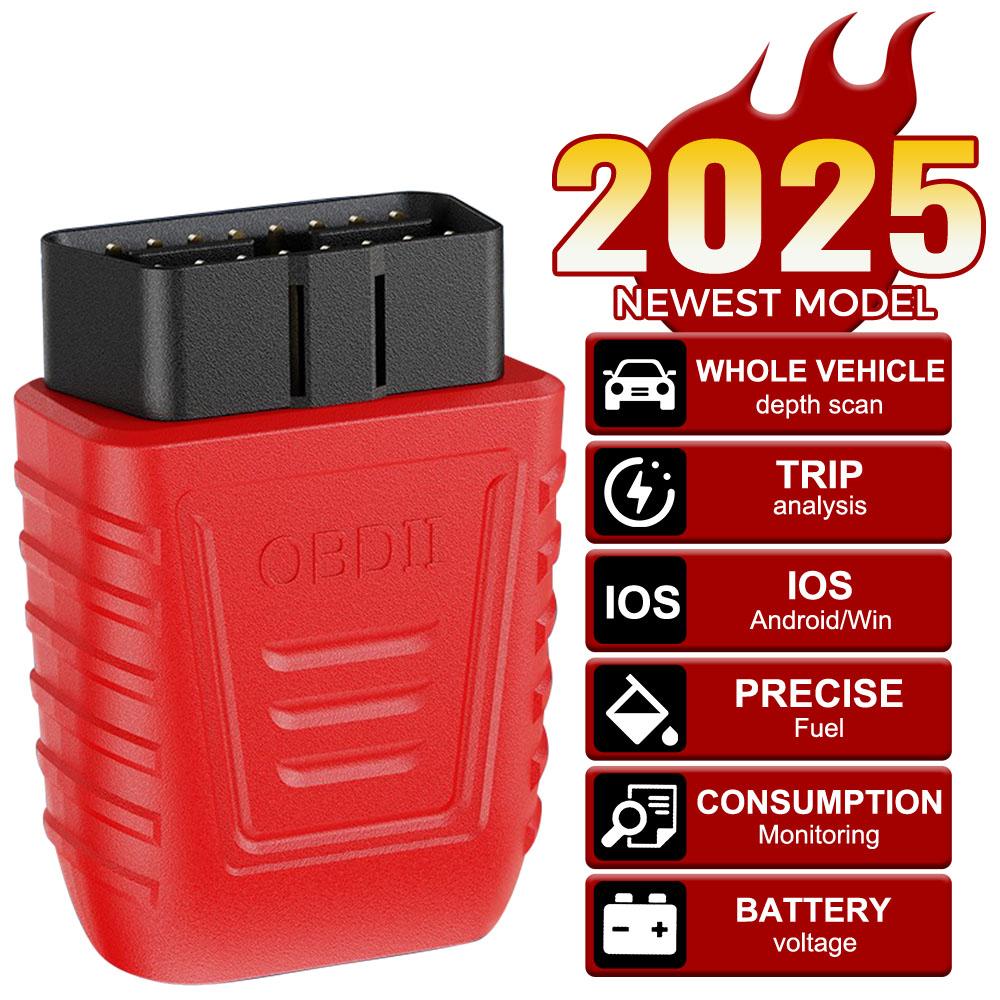

Read&clear the Fault Codes Bluetooth 5.0 OBD II Scanner Car Accessories AM2 Code Reader OBD2 Car Fault Diagnostic Tool With Automatic Scanning

Function: Automatic Scanning Read/Clear Fault Code Support 9 Protocols Performance Testing Read data stream 02 Sensor Test Real-time detection of car conditions Whole vehicle depth scan Trip analysis iOS/Android/Win Precise Fuel Consumption Monitoring Battery voltag Note: The number of supported data items varies depending on the model year, and the actual support situation shall prevail.

Specifications: Communication method: Bluetooth 5.0 Product material: ABS + electronic components Main control chip: MM32L073 Software platform: Support for iOS/Android /Windows Working voltage: 12V Working current 32mA Working temperature: 40℃~80℃ Working humidity: less than 60% Size:5.7*4.7*2.5cm

Protocols:

SAE J1850 PWM(41.6 Kbaud) SAE J1850 VPW(10.4 Kbaud) ISO 9141-2(5 baud init,10.4 Kbaud) ISO 14230-4 KWP(5 baud init,10.4 Kbaud) ISO 14230-4 KWP(fast init,10.4 Kbaud) ISO 15765-4 CAN(11bit ID,500 Kbaud) ISO 15765-4 CAN(29bit ID,500 Kbaud) ISO 15765-4 CAN(11bit ID,2500 Kbaud) ISO 15765-4 CAN(29bit ID,250 Kbaud)

Package Included: 1 x OBD II Scanner
