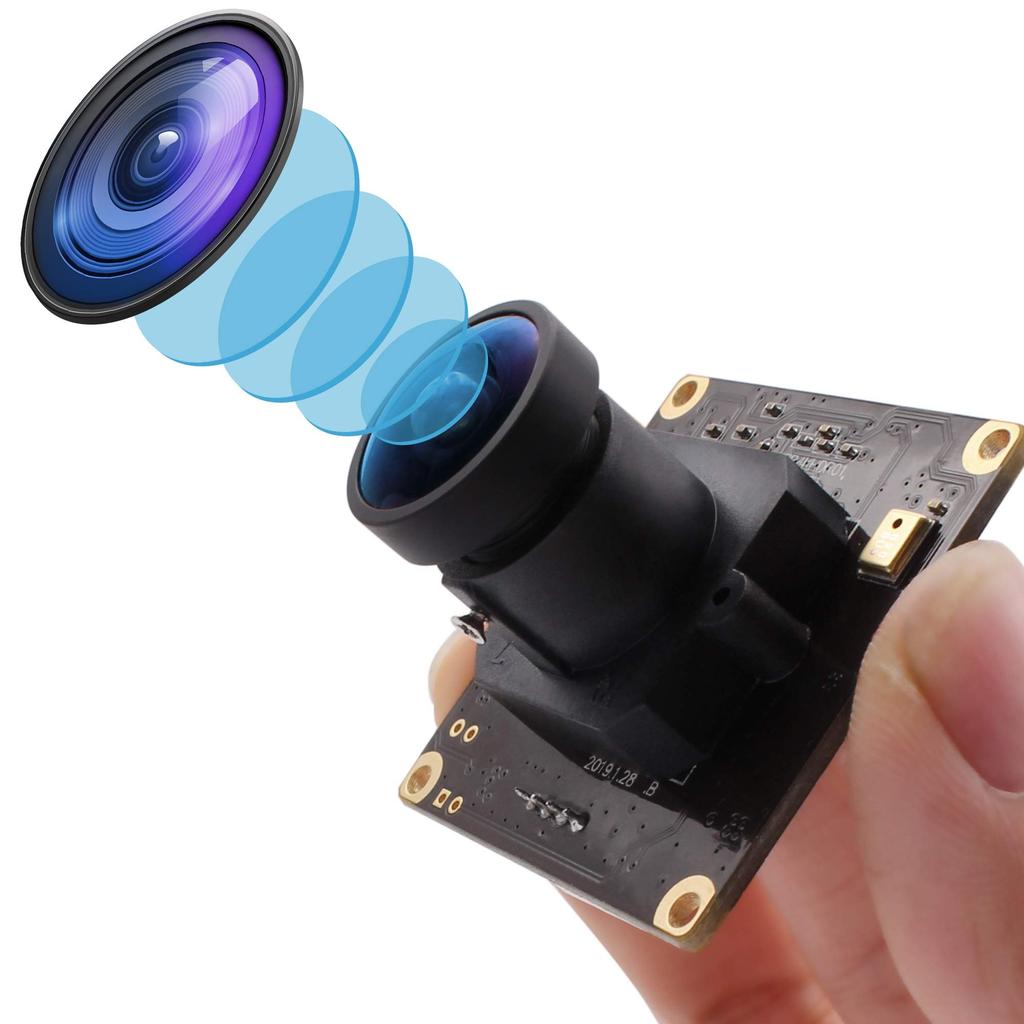

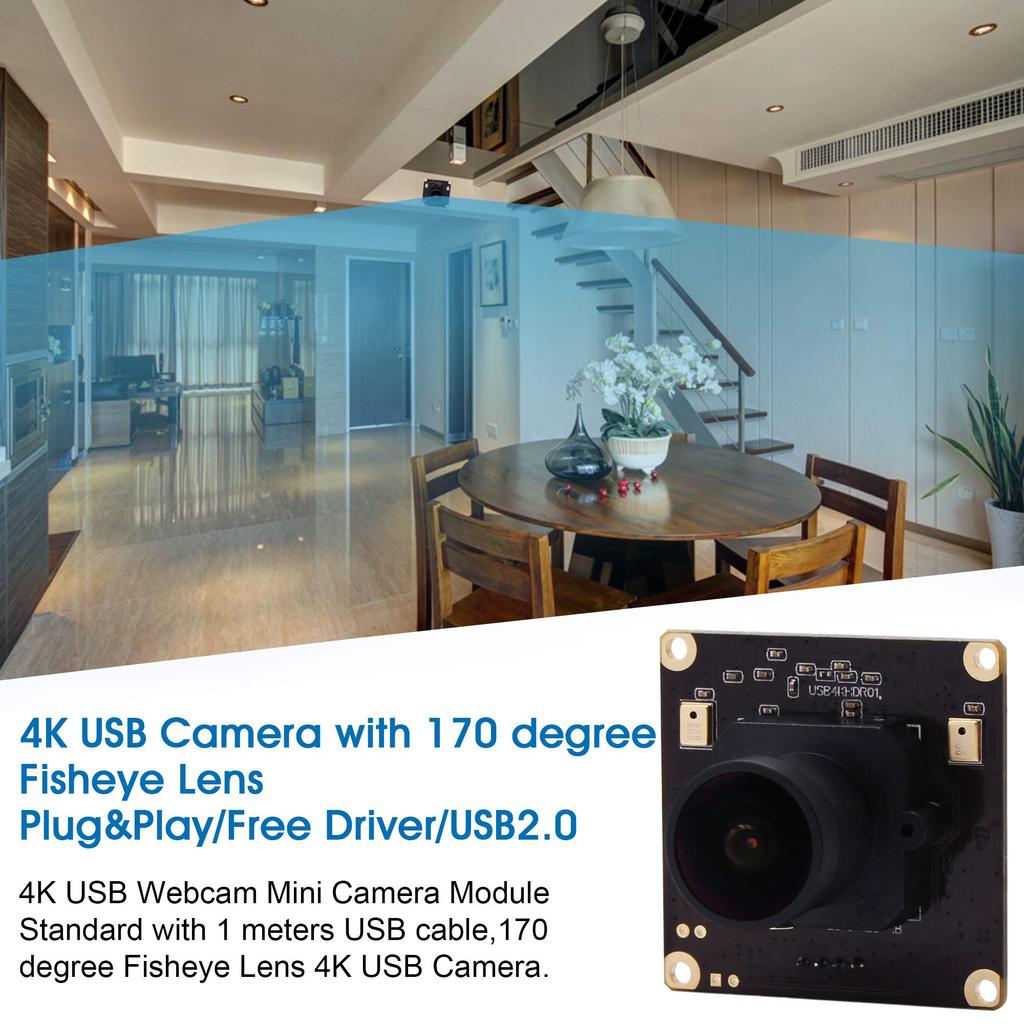

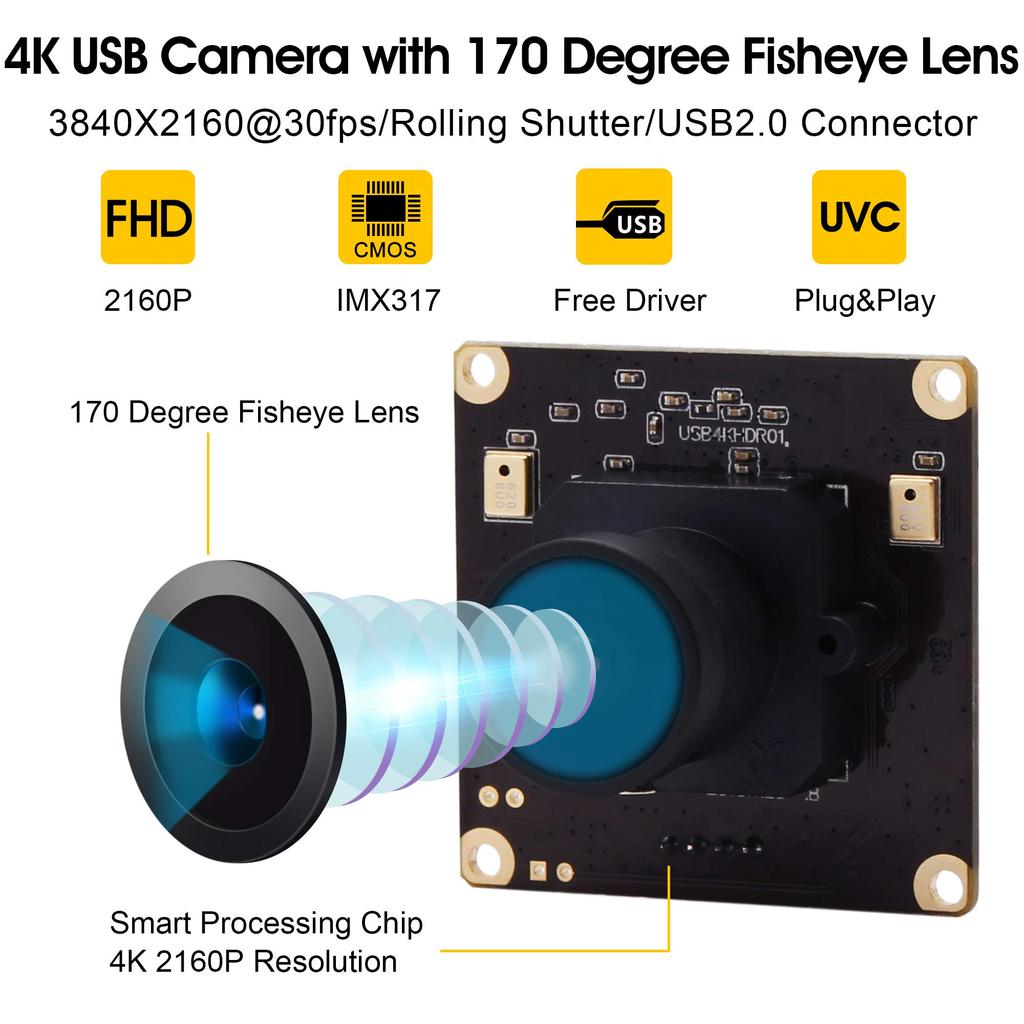

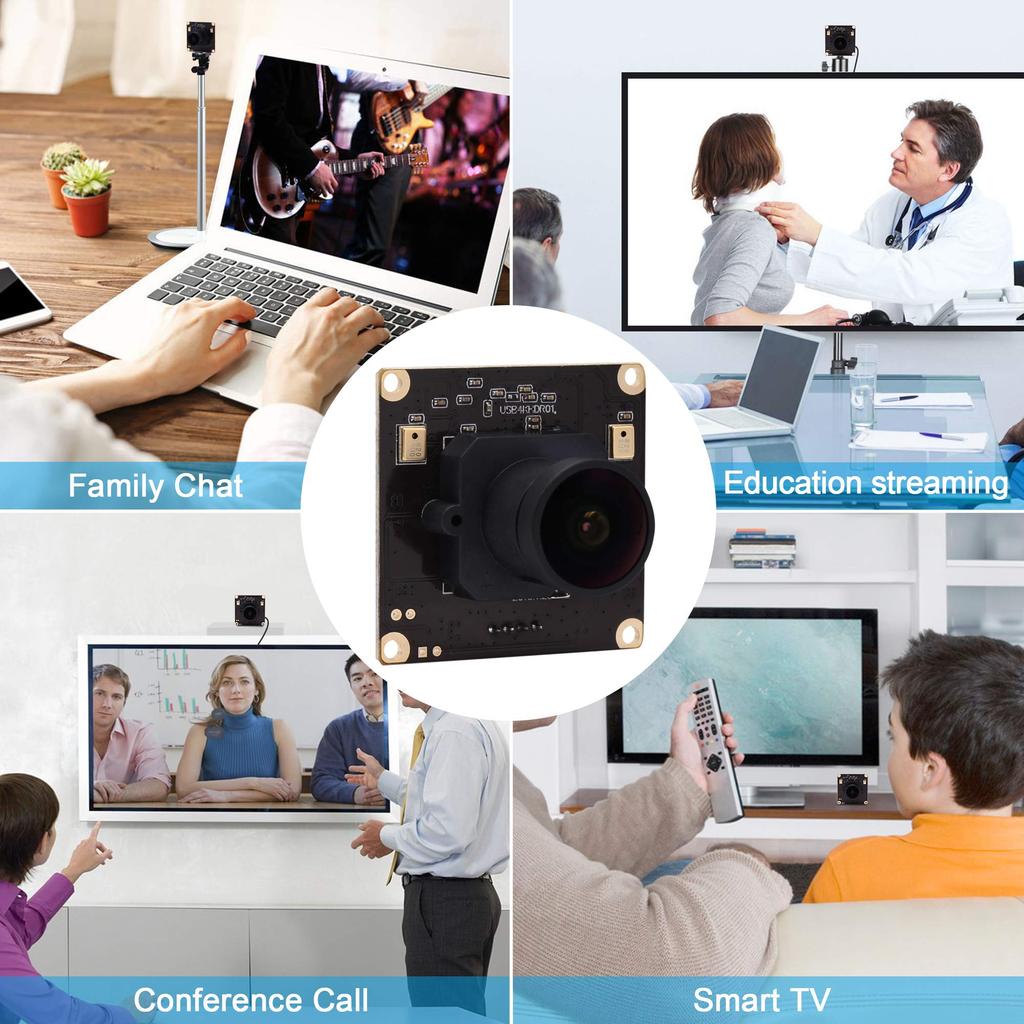

【ELP Wide Angle 170 Degree Fisheye Lens USB Camera】: USB camera module with 170 degree fisheye lens, wide-angle USB camera can meet most capture and video requirements, high-resolution 4K camera USB with Sony IMX317 sensor, equipped with 1 meter USB cable, supports optional OTG.

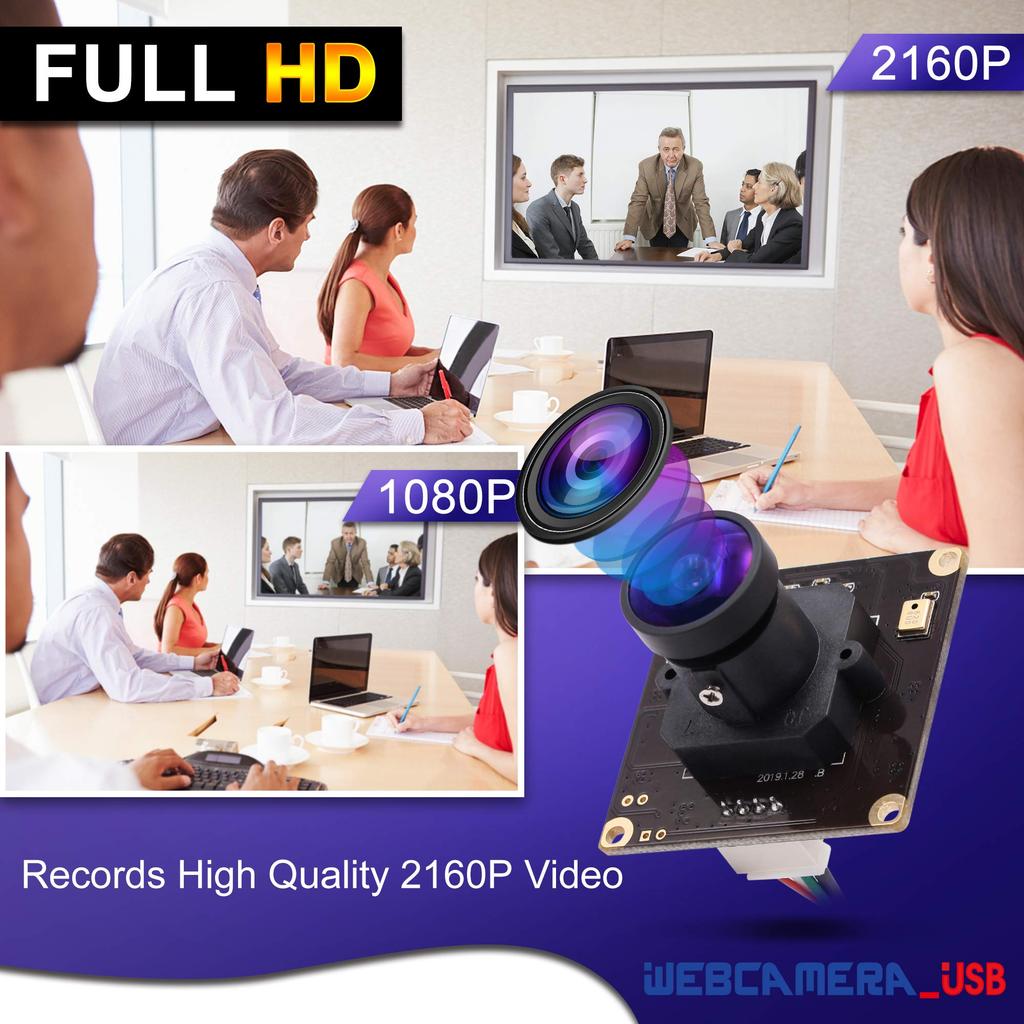

【ELP Full HD 4K 2160P USB Webcam】The streaming camera delivers incredibly sharp 4K HD, capturing crystal clear images and recording 2160/30fps video. Compatible with: STB, smart box TV box, advice player, LED display, vending machine, safety deposit box, notebook, video door phone, MID, tablet external, assessor, medical equipment, on-site police, etc.

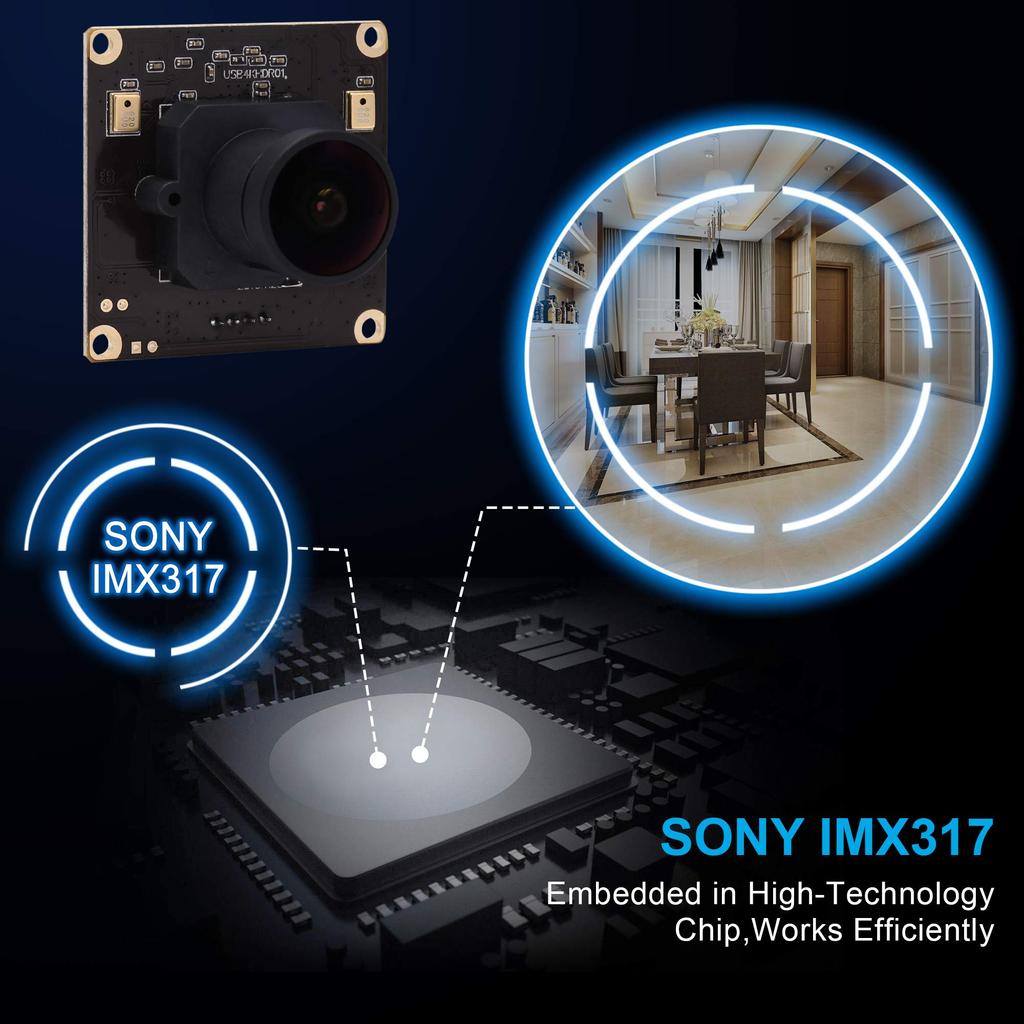

【ELP High Speed USB 2.0 Interface Camera Module:】High quality Sony IMX317 image sensor, high quality image 2.0 megapixel, maximum resolution: 3840*2160P, high frame rate 2160P@30fps, compression format: MJPEG/YUV2(YUYV), white balance function: excellent indoor and outdoor effect, vivid color.

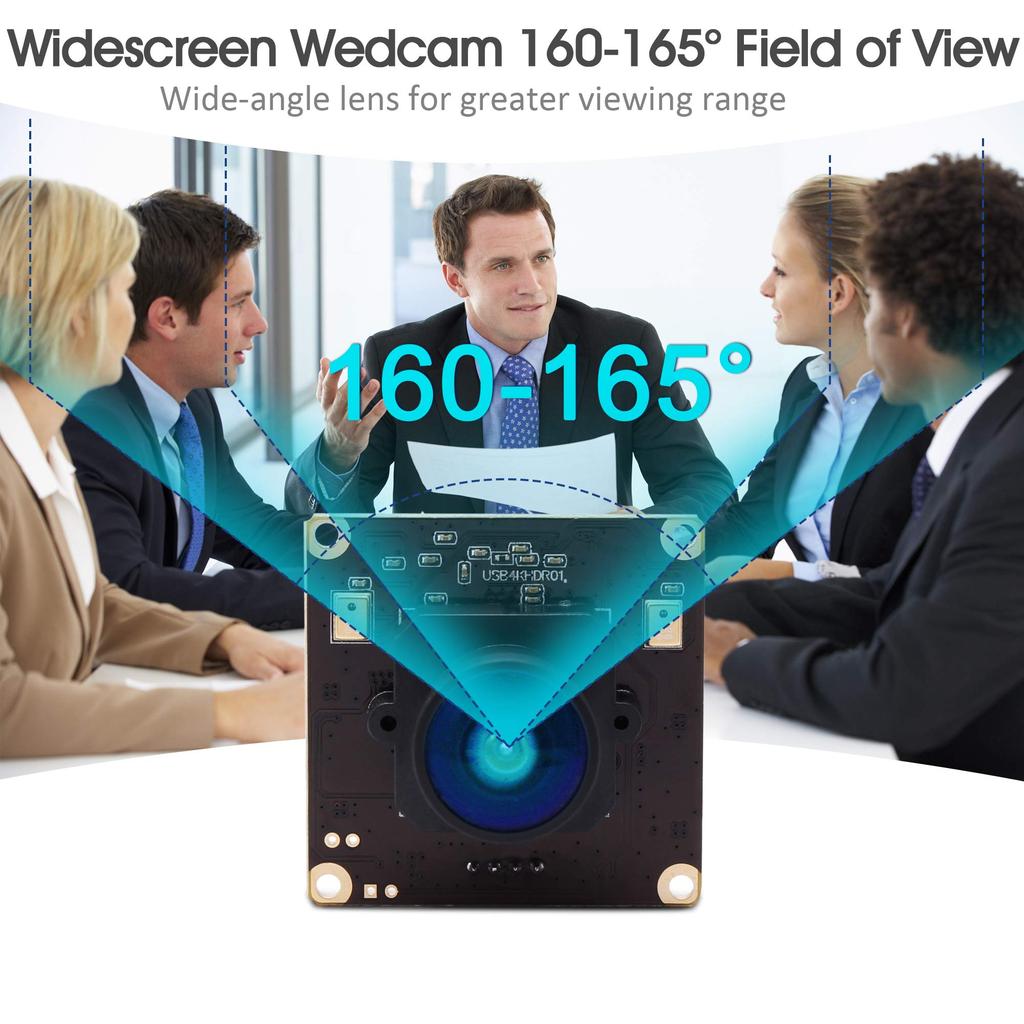

MJPEG/YUY2 Compression: The USB camera module uses MJPEG/YUY2 compression, saving more storage space and providing faster, smoother video uploads with less demand on your computer. The 2160PHD high-resolution USB camera features a wide-angle 100-degree distortion-free lens, making it ideal for a wide range of projects.

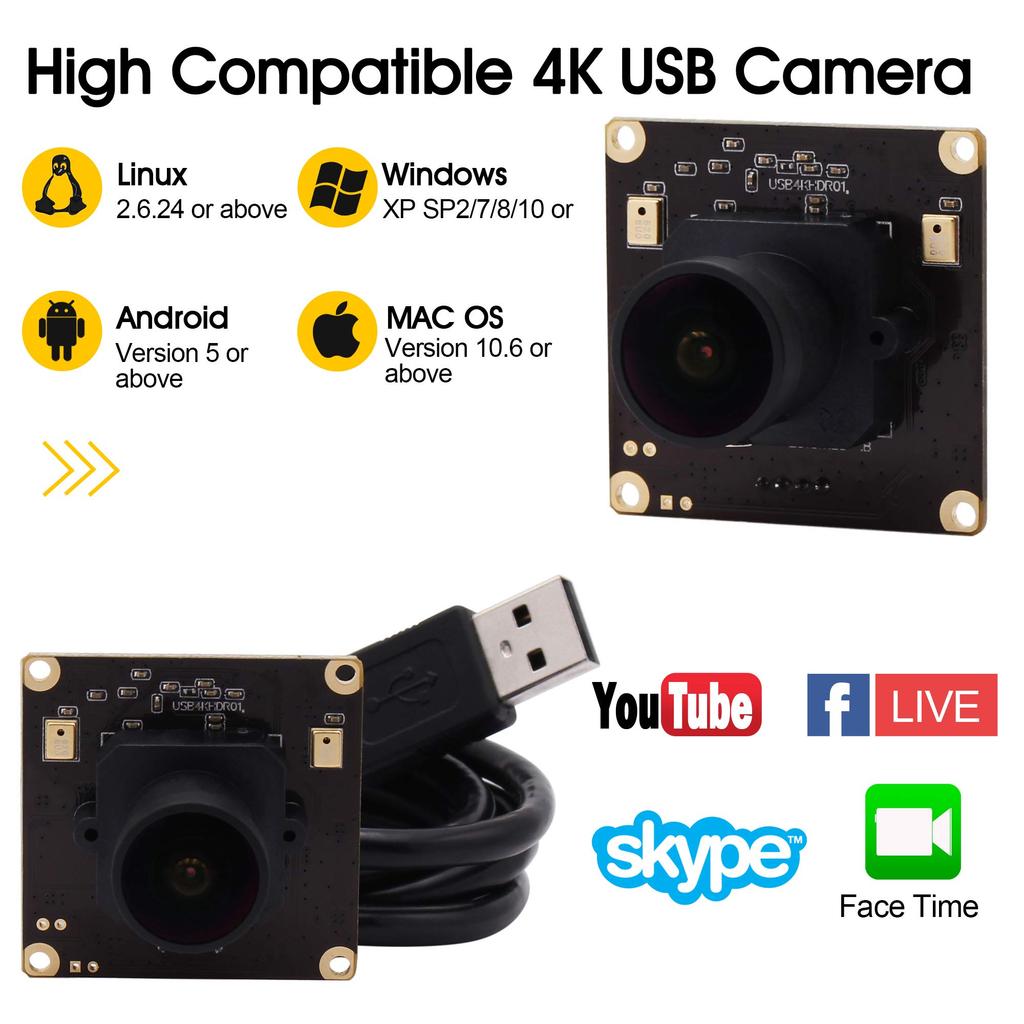

【Plug and Play & UVC Compliant】UVC compliant for operating systems: Windows, Linux, Android, Mac, etc. Operating system requirements: Win8 or above, Linux with UVC (linux-2.6.26 above), MAC-OS X 10.4. 8 or above, UVC-compatible Android 4.0 or above.
ELP cameras are used in all kinds of machines, such as:
Machinery and equipment: All-in-one machine, POS equipment, STB, smart box, TV box, advice player, LED display.
Vending machine: Safe box, Notebook, Video door phone, MID, Tablet external, Evaluator.
Medical equipment, on-site law enforcement, door bell and button systems, cat eye systems, simple security systems.
Teaching system, interactive system: car data recorder, project video capture, credit card machine.
Attendance machines, voting systems, high-speed video recording devices, testing systems, driving learning systems.
Industrial Camera: Biological Microscope, Surveillance Box, Micro HD, Surveillance, Endoscope
Medical aids, etc.

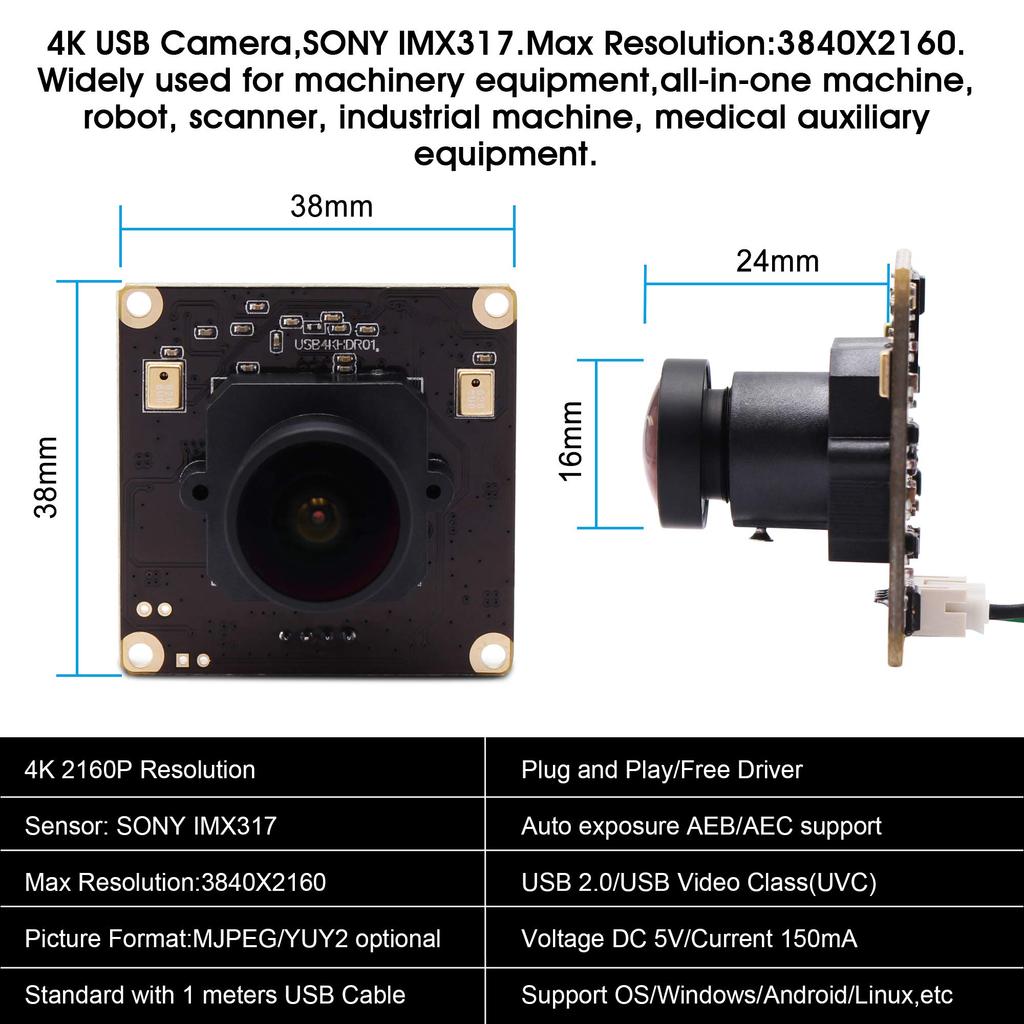

Parameter description:
SONY IMX317 (1/2.5 inch)
Maximum resolution: 3840(H)*2160(V)
MJPEG:
3840x2160 @ 30fps / 2592x1944 @ 30fps 2048x1536 @ 30fps / 1600x1200 @ 30fps 1920x1080 @ 30fps /
1280x1024 @ 30fps / 1280x960 @ 30fps / 1280x720 @ 30fps 1024x768 @ 30fps /
800x600@/30fps640x480@30fps/320x240@30fps
YUY2:
3840x2160 @ 1fps / 2592x1944 @ 1fps 2048x1536 @ 3fps / 1600x1200 @ 3fps / 1920x1080 @ 3fps /
1280x1024 @ 3fps 1280x960 @ 5fps / 1280x720 @ 5fps / 1024x768 @ 5fps /
800 x 600 @ 20fps 640x480 @ 30fps / 320x240 @ 30fps
Rolling shutter, USB2.0 connector
DC 5V, working temperature: 0°C~60°C
Supports Win XP/Vista/Win7/Win8/Linux with UVC (linux-2.6.26 above)
MAC-OS X 10.4.8 or later / Android 4.0 or later with UVC.
