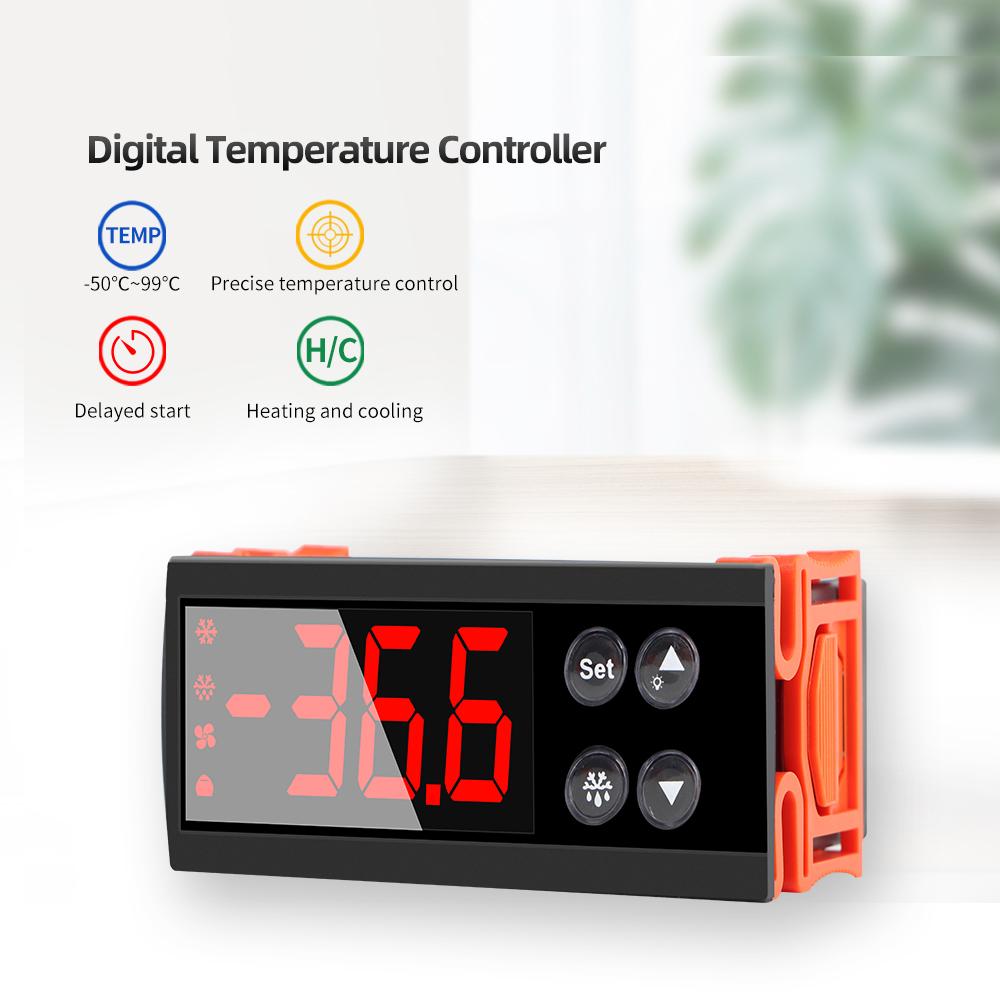

ECS-961NEO Digital Thermostat Humidity Microcomputer Temperature Controller Regulator Thermoregulator Switch 12/24/110/220V

High-concerned chemical : None Is Smart Device : No Cable Length : 1m

Origin : Mainland China Use : Household Display Size : 1.9 Inches & Under Certification : CE

ECS-961NEO Digital Thermostat Humidity Microcomputer Temperature Controller Regulator Thermoregulator Switch 12/24/110/220V 1、Description

ECS-961neo has user menu and administrator menu. User menu is used to adjust the temperature.The administrator menu will be only active with the correct password, it can help the user avoid to operating the controller mistake.

ECS-961neo has 1 sensor for the room and with 1 A(max) relay to control the compressor; it has a very big display screen with thecompressor and defrost indicator light which help the user check the statues of the refrigeration units easily.

2、Technical date sheet □Display range: -50°℃ ~ 99℃ (when the correction =O) □Resolution: 0.1 or 1℃ □Accuracy : (-40℃~50℃ ): 1℃; (51℃~ 70°℃): +2°℃; others: ±3℃ □Measuring range: -50℃~ 99℃ □Power: 220VAC10%(50/60Hz); Consumption:<3W □Analogue inputs: 1 NTC sensor □Output: Refrigeration:16A/240VAC(No type),can directly drive single-phase 1.0HP(220VAC) load Or 10A/240VAC(No type) □Water proof of front face: lP65 □Working temperature: 0°℃~55℃ □Storage: -25℃~75℃ □Relative humidity: 20%～85%(no frost)
