Battery Included : No
High-concerned chemical : None
Operating Mode : Auto Range
Certification : CE
DIY Supplies : Electrical
Origin : Mainland China
DC Voltage : as
AC Voltage : as

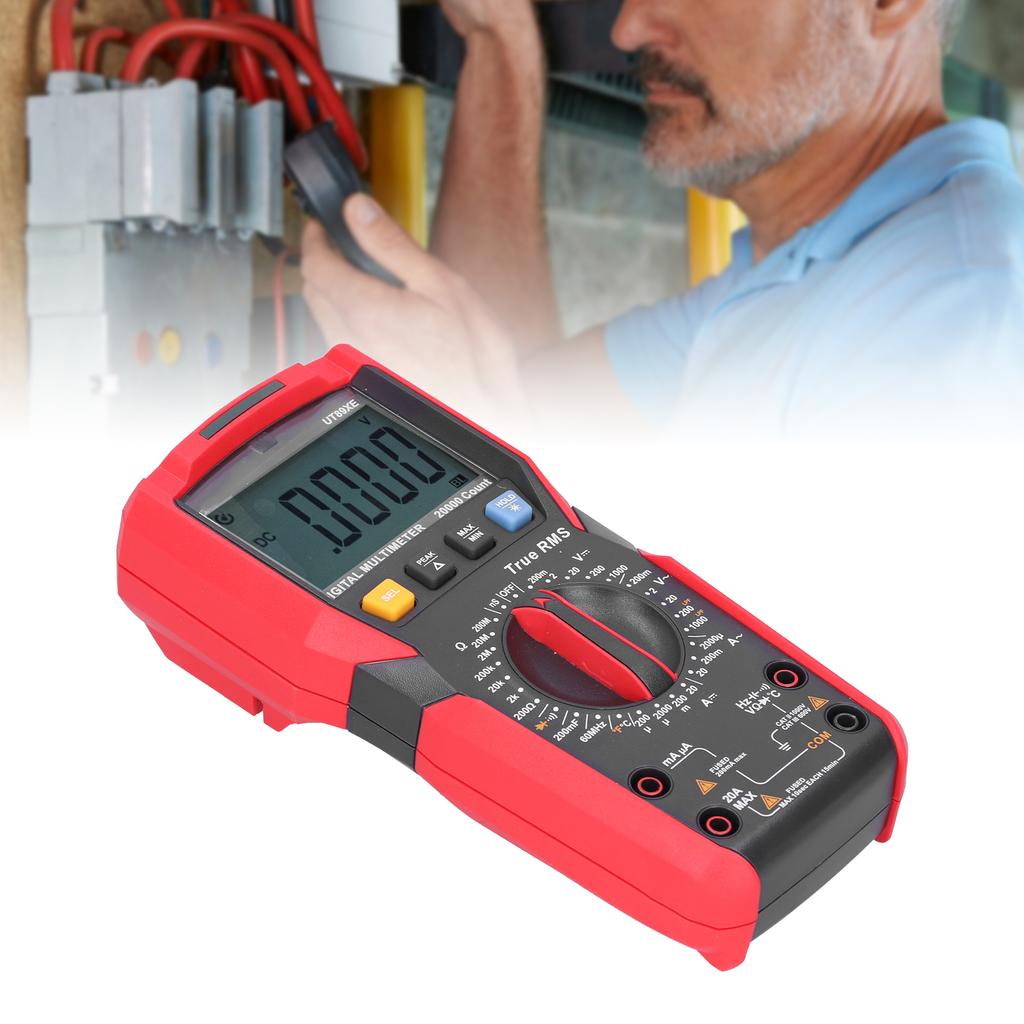

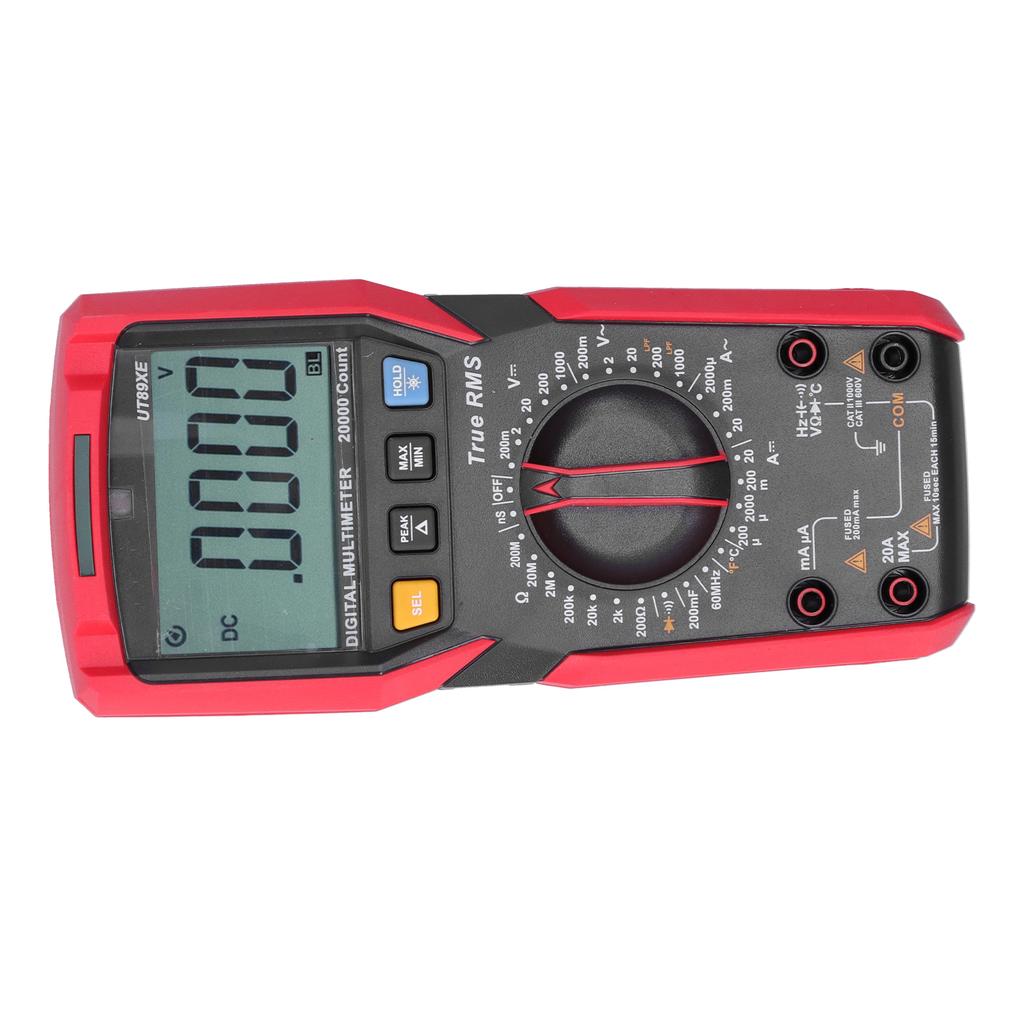

UT89XE UNIT Multimeter Multifunctional High Accuracy Digital Meter for Electric Maintenance
Feature:
1. 20000‑bit true effective value, high resolution, accurate measurement and complete functions.

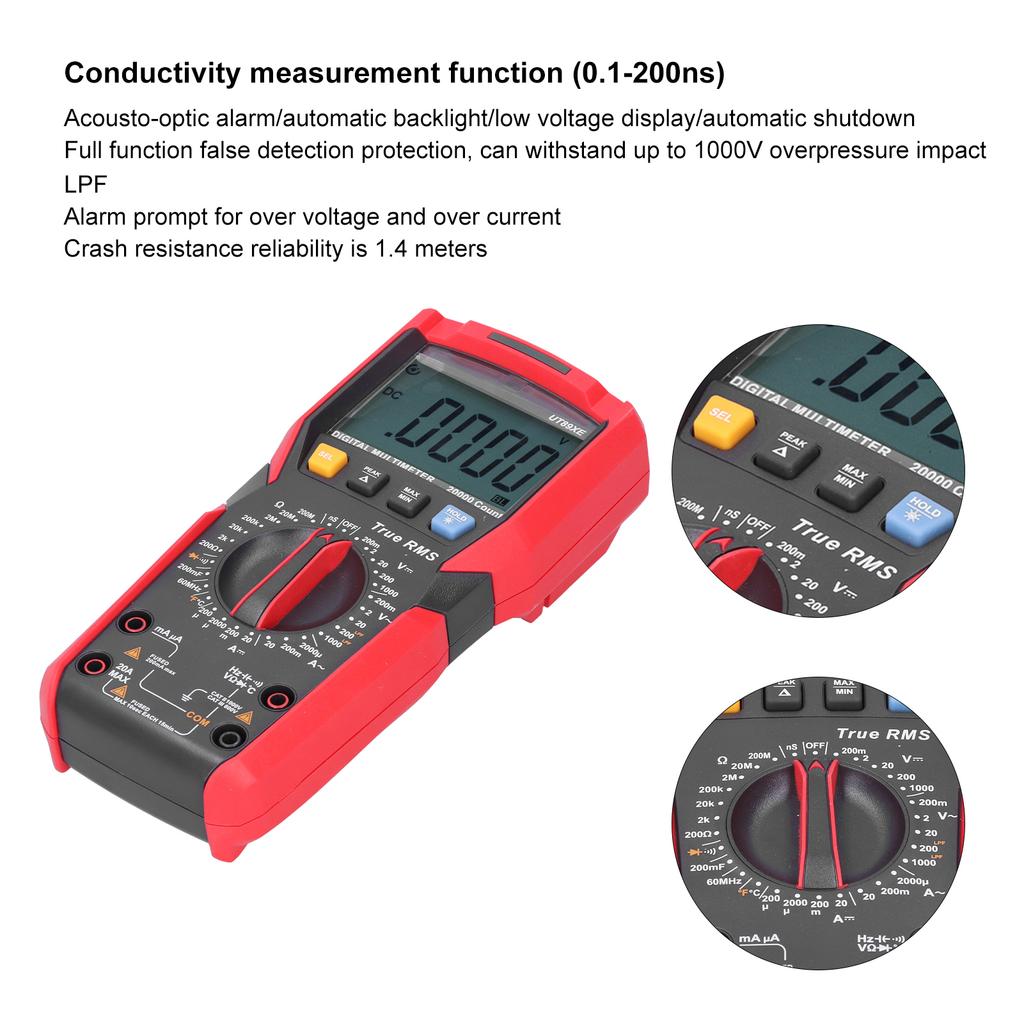

2. The multimeter adds the conductivity measurement function and expands the resistance measurement range.

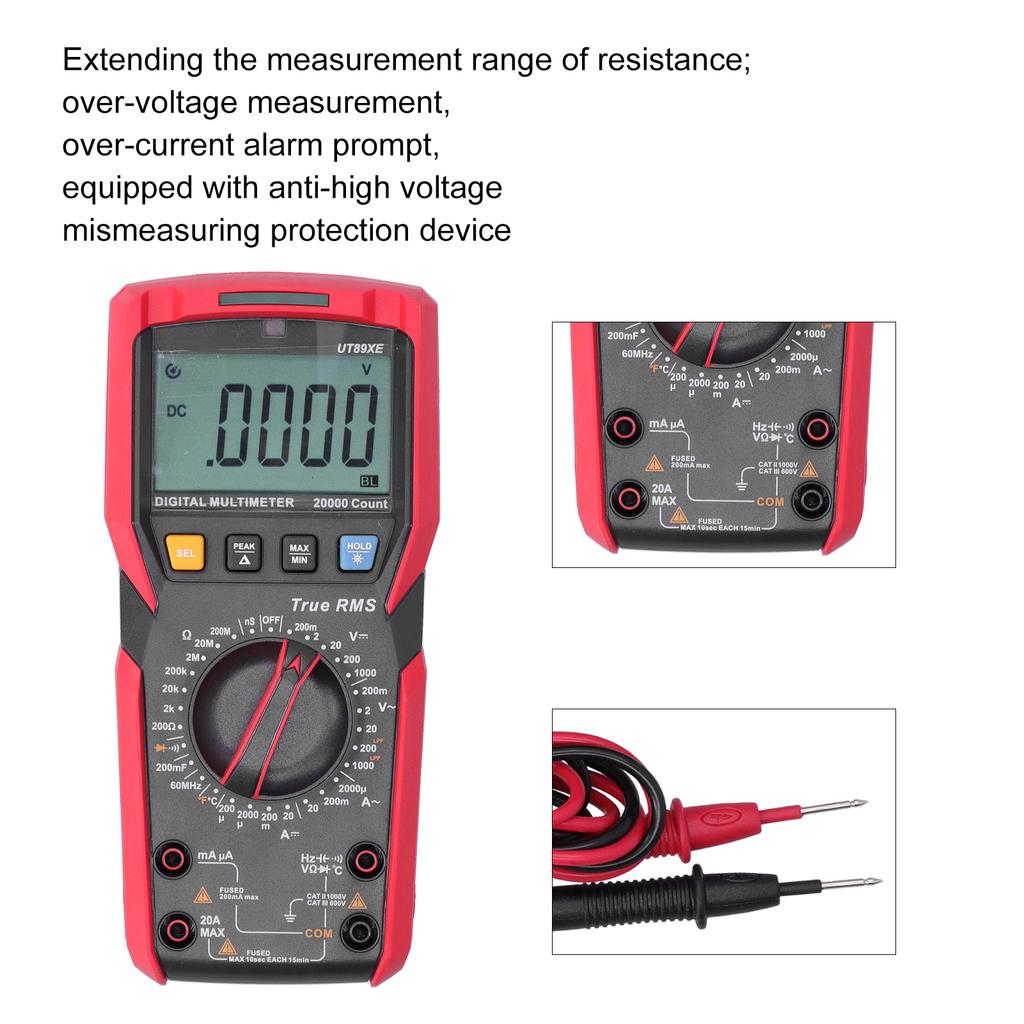

3. The multimeter is equipped with a protection device against high‑voltage misdetection.
4. The multimeter has over‑voltage and over‑current alarm prompts. Audible alarm, low voltage display, automatic shutdown.
5. The digital multimeter is practical and light in weight, which is easy for operator to use.
Specification:
Item Type: Multimeter
Material: ABS
Weight: Approx. 522g / 18.4oz
Power Supply: 4 x 1.5VAAA (Battery not Included)
Range Resolution Accuracy Overload protection
AC Voltage 200.00mV 0.01mV ±(1.0%+25) 1000V Vrms
2.0000V 0.0001V ±(1.0%+25)
20.000V 0.001V
200.00V 0.01V
1000V 1V ±(1.2%+25)
AC Voltage LPF 200.00V 0.01V ±(2%+30) 1000Vrms
1000.0V 0.1V
DC Voltage 200.00mV 0.01mV ±(0.05%+5) 1000Vrms
2.0000V 0.0001V
20.000V 0.001V
200.00V 0.01V
1000V 1V ±(0.1%+5)
AC Current 2000.0μA 0.1μA ±(1.5%+15) 250Vrms
200.00mA 0.01mA
20.000A 0.001A ±(2.5%+35)
DC Current 200.00μA 0.01μA ±(0.5%+4) 250Vrms
2000.0μA 0.1μA
200.00mA 0.01mA ±(0.8%+6)
20.000A 0.001A ±(2.0%+15)
Continuity Test 200.00Ω 0.01Ω ≤10Ω buzzer sounds, ≥50Ω buzzer does not sound 600Vrms
Open circuit voltage is about 2.8V
Resistance 200.00Ω 0.01Ω ±(0.4%+10) 600Vrms
2.0000KΩ 0.0001kΩ ±(0.4%+5)
20.000KΩ 0.001kΩ
200.00KΩ 0.01kΩ
2.0000MΩ 0.0001MΩ
20.000MΩ 0.001MΩ ±(1.2%+25)
200.00MΩ 0.1MΩ ±(5.0%+10)
Conductivity 200.00nS 0.01nS ±(1.2%+50) 600Vrms
Diode Test 20.000V 0.001V 0.5~0.8V 600Vrms
Capacitance 20.000nF 0.001nF ±(4.0%+50) 600Vrms
200.00nF 0.01nF
2000.0nF 0.1nF
2.0000uF 0.0001uF
20.000uF 0.001uF
200.00uF 0.01uF
2.0000mF 0.1uF
20.000mF 0.001mF ±(10%)
200.00mF 0.01mF
Temperature -40℃~40℃ 0.1℃ ±4℃ 600Vrms
40℃~400℃ ±(1.0%+5℃)
400℃~1000℃ ±(2.0%+5℃)
-40℉~104℉ 0.1℉ ±5℉
104℉~752℉ ±(1.5%+5℉)
752℉~1832℉ ±(2.5%+5℉)
Frequency 200.00Hz~60.00MHz 0.01Hz~0.01MHz ±(0.1%+3) 600Vrms How to Use:
1. Turn on the meter.
2. Connect the test leads to the corresponding interface.
3. Put the tip of the test lead to the corresponding circuit to be measured.
4. View the display readings.
Package List:
1 x Digital Multimeter (Battery Not Included)
2 x Test Lead
1 x K-Shaped Temperature Probe
1 x Manual
