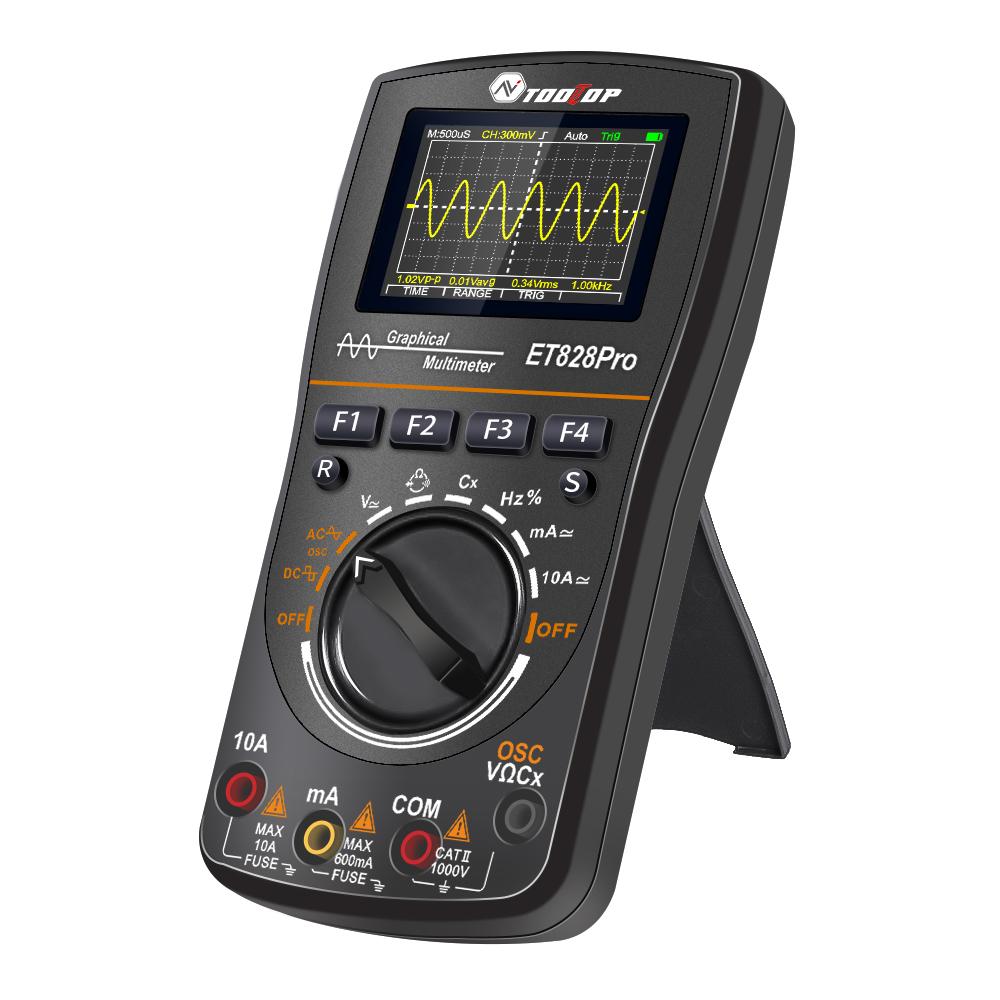

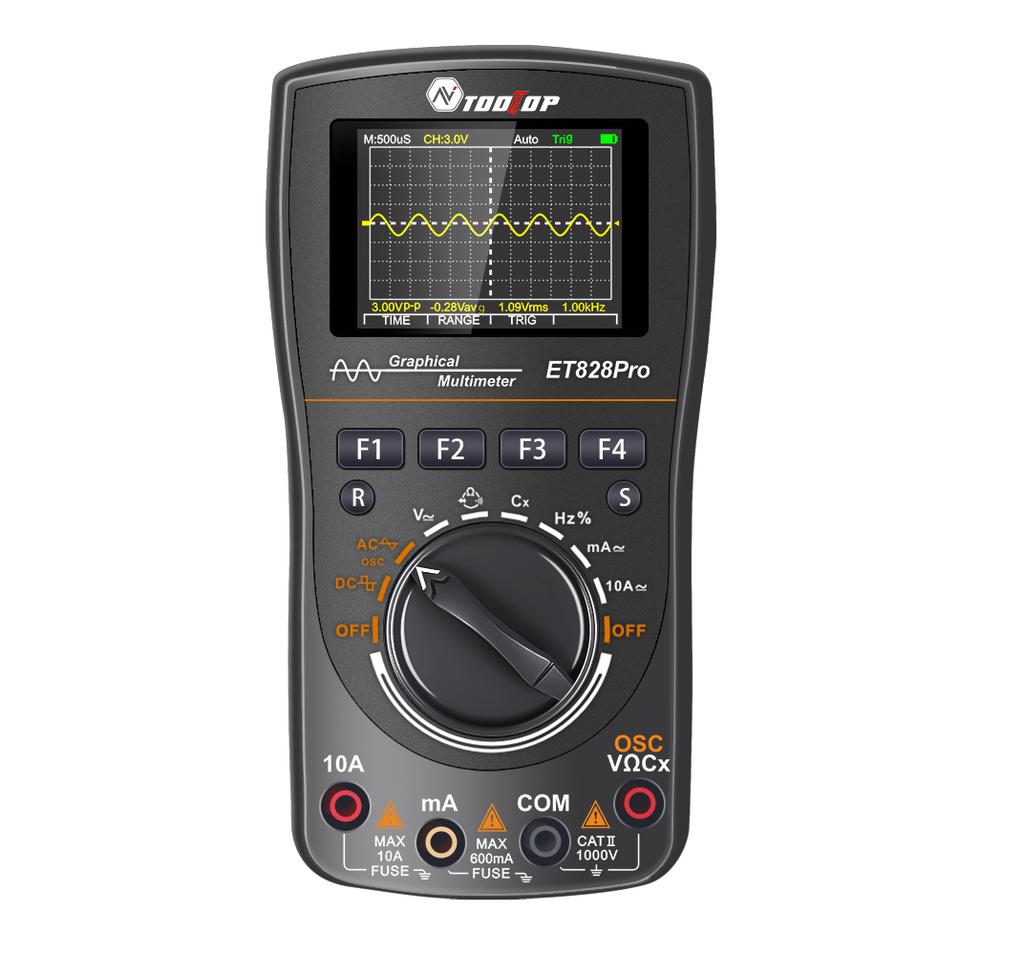

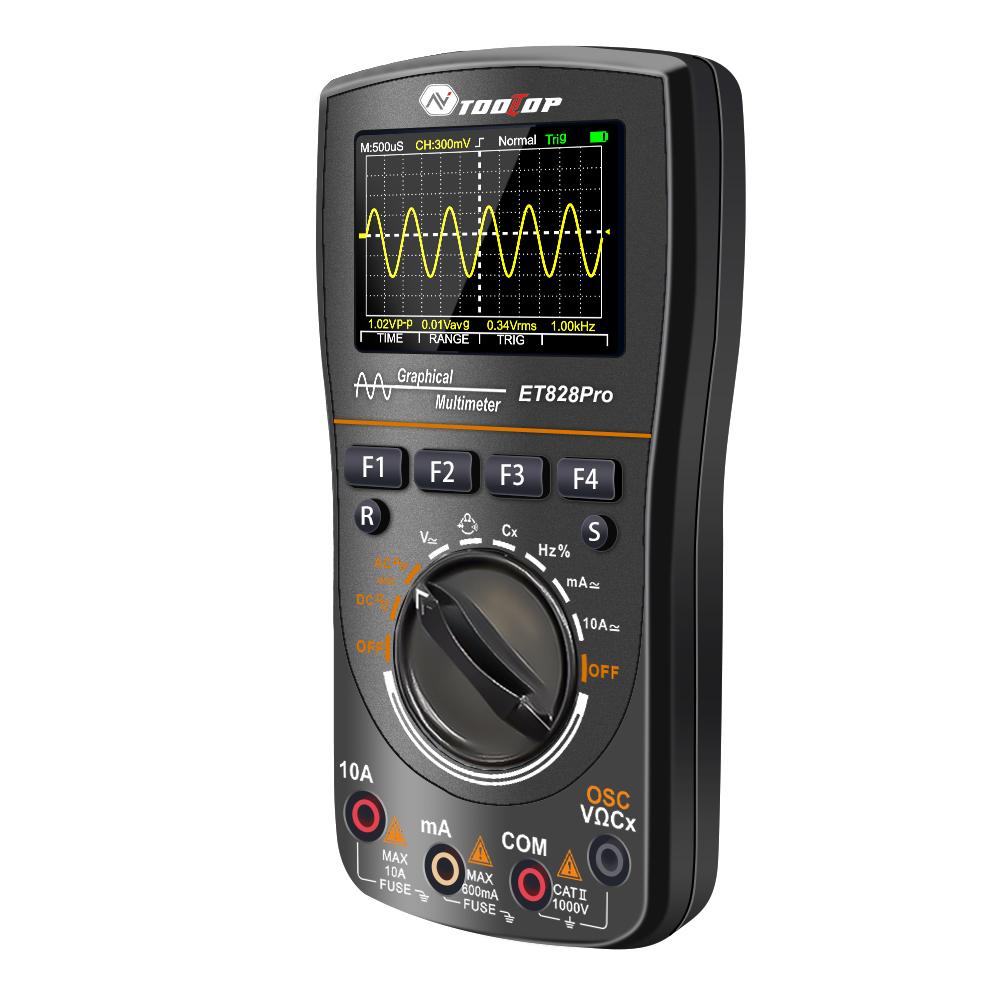

10MHz 50Msps Digital Oscilloscope REL Test 6000 Counts Graphical Signal Waveform Auto Capture 100mF RMS Multimeter Repair Tools

Battery Included : No High-concerned chemical : None IS Battery Demountable : Yes Model Number : 828pro Certification : CE,RoHS Origin : Mainland China

DIY Supplies : Electrical Band Width : Less than 60MHz Digital Channels : 1 Display Resolution : 320*240 Pixels Display Size : 2.9 Inches & Under

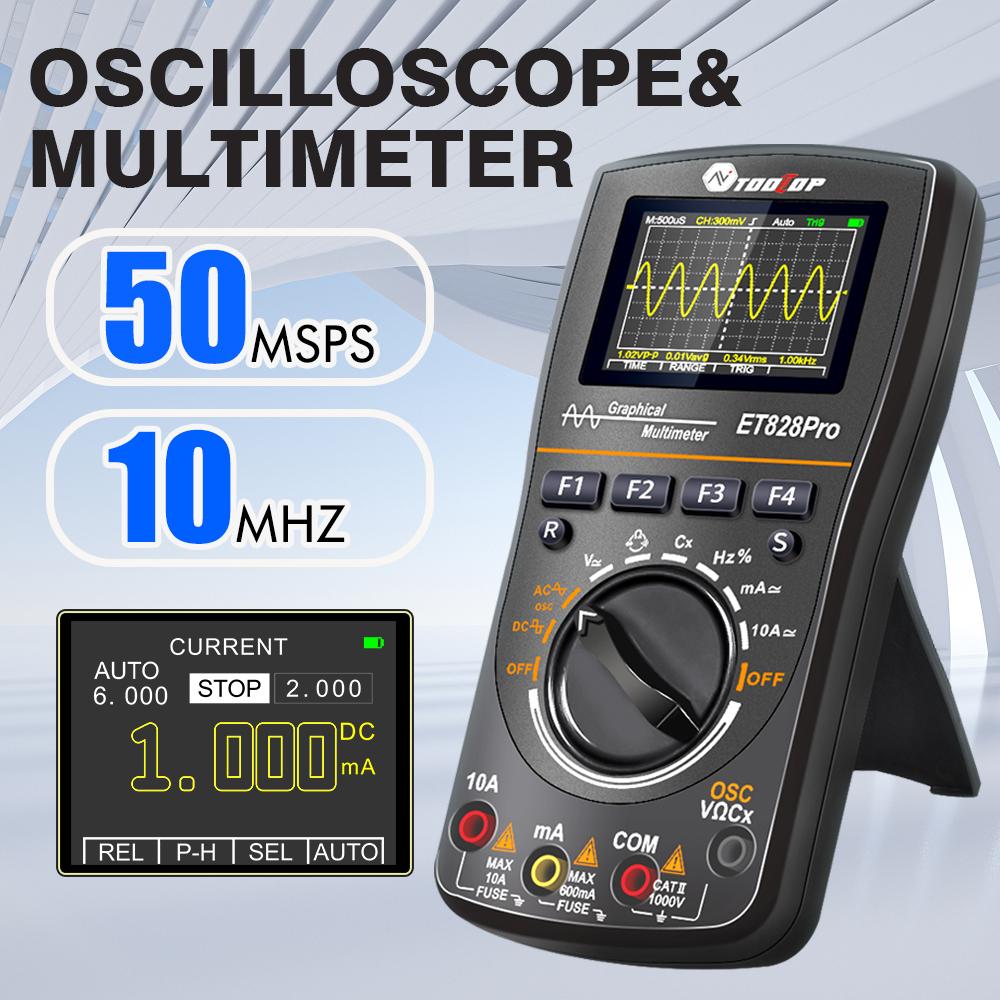

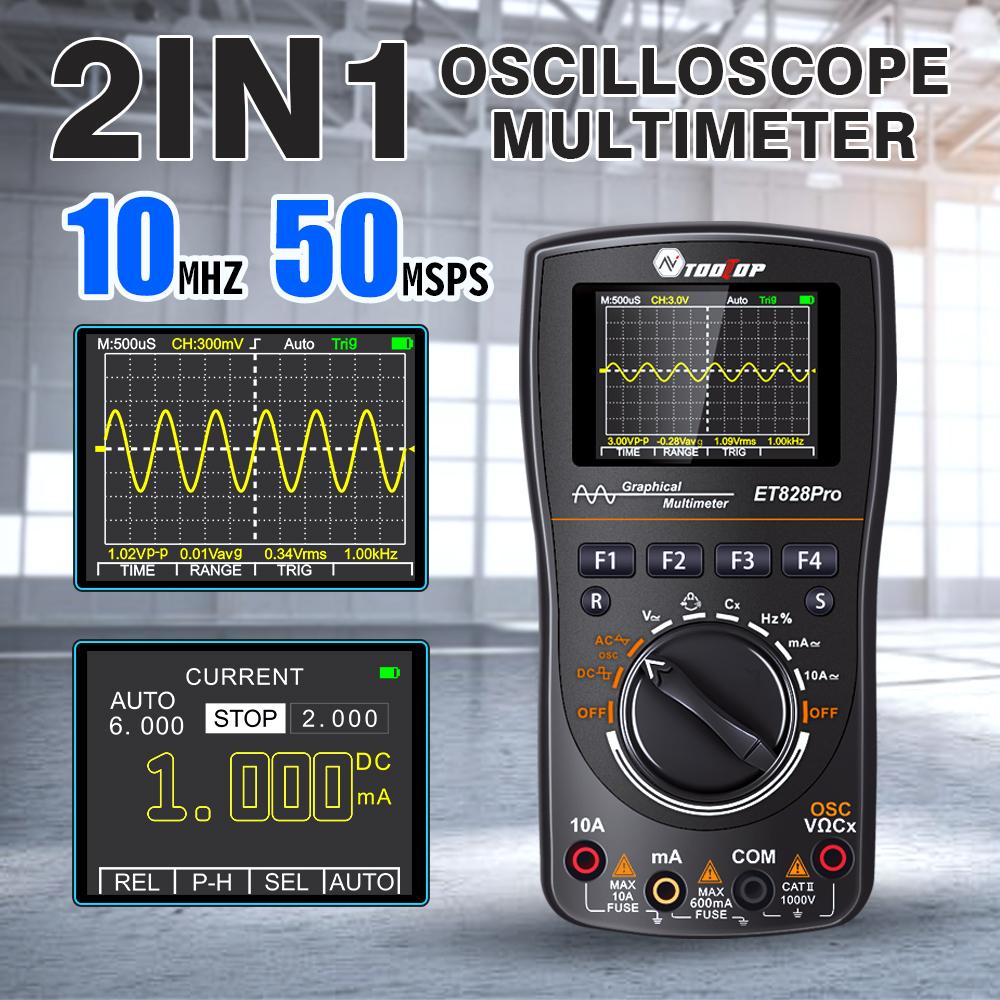

10MHz 50Msps Digital Oscilloscope REL Test 6000 Counts Graphical Signal Waveform Auto Capture 100mF RMS Multimeter Repair Tools Features: 2-in-1: 50Msps high-speed sampling rate can capture more details of the signal, and the 10MHz analog bandwidth allows you to easily process various signals.with the 6000 Counts True RMS multimeter.

High voltage oscilloscope: In the oscilloscope state, it can measure AC voltage up to 565V and peak to peak voltage up to 1600Vp-p

Easy operation: AUTO, one button waveform capture, intelligent and easy to use, improve work efficiency

Personalized signal capture settings: The oscilloscope parameters can be manually set, including automatic/normal/single scan mode, time base, amplitude, rising/falling edge and level

Color screen display: 2.4 inch color screen, clear waveform display

Data storage: 100 sets of data and 10 sets of waveforms. Historical data and real-time display can be displayed on same screen, greatly facilitating the analysis of data

Powerful uses: it can be used in different application such as DIY electrical design ,car overhaul, production line, equipment maintenance, and power system

Multi-function Multimeter: 6000 counts display, fast and accurate measurement of AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity

Overload protection: 500mA/10A double fuse, double protection meter. Specifications: Display : 320x240 Automatic sleep : 15 minutes or disabled Battery : AA battery x 3（not included） Use time : More than 10 hours Use: 0°C~+40°C;<75% RH Storage :-10°C~+60°C;<90% RH Size:83x160x32 (mm) Weight: About 190g Fuse specification : 750mA/250V ,10A/250V Fuse : 500mA /250V,10A / 250V

Oscilloscope: Bandwidth : ACV /10MHz Max real-time sampling rate : 50Msps Storage : 100 Datas/10 Waveforms Number of channels : 1 Vertical sensitivity range : 500mV- 200V/div Time base range : 200ns~10s/div Vertical range Accuracy : (5%+ 0.2div) Time Base Accuracy : (0.01%+ 0.1div) Trigger Mode : Auto / Single / Normal Trigger edge selection : Rising/falling edge measurement function : Vp-p, Vavg, Vrms, Hz

Multimeter DC Voltage:400mV-1000V DC Current:40mA-10A AC Voltage:400mV-750V AC Current:40mA-10A Resistance:400.0Ω~ 40.00MΩ Capacitance:51.2nF~ 100uF,100mF Frequency:5Hz ~ 5MHz Duty cycle:0.1%~99.9% Continuity test: Resistance<50Ω,beep Diode test: Voltage is about 1 .5 V Package List: 1 x Oscilloscope Multimeter 1 x One Pair of Test Leads 1 x English User Manual 1 x Cloth bag 1 x Packing box
