Battery Included : No
High-concerned chemical : None
Voltage range : Other
Origin : Mainland China
DIY Supplies : Electrical
Display Type : Digital Only
Name : USB Tester Voltmeter Ammeter
Voltage and Current Detection Meter : Current Voltage Monitor
Fast Charging Trigger Meter : Power Meter

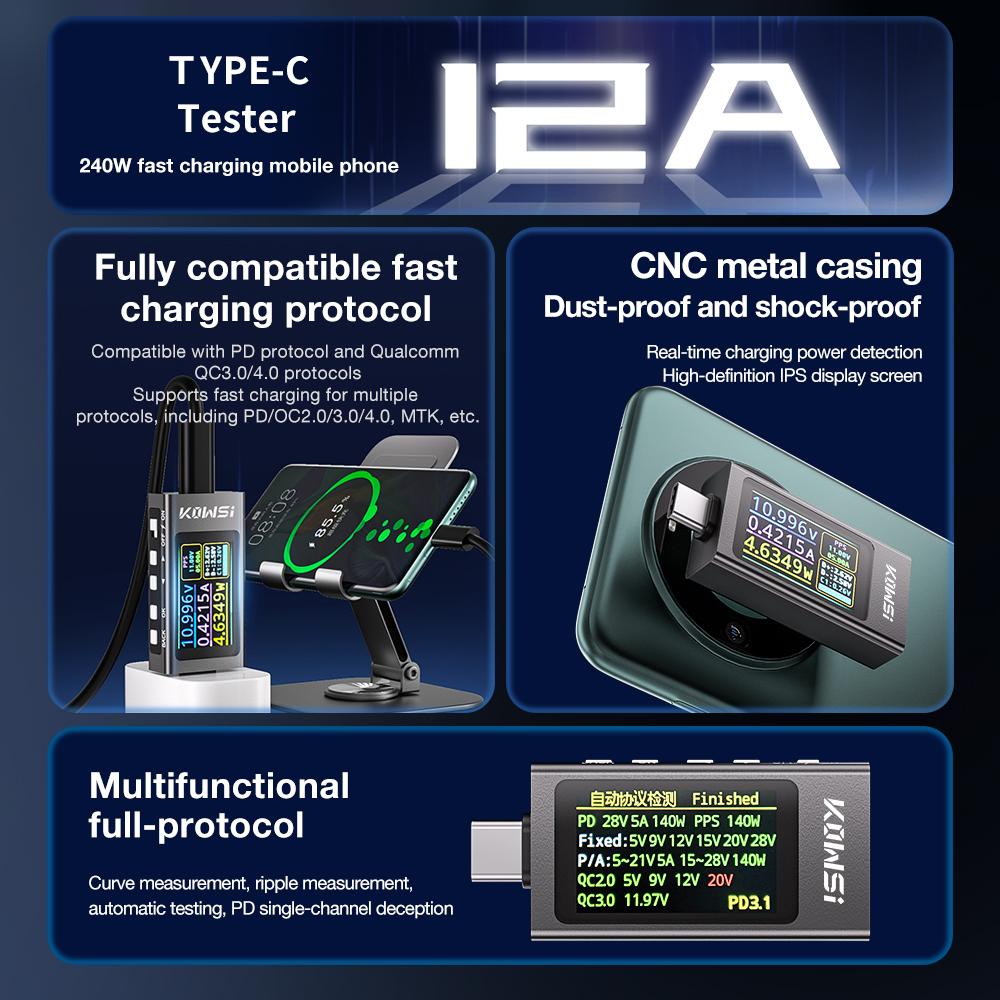

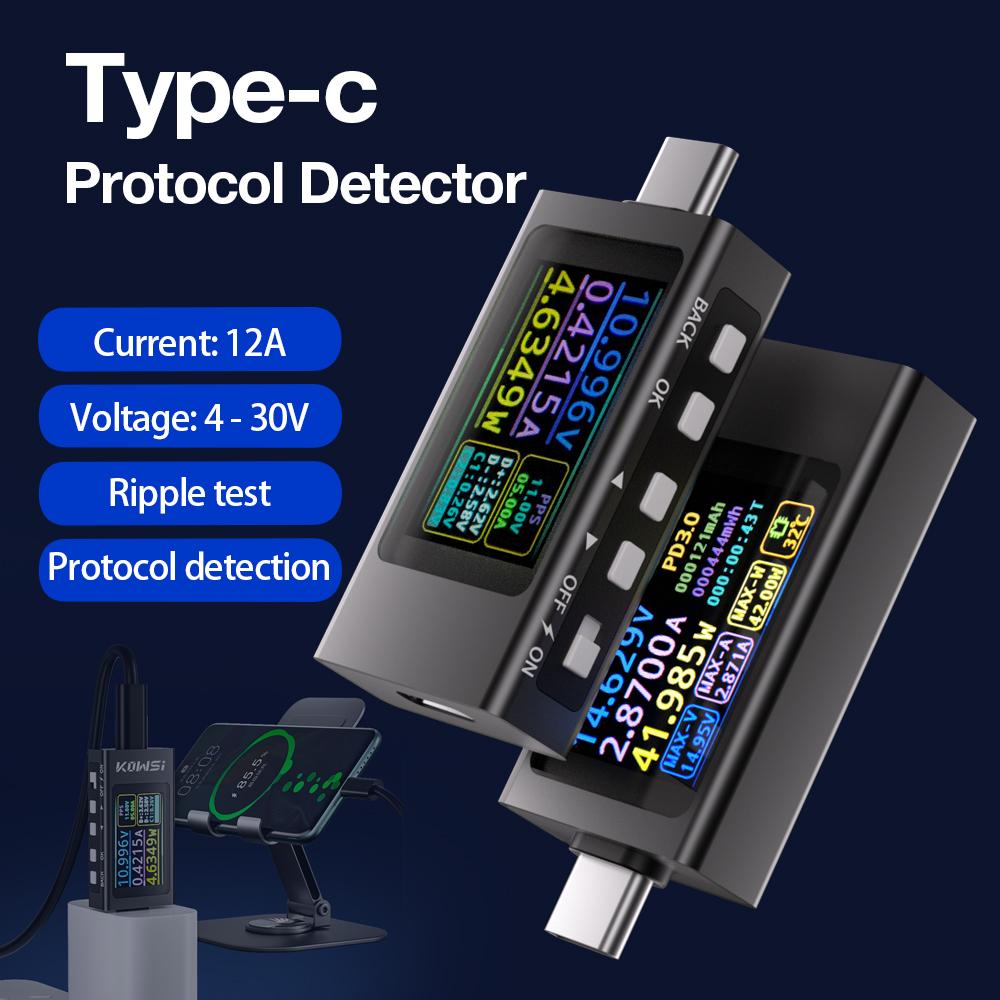

KWS-X1 Type-C Tester Digital Ammeter Voltmeter Portable Current Voltage Monitor Multifunctional Full-protocol Monitor 4V-30V 0V-12A

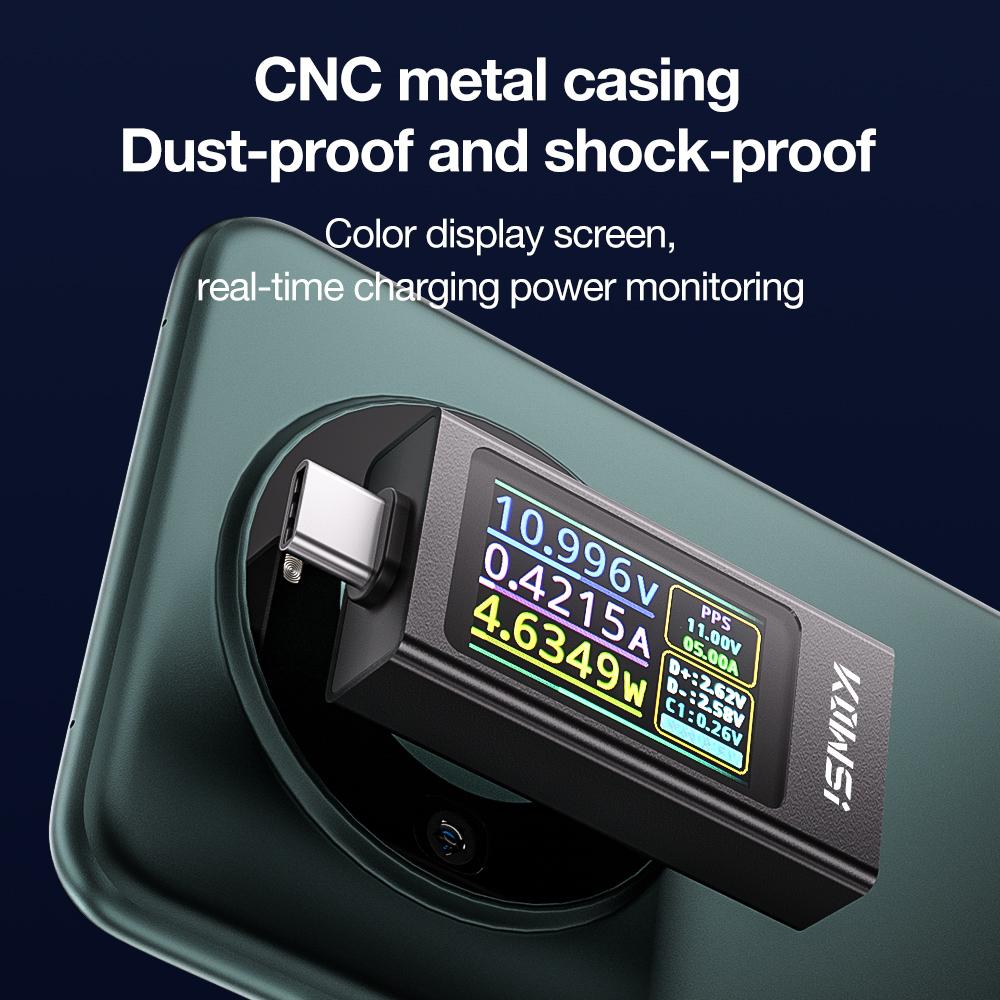

1. CNC metal case, dustproof and drop-proof, HD IPS display, real-time charging power detection.
2. 3 kinds of display page, make the function more strengthened, click the button to change the page.

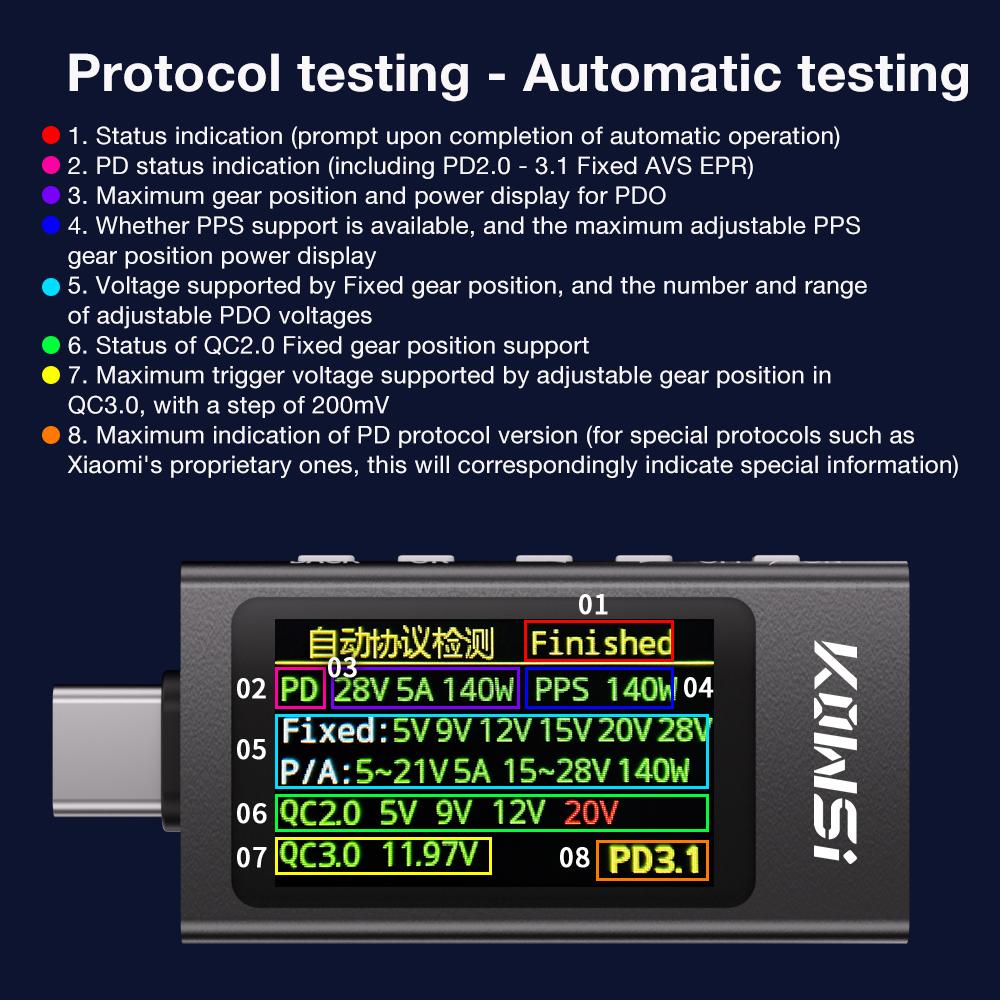

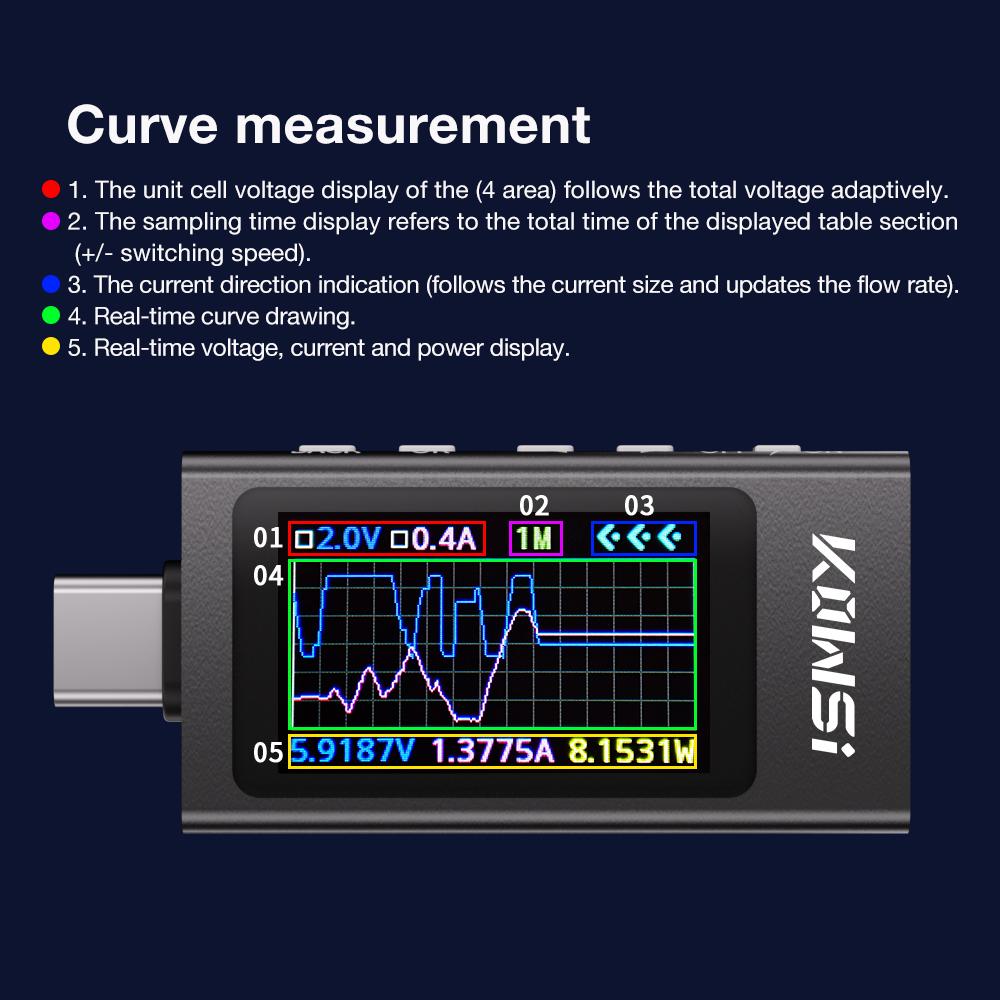

3. Multi-function full protocol, curve measurement, ripple measurement, protocol test (automatic test, PD single decoy).
4. Highly reliable and safe Type-C voltage and current testing meter and fast charging trigger meter for mobile communication terminals.

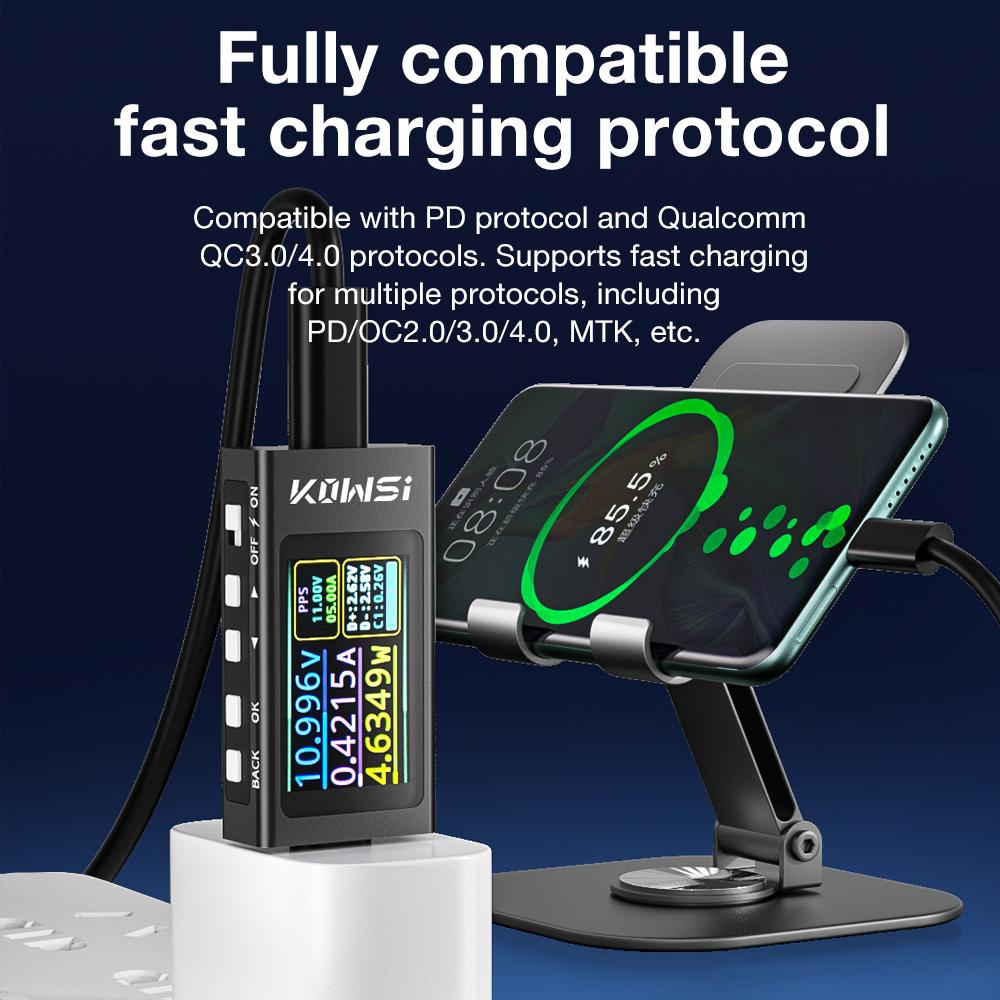

5. Fully compatible with fast charging protocol and Qualcomm QC3.0/4.0 protocol, compatible with a variety of protocols fast charging, support PD/OC2.0/3.0/4.0, MTK and other protocols.
6. Support automatic protocol detection, PD2.0, 3.0, PPS, QC2.0, 3.0, FCP, SCP, AFC, PE, DASH VOOC, SuperVooc and so on.
Specifications
Absolute withstand voltage: 0~40V
Absolute current: 0~16A
Absolute power: 0~380W
Measuring voltage: 3.3~40V (typical: 4-30V)
Measuring current: 0~12A
Measuring power: 280W
Temperature measurement range: 0~99℃
Sampling frequency: 2~5MHz
Product size: 54.96*24.45*11.15mm
Package list
1 * Type-C tester
