Handheld 5 In 1 Wall Metal Detector Backlit Screw Detector Wood Stud Scanner Pipe Cable Wires Wall Scanner for Home Decoration

Battery Included : No High-concerned chemical : None Origin : Mainland China

Model Number : Wall Scanner DIY Supplies : Metalworking With LCD Screen Or Not : Yes Power Type : Battery-Powered Feature 1 : PVC Water Pipe Metal Finder Scanner Feature 2 : pipe detector and cables on wall

Handheld 5 in 1 Wall Metal Detector Backlit Screw Detector Wood Stud Scanner Pipe Cable Wires Wall Scanner for Home Decoration

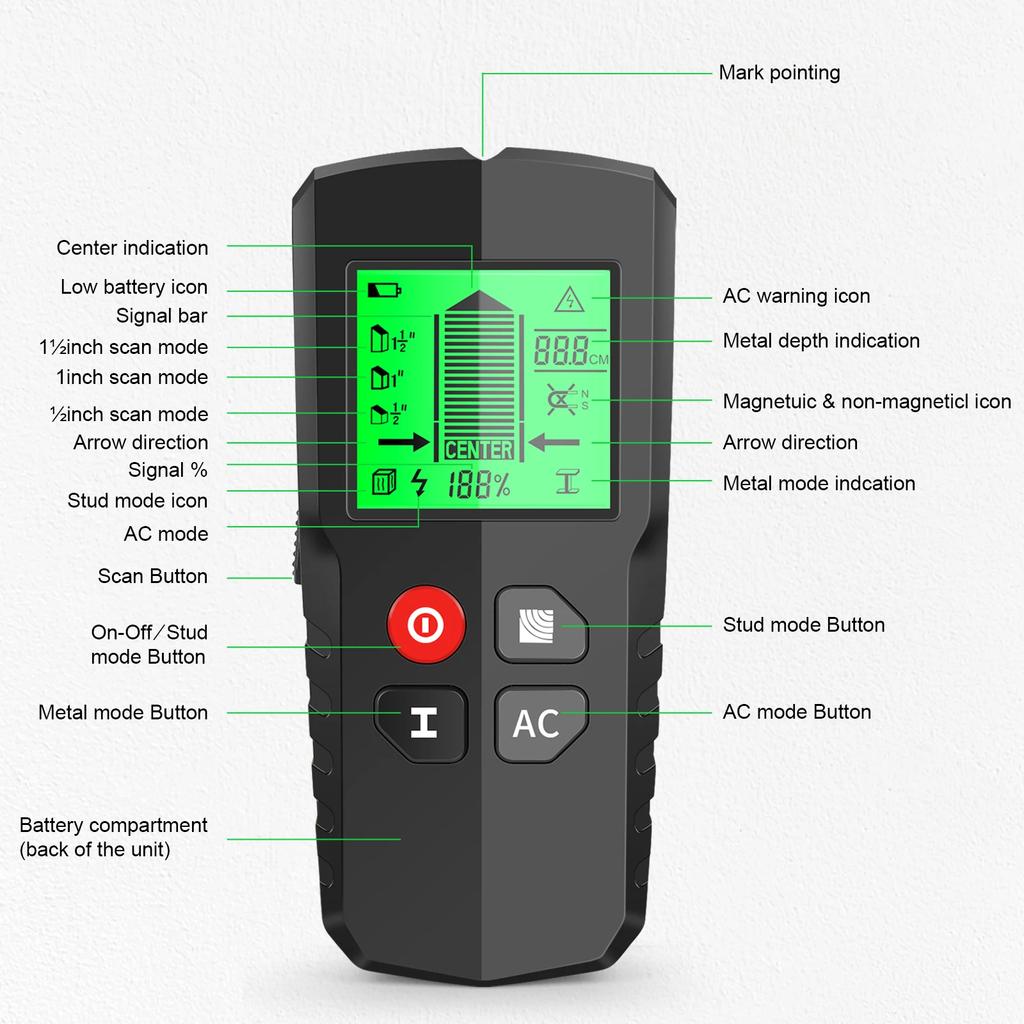

Detection Mode Selection Stud Mode:

In stud mode, there are 3 scan modes o choose for properly thick of the scanning surface：

1/2"Scan Mode can detect 1/2 in. (13mn) deep.

1"Scan Mode can detect 1 in. (25mm)deep.

1 1/2"Scan Mode can detect 1 1/2 in.(38mm) deep.

If you don't know the depth of the detection, it is recommended to use 1/2"scan mode first. When 1/2"scan mode is not detected, use 1"or 1 1/2"scan mode instead.

Metal Mode:

The detection of magnetic metal can be as deep as 3.2 in. (80mm)(diameter 15mm galvanized steel tube)

It can detect non-magnetic metals up tc 2.4 in. (60mm) (diameter 13mm copper tube).

AC Mode:

Detect unshielded AC live wire up to 2 in. (51mm) deep. Product Features ·1/2"Stud Scan Mode:Detects wood or metal studs up to 13mm deep ·1"Stud Scan Mode:Detects wood or metal studs up to 25mm deep ·1 1/2"Stud Scan Mode:Detects wood or metal studs up to 38mm deep ·Metal Mode:Detects metal up to 80mm for magnetic(60mm for non-magnetic) deep ·AC Mode:Detects live unshielded AC wires up to 51mm deep ·Metal Depth Indicator ·Green Backlight .Low Voltage Indicator ·Battery Type:9V battery(6F22) (NOT included) ·Operating Current:<50ma ·Shutdown Current:<10UA ·Automatic Shutdown Time:3 minutes
