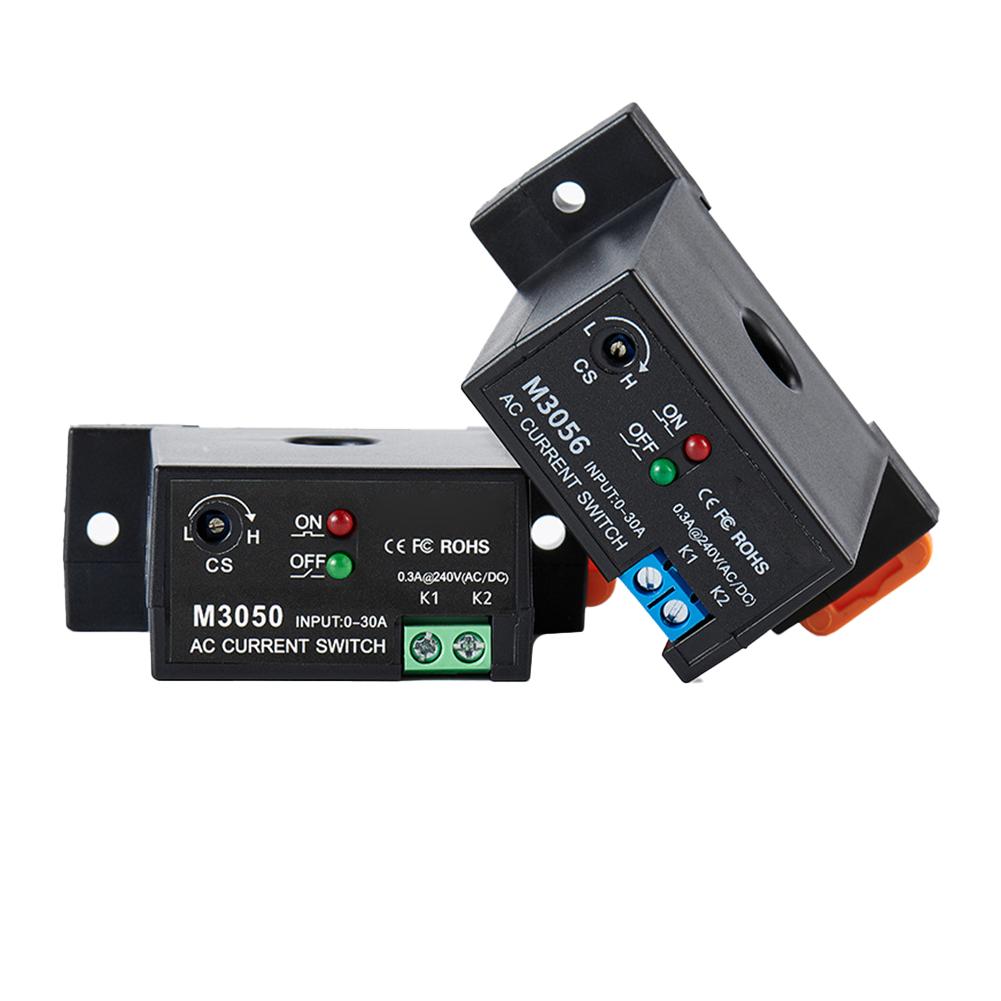

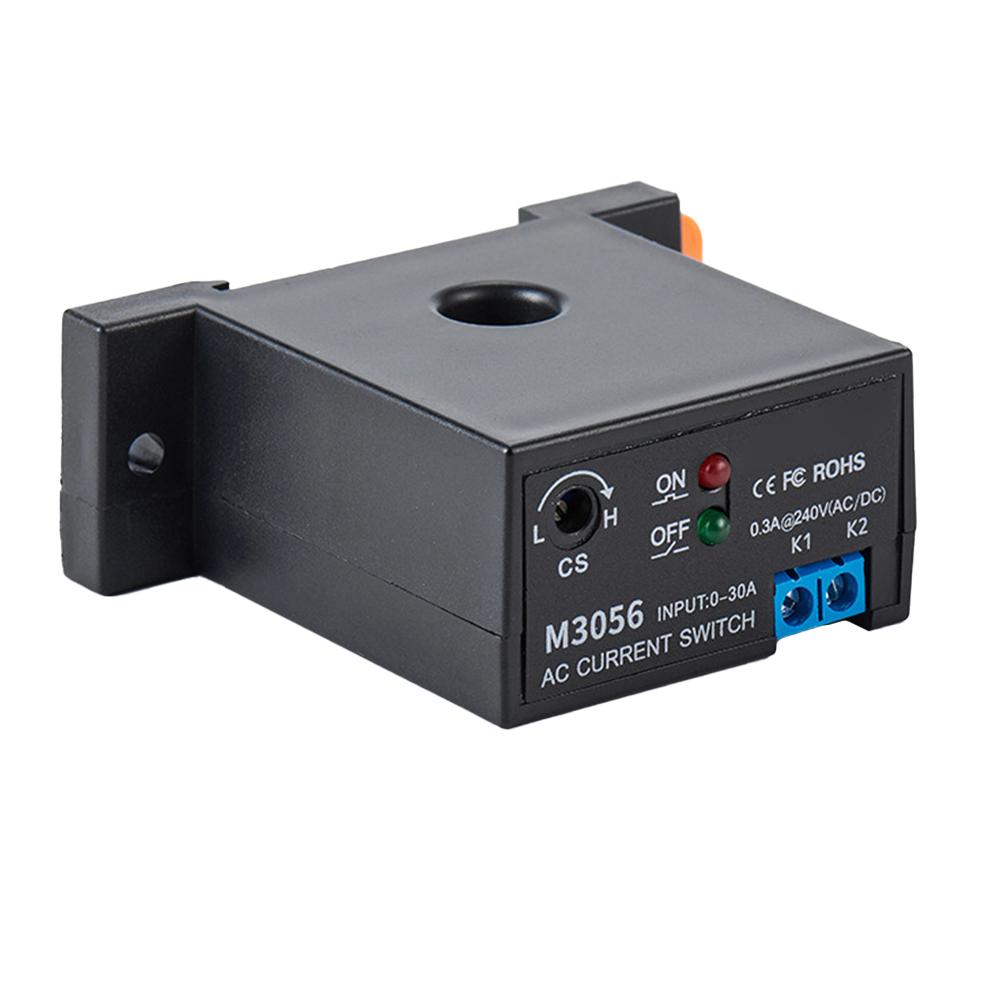

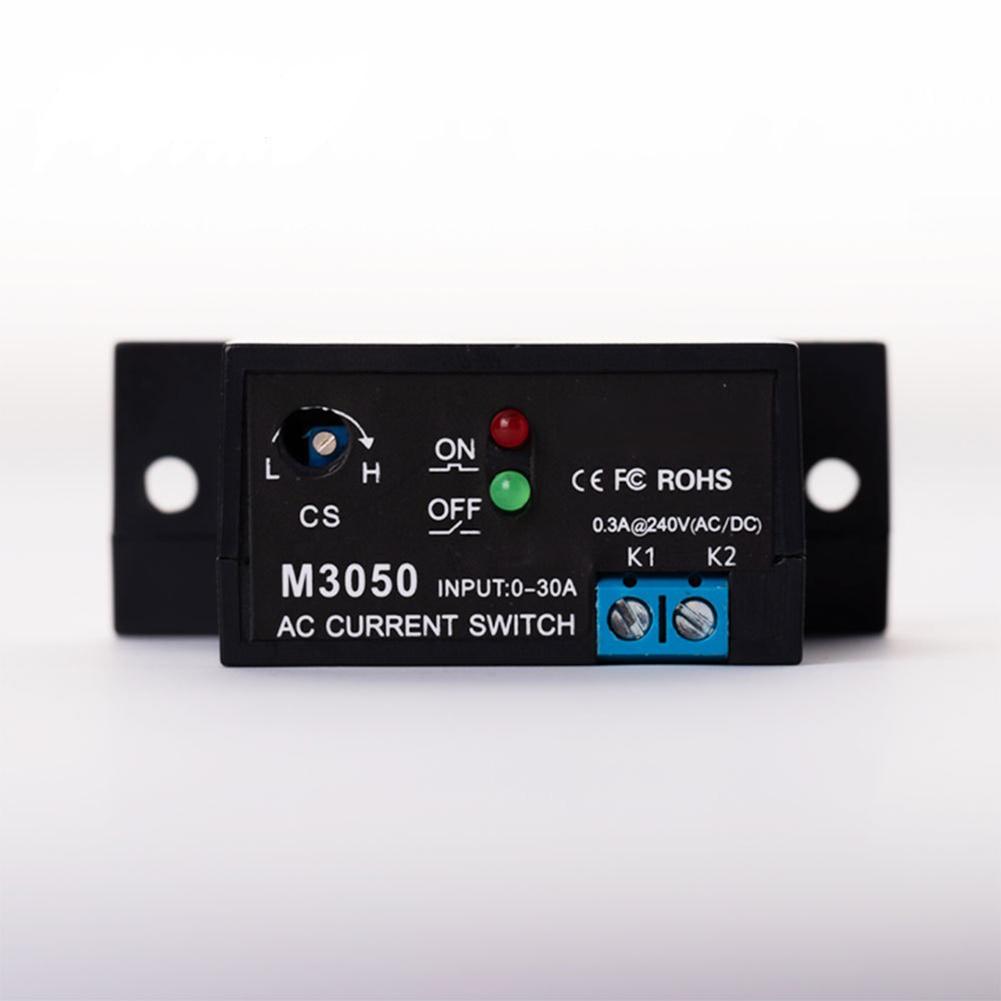

AC Current Sensing Switch 0.2-30A Self-Powered Induction Relay M3050/M3056 With Adjustable Threshold And Safety Isolation

High-concerned chemical : None Material : ABS Origin : Mainland China

Features: Working principle: Normally open: M3050 When the drill line current exceeds the set value, the red light is on and the output signal is turned off; when the current is lower than the set value, the green light is on and the switch is closed. Normally closed: M3056 When the drill line current exceeds the set value, the green light is on and the output signal is turned on; when the current is lower than the set value, the red light is on and the switch is closed.

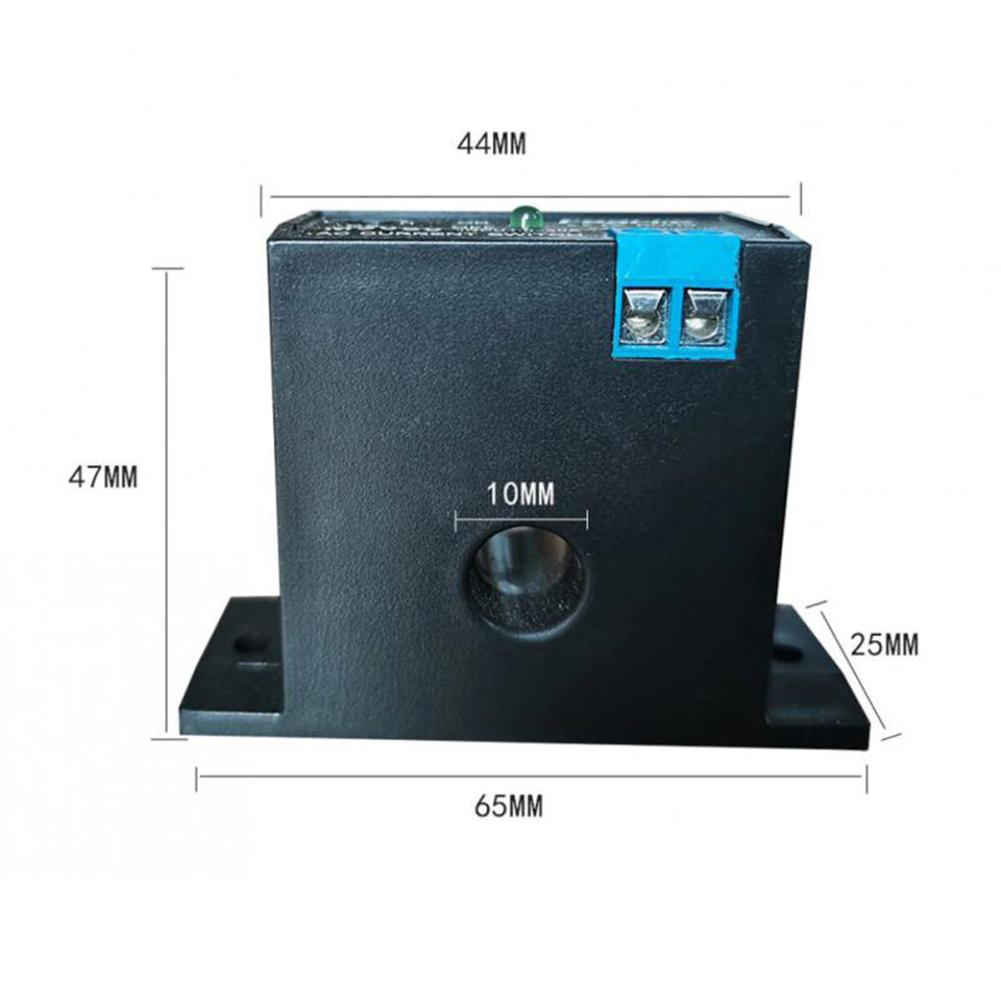

Specifications: Part name:Switching induction relay Material: abs Monitoring current: 0.2-30A Contact capacity: 0.3A @ 240V AC/DC Drill line diameter: 10MM size: 65x25x47MM Maximum leakage current value: mA Maximum overload capacity:Working temperature: -20-55℃ Hysteresis: less than 1% Color: black > Mutual inductance current monitoring, input and output safety isolation, self-powered > Monitoring current range up to 30A; monitoring threshold adjustable within the range of 0.2-30A. > Hysteresis less than 1%. Can be used in strong magnetic environment. > Non-contact electronic switch, fast response speed, unlimited switching times. > The shell is made of environmentally friendly flame-retardant PC material.

Package Contents: 1 * Current Sensing Switch Relay Note: 1: Please allow 1-2 cm error due to manual measurement, please make sure you do not mind before ordering. 2: Due to the difference between different monitors, the image may not reflect the actual color of the item
