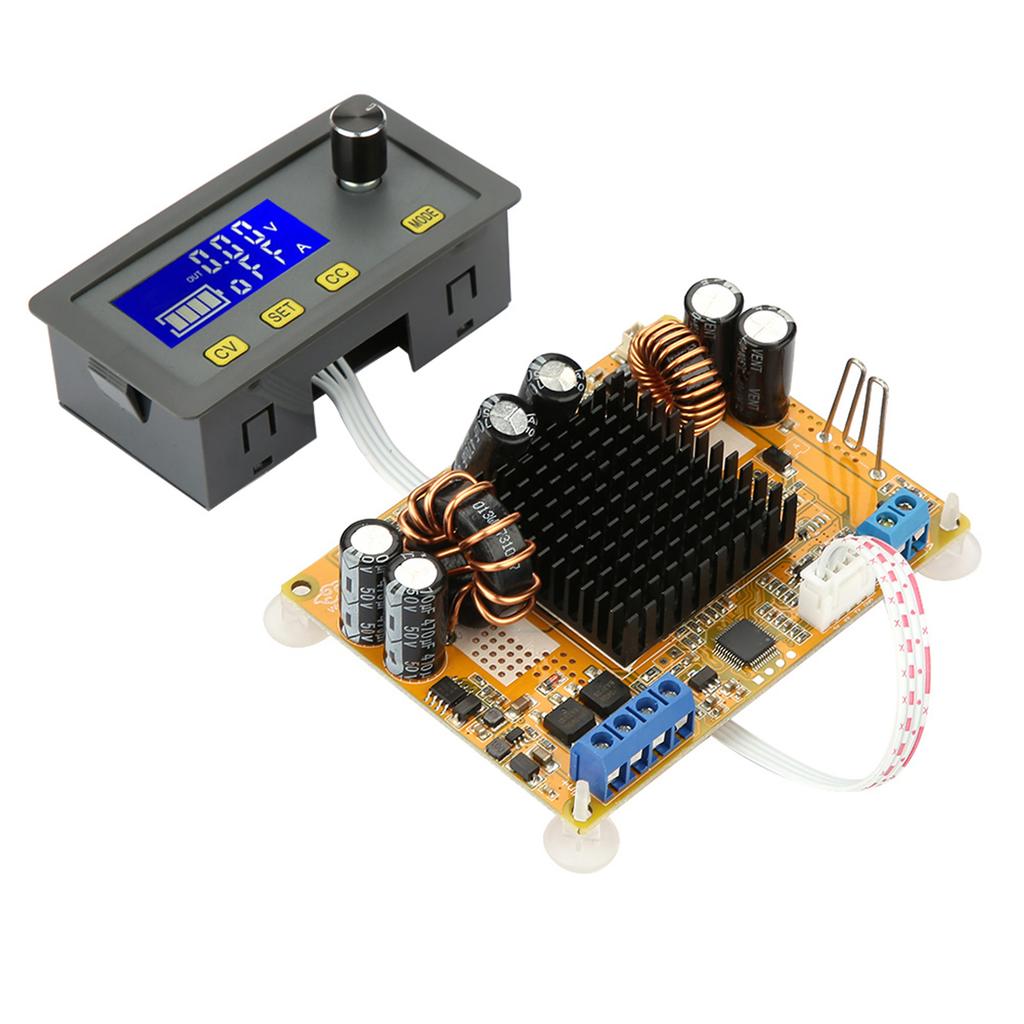

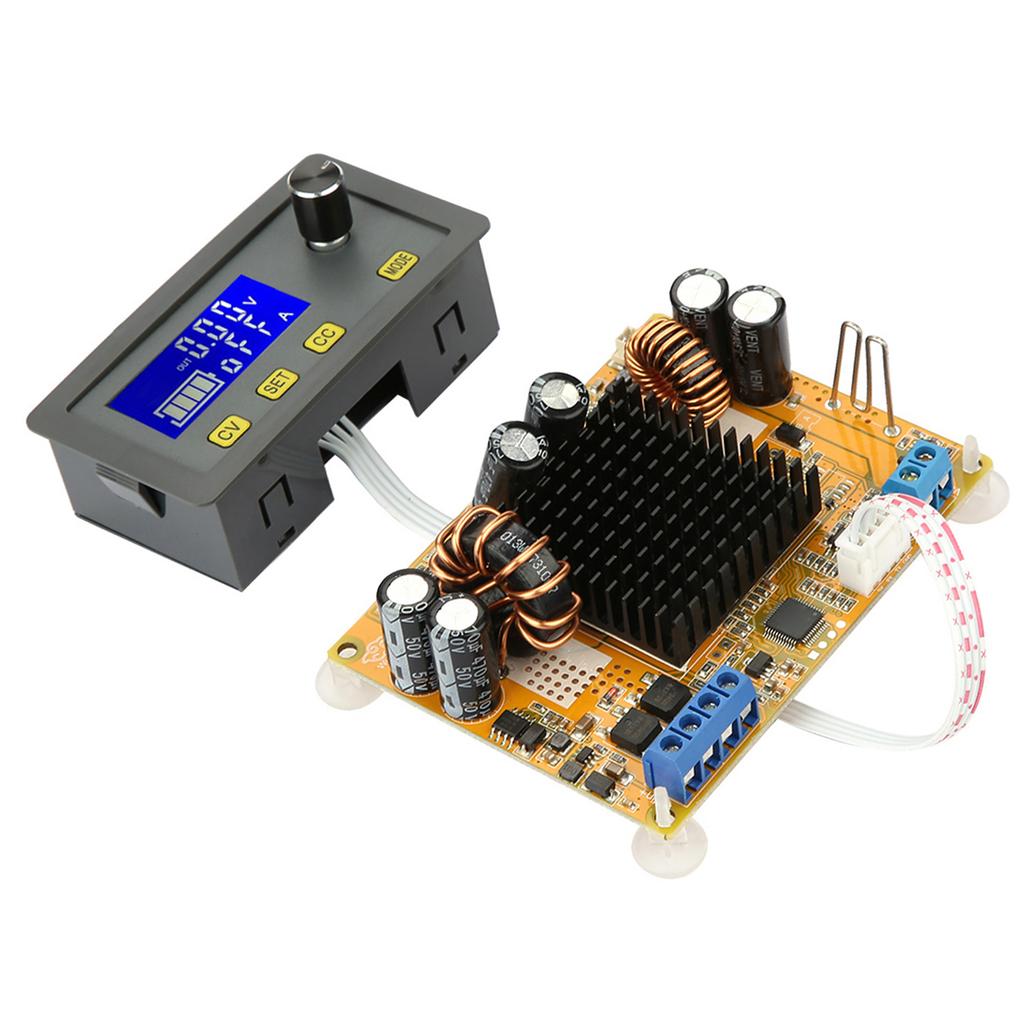

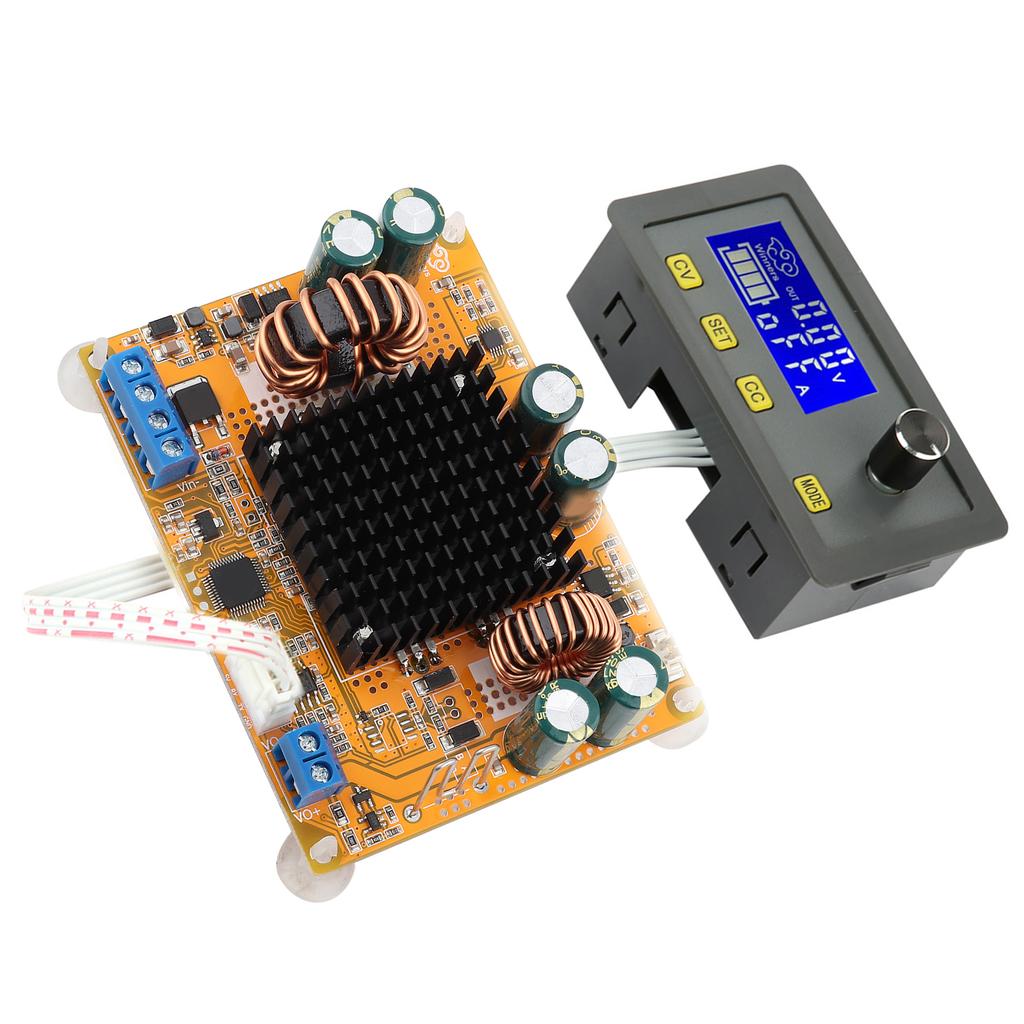

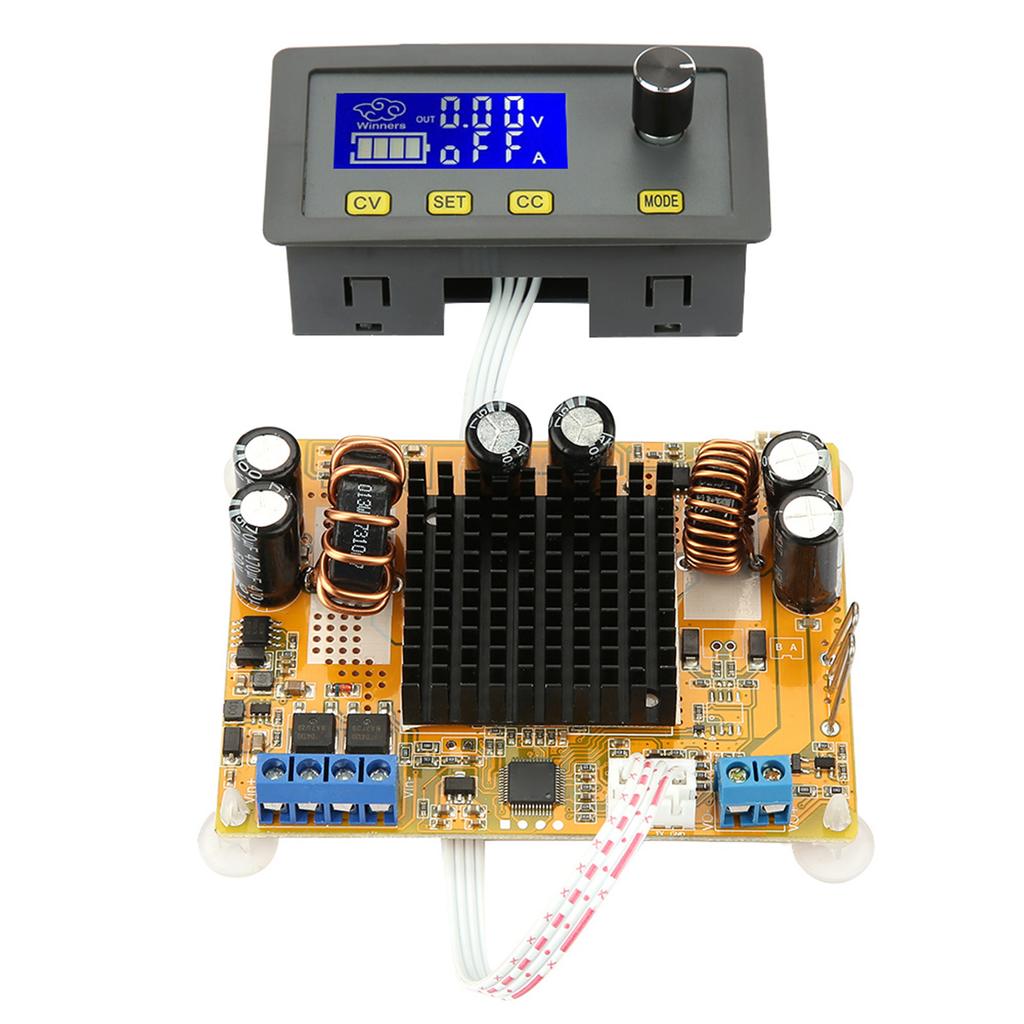

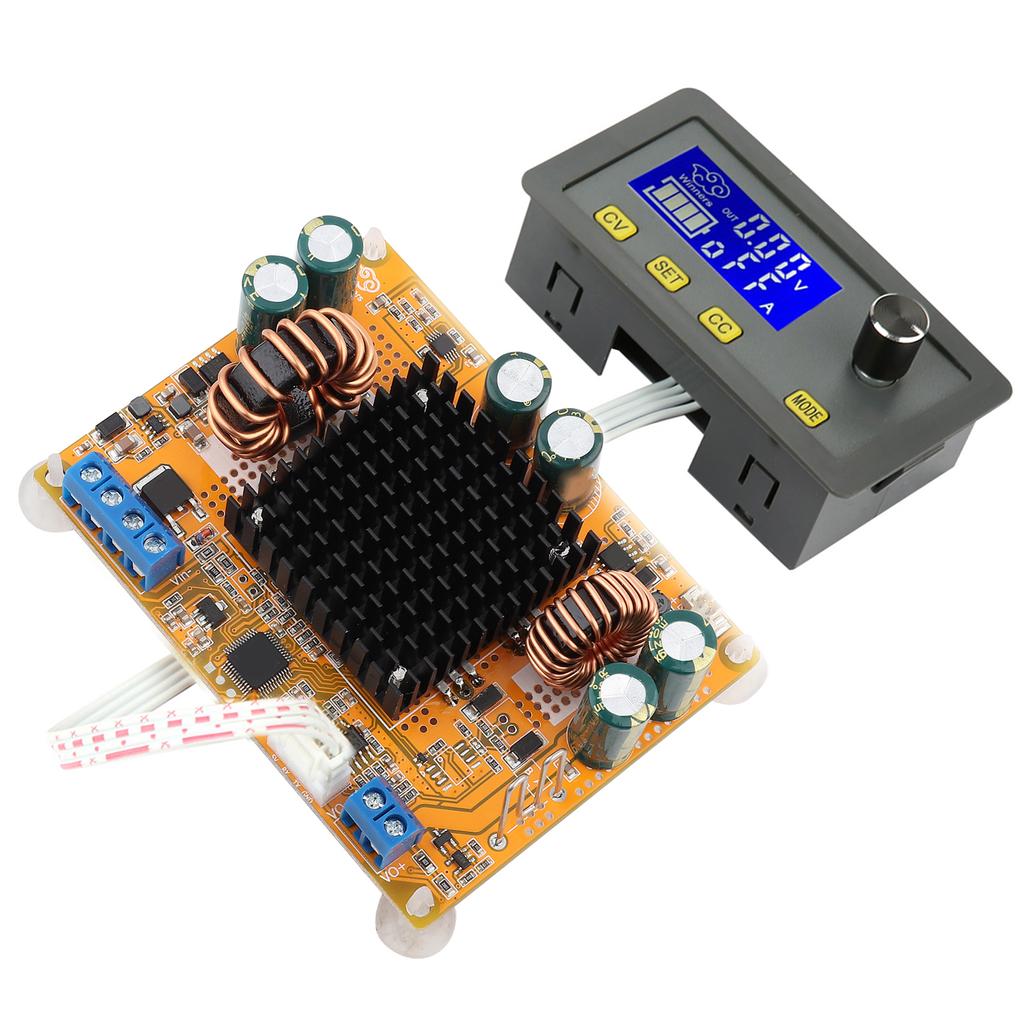

DCDC Adjustable 5A LCD Digital Automatic Stepup Stepdown Voltage Module

Descriptions: This is a DC DC automatic Step up Step down converter power supply that converts 6V 32V to 0 30V.High

accuracy

LCD display design, make it convenient to read voltage and current.and high conversion rate, can up to 95percent . Features: This is a DC DC automatic Step up Step down converter power supply that converts 6V 32V to 0 30V. High accuracy LCD display design, make it convenient to read voltage and current. Large 160W maximum power,meet you need, but we suggest work within 120W, reduce power when the voltage difference is large. High conversion rate, can up to 95percent . Working temperature: 10 +75 degrees,Please pay attention to power tube temperature, and enhance heat dissipation(there is a reserved fan installation position and terminal) Specifications: Input Voltage: DC 6V 32V Output Voltage: DC 0 32V (continuously adjustable) (The boost depends on the input voltage, and the output is up to 30V) O utput Current:Maximum.5A(Adjustable) Efficiency:Maximum.95percent Power:Maximum.160W( recommended to be used in 120W) Operating Temperature: 10 75 celsius Resolution: 0.01V(Voltage), 0.01A(Current) Short Circuit Protection: Yes Reverse Input Protection: Yes Output Backflow Protection: No, add a diode if use for charging Size: as the picture Weight:144g Connection mode: terminal VI+: input +, VO+:output + Settings: 1.Output voltage setting: short press CV button, enter the voltage setting mode, turn potentiometer to adjust the current voltage value, press the potentiometer can switch to the voltage value of decimal point before or after the decimal point to adjust, after the adjustment, short press CV again to save and exit 2.Output current setting: short press CC button, enter the current setting mode, turn potentiometer to adjust the current value, press the potentiometer can switch to the decimal point before or after the decimal point of current value to adjust,after the adjustment,short press CC again to save and exit. 3.Display MODE setting: short press MODE , switch display mode, IN: display input voltage, OUT : display output voltage 4.Switch output setting: directly short press the potentiometer key, open or close the output terminal voltage, and the current position will display OFF when closing. Package Included: 1 x Automatic Step up Step down Module Note: Please note that the new type and old type of this product will be sent randomly and make sure you will not mind before ordering. .
