Feature:
1. Comprehensive Display: The battery voltage crrent meter features a 3.5 inch colour LCD screen that provides a comprehensive and clear display of real time data, including voltage, current, power, remaining capacity, usage time, and temperature, making it easy to observe and monitor various physical parameters.
2. Versatile Display Modes: With four different display modes that can be easily switched between, users can conveniently view a range of data sets. This allows for a more comprehensive, clear, and easily observable presentation of information.
3. Advanced Alarm Functions: The battery capacity percentage time power voltmeter is equipped with features such as over voltage, under voltage, over current during charging, over current during discharging, capacity alarms, and audible alarms to alert users of potential issues, ensuring the safety and proper functioning of the monitored system.
4. Rugged And Long Lasting: The front of the battery energy capacity ammeter voltmeter is covered with acrylic film, and the buttons are designed with special silicone keys, providing waterproof guard without the need for additional covers. The splitter accessories utilize pure copper screws for optimal conductivity, minimal heat generation, and low power consumption, while the cable interfaces are made with excellent sockets for enhanced durability and erosion resistance.
5. Energy Saving: The digital battery capacity tester offers a manual screen off sleep mode, allowing users to conserve power and rest undisturbed. After 8 hours of night time screen off, the monitor automatically lights up, providing continuous monitoring without disrupting sleep. It is suitable for monitoring the battery levels of various devices, including RVs, electric scooters, solar systems, and power equipment, ensuring efficient and reliable power management.
Specification:
Item Type: Battery Monitor
Material: ABS, Acrylic, Red Copper
Input Voltage: 8V 120V
Current Range: 0.10 500A
Capacity: 0.0AH 99999AH
Energy: 0.0KWH 9999KWH
Power Value: 96KW
Temperature: 20 degrees C 150 degrees C
Voltage: + (1percent +2) Characters
Current: + (1percent +5) Characters
Capacity: + (1percent +5) Characters
Temperature: + 2 degrees C
Capacity Automatic Filling Voltage: 0.1 200V
Delayed Capacity Auto Fill: 0 2005
Capacity Auto Zeroing Voltage: 0.1 200V
Delayed Capacity Auto Zeroing: 0 2005
Charging Overcurrent Alarm: 0.1 800A
Discharge Overcurrent Alarm: 0.1 800A
Low Capacity Percentage Alarm: 0 99
Battery Over Voltage Alarm: 0.1 200V
Battery Under Voltage Alarm: 0.1 200V
Delay Alarm Time: 0 200S
Power Consumption: Resting Screen: 0.4W, Bright Screen: 0.8W
Display Language: Chinese, English
Communication Address: 1 250
Measurement Rate: 20 times sec
Serial Communication Baud Rate: 9600Bps
Serial Transmission Protocol Format: Private Protocol
How To Use:
Click SET to switch the interface display.
Simple Interface
1. Click the up button to increase the monitor brightness. Click the lower key to decrease the brightness of the display.
2. Short press OK key to switch the temperature unit.
3. Long press the upper key to bring up the capacity filling pop up window and click the upper key to move to the confirmation position and click OK to fill up the capacity, and long press the lower key to bring up the capacity clearing pop up window and click the upper key to move to the confirmation position and click OK to clear the capacity.
4. Long press the SET key to enter the parameter setting page, click the lower key or upper key to switch the setting item, click the SET key to select the adjustment item, click the OK key to switch the step value of the adjustment parameter, click the upper key to change the parameter value size. Long press the SET key to exit the parameter setting interface and save the setting parameters.
Full Data Interface
1. Click the upper key to increase the display brightness, and click the lower key to decrease the display brightness.
2. Short press OK key to clear the single ampere hours.
3. Long press the upper key to bring up the capacity filling pop up window, click the upper key to move to the confirmation position and click OK to fill up the capacity, long press the lower key to bring up the capacity clearing pop up window, click the upper key to move to the confirmation position and click OK to clear the capacity.
4. Long press the SET key to enter the parameter setting page, click the down key or up key to switch the setting item, click the SET key to select the adjustment item, click the OK key to switch the step value of the adjustment parameter, click the up key to change the size of the parameter value, long press the SET key to exit the parameter setting interface and save the setting parameters.
Curve Interface
1. Click the upper key to increase the refresh time, click the lower key to decrease the refresh time, and click OK to start or pause the curve.
2. Long press SET key to enter the parameter setting page, click down key or up key to switch the setting item, click SET key to select the adjustment item, click OK key to switch the step value of the adjustment parameter, click up key to change the size of the parameter value, long press SET key to exit the parameter setting interface and save the setting parameters.
Historical Data Interface
1. Long press SET to bring up the data zero pop up window, click the upper key to move to the confirmation position and click OK to zero the data..
Package List:

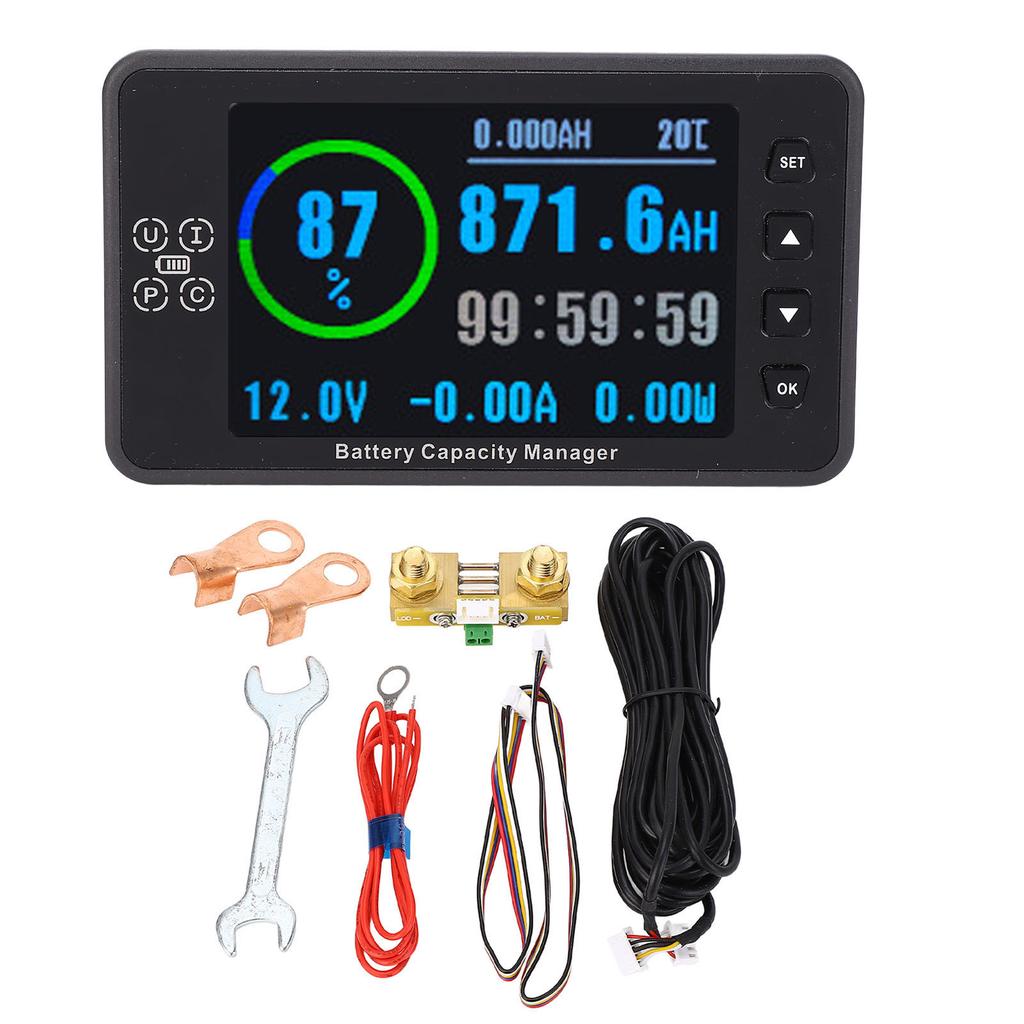

1 x Battery Monitor
3 x Connection Cables
1 x Wrench
2 x Terminal Blocks
1 x Shunt
