Feature:
1. Testing Wire Types: This wire finder can be used for network cable, telephone wire, BNC coaxial wire, and various metal wire, 0‑0.5 meter sensitivity adjustment, supports finding for dark wire.
2. LED Light Flashing: With port flashing function, you can quickly find the corresponding wire end of the switch by observing the flashing frequency of the LED light on the router.
3. 2 Finding Modes: Supports switching between POE and regular wire finding modes, with strong compatibility, suitable for line finding on various POE switch, prevent burning machine.
4. Length Measuring: The length measurement range is 1‑2000 meters, use open circuit method to measure the length of network cable, telephone line, or BNC coaxial line, with 99percent accuracy.

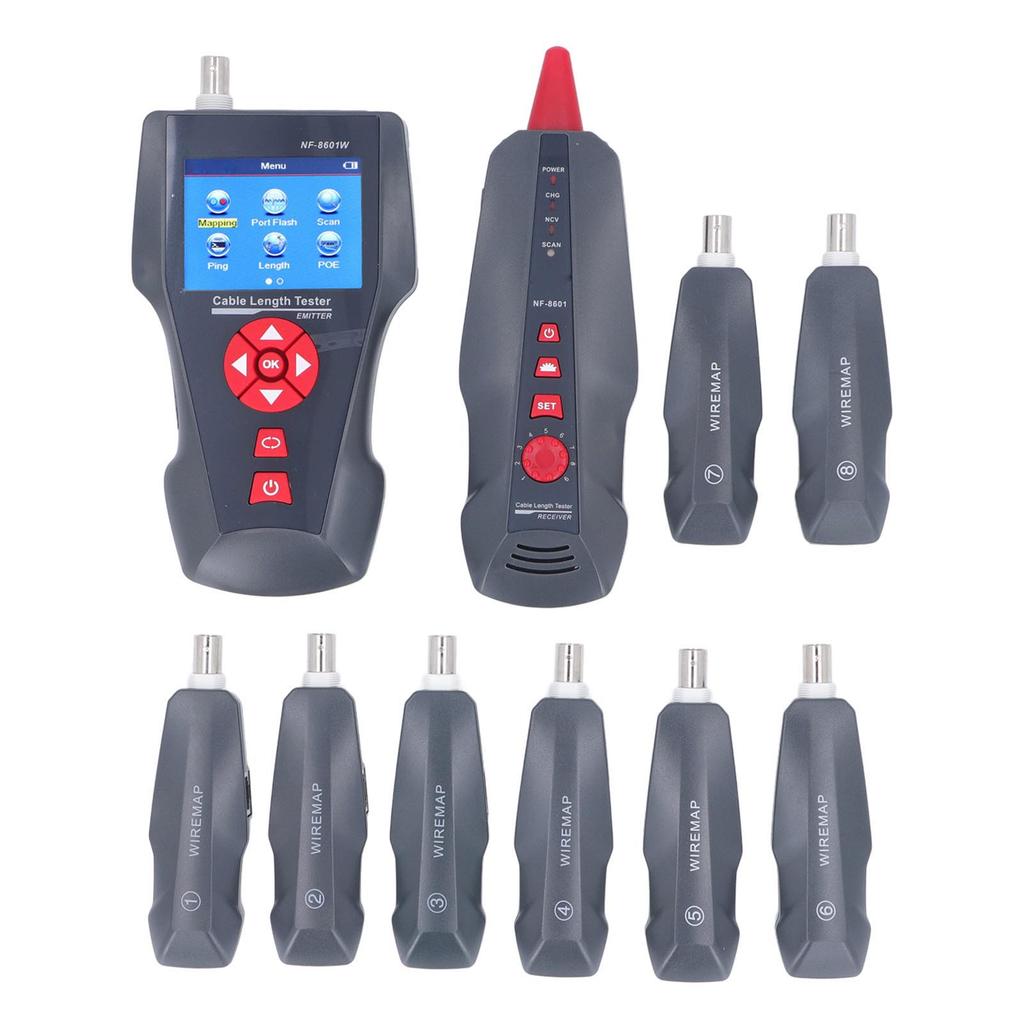

5. Clear LCD Screen: The network wire finder adopts a 2.8 inch LCD color screen with a resolution of 320x240, and supports meter, feet, and yard units display, which is clear and intuitive.

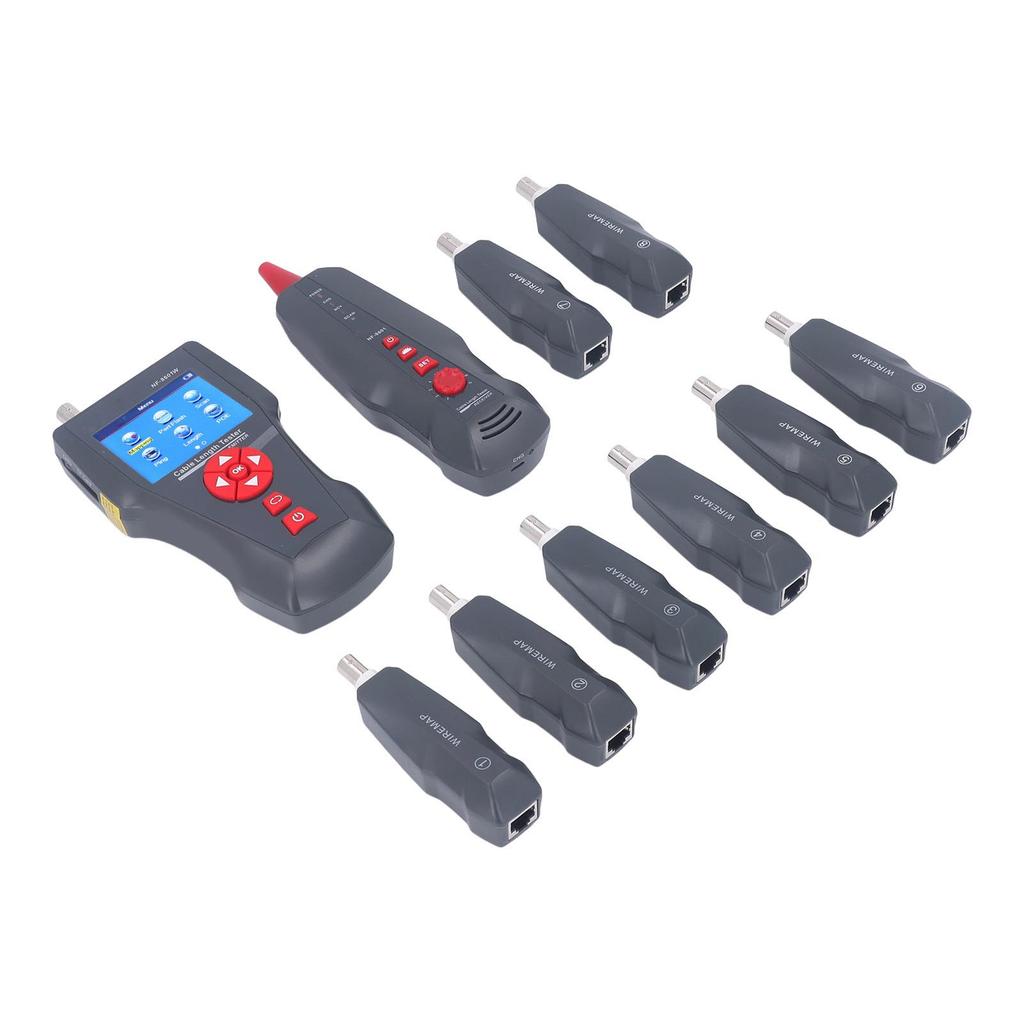

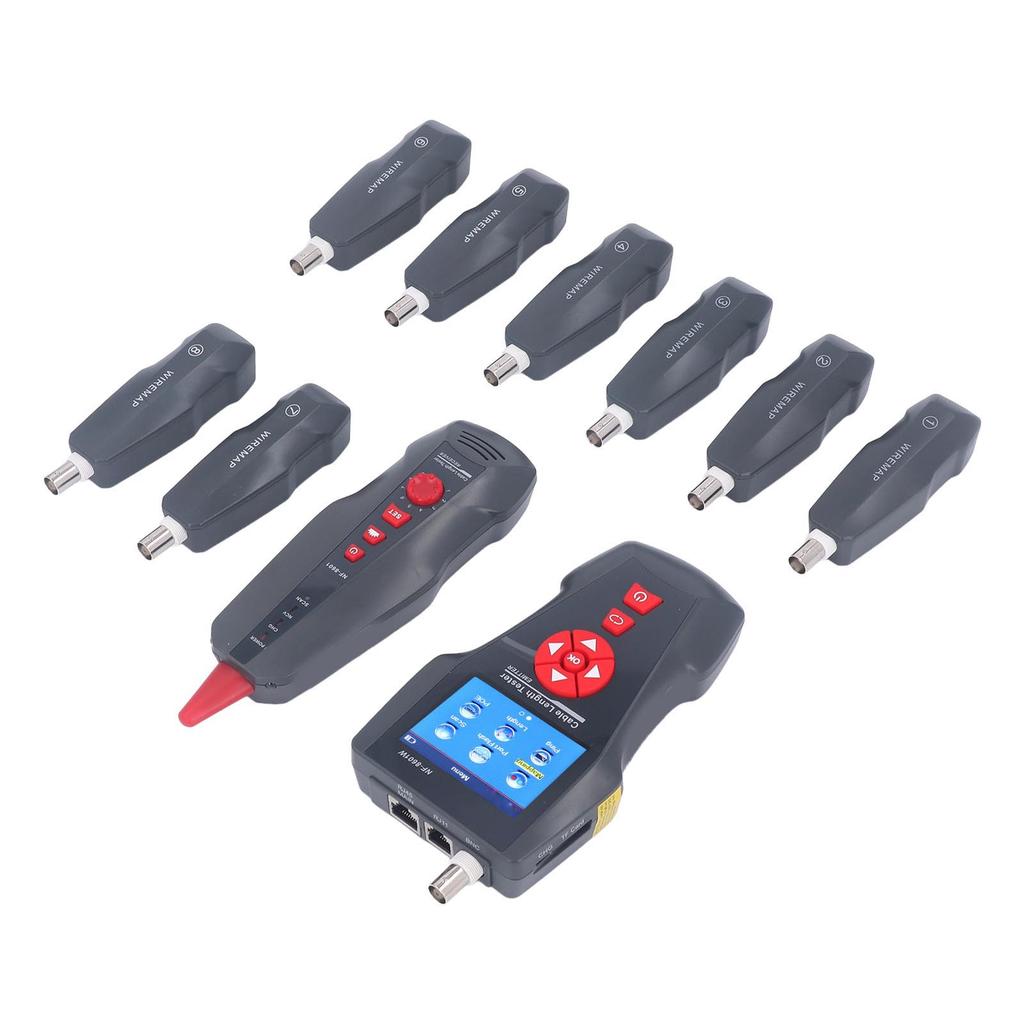

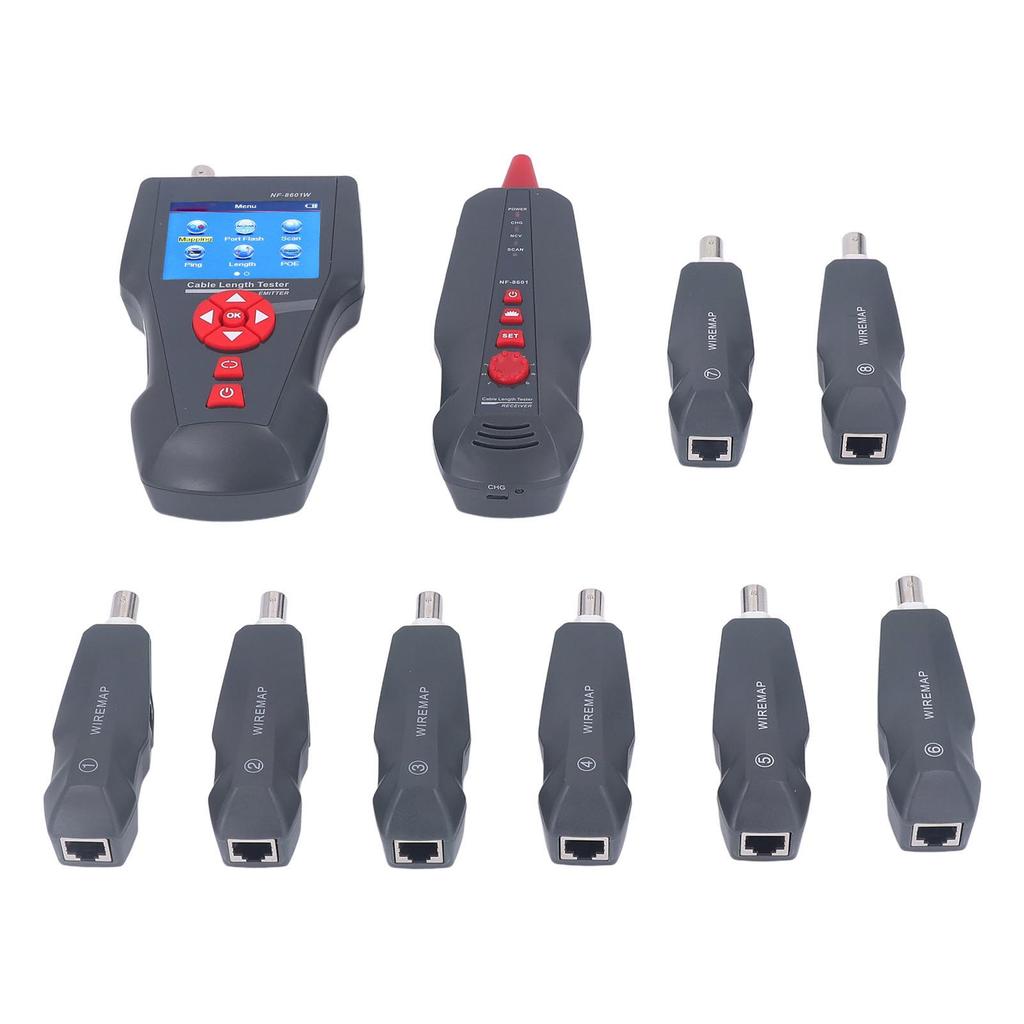

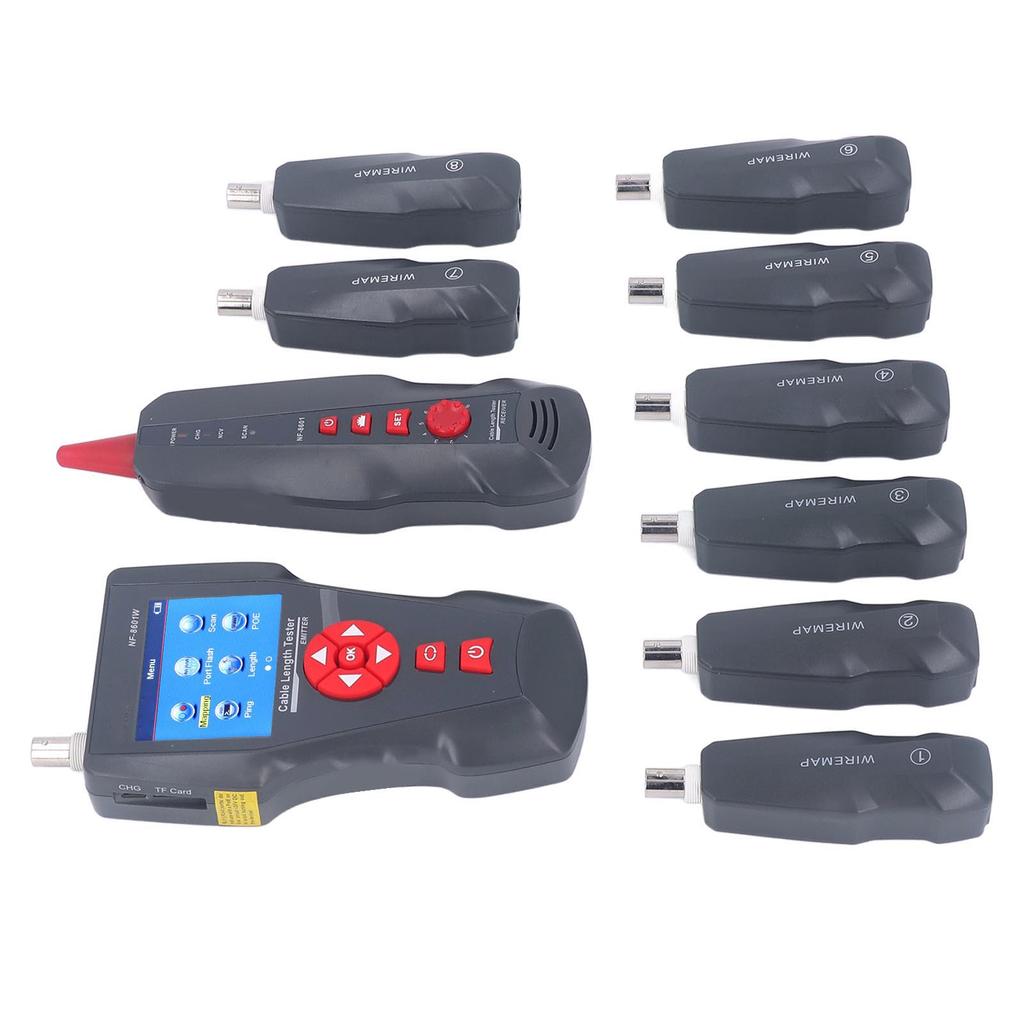

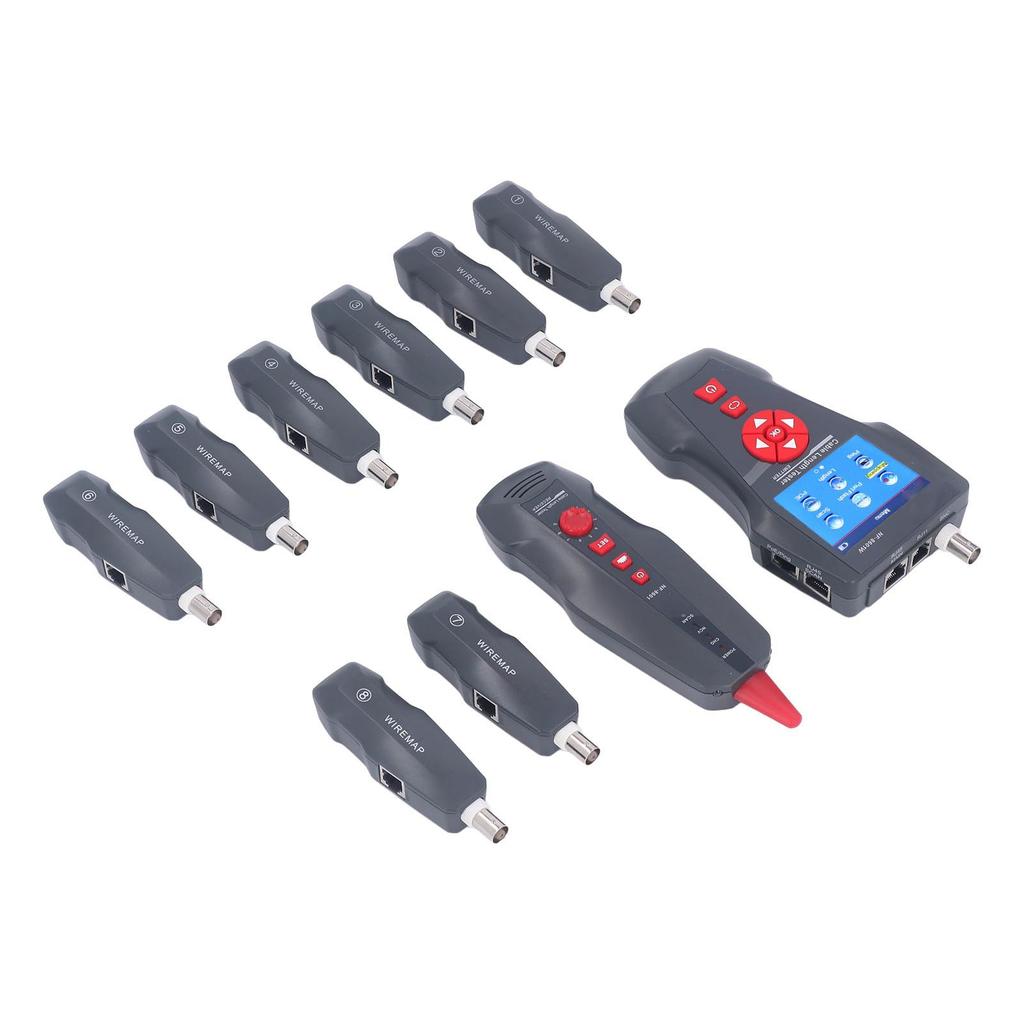

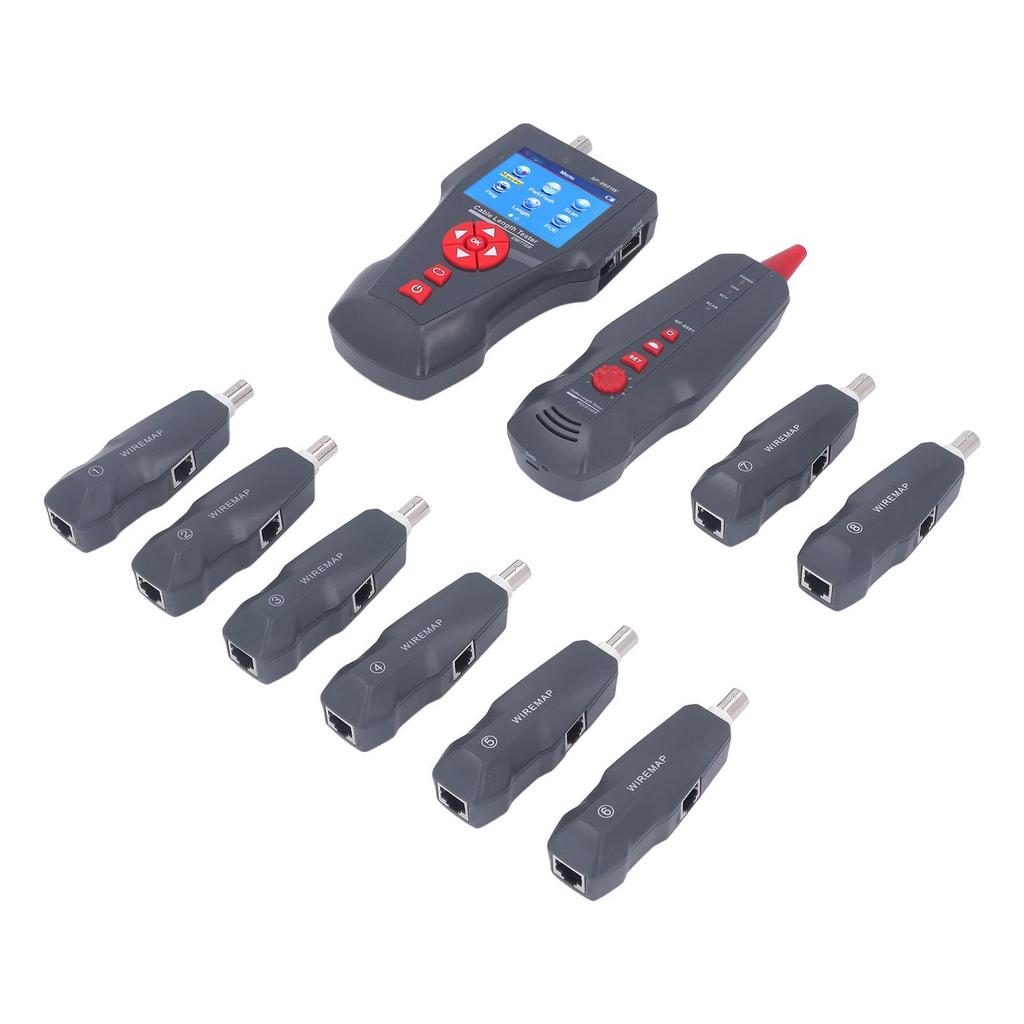

6. Included Accessories: Includes a host, a receiver, and 8 remote adapters to meet different line testing requirements, and can automatically obtain and manually modify IP addresses.
Specification:
Item Type: Network Wire Finder
Length Measurement Range: 1 2000 meter 3.3 6561.7ft
Calibration Accuracy: 2percent (+ 0.5 meters, or+ 1.5ft); (Calibration Cable >10 meters)
Measurement Accuracy: 3percent (+ 0.5 meters, or+ 1.5ft); (AMP, CAT5E, 6E cable materials)
Display Units: Meter, Feet, Yard
Display Screen: 2.8 Inch LCD Color Screen 320x240 (effective visible area 60x45mm)
Power Supply:
Host: 1 x 3.7V 1800mAh Rechargeable Lithium Battery (built in battery)
Receiver: 1 x 3.7V 1800mAh Rechargeable Lithium Battery (built in battery)
Tracking Cable Type: STP UTP 5E, 6E network cables, telephone cables, coaxial cables, and ordinary metal wires connected with crocodile clamps.
Test Cable Type: STP UTP 5E, 6E network cables, telephone cables, coaxial cables, and ordinary metal wires connected with crocodile clamps.
Working Temperature: 10 60 celsius
Working Humidity: 20percent 70percent
Test Equipment Interface:

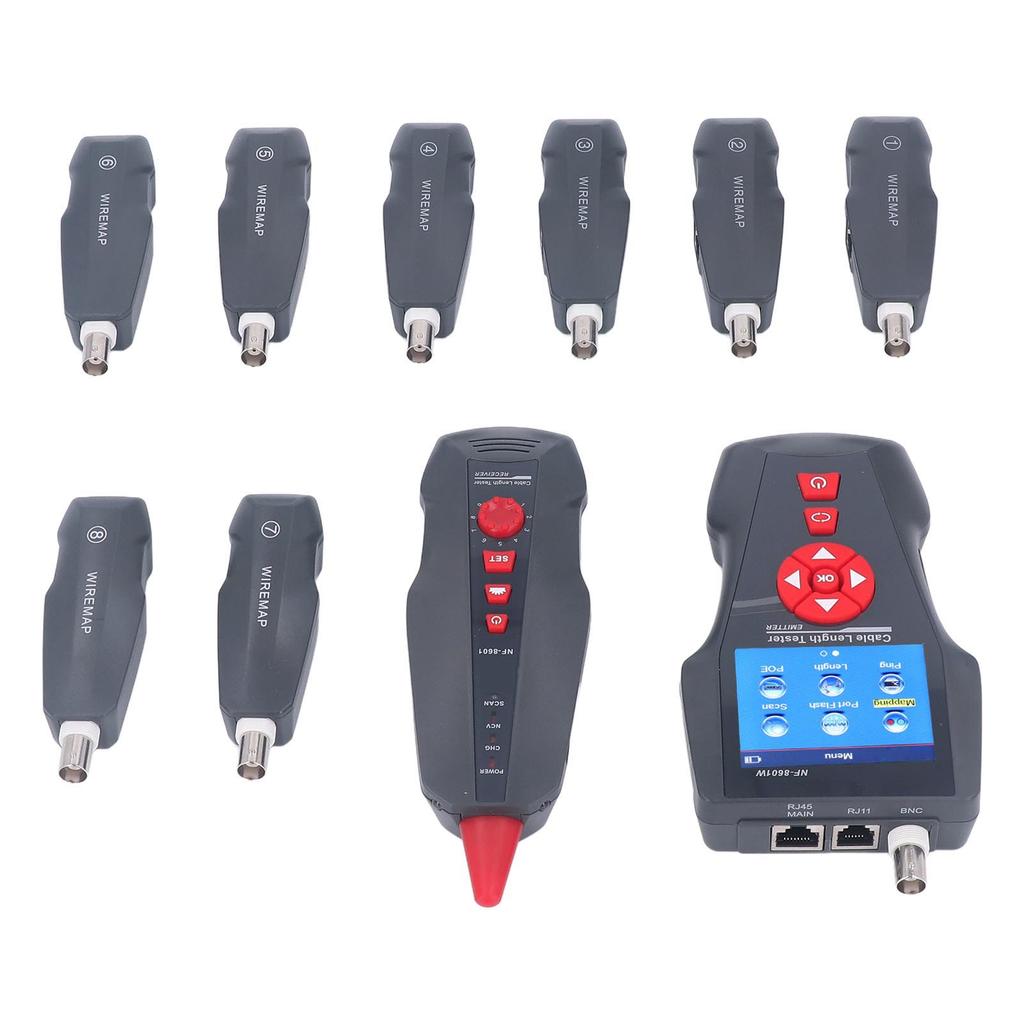

Host: RJ45(M), RJ45(S), PoE, RJ11, BNC ConnectorsRemote Recognizer: RJ45, RJ11, BNC connector interface
Memory: Micro Memory Card (not included).

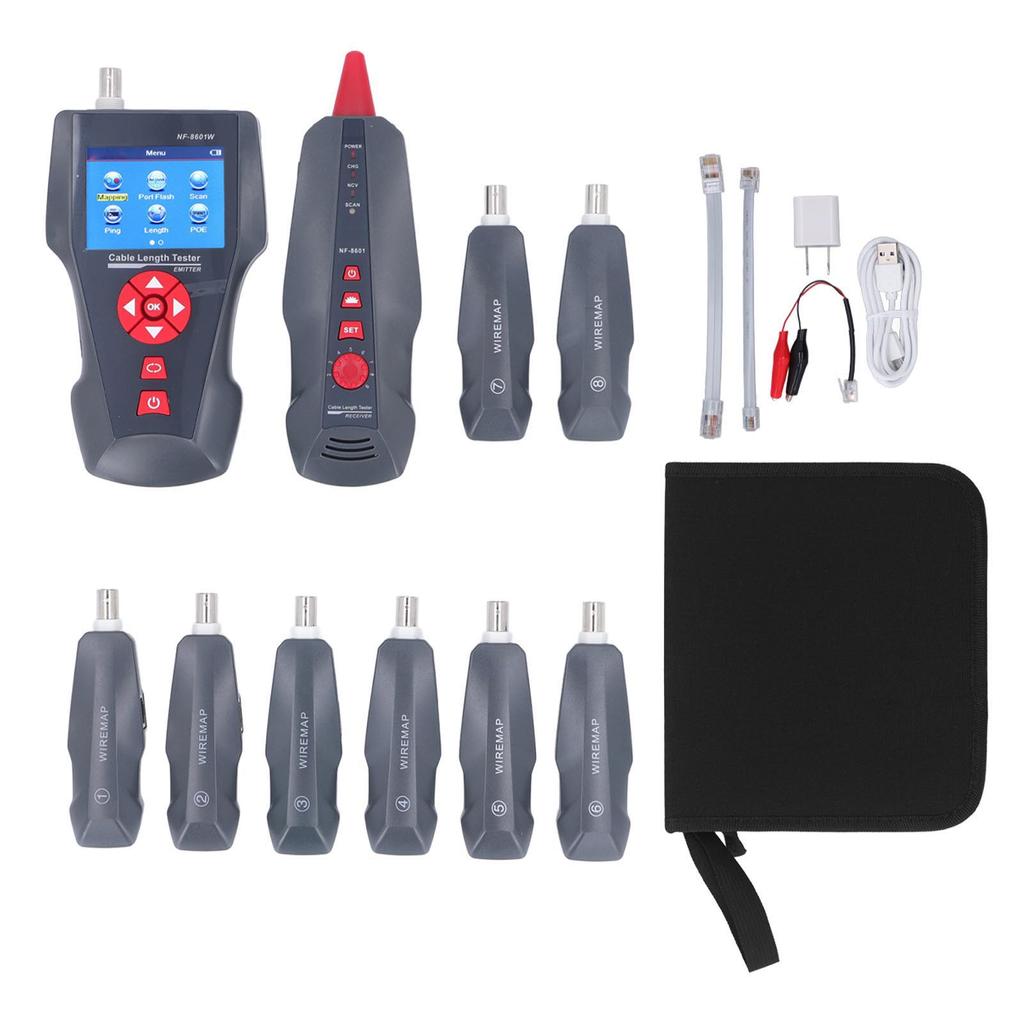

Package List:
1 x Host1 x Receiver8 x Remote Adapters1 x RJ11 Adapter Cable1 x RJ45 Adapter Cable1 x Crocodile Clip Adapter Cable1 x Charger1 x USB Cable1 x User Manual1 x Storage Bag
