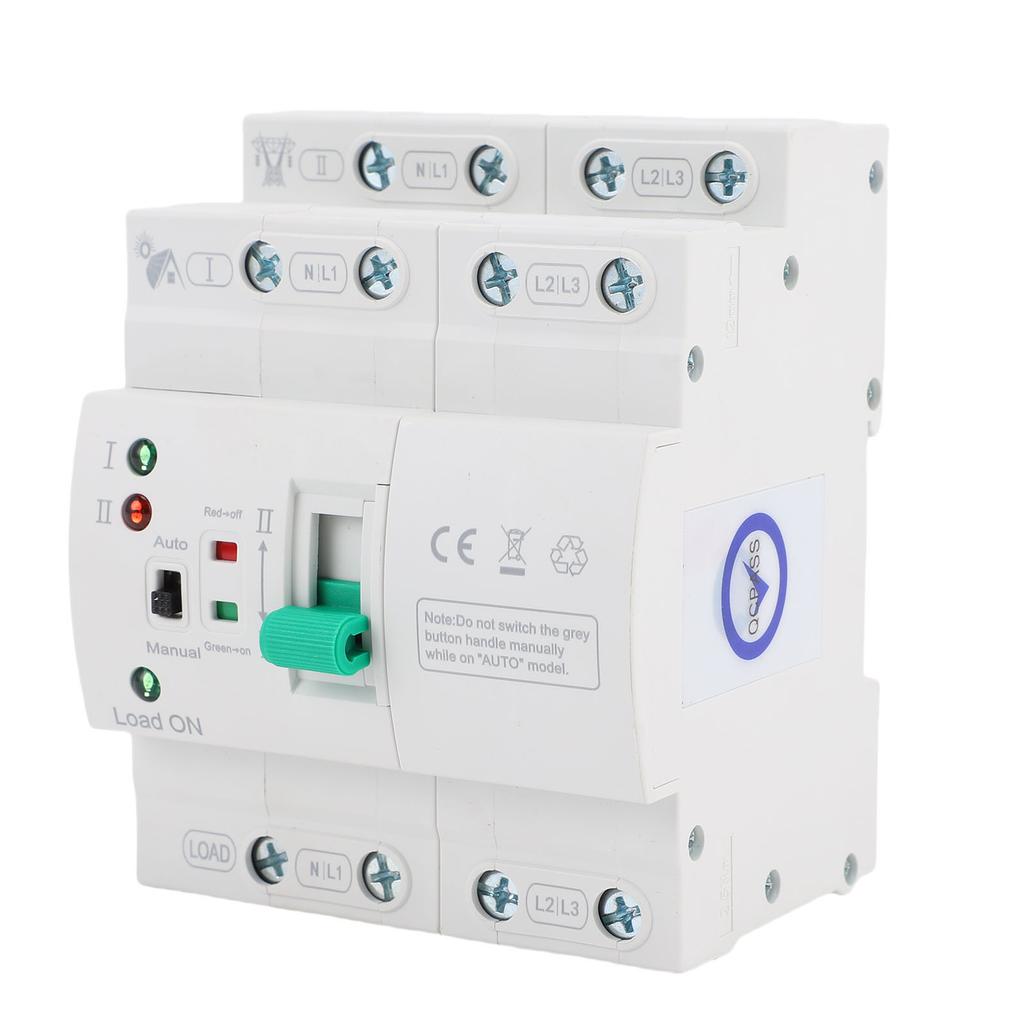

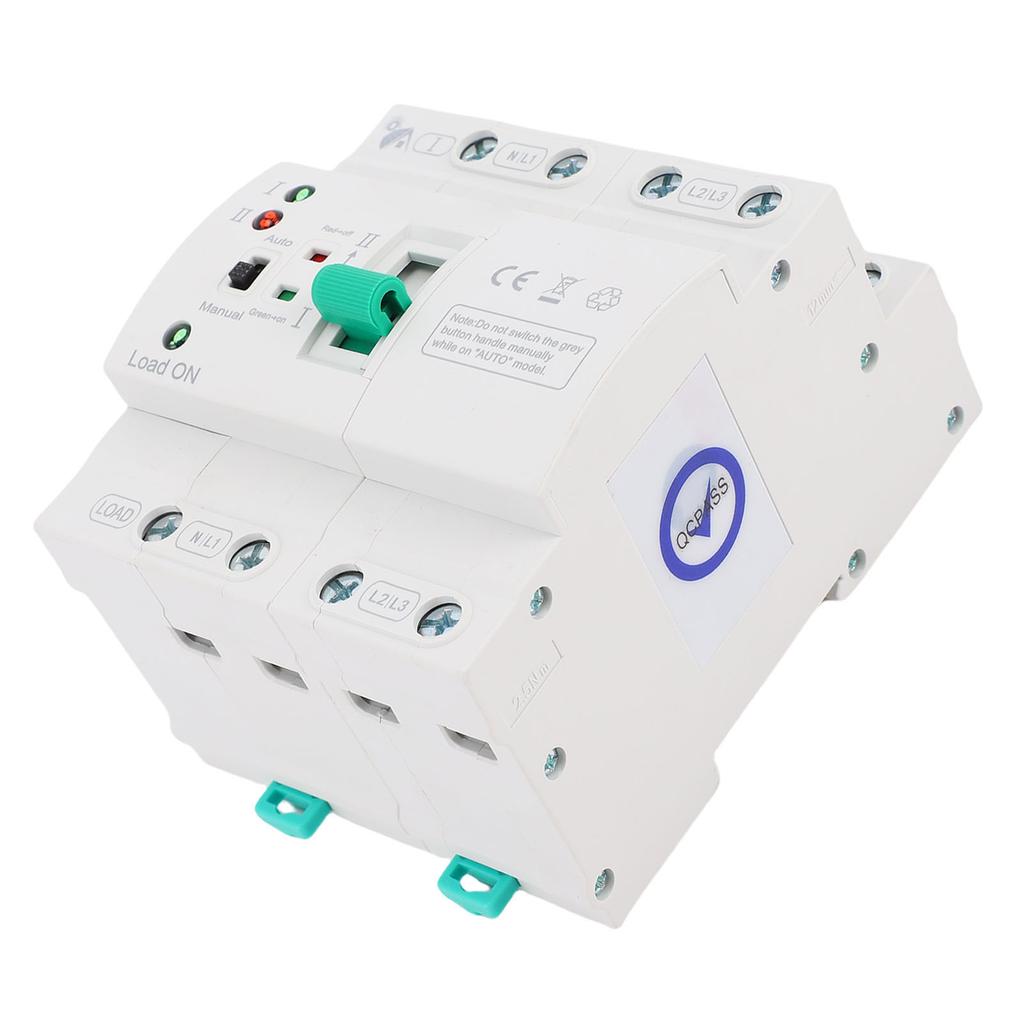

Mini ATS Automatic Manual Transfer Switch 4P 80A Home Generator Dual Auto Selector DIN Rail Mount for PZ30 Distribution

Feature: 1. FUNCTIONS AND USES: The ATS transfer switch is a PC level infrequent switching switch, mainly used for automatic or manual switching between two power supplies, and can detect whether the common power supply or backup power supply is normal. Can switch power sources(either mains power or inverter power) within 20ms to build an uninterruptible power supply, ensuring the continuity, reliability and safety of power supply 2. AUTOMATIC MODE: When using the automatic mode, the left switch of the mini ATS is set to the Auto position, and the right handle is set to the I position. When the common power supply I is normal, the IU(green light) remains constantly on. When the common power supply I is abnormal, the IU(green light) goes out and switches to the automatic power supply II within 20ms, and the IIU(red light) turns on. When the common power supply I returns to normal, it will automatically switch back to the common power supply from the backup power supply II 3. MANUAL MODE: When using the manual mode, the left switch of the mini ATS is placed in the Manual position. If power I is selected, manually operate the handle on the right to set the switch to the I position, and the IU(green light) will light up. If power II is selected, please manually operate the right handle to set the switch to the II position. The IU(red light) will light up 4. APPLICABLE SCENARIO: 4P micro ATS transfer switch, the input end can be connected to 1 neutral wire(N) and 3 live wires(L), specially designed for household rail installation, specifically for PZ30 distribution boxes, suitable for 50 60Hz dual power grids 5. WIDELY USED: This 4P dual power automatic transfer switch ensures a stable power supply and is suitable for situations where power outages cannot be tolerated, especially for high demand equipment. For example, hospitals, low temperature cold storage facilities, data centers and emergency systems. During the period when the main power supply is cut off, can automatically and quickly switch to the backup power supply to ensure safe and trusted power supply. Suitable for indoor and outdoor generators Specification: Item Type: Mini ATS Model: NLQ7 125 Material: PC inflaming retarding and silver Rated Current Le: 80A Frequency: 50 60HZ Grade: PC level Specification: 4PTransfer Action Time: 20ms Rated Short Circuit Current: 50kA Lifespan: Electrical: more than 1500 Times; Mechanical: more than 6000 Times Usage Category: AC 31B. Package List: 1 x Mini ATS 1 x User Manual
