Feature:

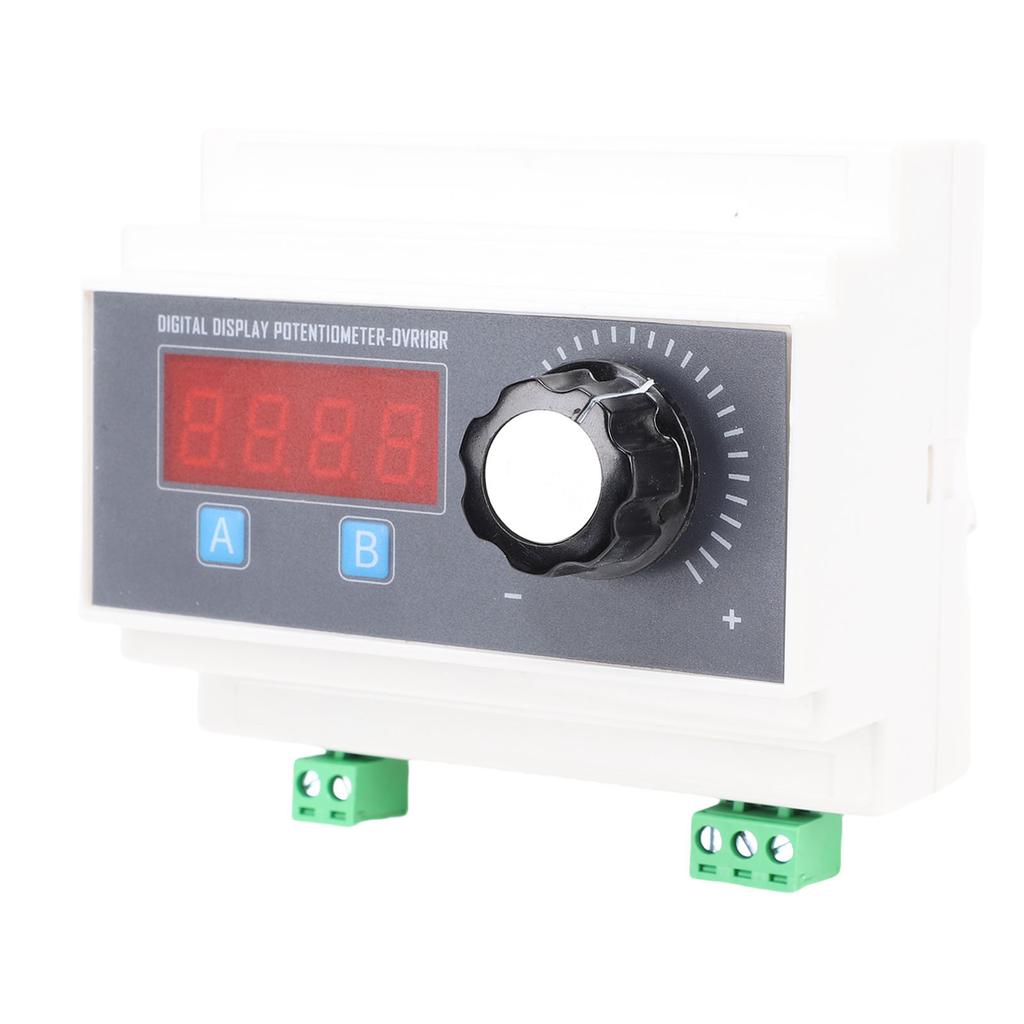

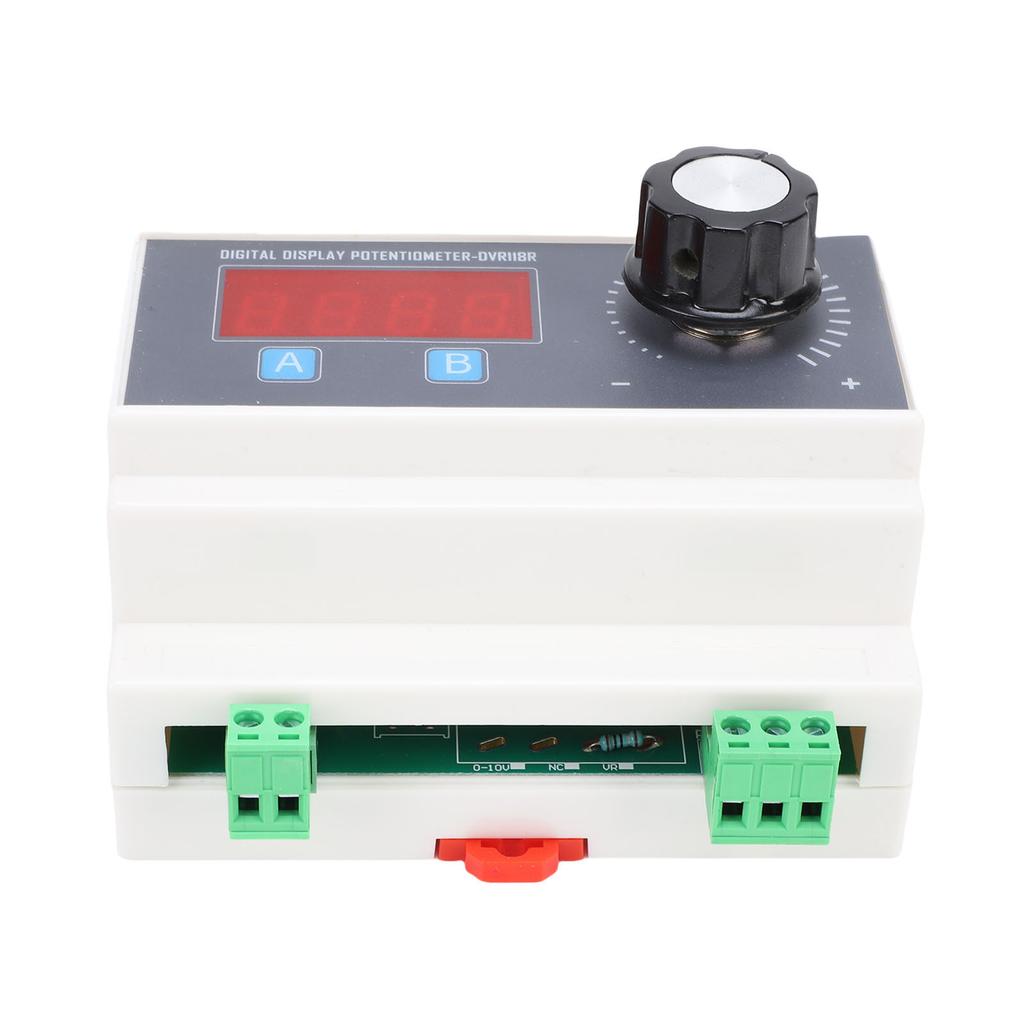

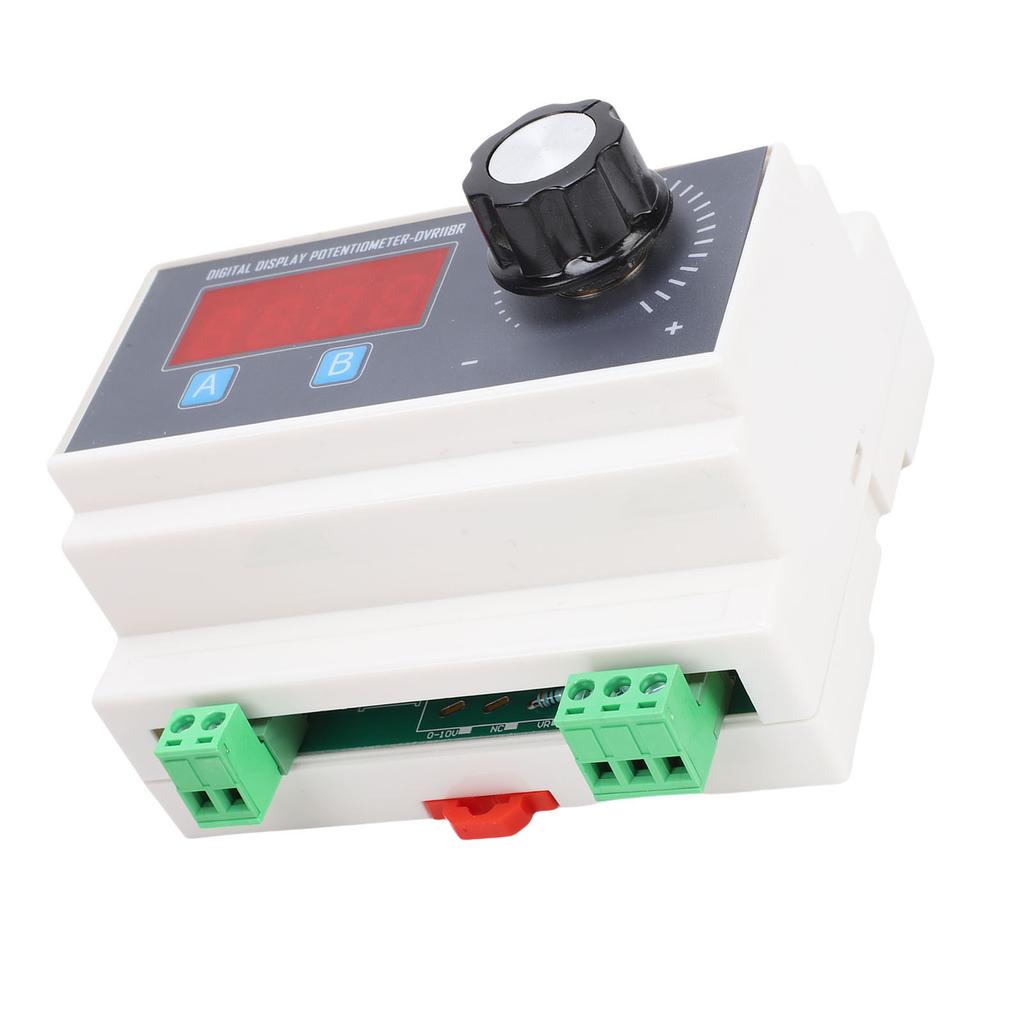

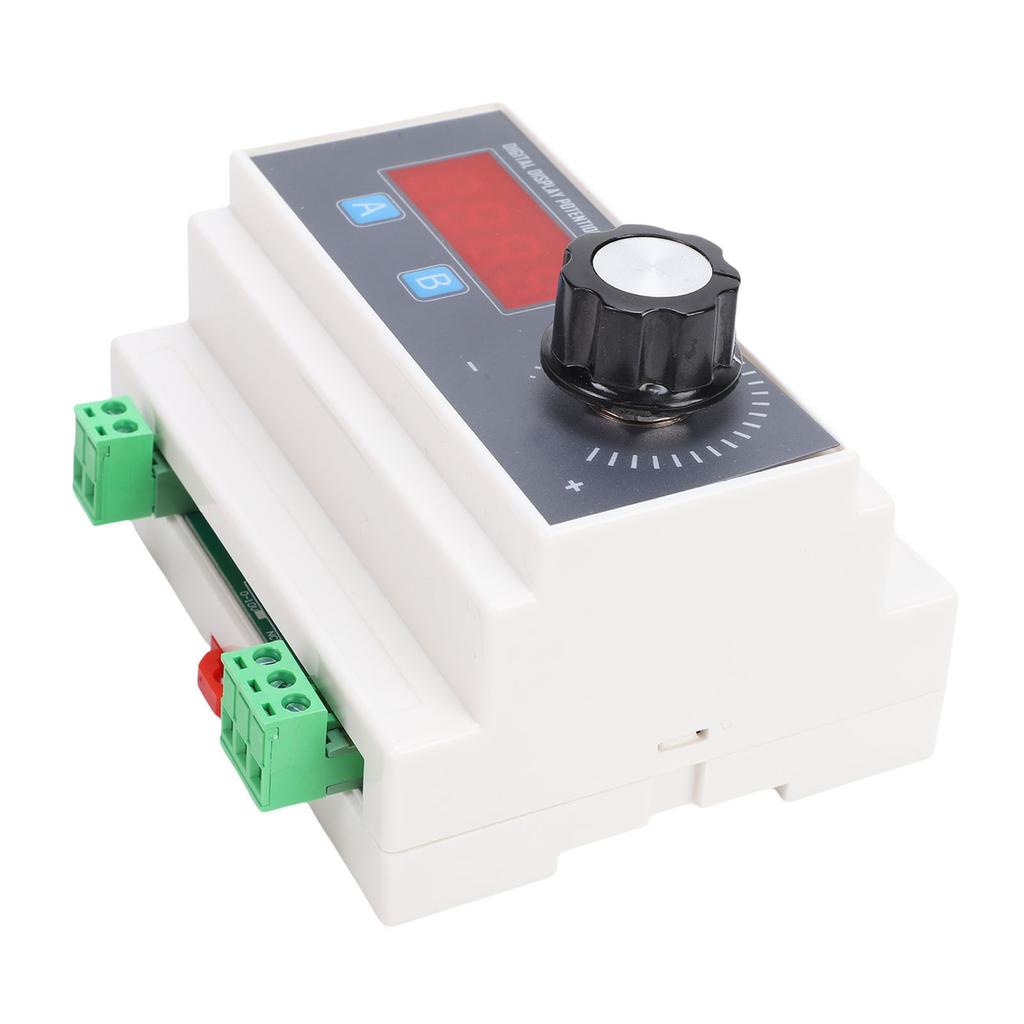

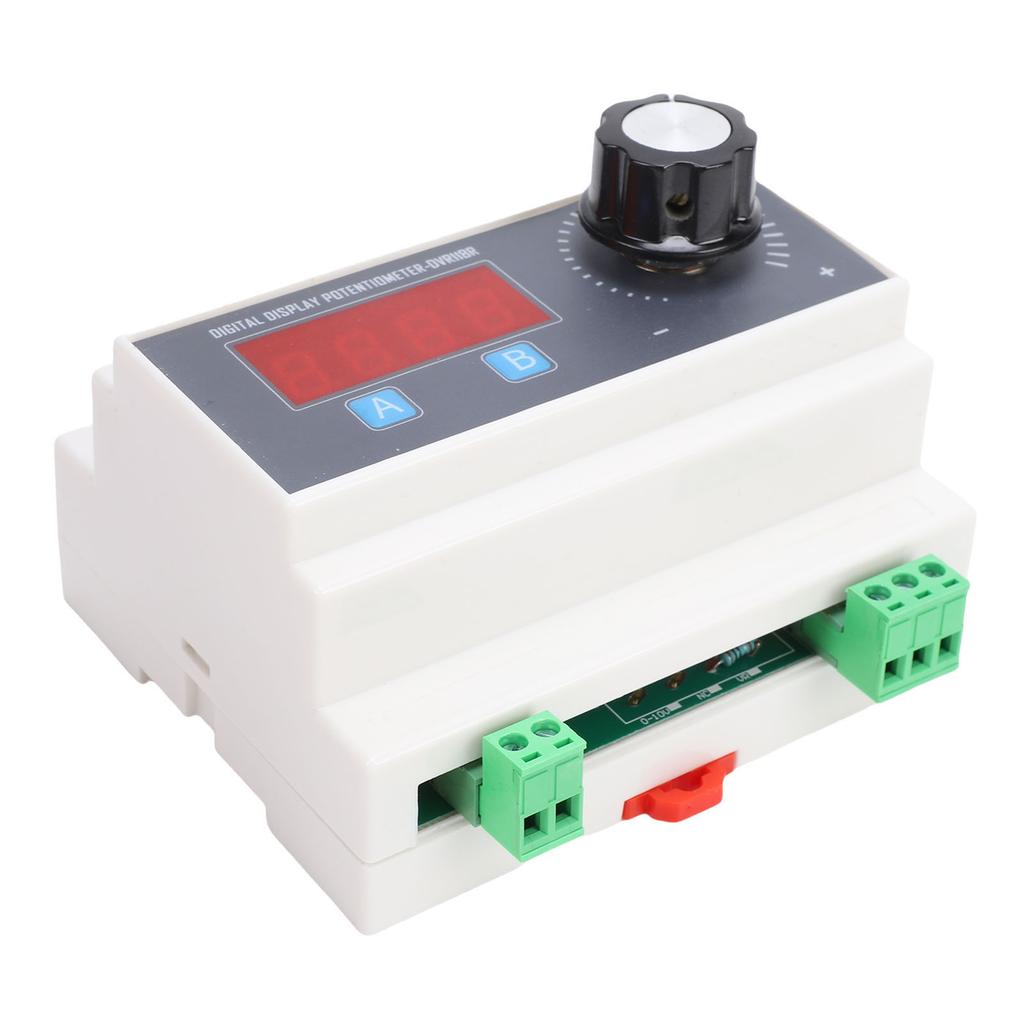

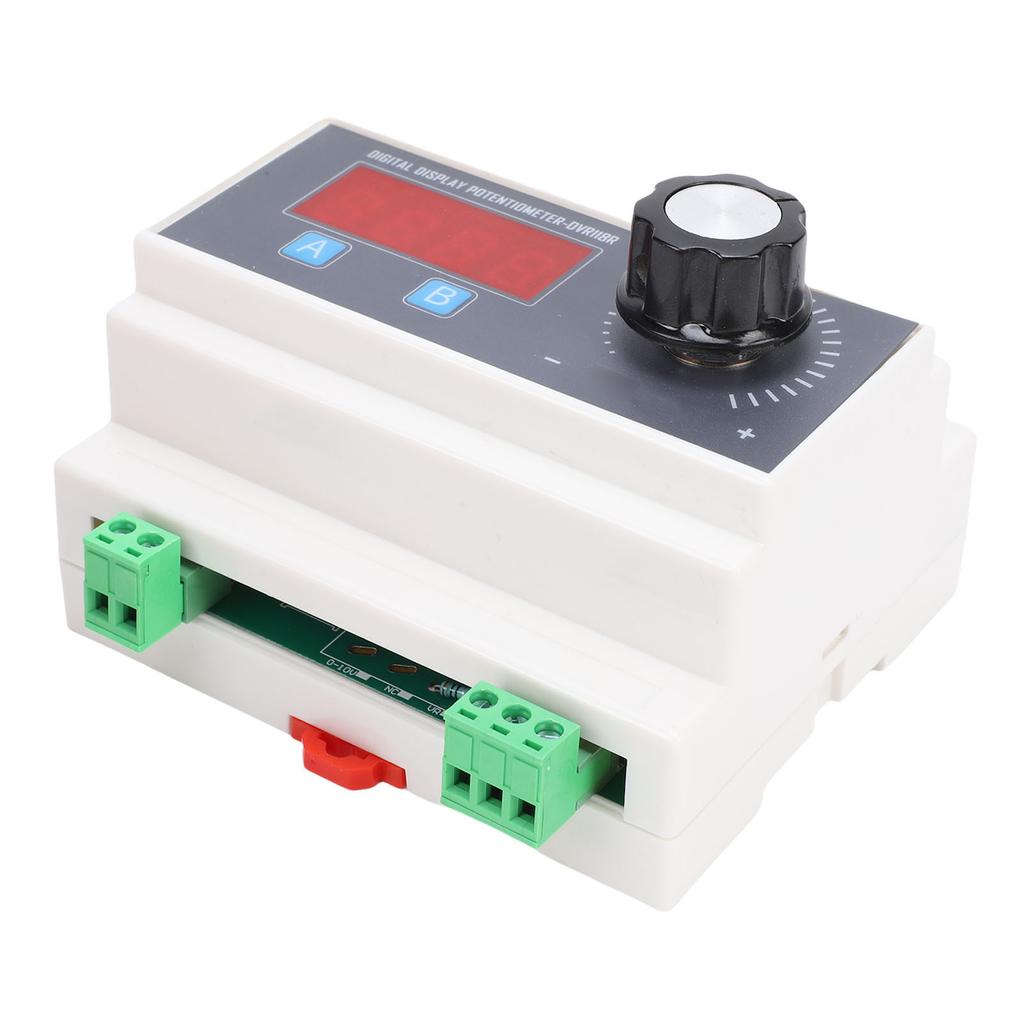

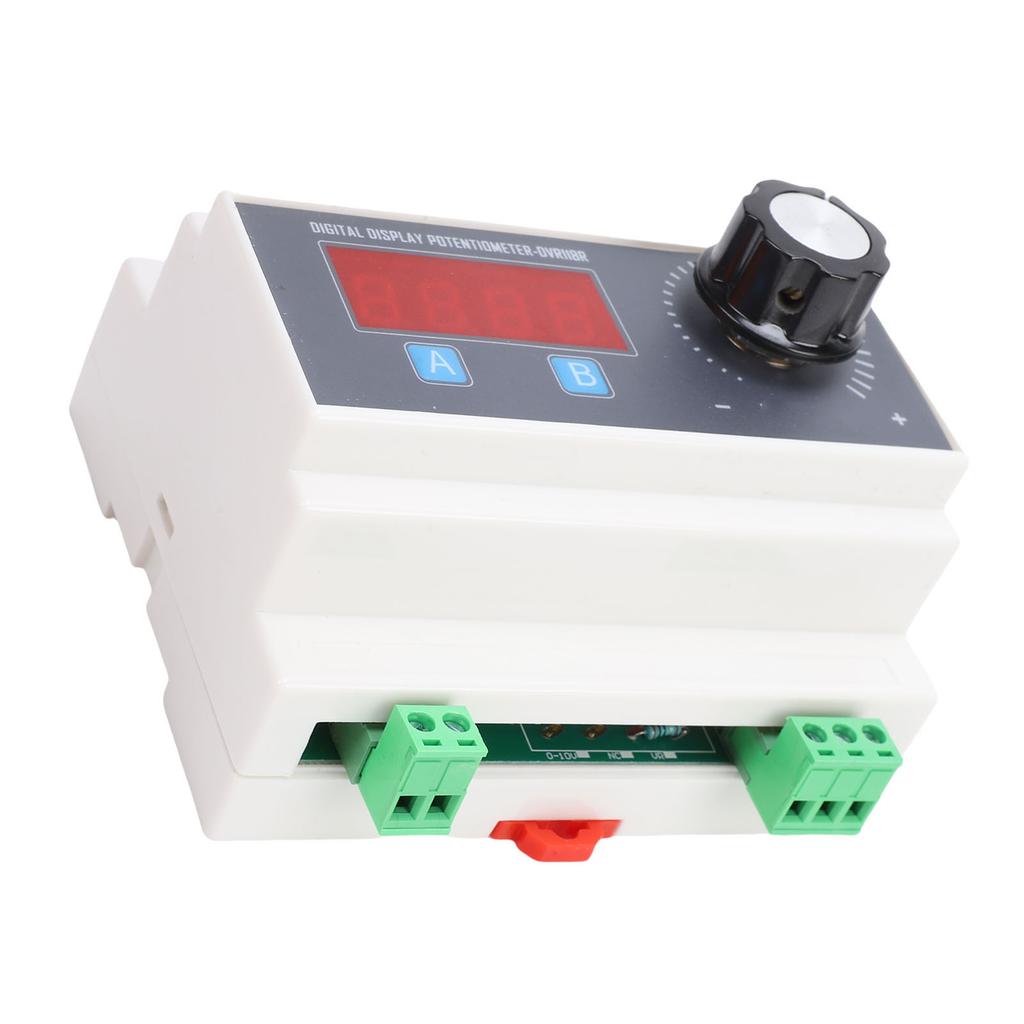

1. Convenient Rail Mounting: Easily install our digital potentiometer on a rail for seamless integration into any setup. With a power rating of 2W and a resist value of 10K Ohm , it brings efficiency to your projects.

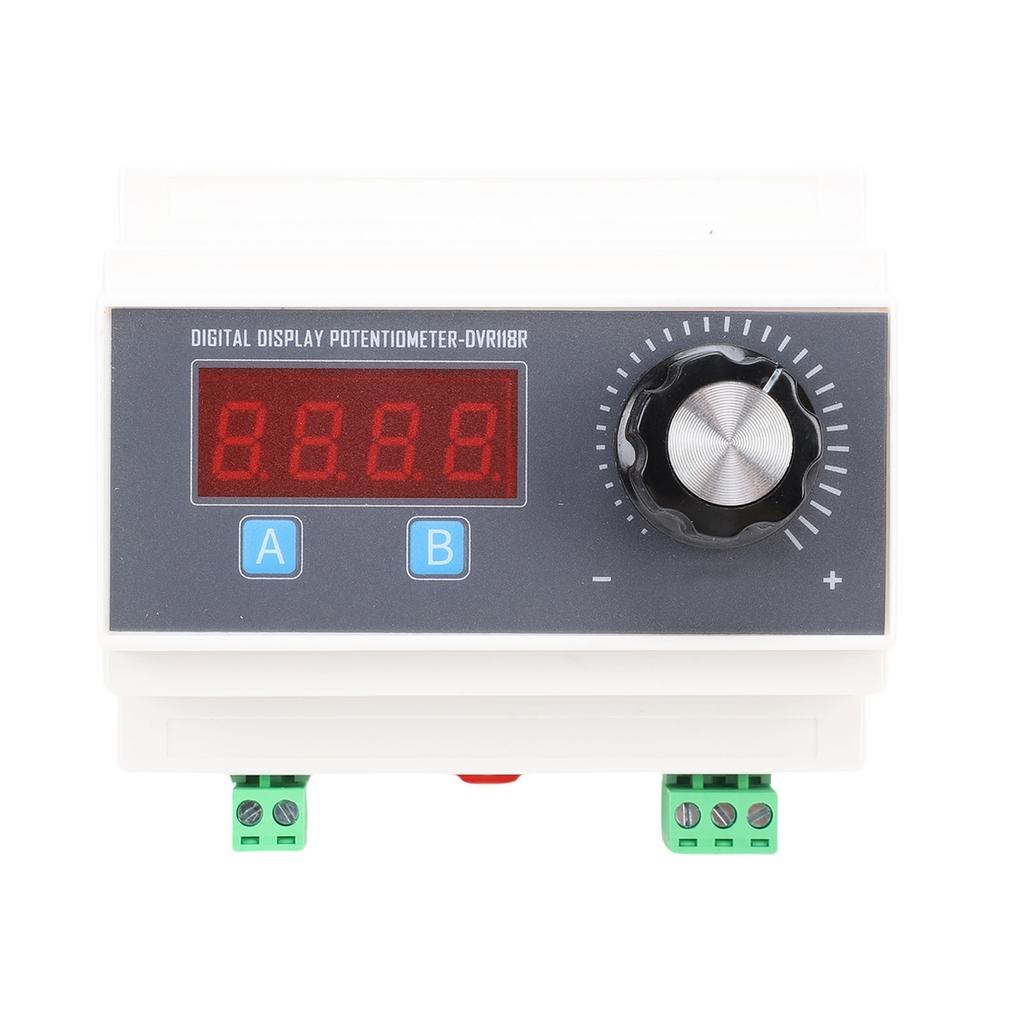

2. Accuracy Measurement: Equipped with a 4 digit 0.4 inch digital display, our WH148 potentiometer adjustment ensures measurement accuracy that matches traditional single turn 2W potentiometers. Experience reliable and accurate control.
3. Advanced Programming Features: Set minimum range values ( 1000 to +1000), scaling factors (0.1 to 5.0), amplification options (x1, x2, x10), and decimal point positioning. Customize your usage to meet specific needs.
4. Robust Data Protection: Featuring an industrial grade circuit design with a dedicated chip for current loops, our potentiometer ensures data retention during power loss. Your settings and startup values are safely stored for reliable performance.
5. Wide Application Range: This digital potentiometer provides smoothly output adjustments, making it the substitute for most common single turn potentiometers with the same resist. Compatible with speed controllers, PLCs, and variable frequency drives for diverse applications.
Specification:
Item Type: Digital Potentiometer Module
Material: Flame Retardant PC
Potentiometer Power: 2W
Resist Value: 10K Ohm
Parameter Setting: Parameter Minimum Value Range
Range: 1000 to 1000
Operation Instructions:
1: Long press the A key, the first digit will flash,
2: Press the B key to adjust the value,
3: Press the A key to switch to the second digit, then the third, and fourth,
4: Press A again to store and exit.
Parameter Setting: Parameter Setting Magnification
Range: 0.1 to 5.0
Operation Instructions:
1: Long press the B key, all four digits will flash,
2: Press the A key to increment the value by 1 each time, after reaching a suitable value,
3: Press B again to store and exit.
Parameter Setting: Magnification Setting
Range: x1, x2, x10
Operation Instructions:
1: Short press the B key to switch the magnification to 1x, 2x, or 10x,
2: Automatically saves after 2 seconds.
Parameter Setting: Decimal Point Setting
Range: X.XXX, XX.XX, XXX.X, XXXX
Operation Instructions:
1: Short press the A key to switch the decimal point,
2: Automatically saves after 2 seconds.
Parameter Setting Reference Table:
Serial Number: 1
Display Minimum Value: 0000
Display Maximum Value: 1000
Set Minimum Value A: 0000
Set Magnification B Maximum 5.0: 1.0
Set Decimal Point Position: XXXX
C10, C02, or C01 Set C: C01
Serial Number: 2
Display Minimum Value: 0000
Display Maximum Value: 640.0
Set Minimum Value A: 0000
Set Magnification B Maximum 5.0: 3.2
Set Decimal Point Position: XXX.X
C10, C02, or C01 Set C: C02
Serial Number: 3
Display Minimum Value: 030.0
Display Maximum Value: 080.0
Set Minimum Value A: 0300
Set Magnification B Maximum 5.0: 0.5
Set Decimal Point Position: XXX.X
C10, C02, or C01 Set C: C01
Serial Number: 4
Display Minimum Value: 50.0
Display Maximum Value: 50.00
Set Minimum Value A: 500
Set Magnification B Maximum 5.0: 1.0
Set Decimal Point Position: XXX.X
C10, C02, or C01 Set C: C01
Serial Number: 5
Display Minimum Value: 04.00
Display Maximum Value: 20.00
Set Minimum Value A: 0400
Set Magnification B Maximum 5.0: 1.6
Set Decimal Point Position: XX.XX
C10, C02, or C01 Set C: C01
Serial Number: 6
Display Minimum Value: 0000
Display Maximum Value: 8000
Set Minimum Value A: 0000
Set Magnification B Maximum 5.0: 4.0
Set Decimal Point Position: XXXX
C10, C02, or C01 Set C: C02
Serial Number: 7
Display Minimum Value: 1000
Display Maximum Value: 1000
Set Minimum Value A: 1000
Set Magnification B Maximum 5.0: 2.0
Set Decimal Point Position: XXXX
C10, C02, or C01 Set C: C01
Serial Number: 8
Display Minimum Value: 00.00
Display Maximum Value: 10.00
Set Minimum Value A: 0000
Set Magnification B Maximum 5.0: 1.0
Set Decimal Point Position: XX.XX
C10, C02, or C01 Set C: C01
Serial Number: 9
Display Minimum Value: 3000
Display Maximum Value: 5000
Set Minimum Value A: 0300
Set Magnification B Maximum 5.0: 0.2
Set Decimal Point Position: XXXX
C10, C02, or C01 Set C: C10
Serial Number: 10
Display Minimum Value: 00.00
Display Maximum Value: 24.00
Set Minimum Value A: 0000
Set Magnification B Maximum 5.0: 2.4
Set Decimal Point Position: XX.XX
C10, C02, or C01 Set C: C01
Serial Number: 11
Display Minimum Value: 1500
Display Maximum Value: 1500
Set Minimum Value A: 150
Set Magnification B Maximum 5.0: 0.3
Set Decimal Point Position: XXXX
C10, C02, or C01 Set C: C10
Serial Number: 12
Display Minimum Value: 1999
Display Maximum Value: 2000
Set Minimum Value A: 1000
Set Magnification B Maximum 5.0: 2.0
Set Decimal Point Position: XXXX
C10, C02, or C01 Set C: C02
Linear Error of Standard Potentiometer: 5percent or higher
Display Range: Minimum 1999, Maximum 9999
If the minimum value displayed is less than 1000 or greater than 1000, consider C02 or C10 first
.
Package List:
1 x Potentiometer
Note:
This module is a potentiometer module and cannot be directly used to adjust power loads. It can only be used as a substitute for potentiometers on controllers and devices.
